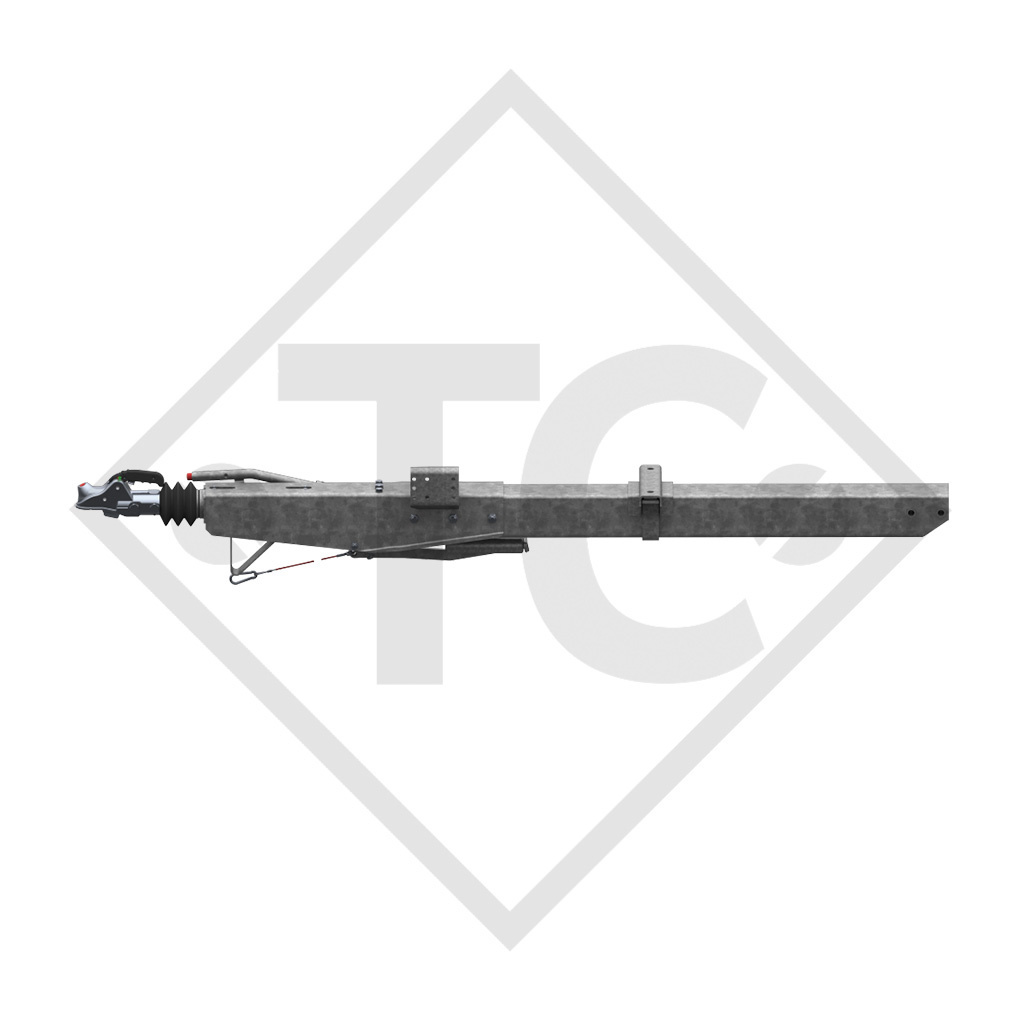

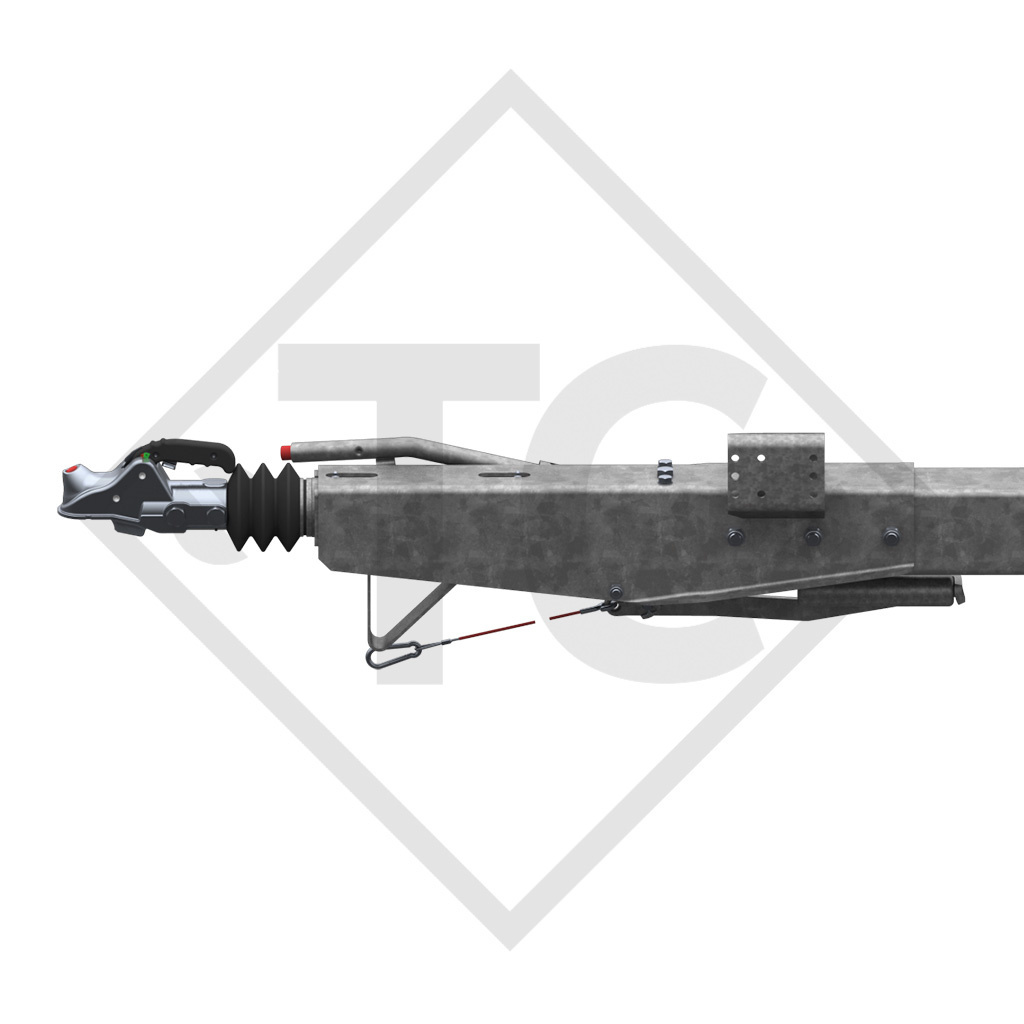

AL-KO Square overrun device type 2,8 VB/1-C - R35 vers. B with drawbar section straight 2500 to 3500kg

Part no. 20036356

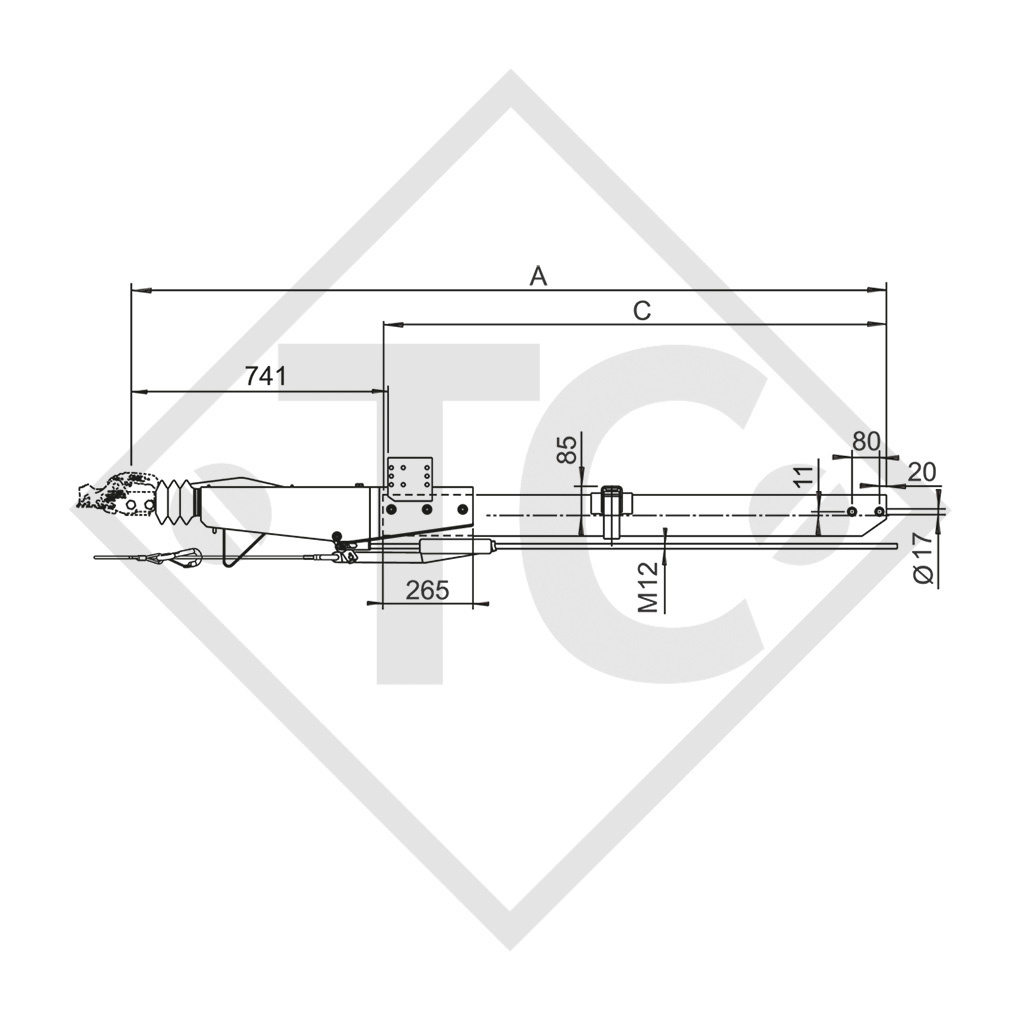

Total length A: 2775mm
Drawbar length C: 1940mm
Drawbar section: 120x120x5mm

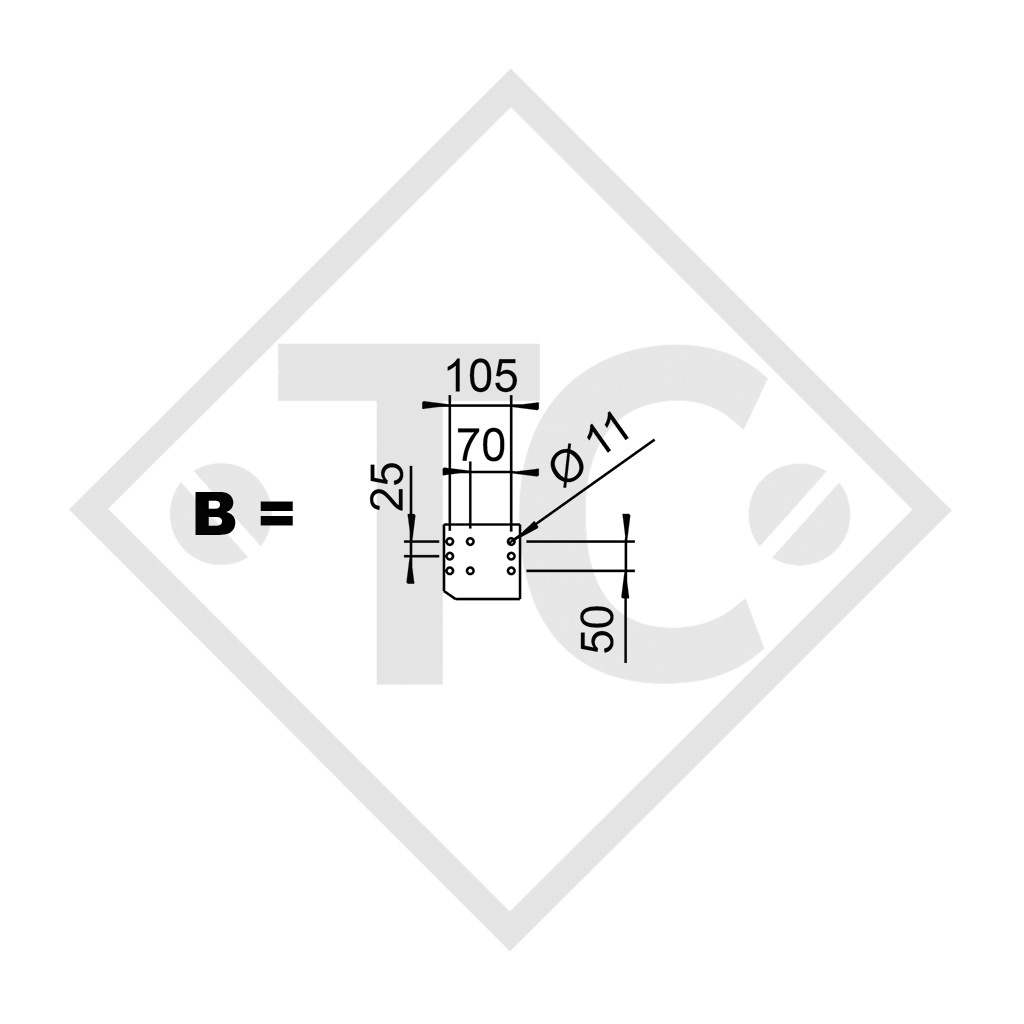

Jockey wheel flange = see illustration B

INSTALLATION MANUAL
SPARE PART LIST 811666

TECHNOLOGY
Type 2,8 VB/1-C - R35 vers. B
with coupling head AK 351 for wheel brake 2361 (90/32)
GA 2500 to 3500 kg
Perm. nose load 150 kg
Changeover relay lever: No

ECE test report no.:
Overrun device: 361-0045-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0378
Drawbar: E1 55R-01 0762

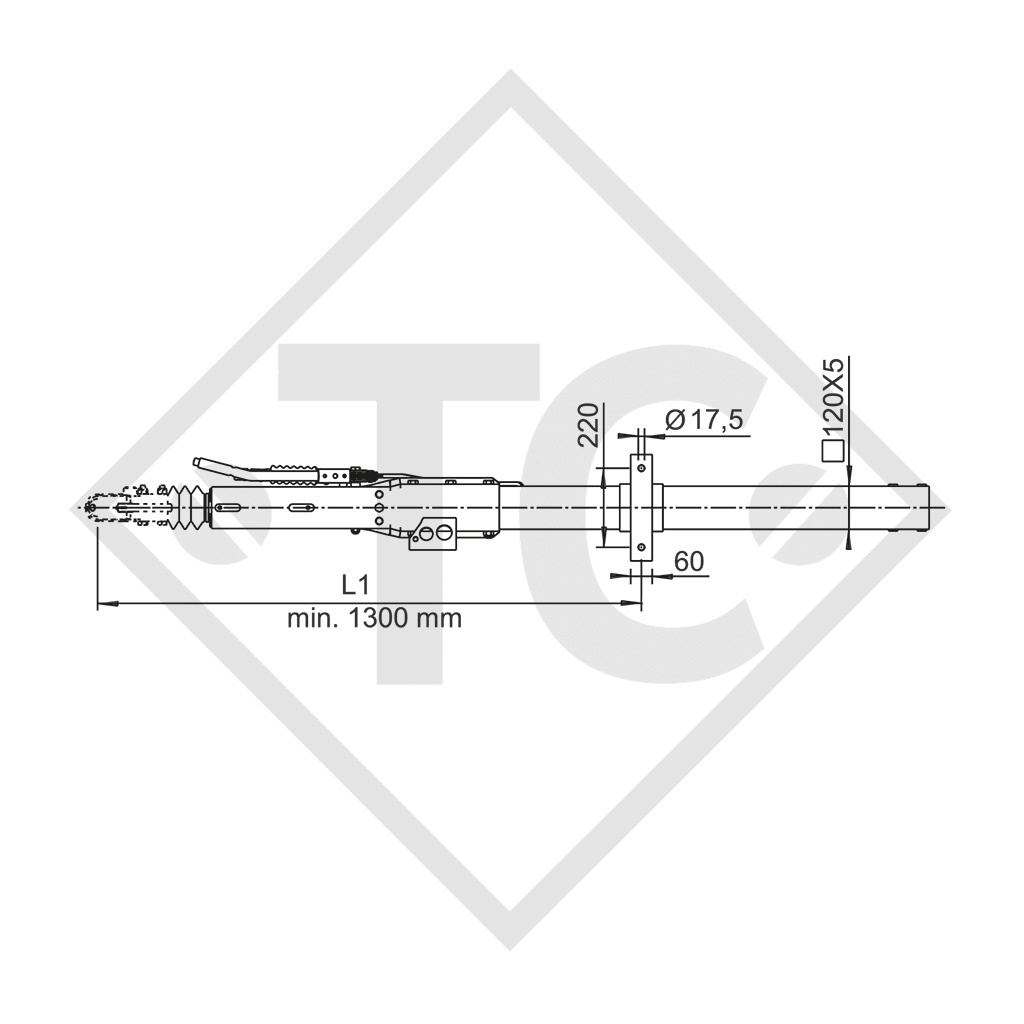

Max. free drawbar lenght at GA 3500 kg (L1): 1820 mm

SURFACE TREATMENT
Hot-dip galvanised
