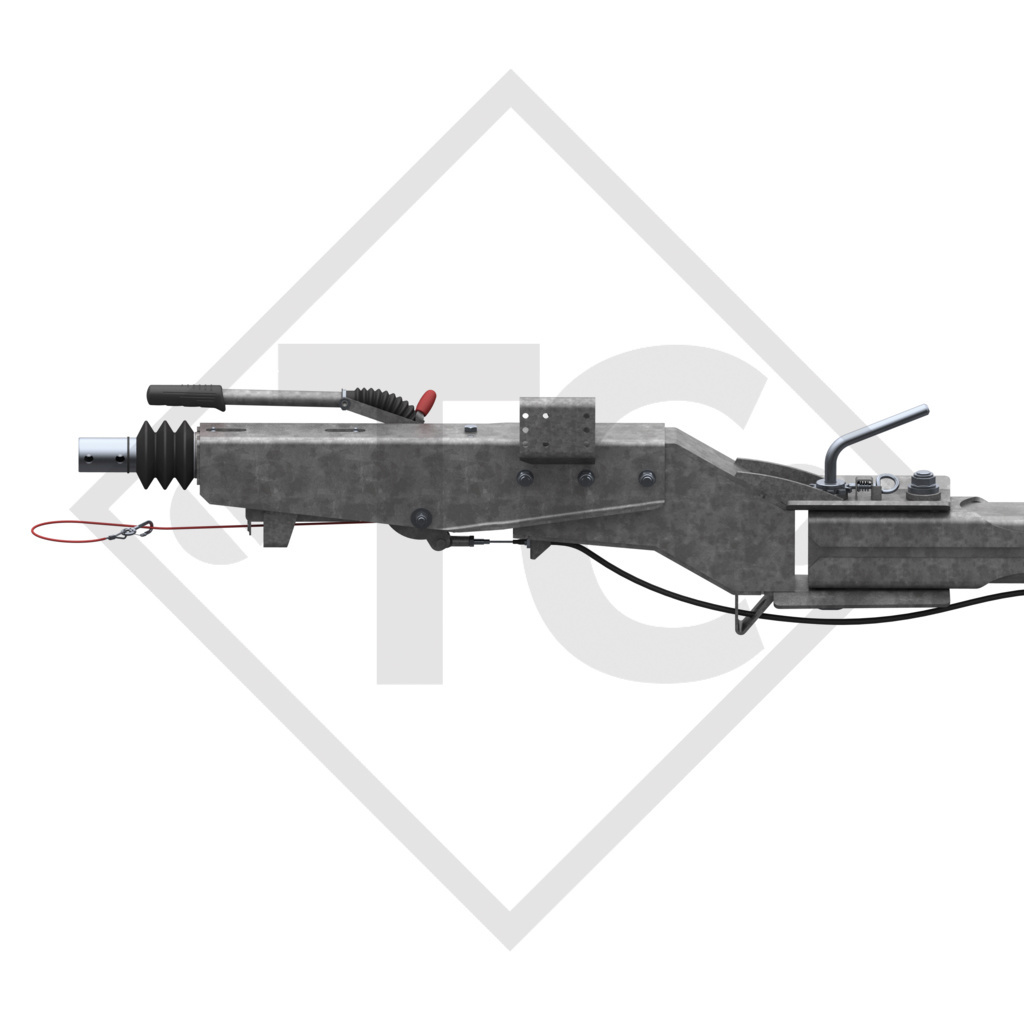

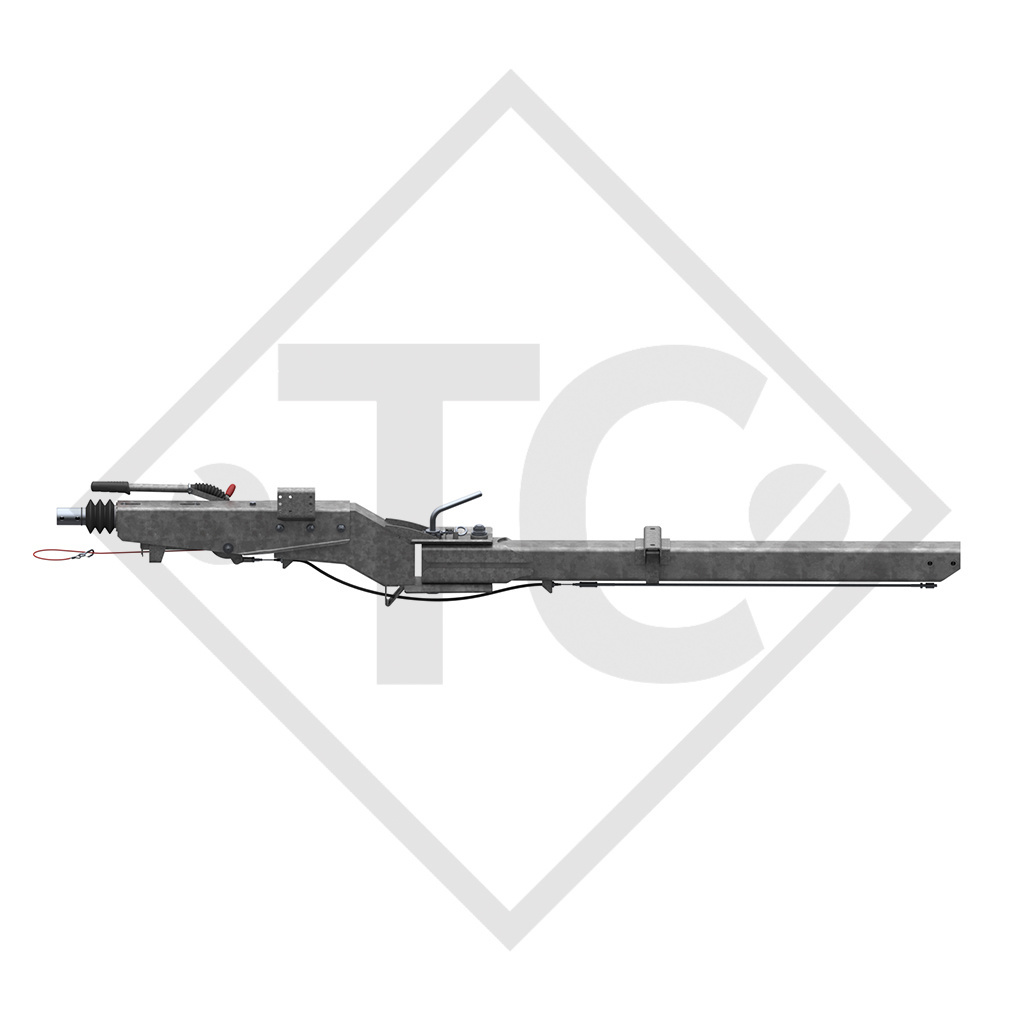

Home / Square overrun device type 2,8 VB/1-C - K35-S with sideways swivelling drawbar section from 2500 to 3500kg

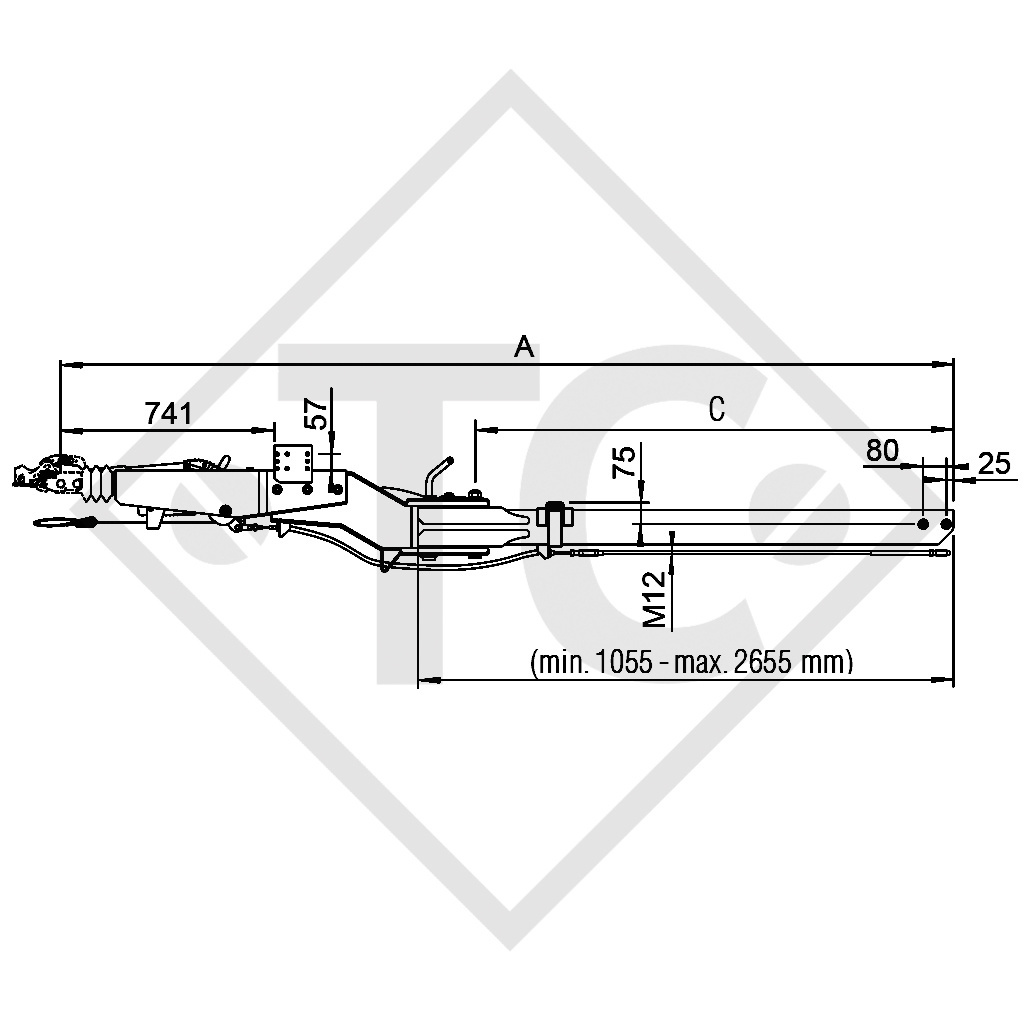

total length A 2490mm, drawbar length C 937mm, drawbar section 120x120x8mm, perm. nose load 150kg, without hitch component, for wheel brake 2361. Read more...
Part no. 20057302
without hitch component for wheel brake 2361 (90/32)
| Dimension A |
2490mm |
| Dimension C / pivot point dimension |
937mm |
Original operating instructions
Replacement part identification number 811727
TECHNOLOGY
Type 2,8 VB/1-C - K35-S
GA 2500 to 3500kg
Perm. nose load 150kg
Changeover relay lever: No
ECE test report no.:
Overrun device: 361-0045-97
ECE type approval no.:
Drawbar installation: E1 55R-01-0378
Drawbar: E1 55R-01 2415

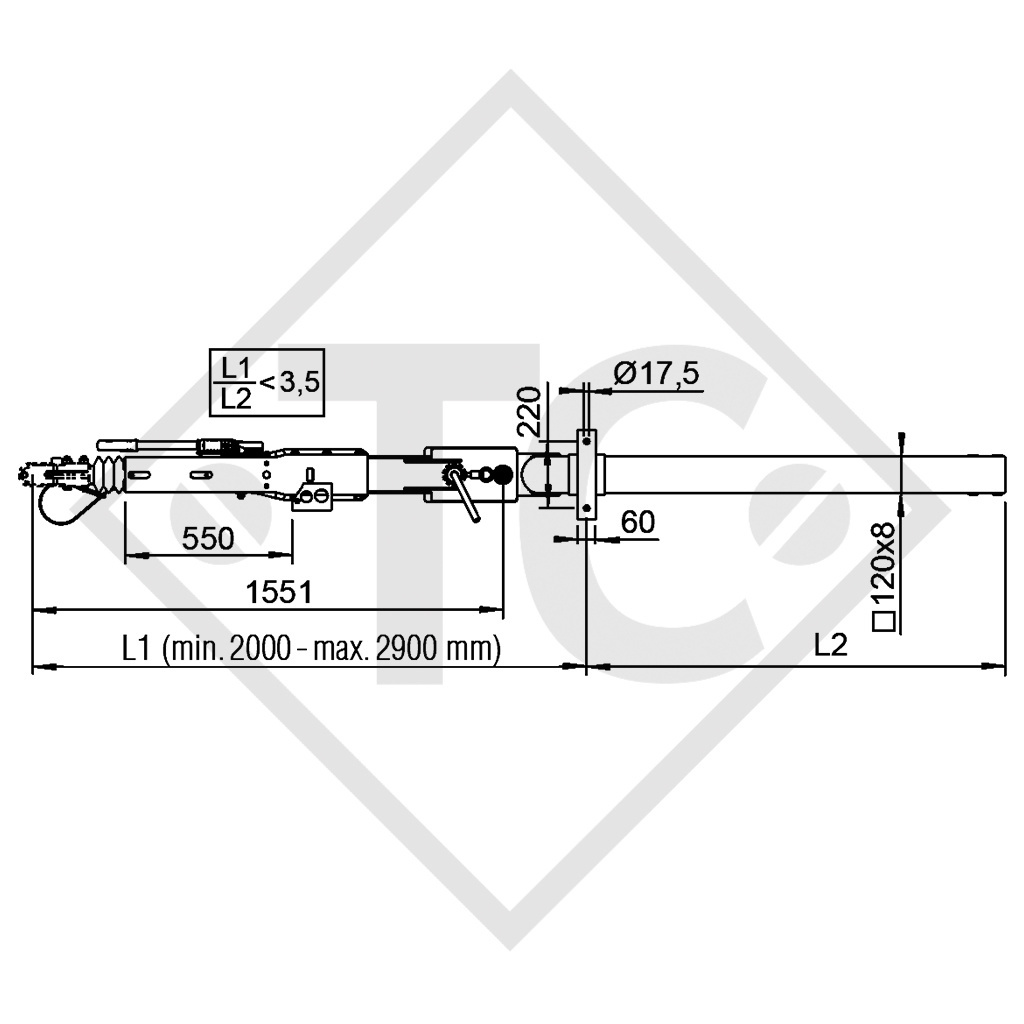

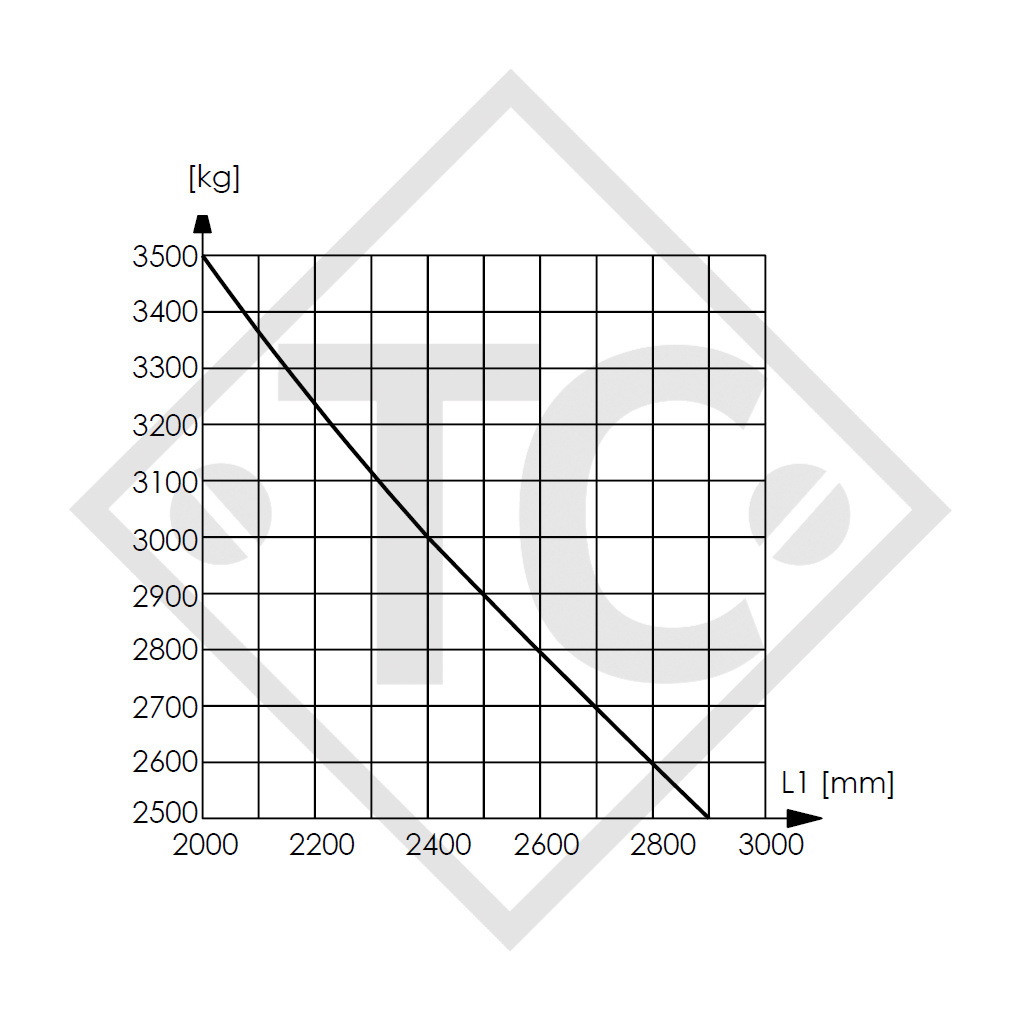

Max. free drawbar length with GA 3500kg (L1): 2000mm
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
