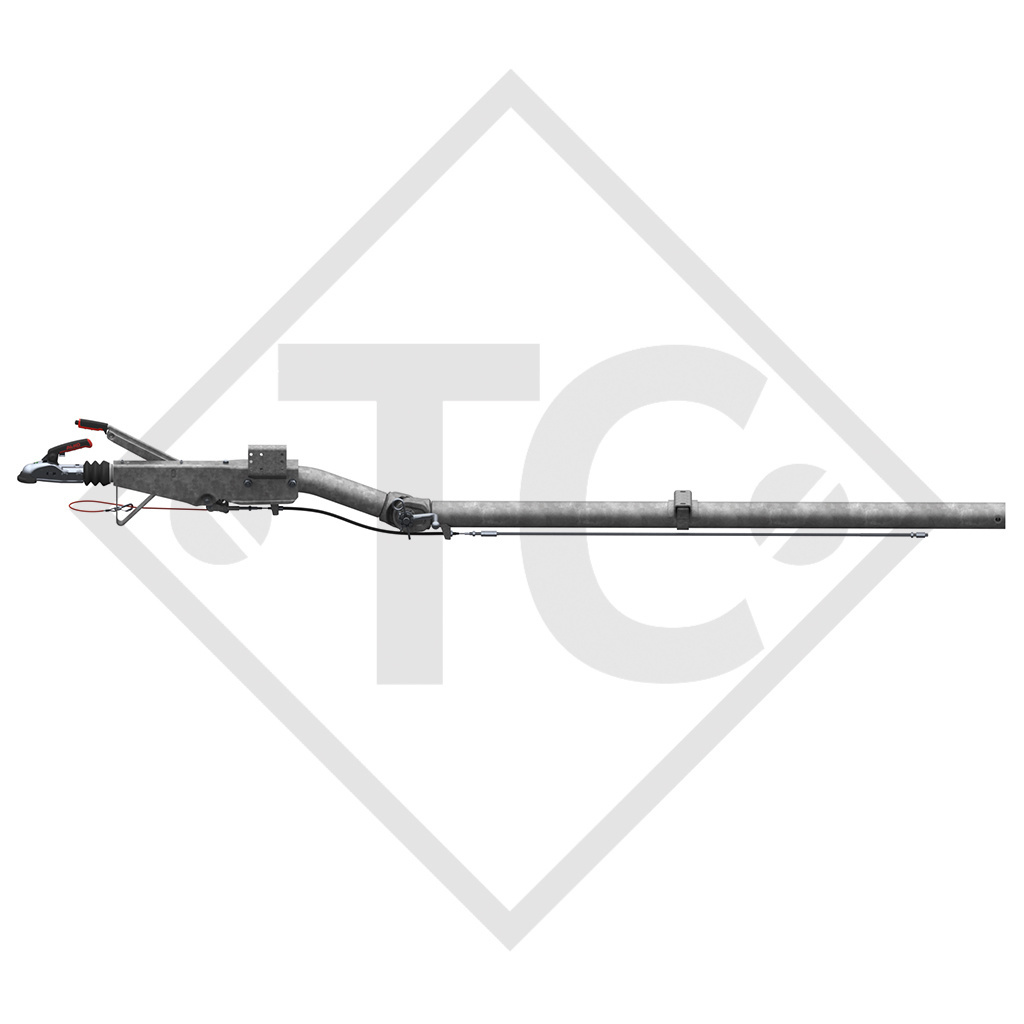

Home / Square overrun device type 251 S - ZE 252R with removable drawbar section from 1500 to 2600kg

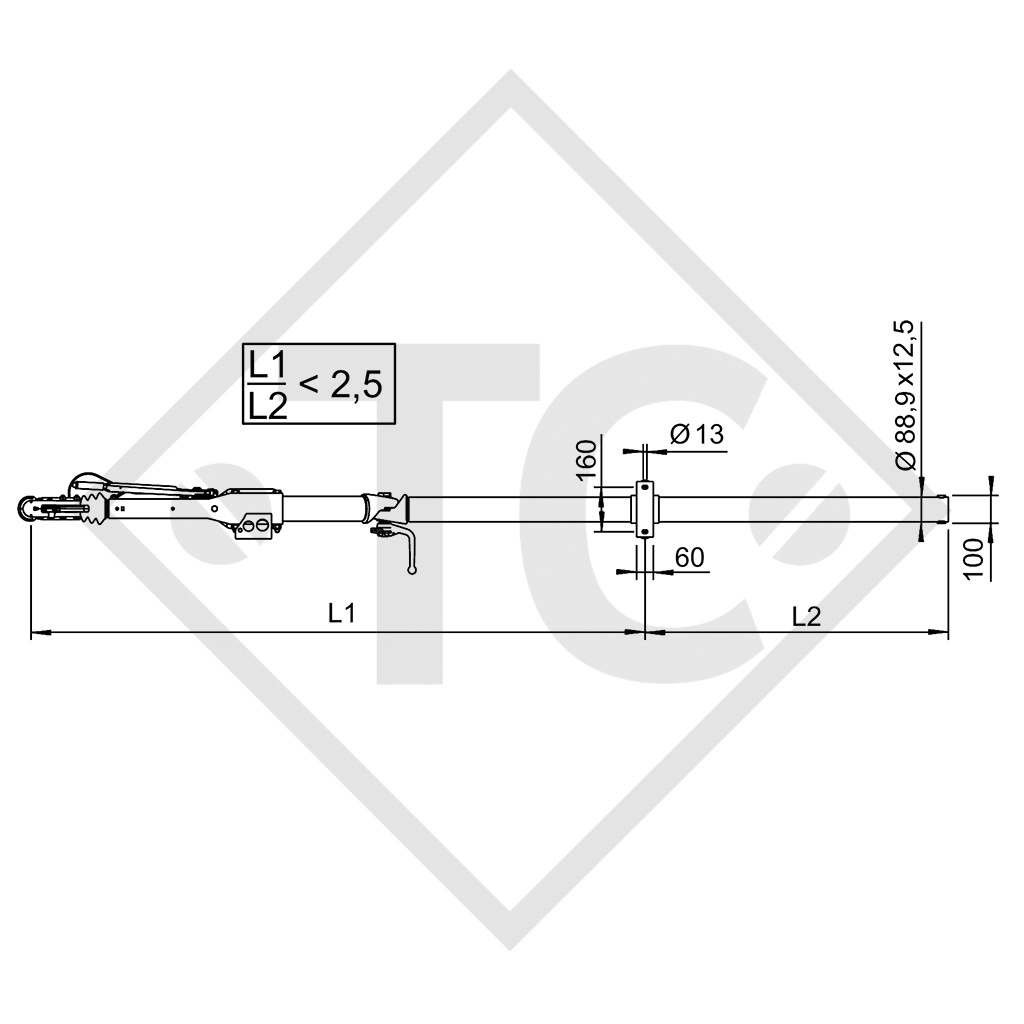

total length A 3445mm, drawbar length C 2185mm, drawbar section 88.9x5.6mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 2361. Read more...
Part no. 20063909
with coupling head AK 270 for wheel brake 2361 (90/30)
| Dimension A |
3445mm |
| Dimension C | 2185mm |
Original operating instructions
Replacement part identification number 811186
TECHNOLOGY
Type 251 S - ZE 252R
GA 1500 to 2600kg
Perm. nose load 100kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device 251S: 361-0044-97
ECE type approval no.:
Drawbar installation 161K: E1 55R-01 0268
Drawbar installation 252R: E1 55R-01 0536

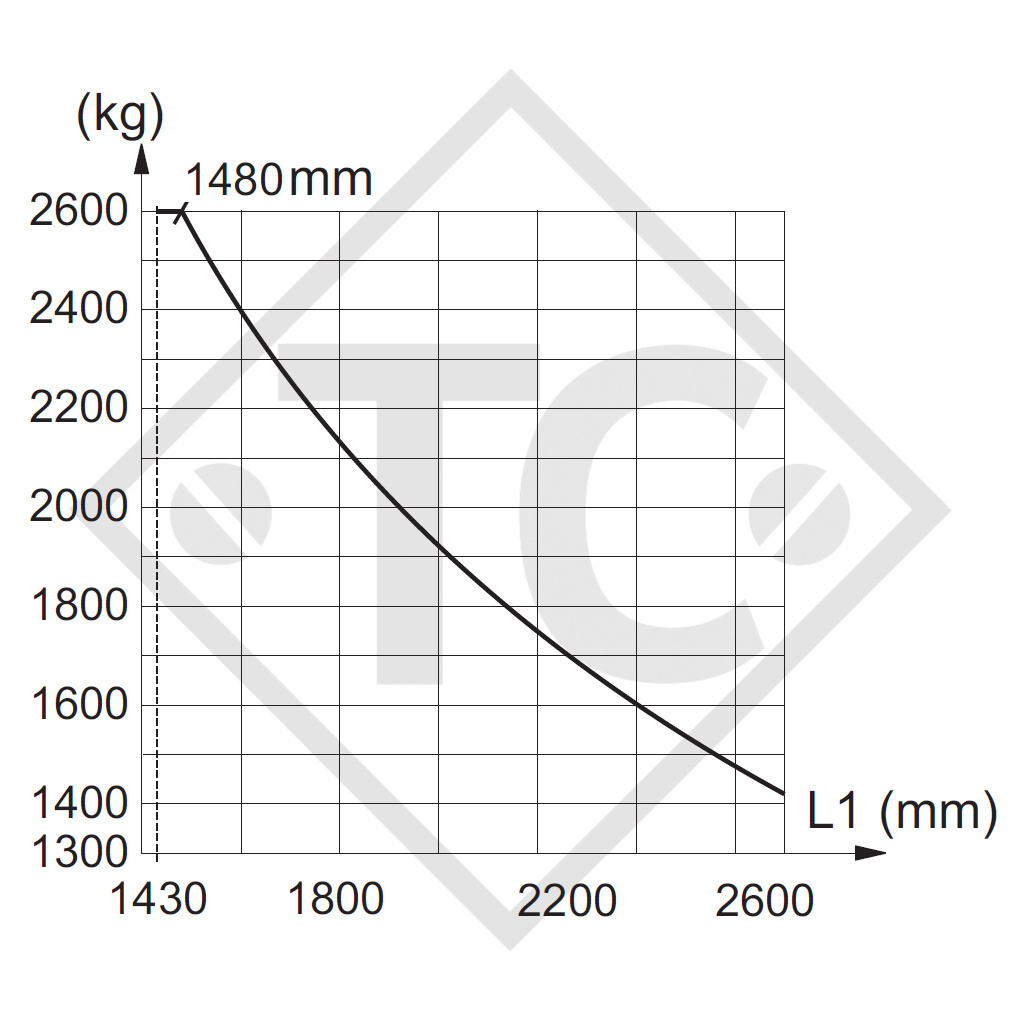

Max. free drawbar length with GA 2600kg (L1): min. 1440mm, max. 1480mm
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
