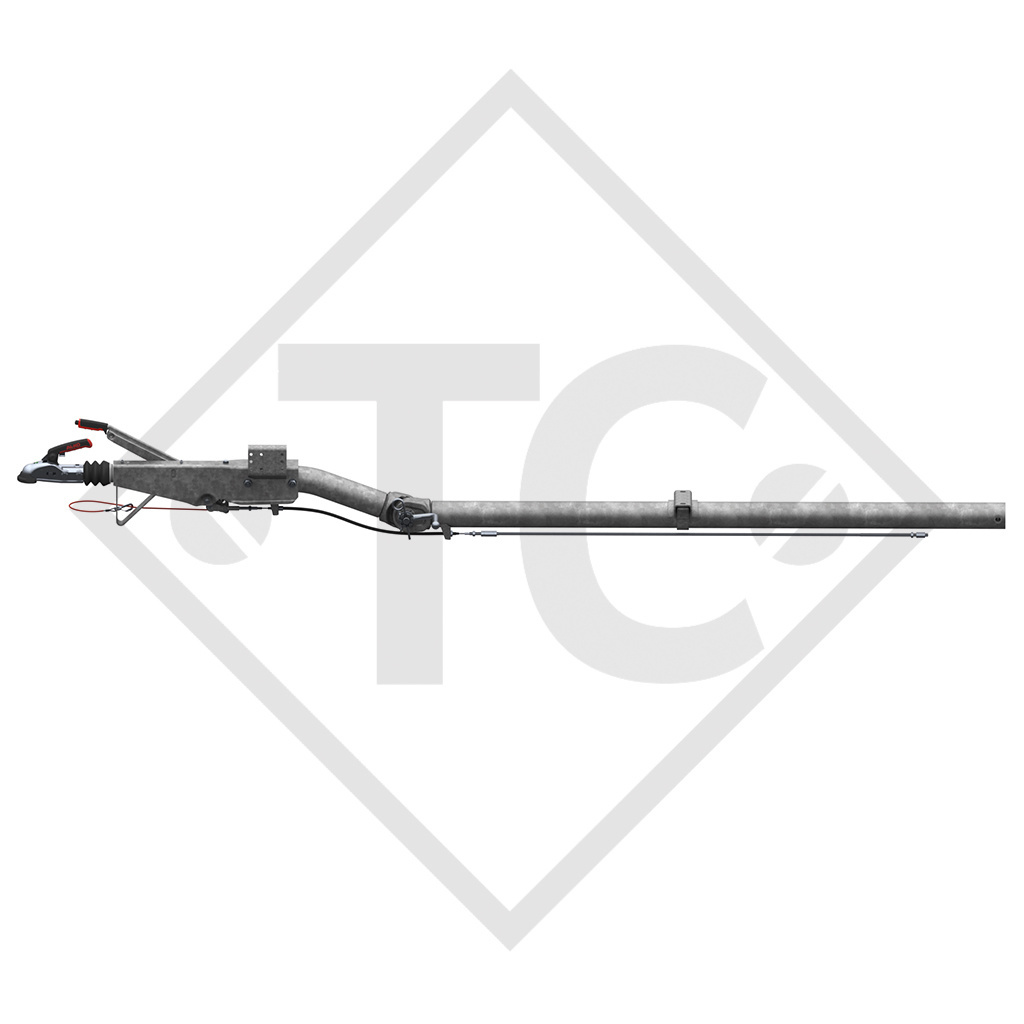

Home / Square overrun device type 251 S - ZE 252R with removable drawbar section from 1500 to 2600kg
total length A 2965mm, drawbar length C 1705mm, drawbar section 88.9x5.6mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 1637 / 2051. Read more...
Part no. 20063806
with coupling head AK 270 for wheel brake 2051 (90/27)

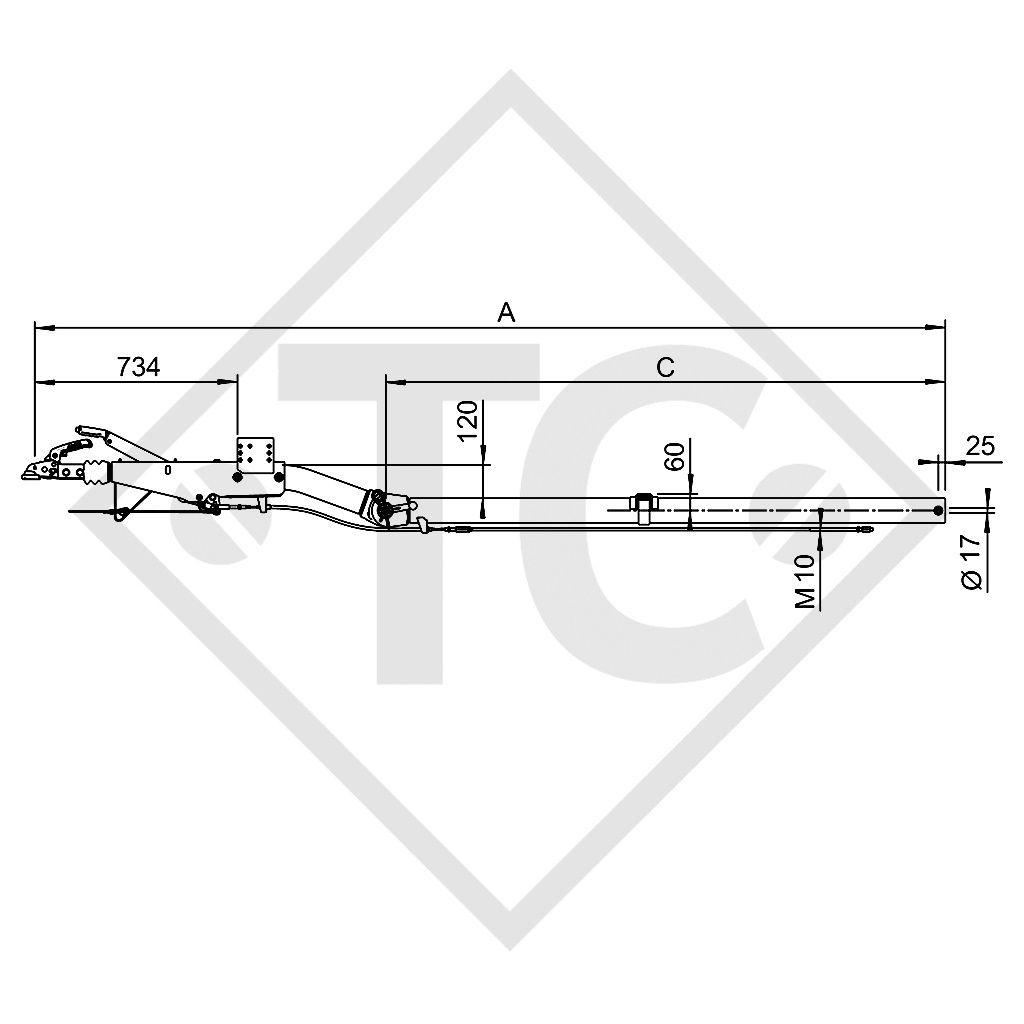

| Dimension A |
2965mm |
| Dimension C | 1705mm |
Original operating instructions
Replacement part identification number 811186
TECHNOLOGY
Type 251 S - ZE 252R
GA 1500 to 2600kg
Perm. nose load 100kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device 251S: 361-0044-97
ECE type approval no.:
Drawbar installation 161K: E1 55R-01 0268
Drawbar installation 252R: E1 55R-01 0536

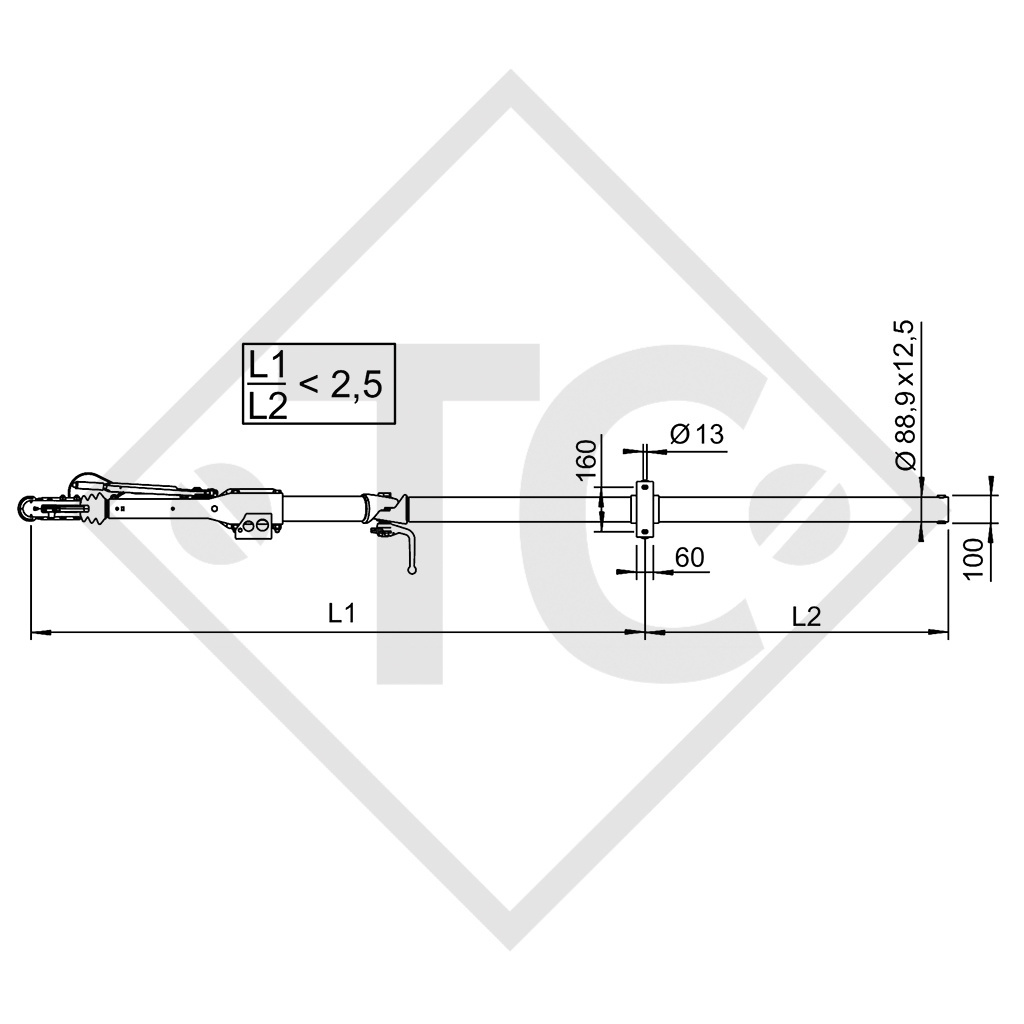

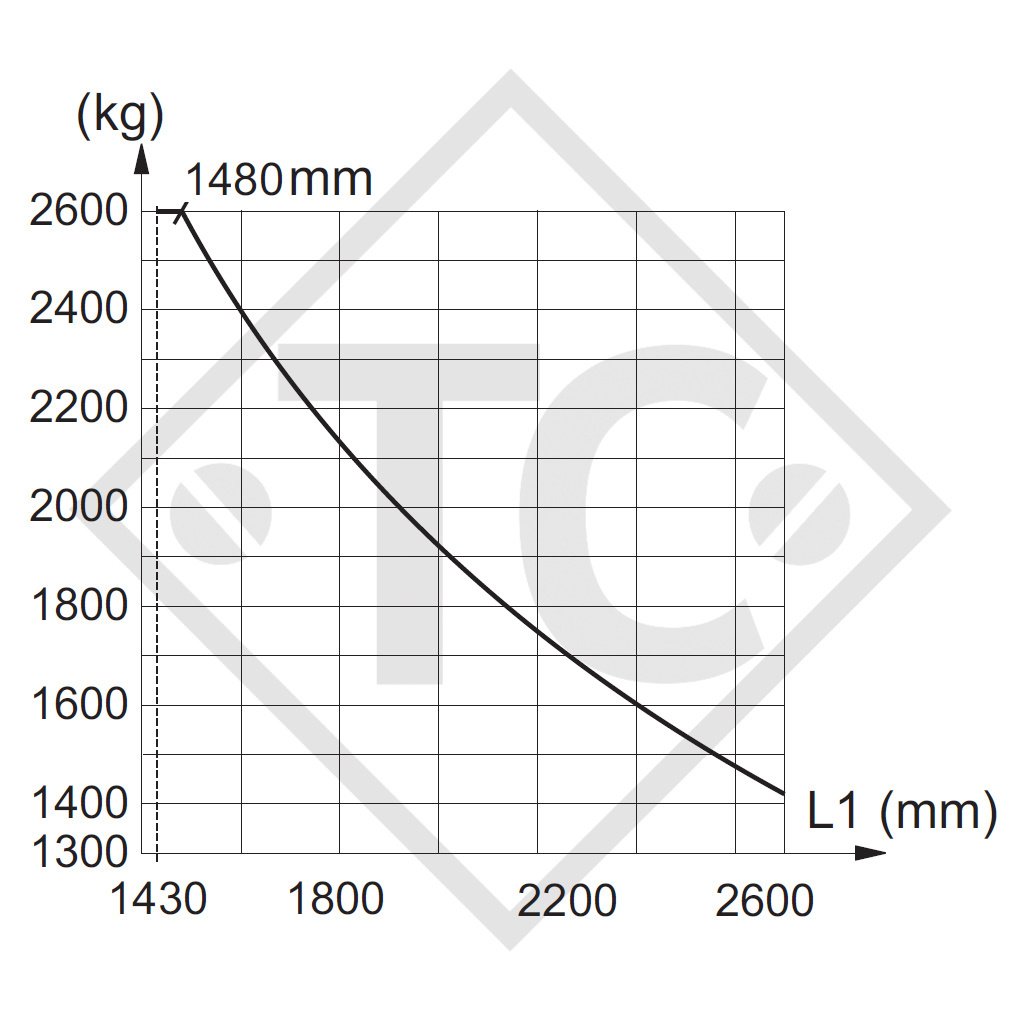

Max. free drawbar length with GA 2600kg (L1): min. 1440mm, max. 1480mm
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
