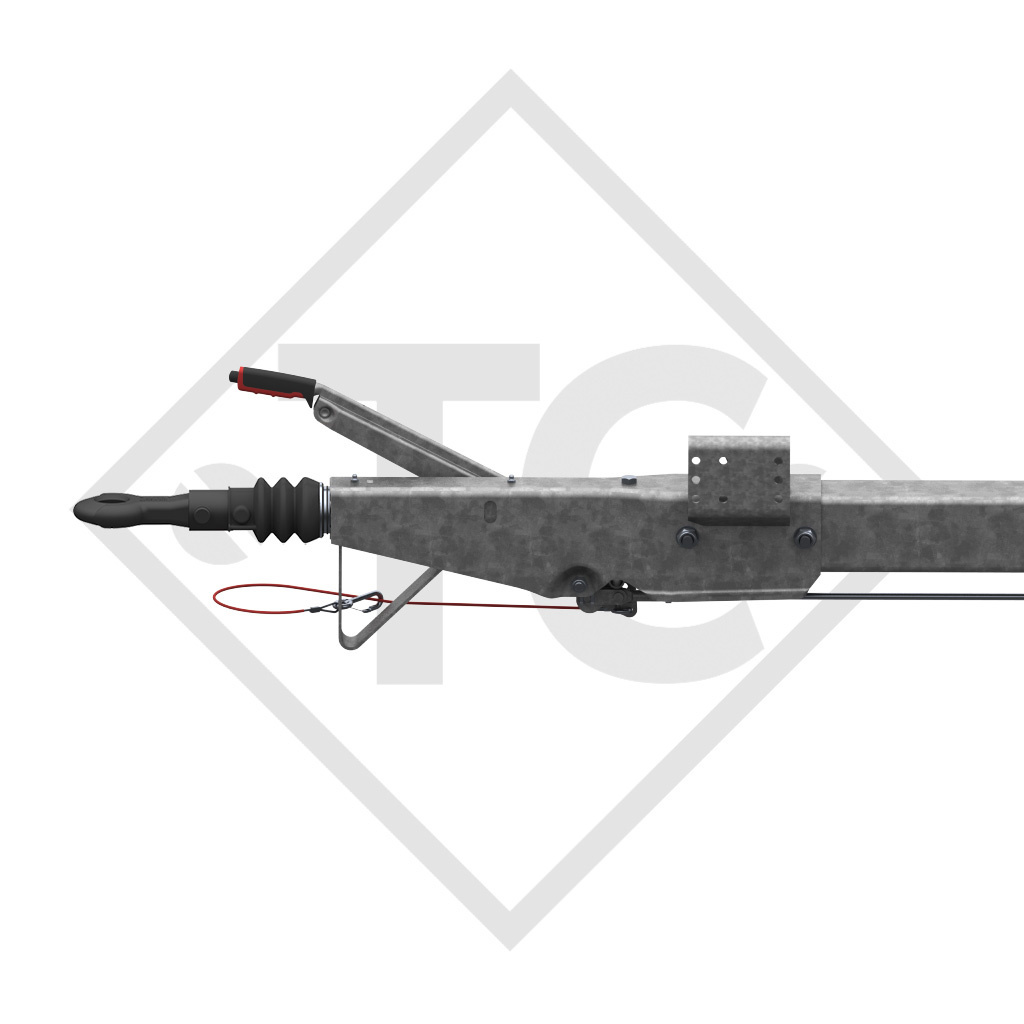

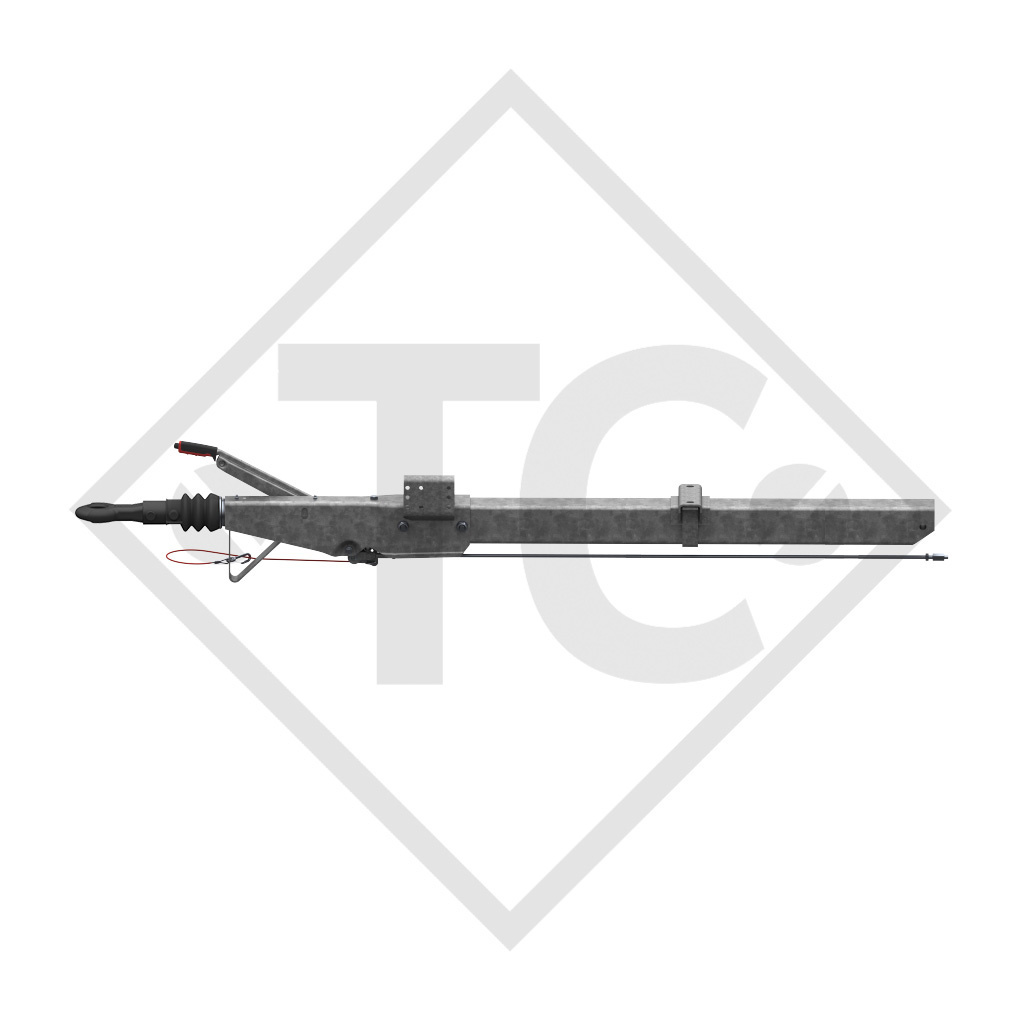

AL-KO Square overrun device type 251 S - R26 vers. A with drawbar section straight 1500 to 2600kg

Part no. 249275

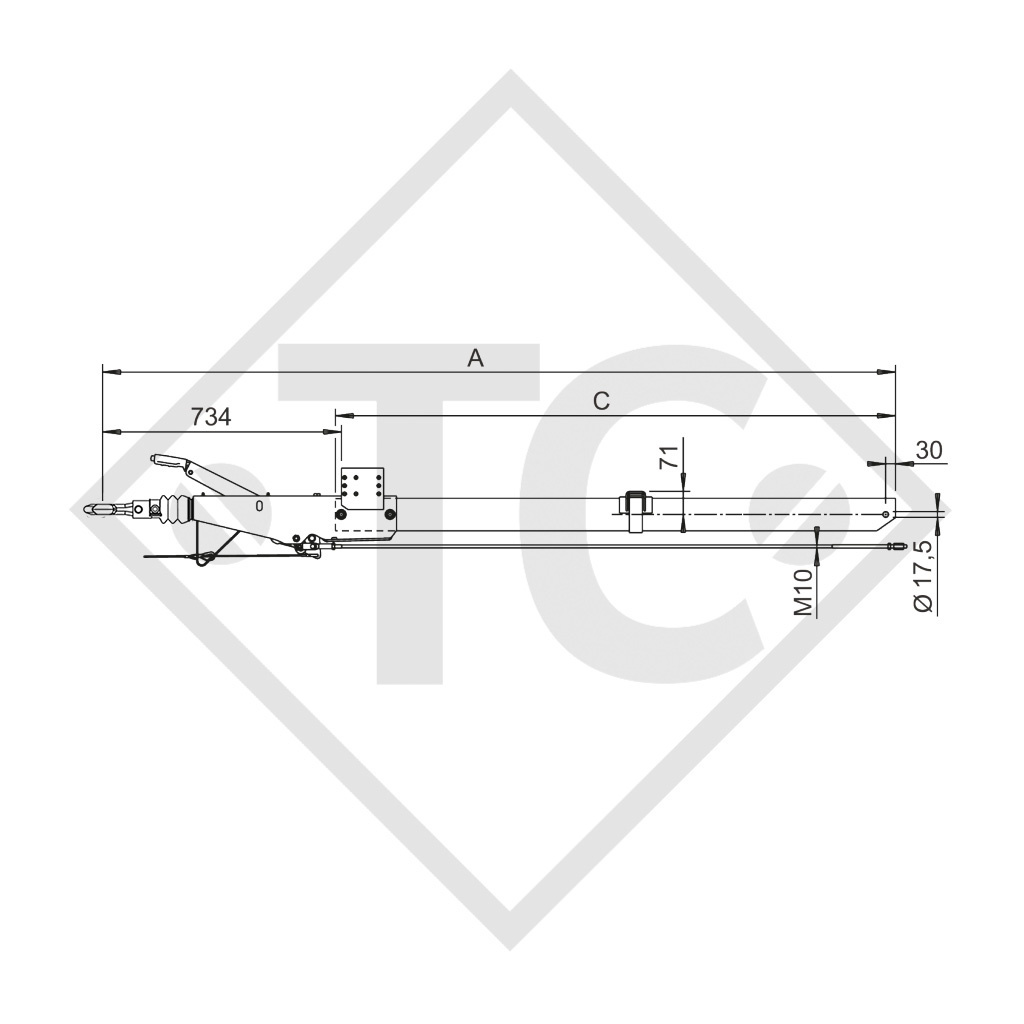

Total length A: 2650mm
Drawbar length C: 1940mm
Drawbar section: 100x100x4mm

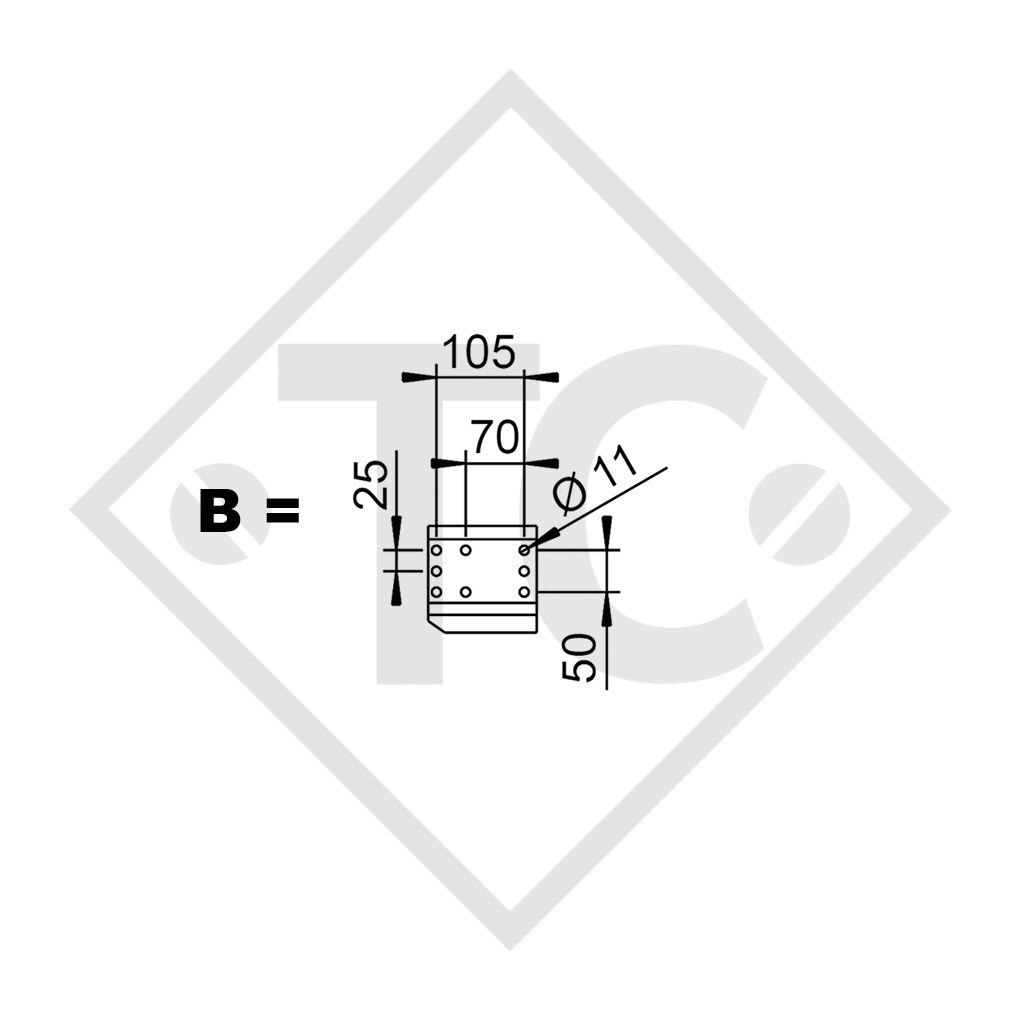

Jockey wheel flange = see illustration B

INSTALLATION MANUAL
SPARE PART LIST 811188

TECHNOLOGY
Type 251 S - R26 vers. A
with DIN drawbar eye D40/F for wheel brake 1637 / 2051 (90/27)
GA 1500 to 2600 kg
Perm. nose load 100 kg
Changeover relay lever: Yes

ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0268
Drawbar: E1 55R-01 0280

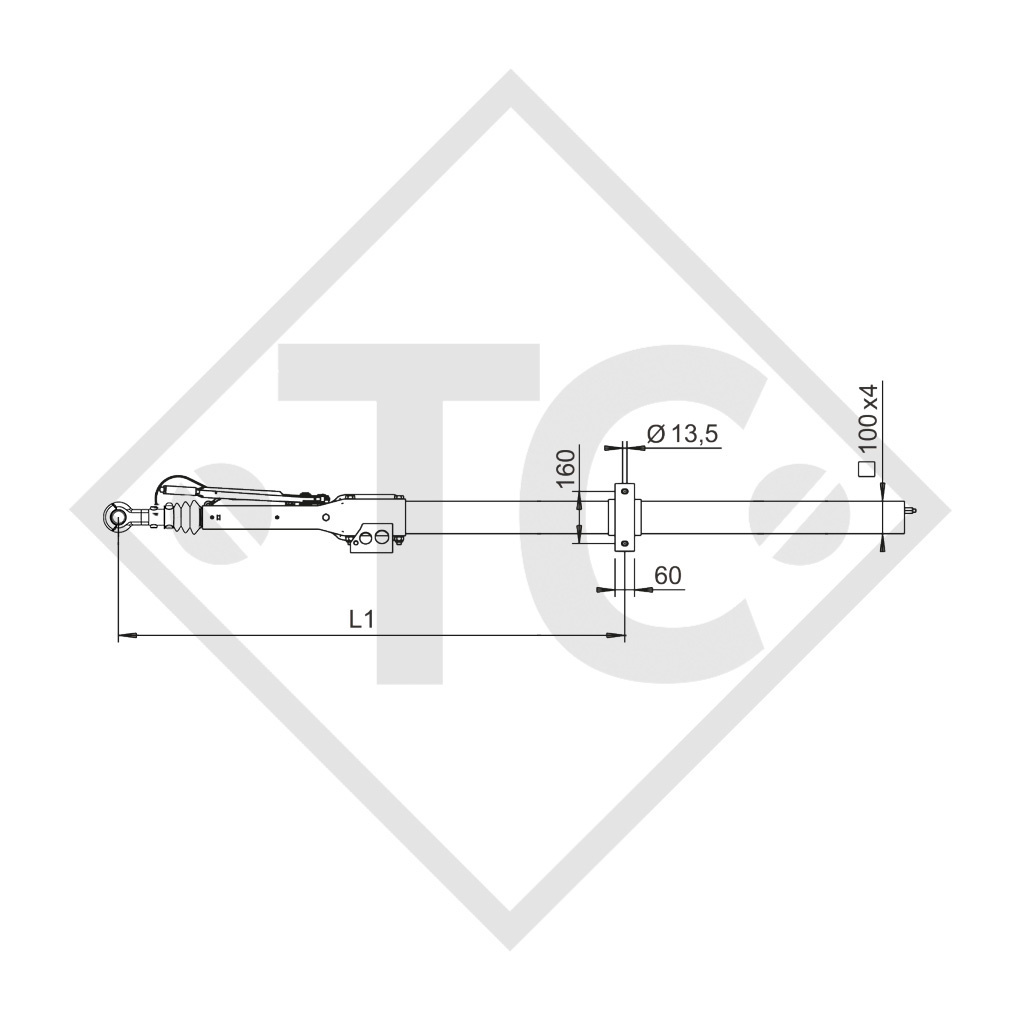

Max. free drawbar lenght at GA 2600 kg (L1): 1400 mm

SURFACE TREATMENT
Hot-dip galvanised
