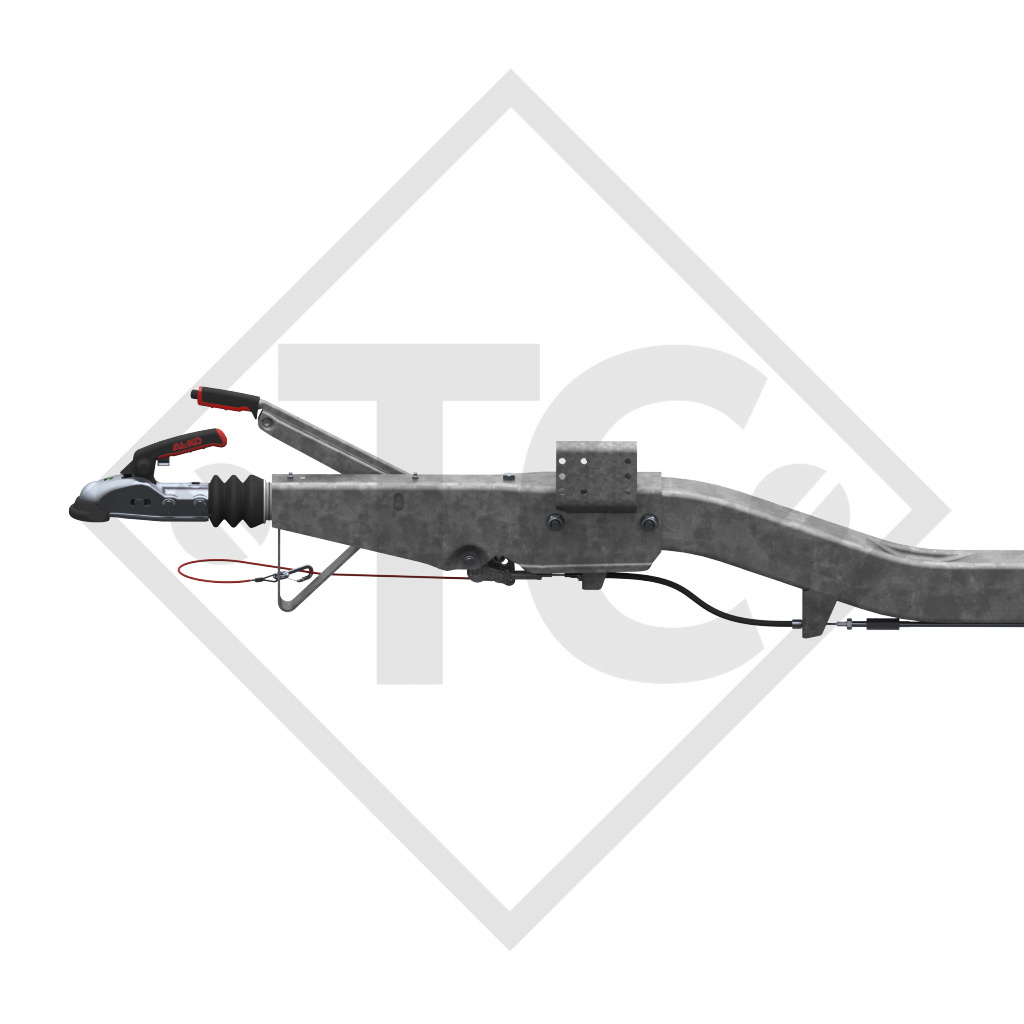

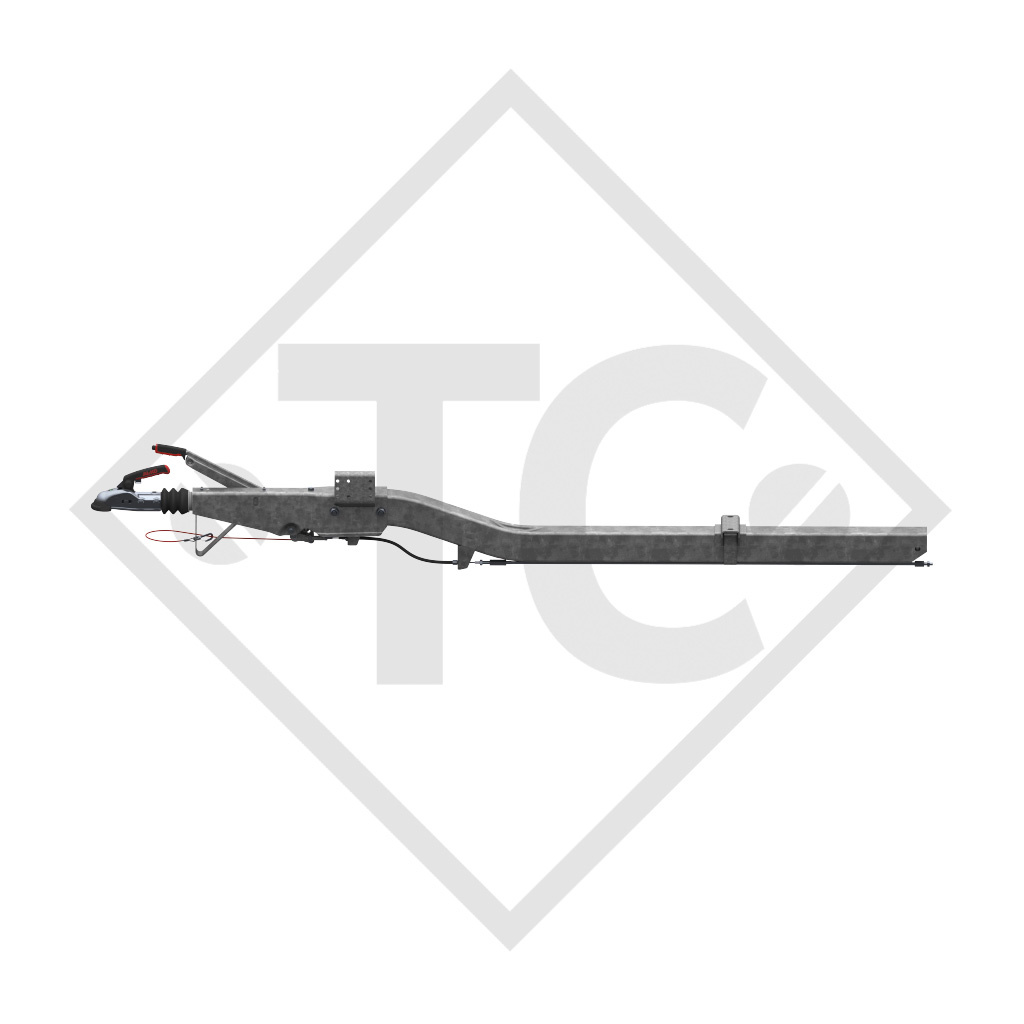

Home / Square overrun device type 251 S - K26 vers. A with drawbar section cranked 1500 to 2200kg

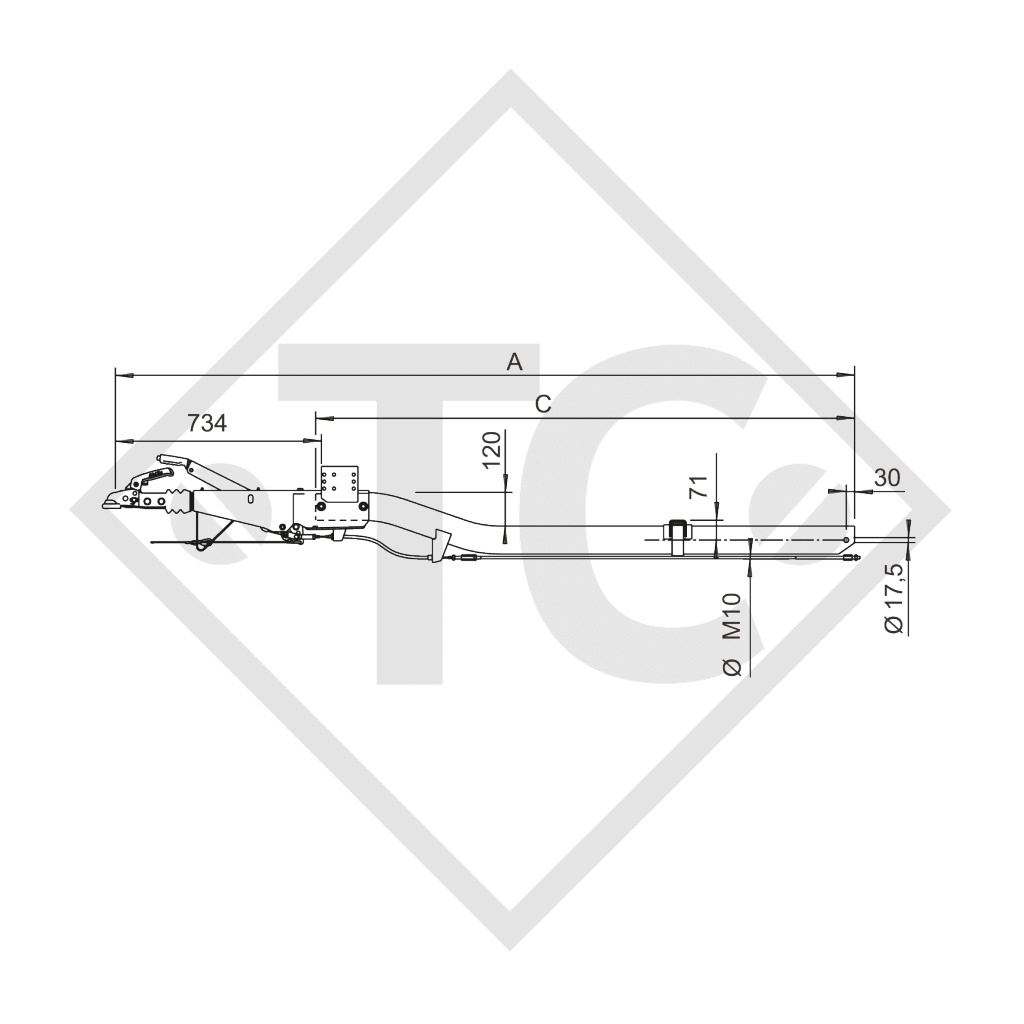

total length A 1990mm, drawbar length C 1280mm, drawbar section 100x100x4mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 1637 / 2051. Read more...
INSTALLATION MANUAL
SPARE PART LIST 811186
TECHNOLOGY
Type 251 S - K26 vers. A
GA 1500 to 2200 kg
Perm. nose load 100 kg
Change-over relay lever: Yes
ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0268
Drawbar: E1 55R-01 0925

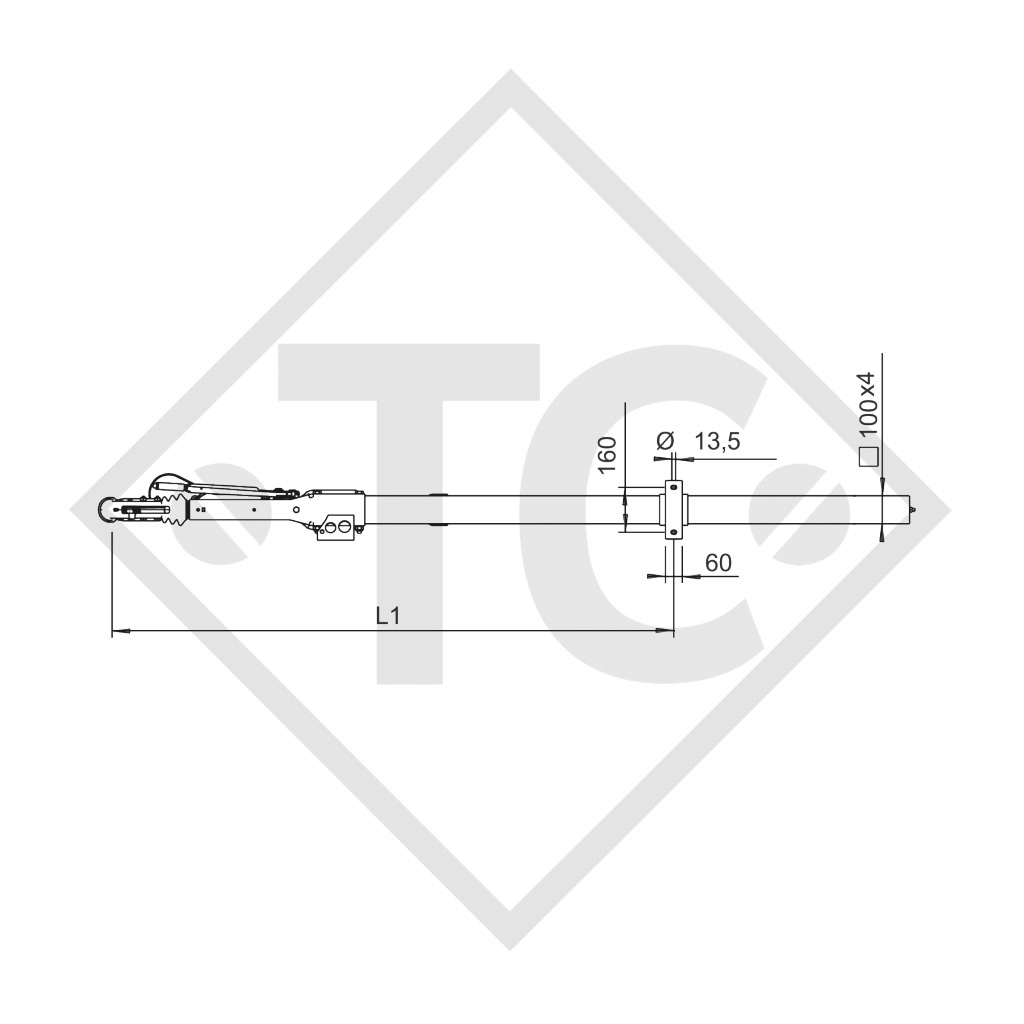

Max. free drawbar lenght at GA 2200 kg (L1): 1550 mm
SURFACE TREATMENT
Hot-dip galvanised
