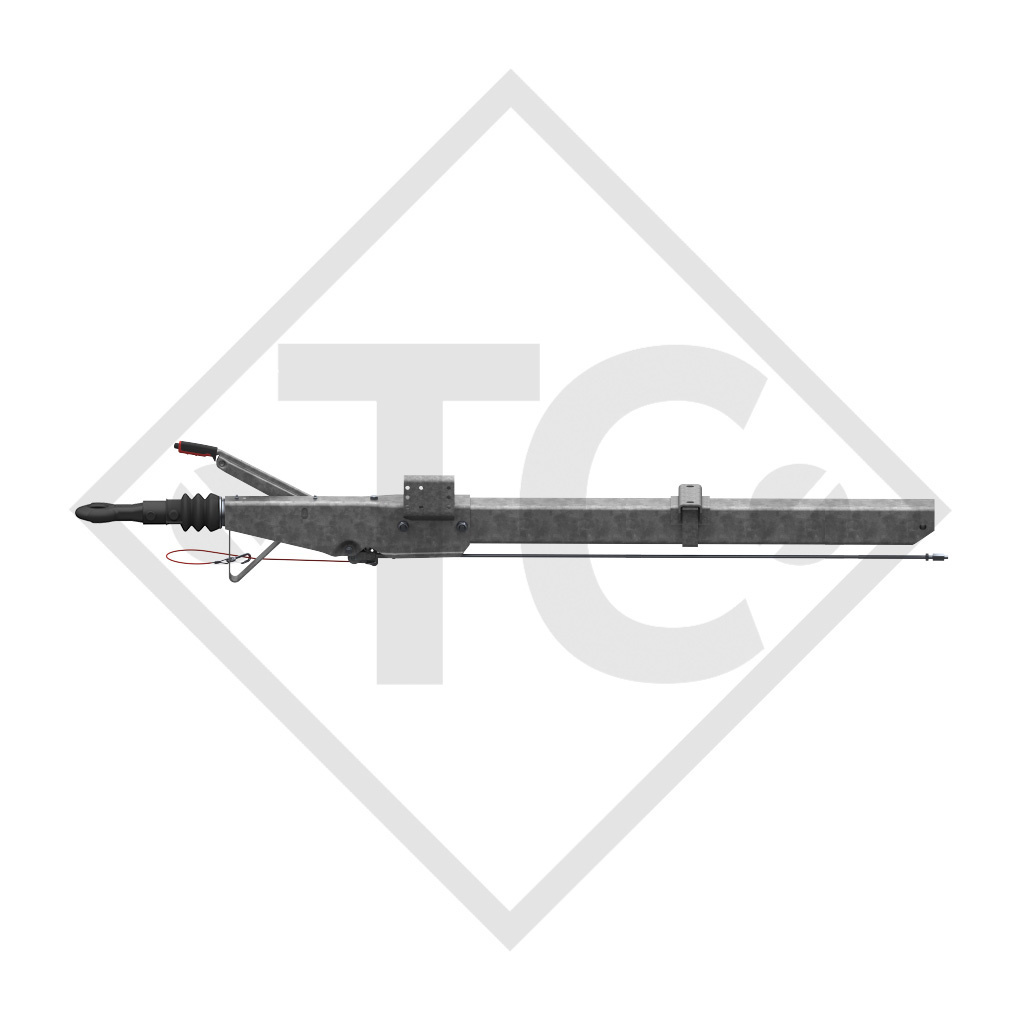

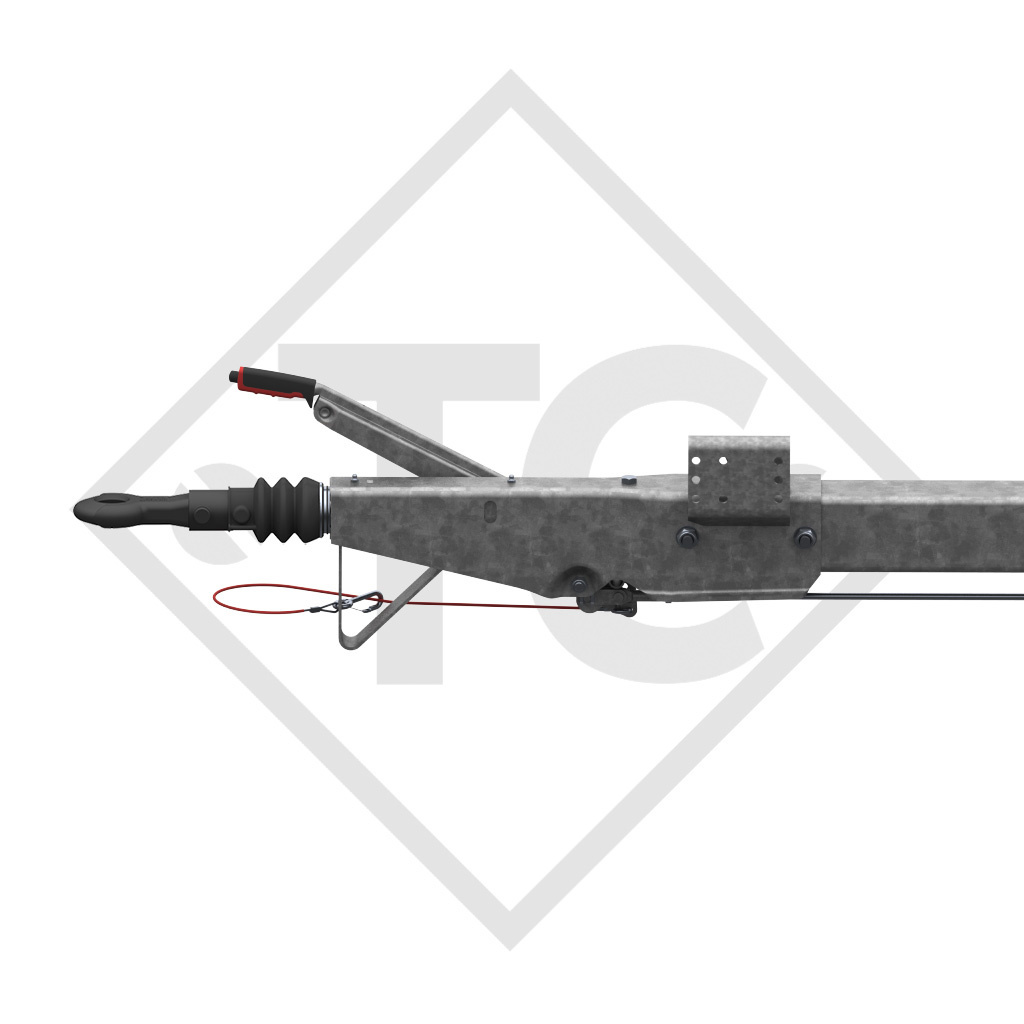

AL-KO Square overrun device type 251 S - K26 vers. A with drawbar section cranked 1500 to 2200kg

Part no. 20036026

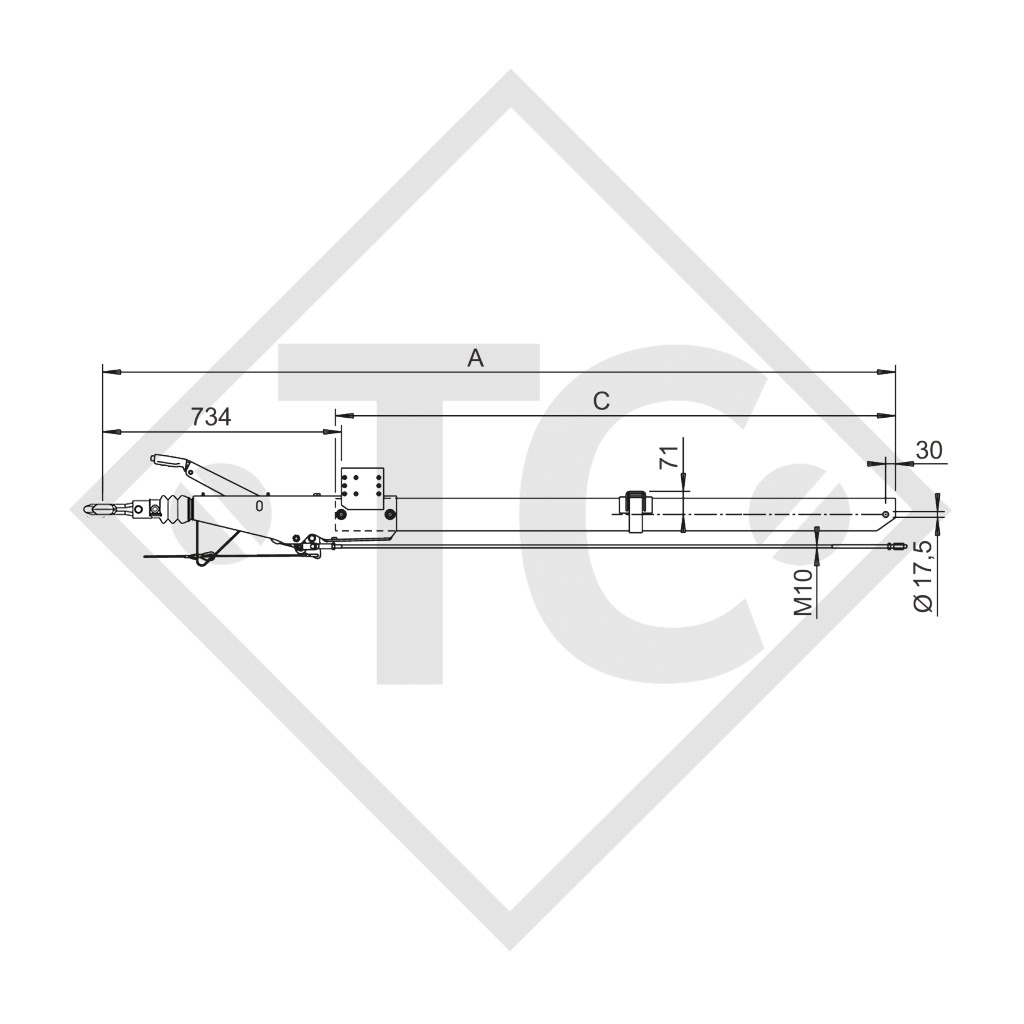

Total length A: 2630mm
Drawbar length C: 1920mm
Drawbar section: 100x100x4mm

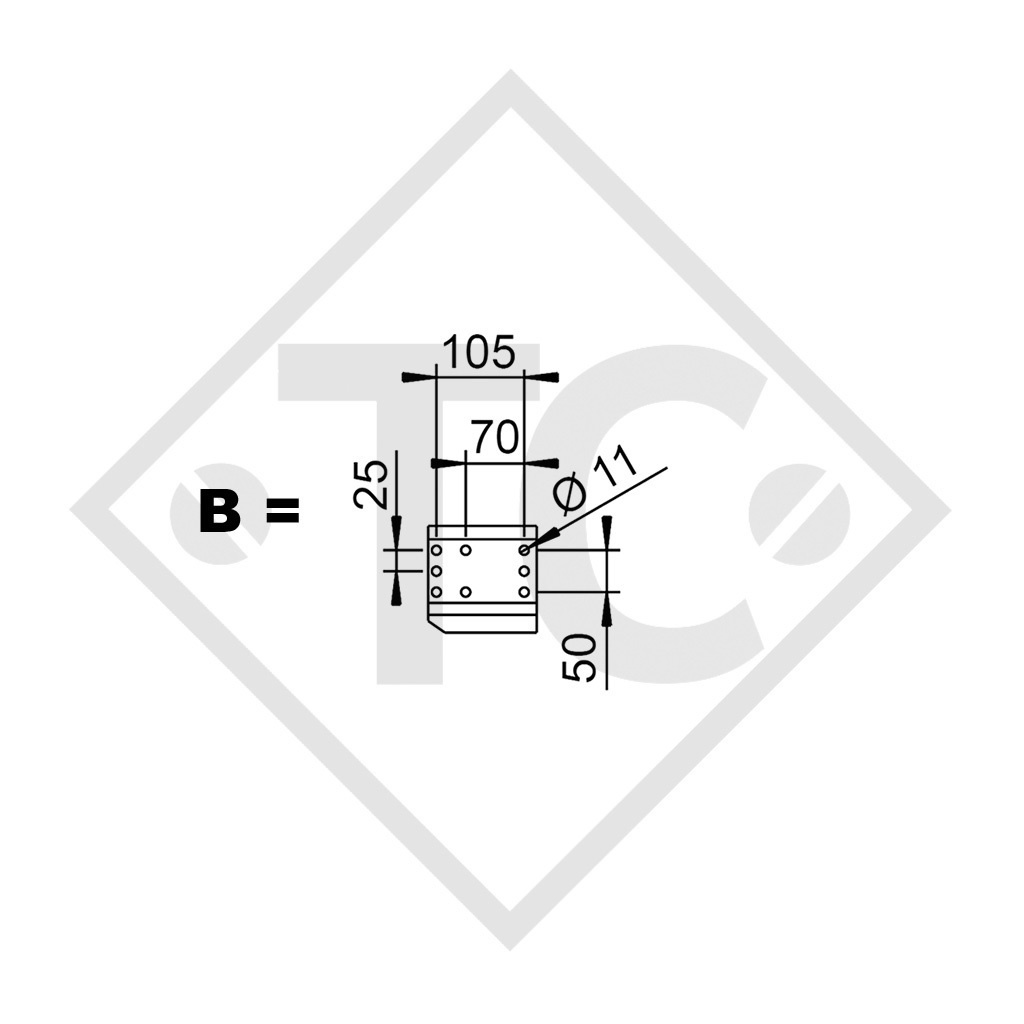

Jockey wheel flange = see illustration B

INSTALLATION MANUAL
SPARE PART LIST 811187

TECHNOLOGY
Type 161 S - K26 vers. A
with DIN drawbar eye D40/F, for wheel brake 1637 / 2051 (90/27)
GA 950 to 1600 kg
Perm. nose load 100 kg
Changeover relay lever: Yes

ECE test report no.:
Overrun device: 361-0047-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0267
Drawbar: E1 55R-01 0925

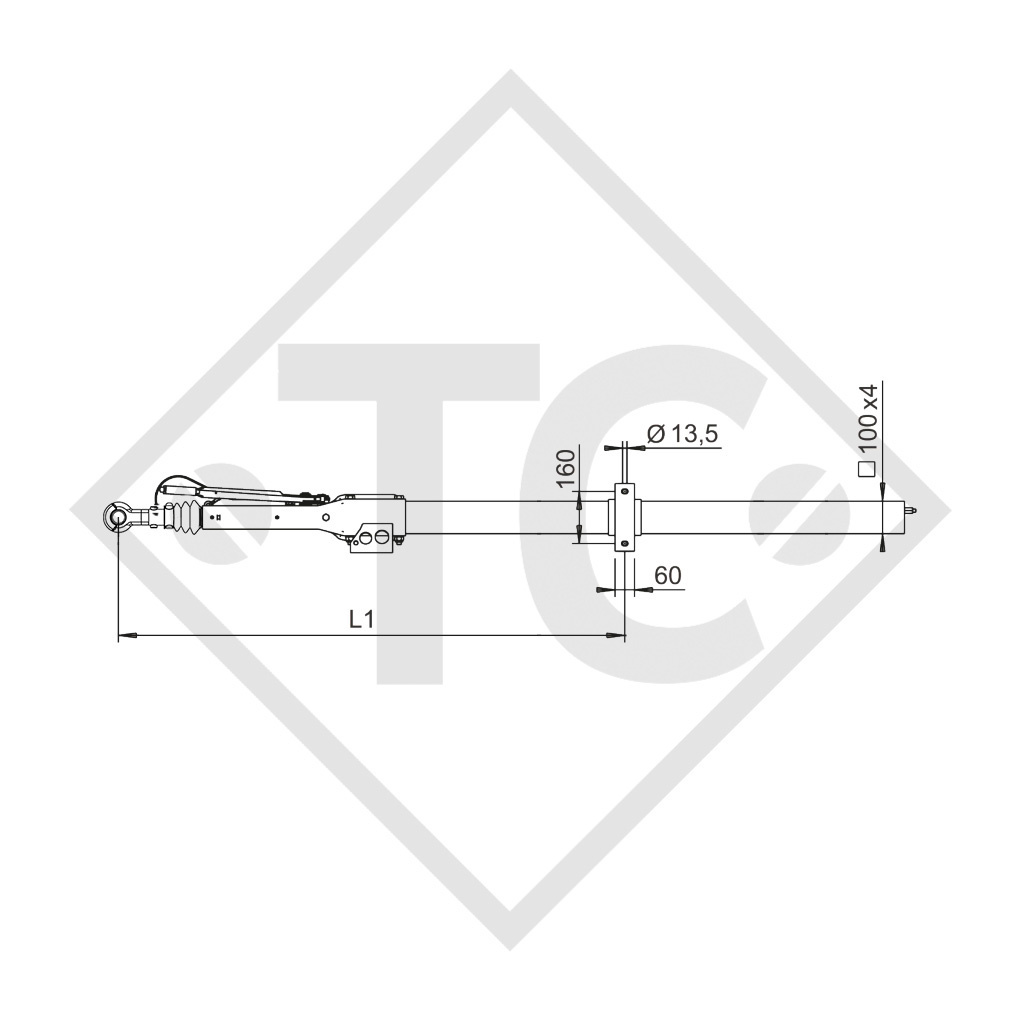

Max. free drawbar lenght at GA 1600 kg (L1): 2130 mm

SURFACE TREATMENT
Hot-dip galvanised
