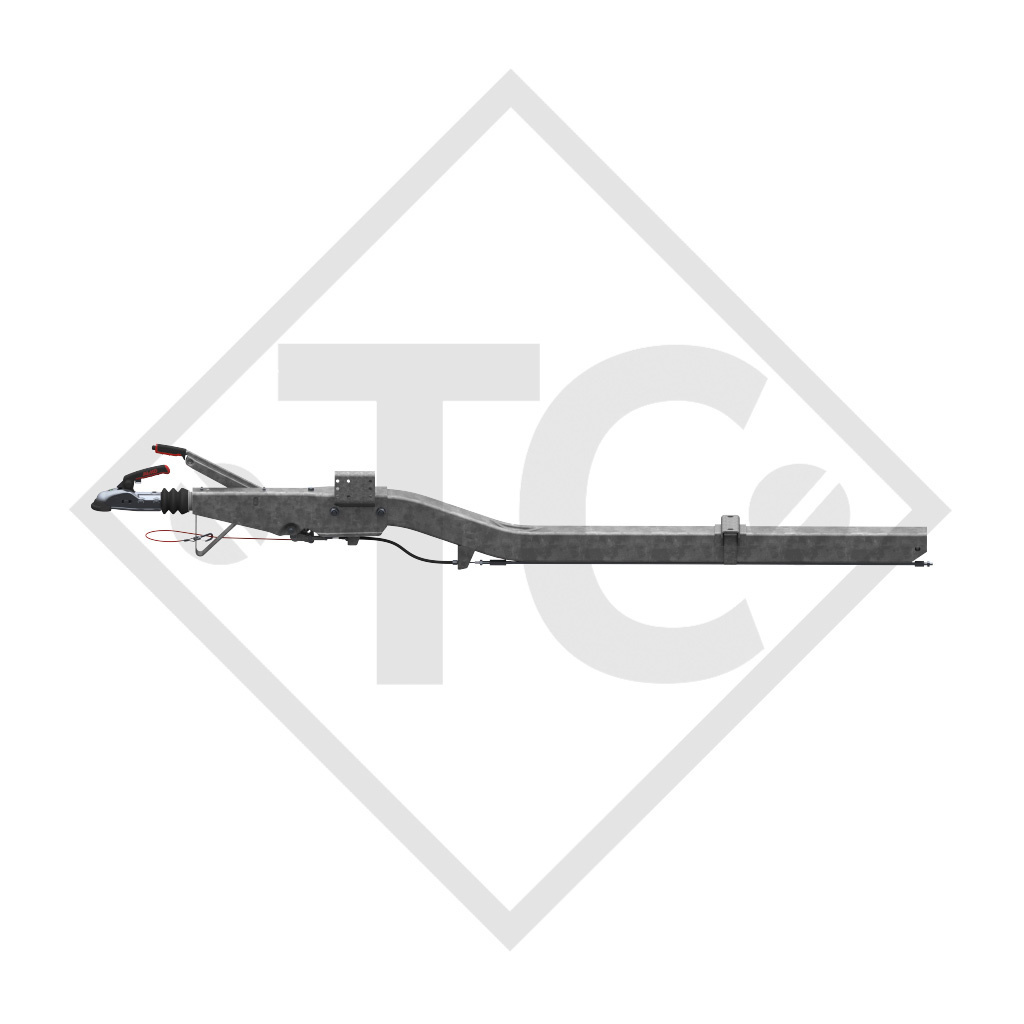

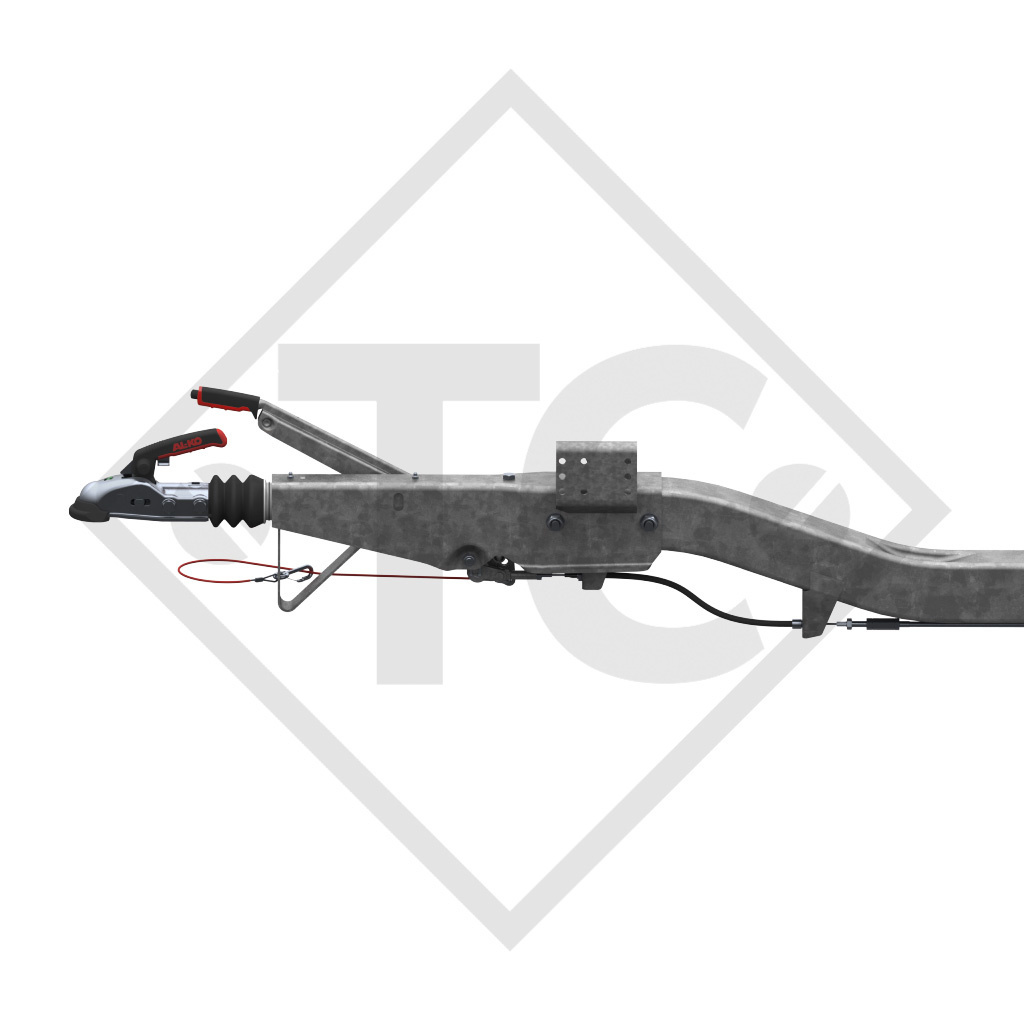

AL-KO Square overrun device type 251 S - K26 vers. A with drawbar section cranked 1500 to 2200kg

Part no. 20062910

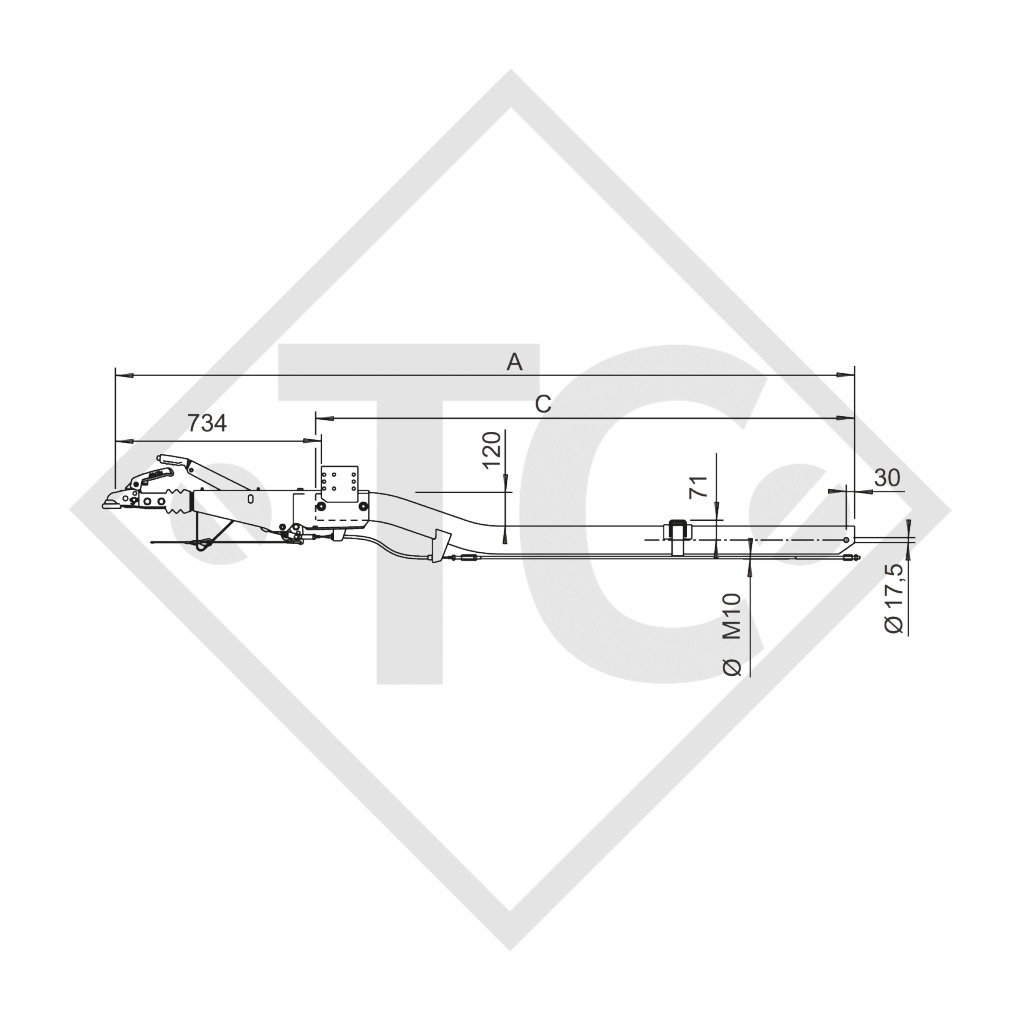

Total length A: 3430mm
Drawbar length C: 2720mm
Drawbar section: 100x100x4mm

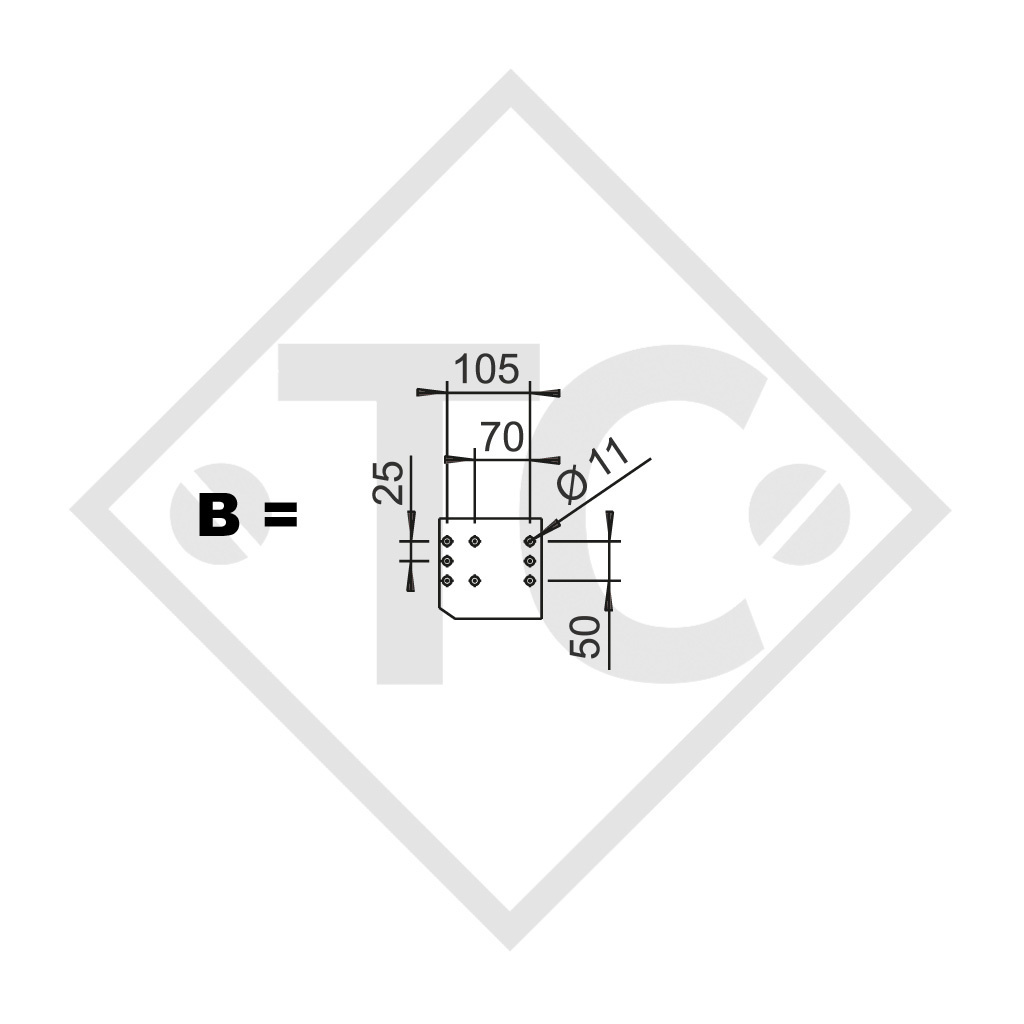

Jockey wheel flange = see illustration B

INSTALLATION MANUAL
SPARE PART LIST 811186

TECHNOLOGY
Type 251 S - K26 vers. A
with coupling head AK 270 for wheel brake 2361 (90/30)
GA 1500 to 2200 kg
Perm. nose load 100 kg
Changeover relay lever: Yes

ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0268
Drawbar: E1 55R-01 0925

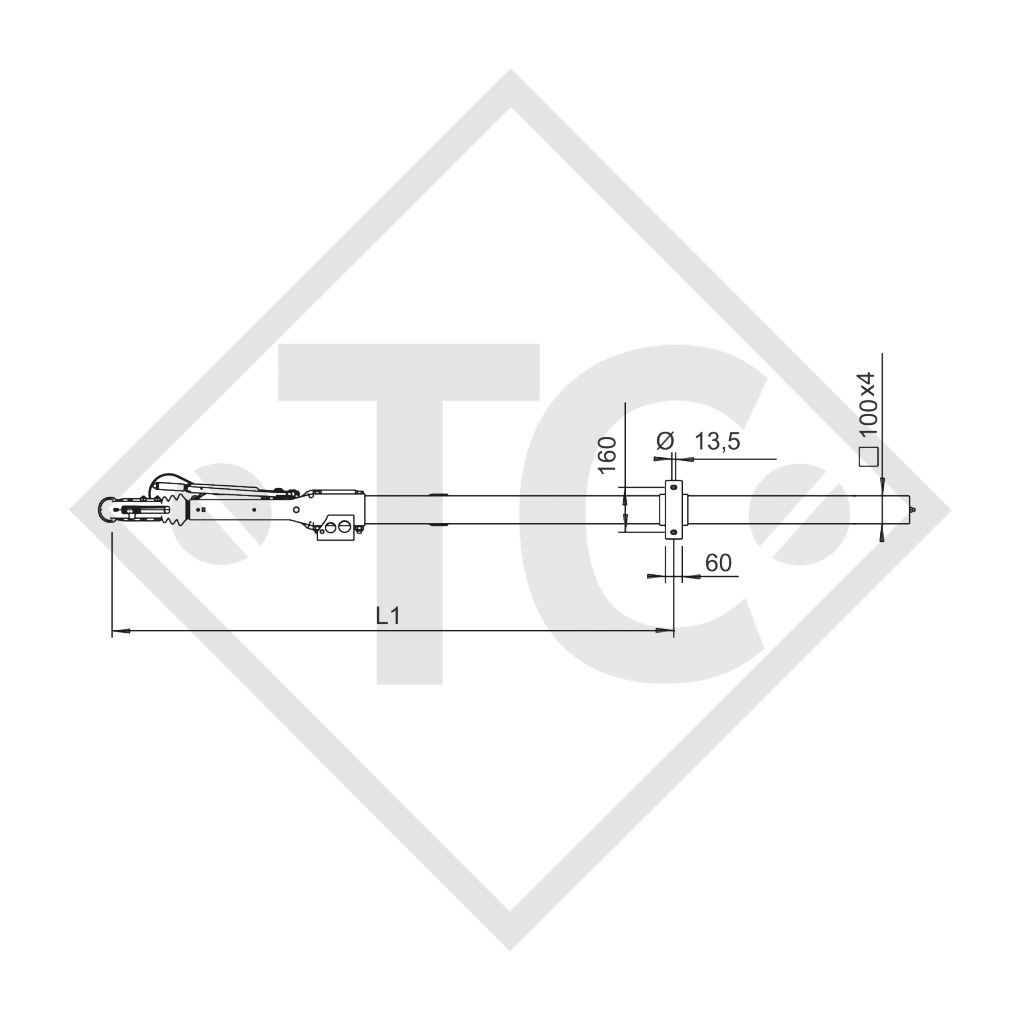

Max. free drawbar lenght at GA 2200 kg (L1): 1550 mm

SURFACE TREATMENT
Hot-dip galvanised
