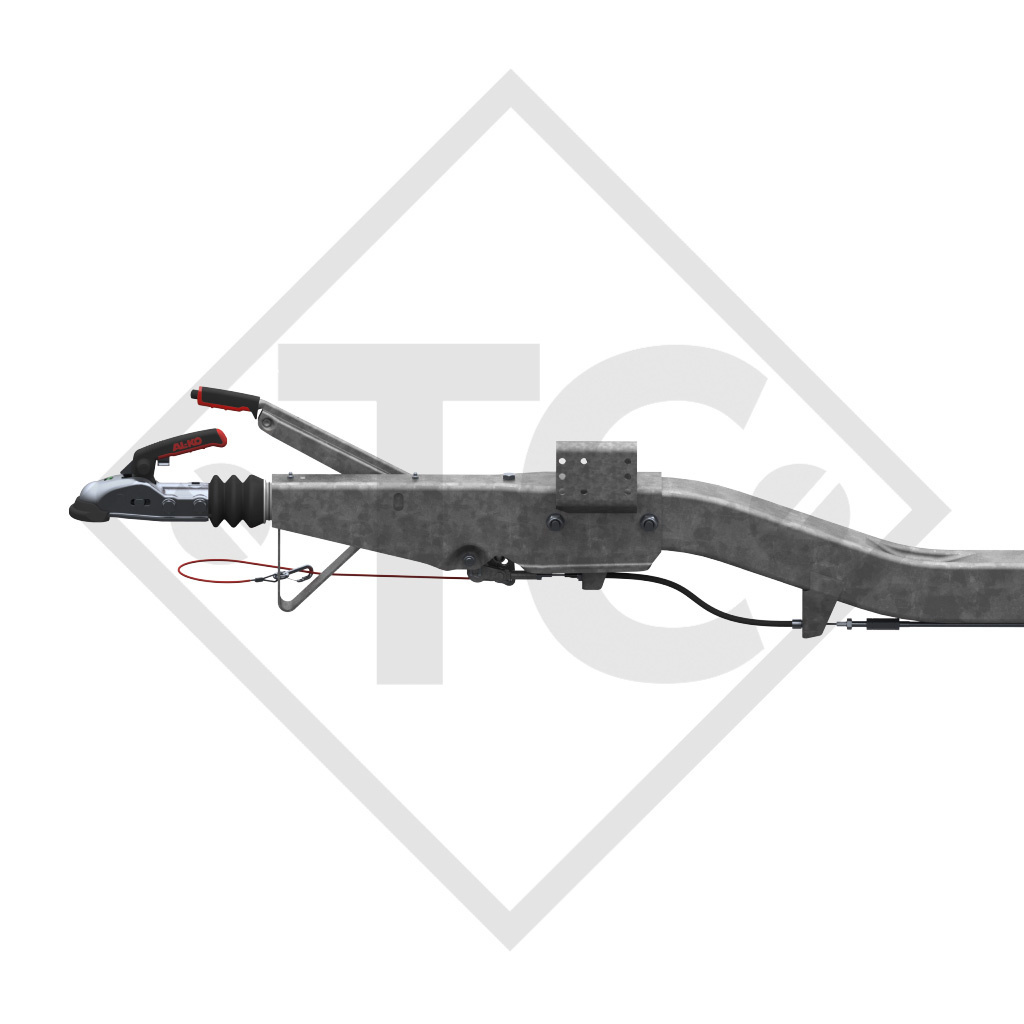

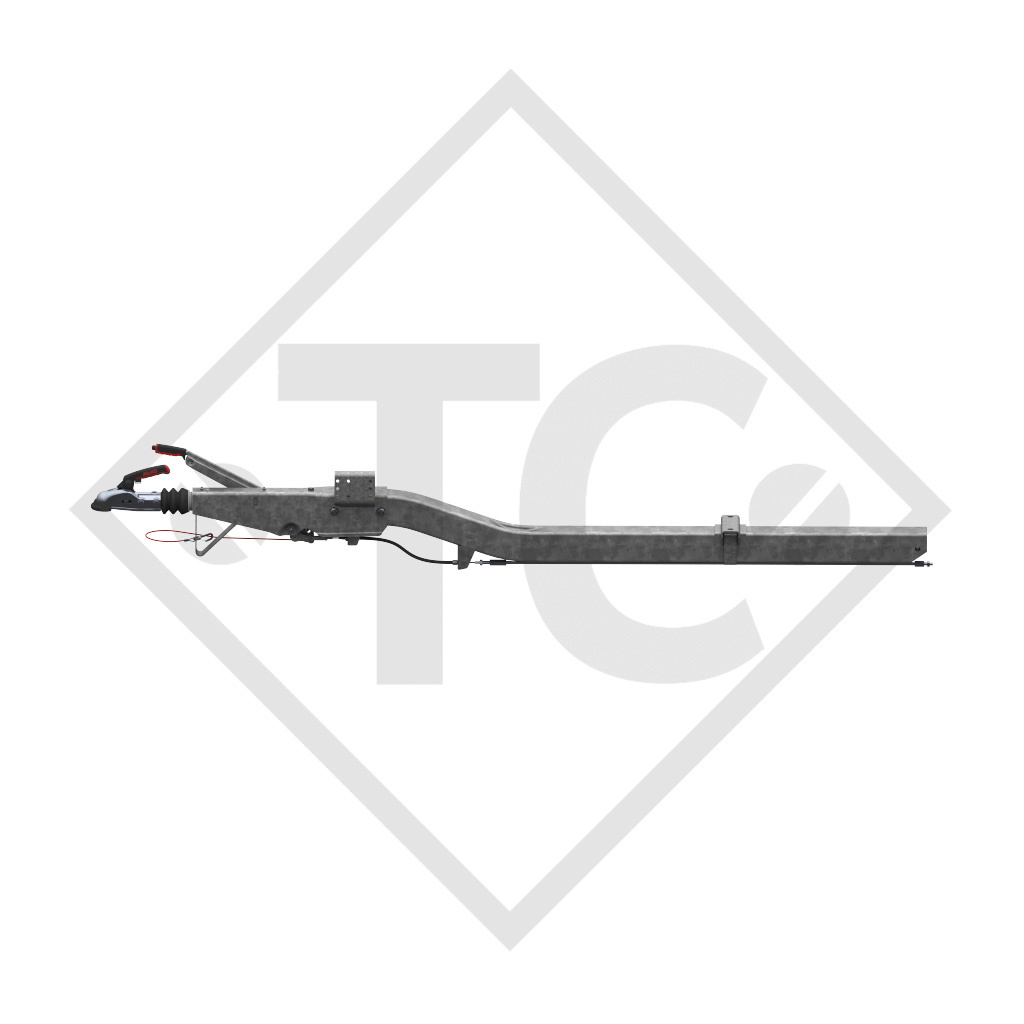

Home / Square overrun device type 251 S - K26 vers. A with drawbar section cranked 1500 to 2200kg
total length A 3110mm, drawbar length C 2400mm, drawbar section 100x100x4mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 1637 / 2051. Read more...
Part no. 20062808
Total length A: 3110mm
Drawbar length C: 2400mm
Drawbar section: 100x100x4mm

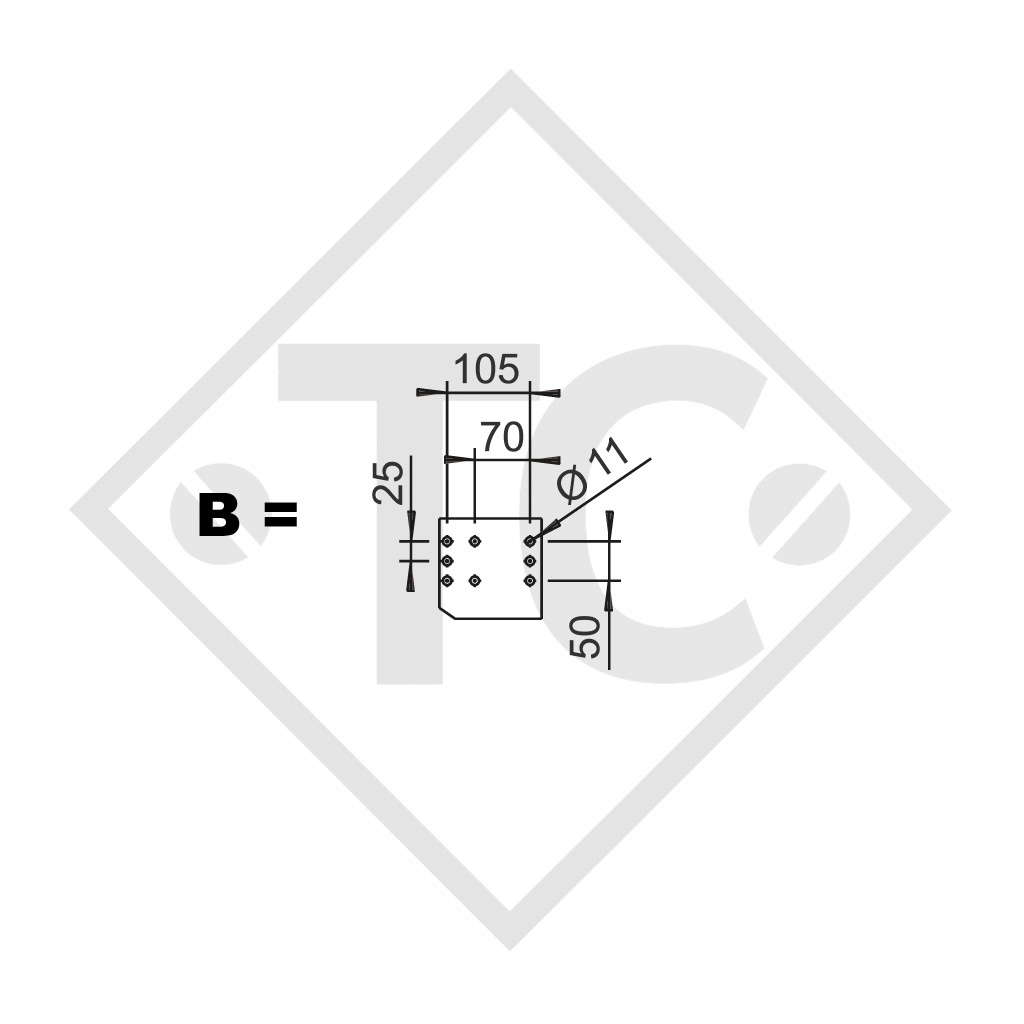

Jockey wheel flange = see illustration B
INSTALLATION MANUAL
SPARE PART LIST 811186
TECHNOLOGY
Type 251 S - K26 vers. A
with coupling head AK 270 for wheel brake 1637 / 2051 (90/27)
GA 1500 to 2200 kg
Perm. nose load 100 kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0268
Drawbar: E1 55R-01 0925

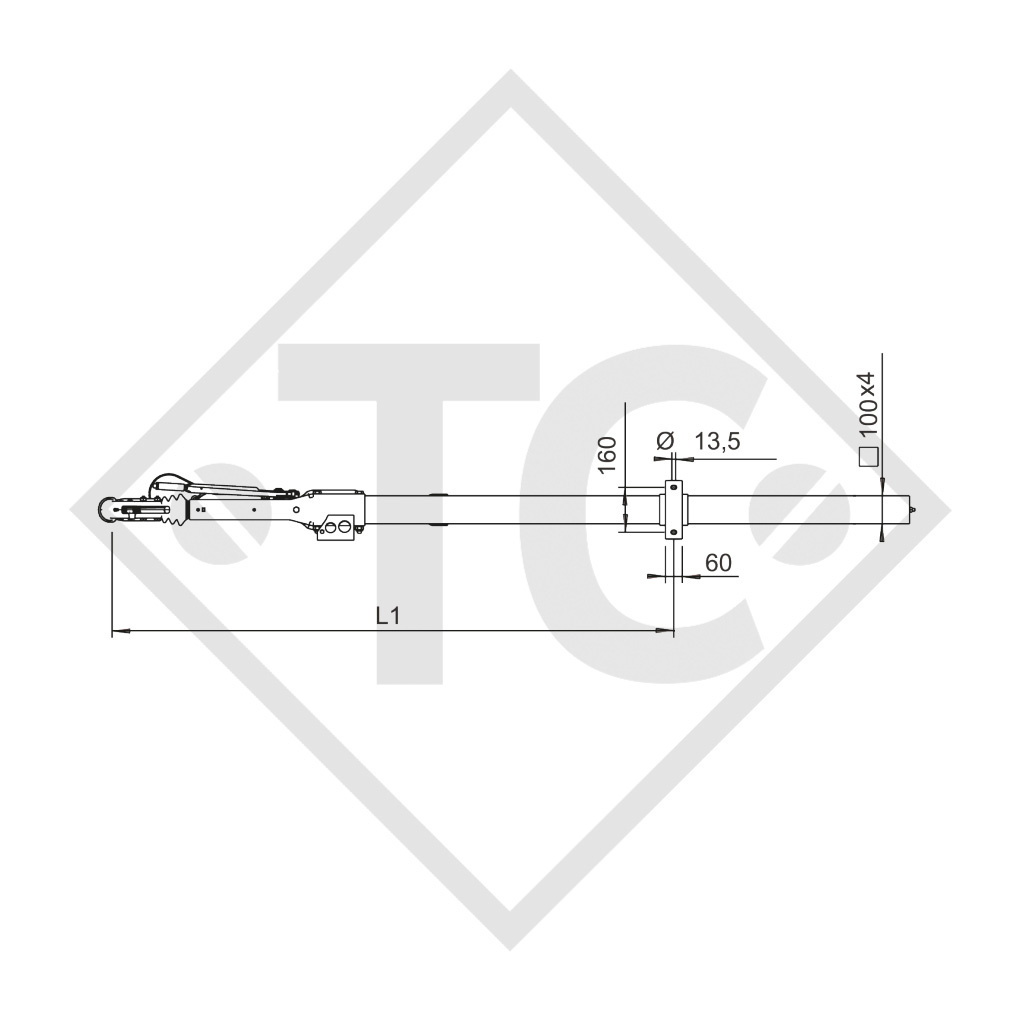

Max. free drawbar lenght at GA 2200 kg (L1): 1550 mm
SURFACE TREATMENT
Hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
