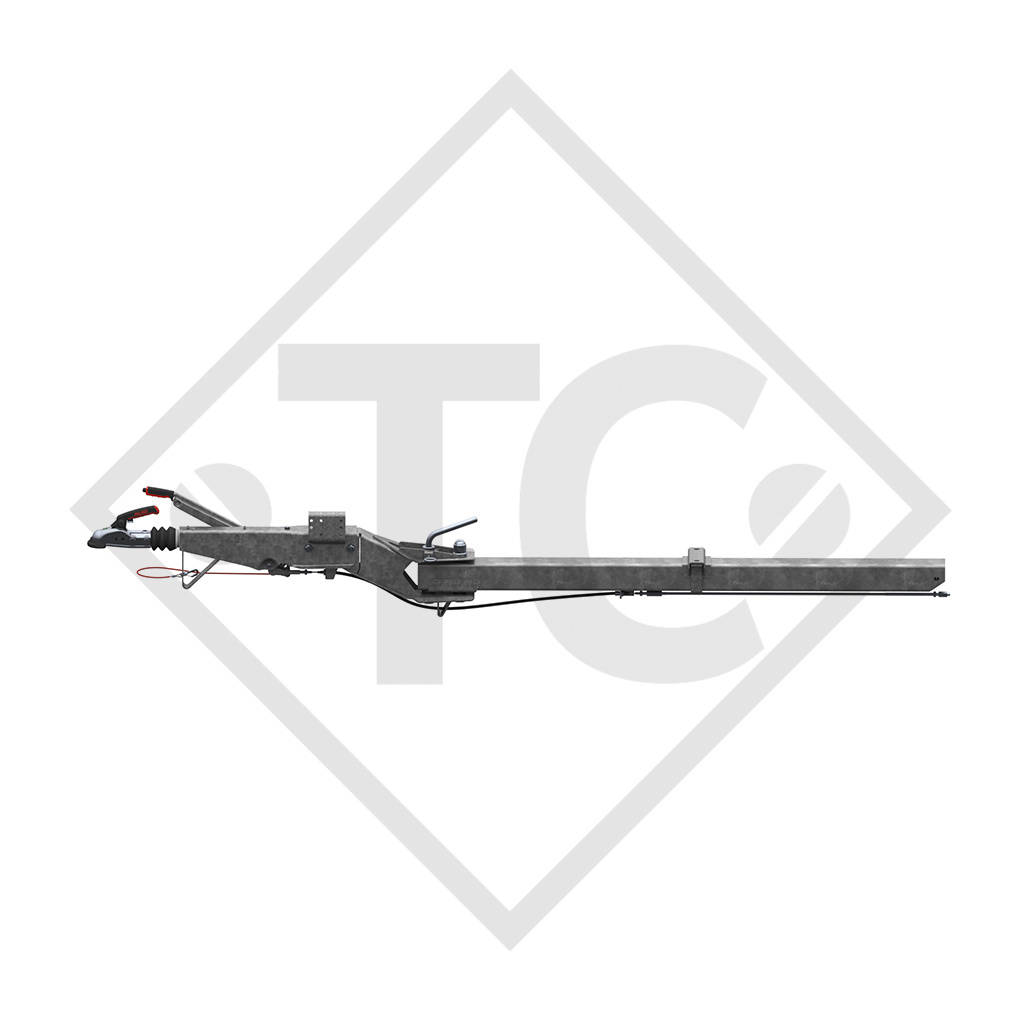

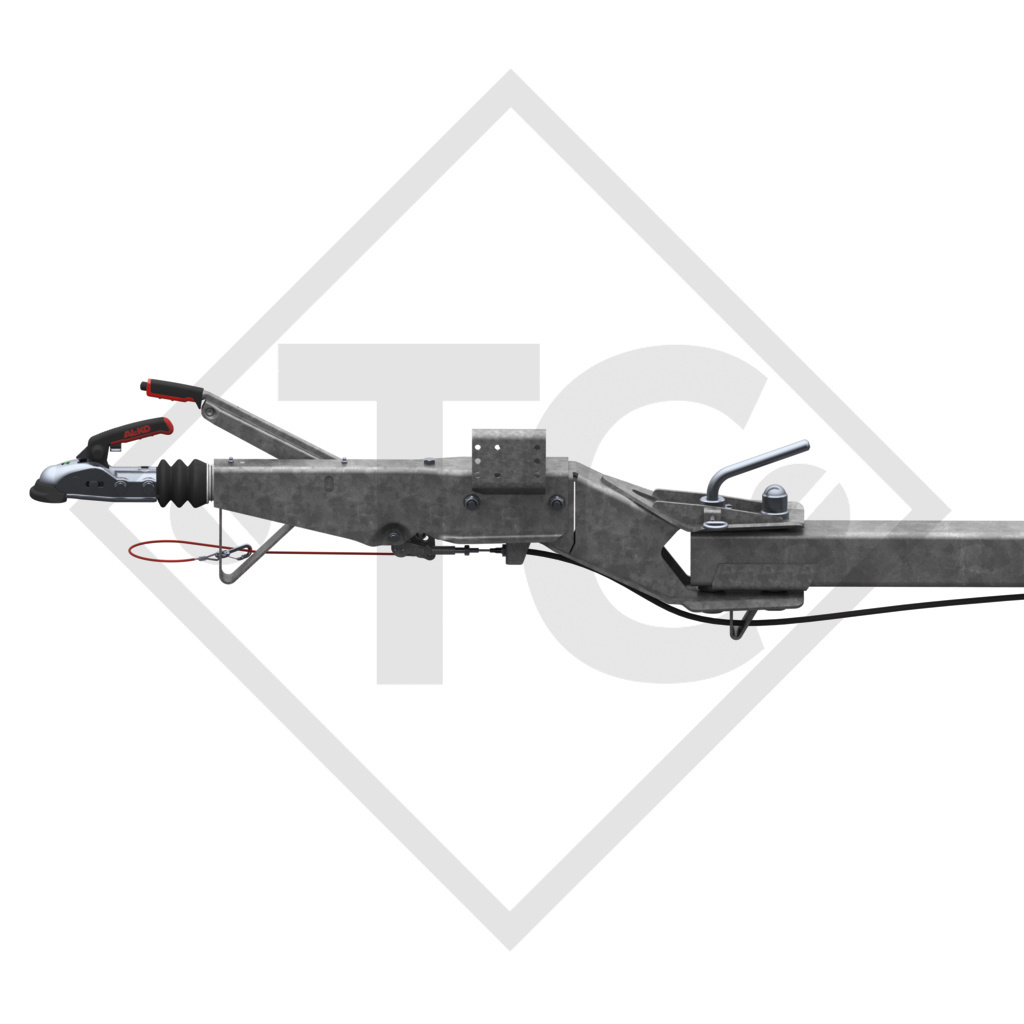

total length A 3850mm, drawbar length C 2590mm, drawbar section 100x100x6mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 2361. Read more...

Wishlist: Add to comparison:
Price 1.969,00 EUR Incl. tax Excl. Shipping costs

Part no. 20063719
with coupling head AK 270 for wheel brake 2361 (90/30)

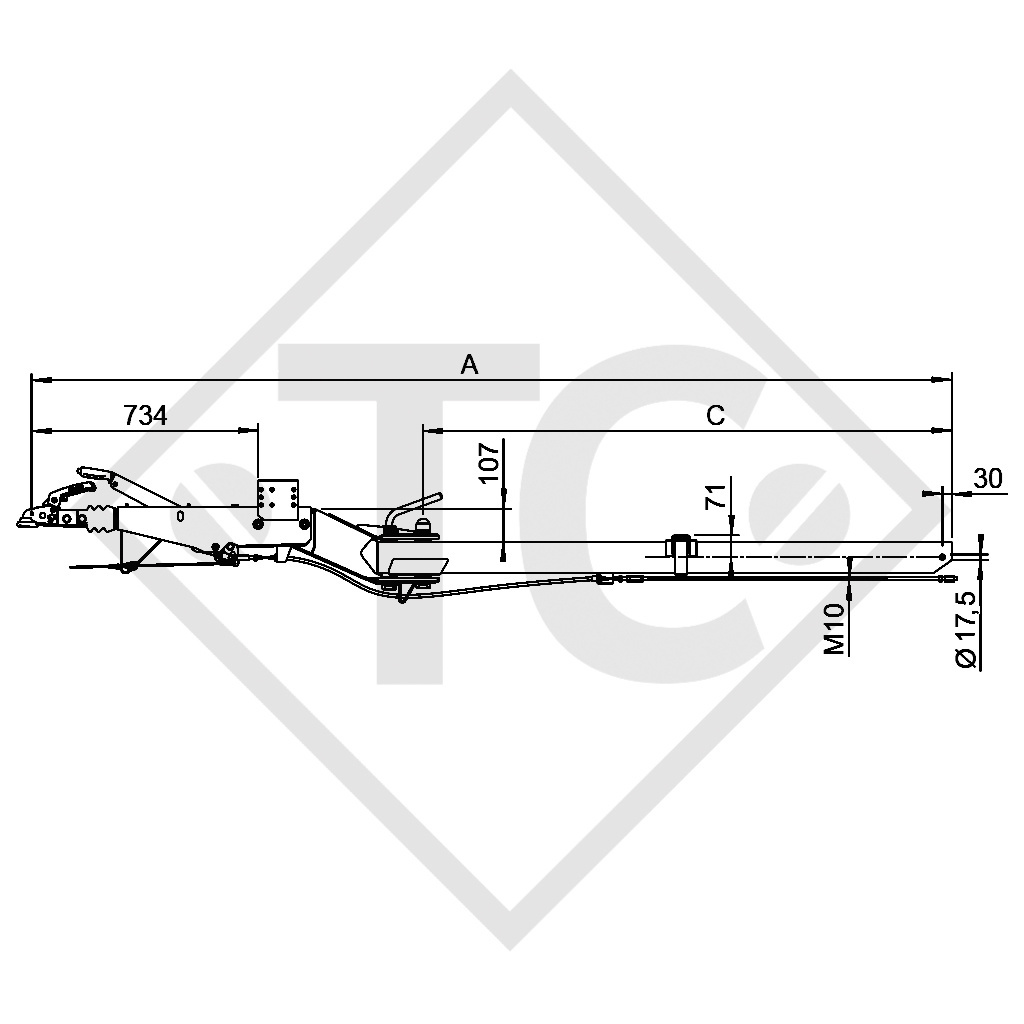

Dimension A
3850mm
Dimension C 2590mm



Original operating instructions
Replacement part identification number 811186

TECHNOLOGY
Type 251 S - K26-S
GA 1500 to 2600kg
Perm. nose load 100kg
Changeover relay lever: Yes

ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01-0268
Drawbar: E1 55R-01-1551

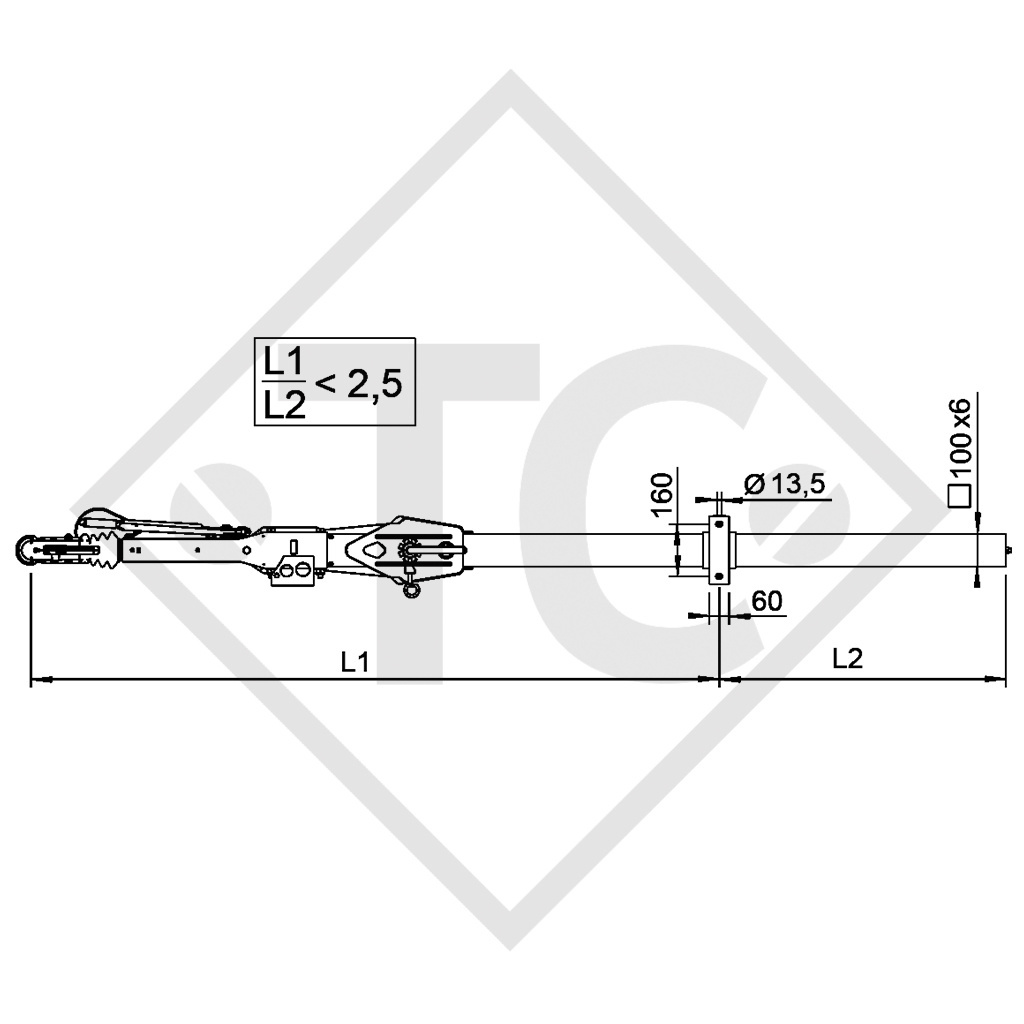

Max. free drawbar length (L1): 1600mm
