Home / Square overrun device type 251 S - K26-S with sideways swivelling drawbar section from 1500 to 2600kg
total length A 3210mm, drawbar length C 1950mm, drawbar section 100x100x6mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 2361. Read more...
Part no. 20063711
with coupling head AK 270 for wheel brake 2361 (90/30)

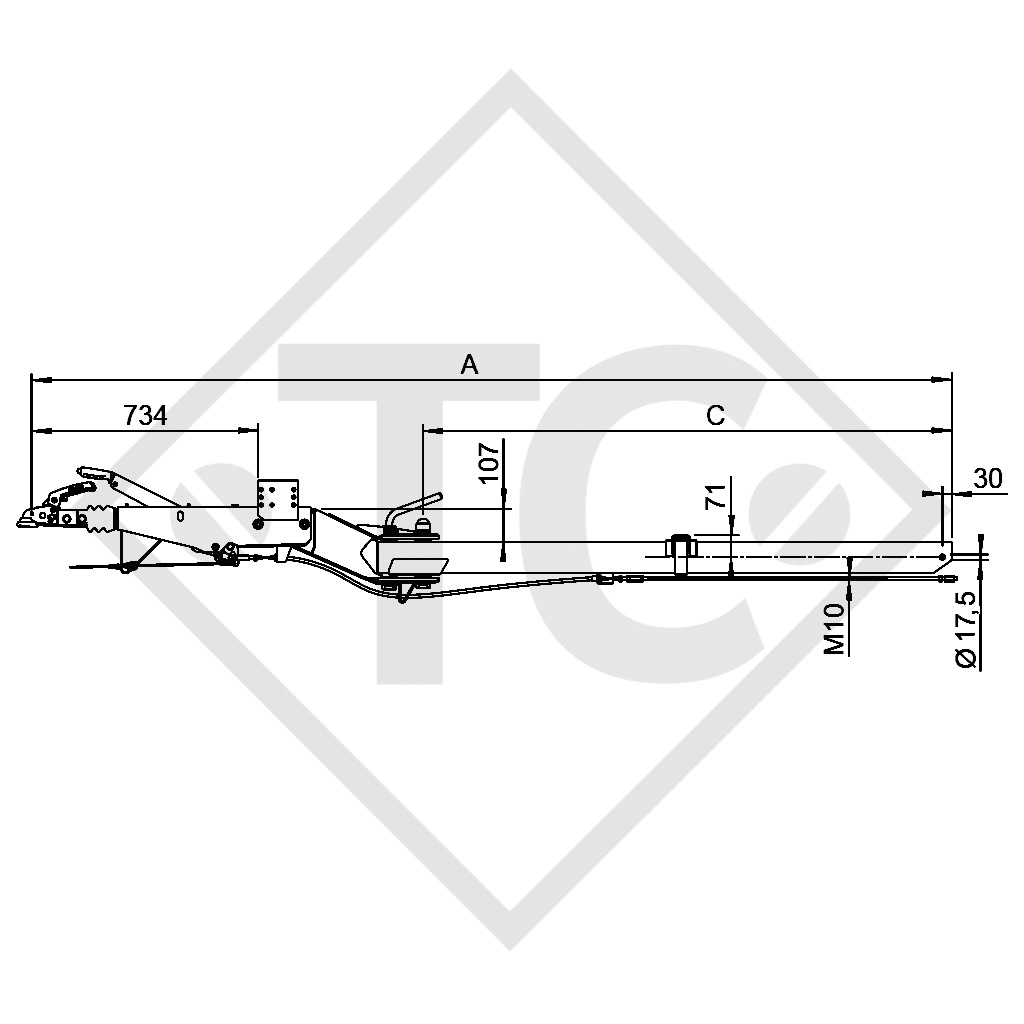

| Dimension A |
3210mm |
| Dimension C | 1950mm |
Original operating instructions
Replacement part identification number 811186
TECHNOLOGY
Type 251 S - K26-S
GA 1500 to 2600kg
Perm. nose load 100kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01-0268
Drawbar: E1 55R-01-1551

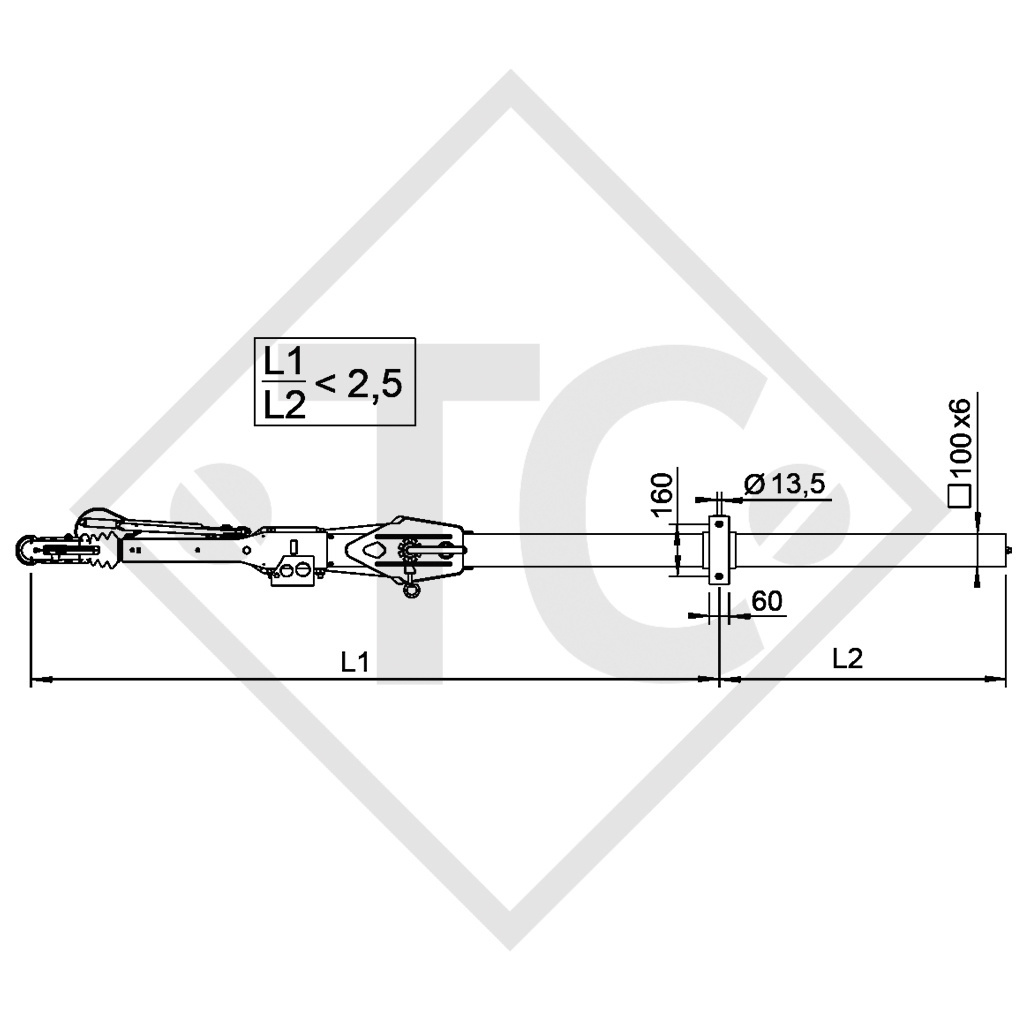

Max. free drawbar length (L1): 1600mm
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
