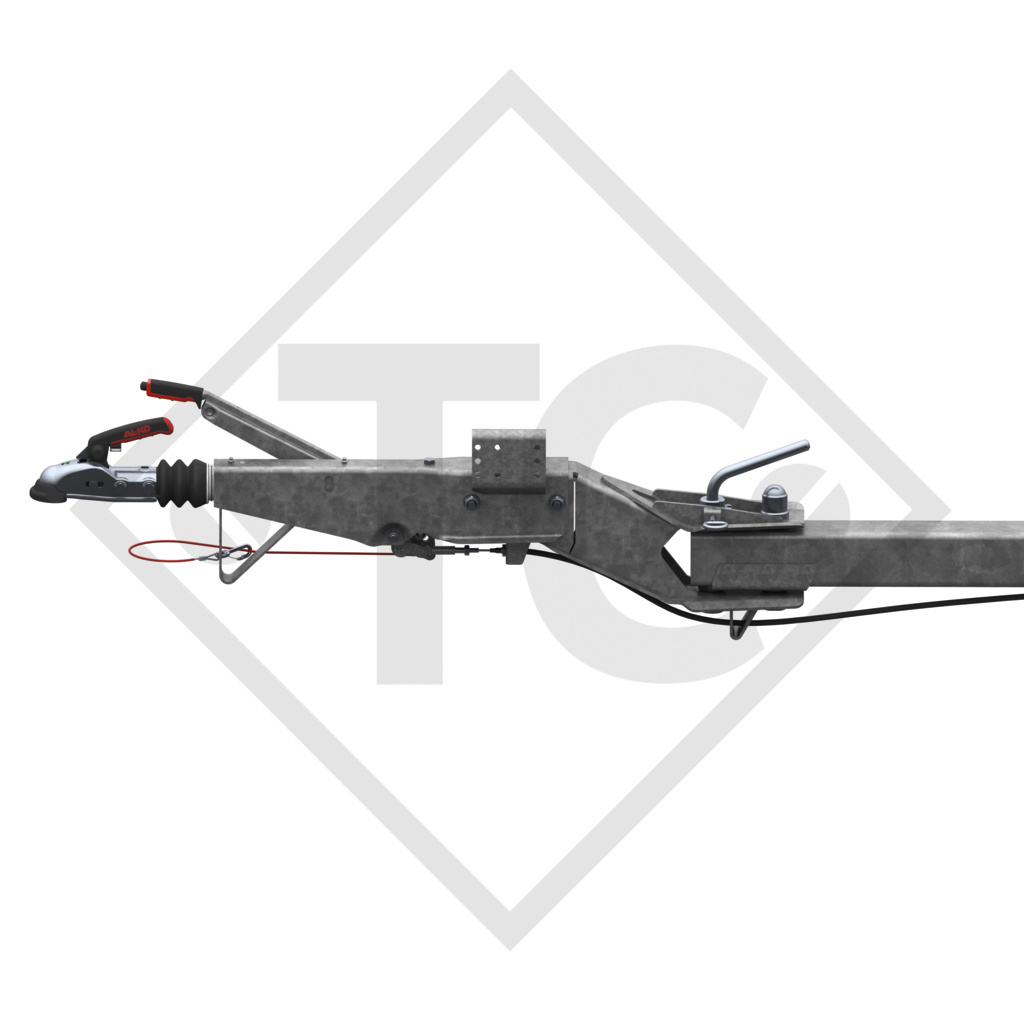

Home / Brands / BRADLEY / Square overrun device type 251 S - K26-S with sideways swivelling drawbar section from 1500 to 2600kg
total length A 2970mm, drawbar length C 1710mm, drawbar section 100x100x6mm, perm. nose load 100kg, with coupling head AK 270, for wheel brake 1637 / 2051. Read more...
Part no. 20063608
with coupling head AK 270 for wheel brake 1637 / 2051 (90/27)

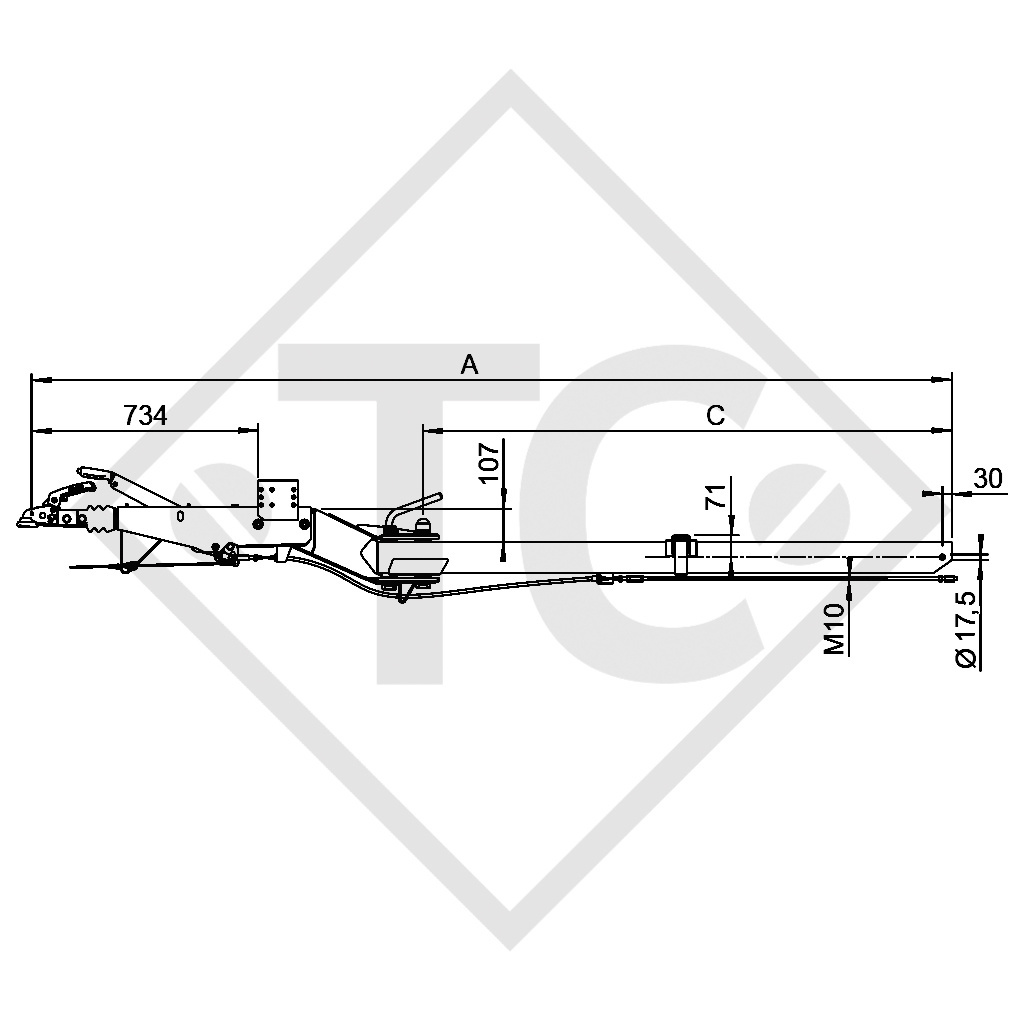

| Dimension A |
2970mm |
| Dimension C | 1710mm |
Original operating instructions
Replacement part identification number 811186
TECHNOLOGY
Type 251 S - K26-S
GA 1500 to 2600kg
Perm. nose load 100kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device: 361-0044-97
ECE type approval no.:
Drawbar installation: E1 55R-01-0268
Drawbar: E1 55R-01-1551

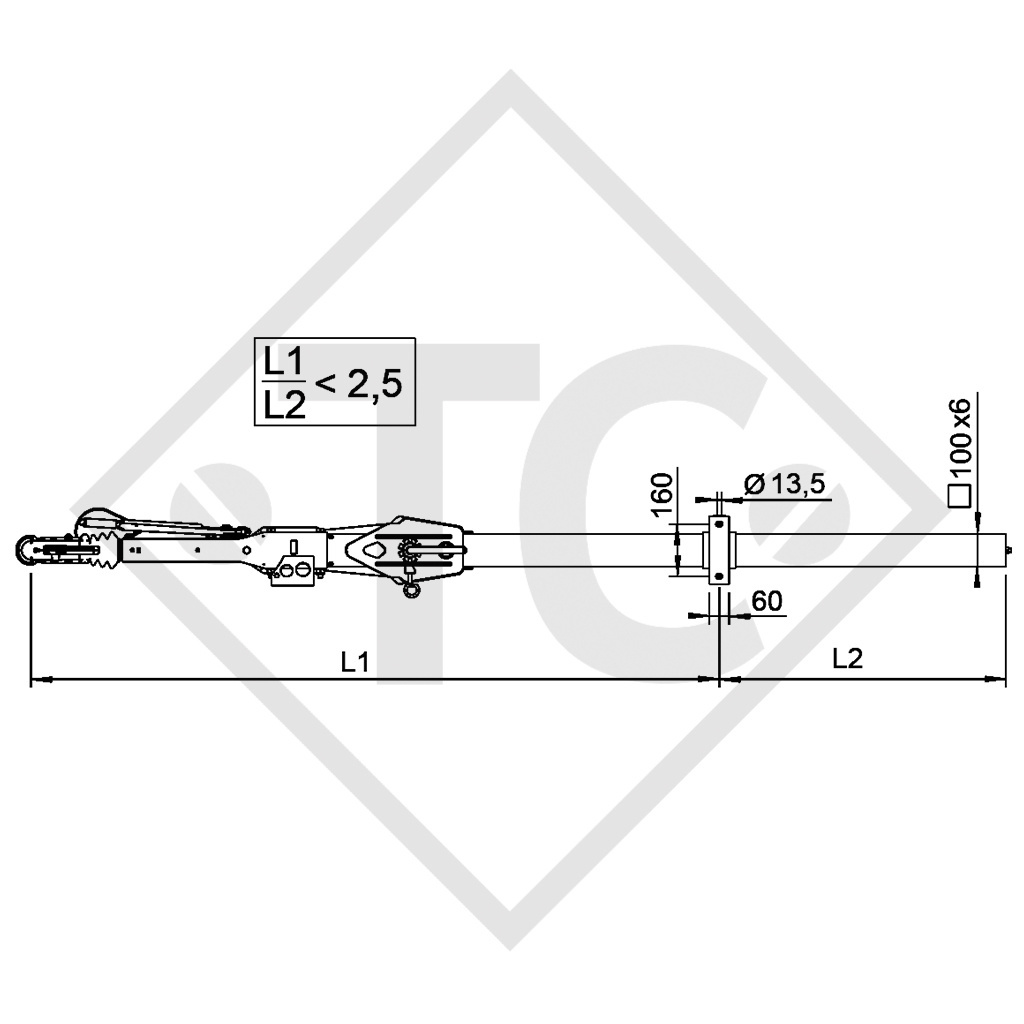

Max. free drawbar length (L1): 1600mm
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
