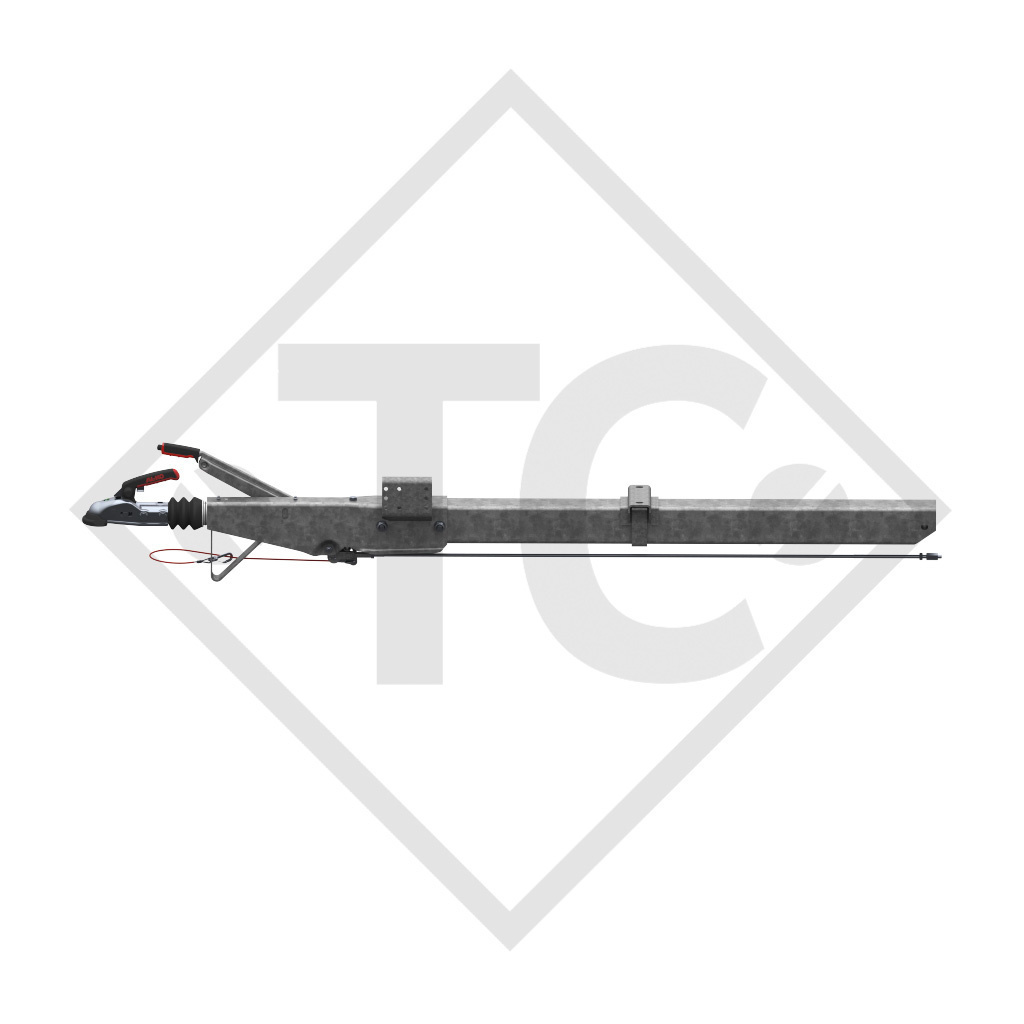

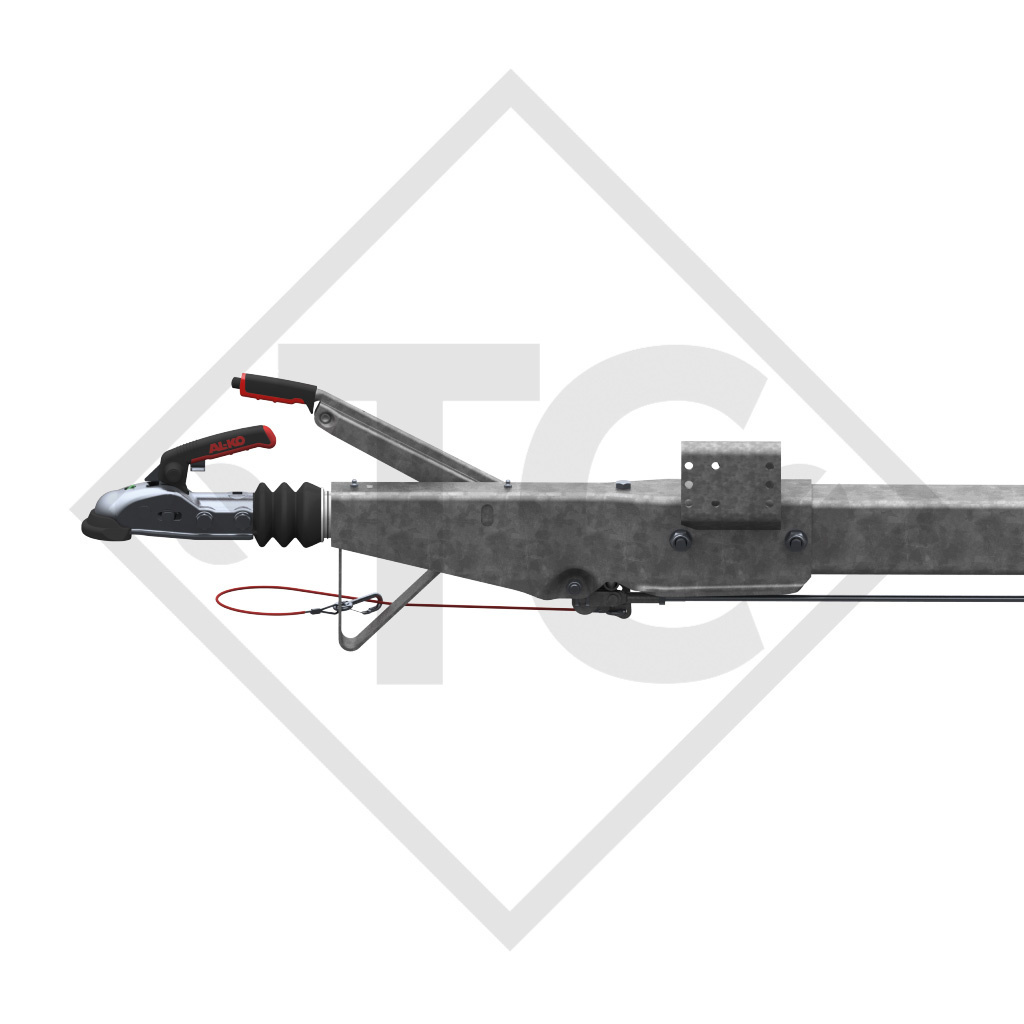

AL-KO Square overrun device type 161 S - R26 vers. A with drawbar section straight 950 to 1600kg

Part no. 20062307

Total length A: 2650mm
Drawbar length C: 1940mm
Drawbar section: 100x100x4mm

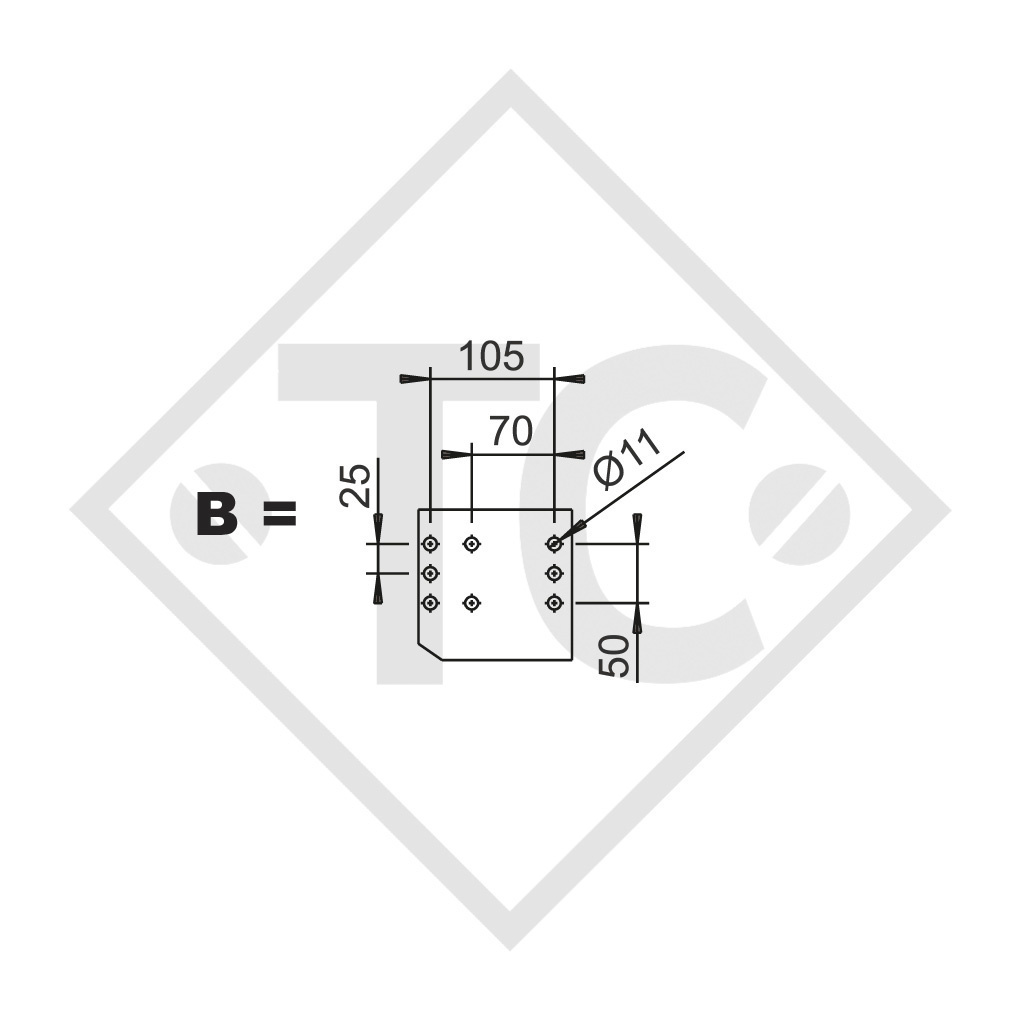

Jockey wheel flange = see illustration B

INSTALLATION MANUAL
SPARE PART LIST 811187

TECHNOLOGY
Type 161 S - R26 vers. A
with coupling head AK 161 for wheel brake 2361 (90/30)
GA 950 to 1600 kg
Perm. nose load 100 kg
Changeover relay lever: Yes

ECE test report no.:
Overrun device: 361-0047-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0267
Drawbar: E1 55R-01 0280

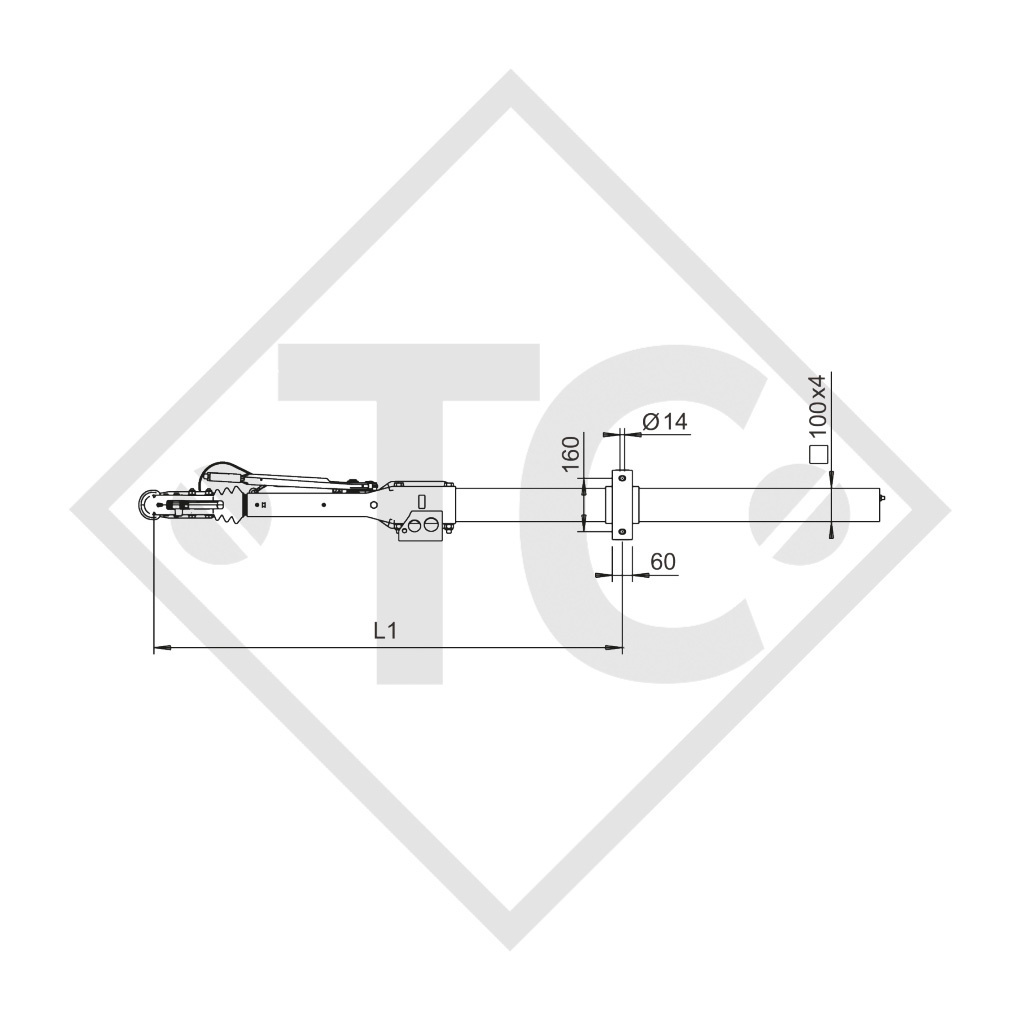

Max. free drawbar lenght at GA 1600 kg (L1): 2250 mm

SURFACE TREATMENT
Hot-dip galvanised
