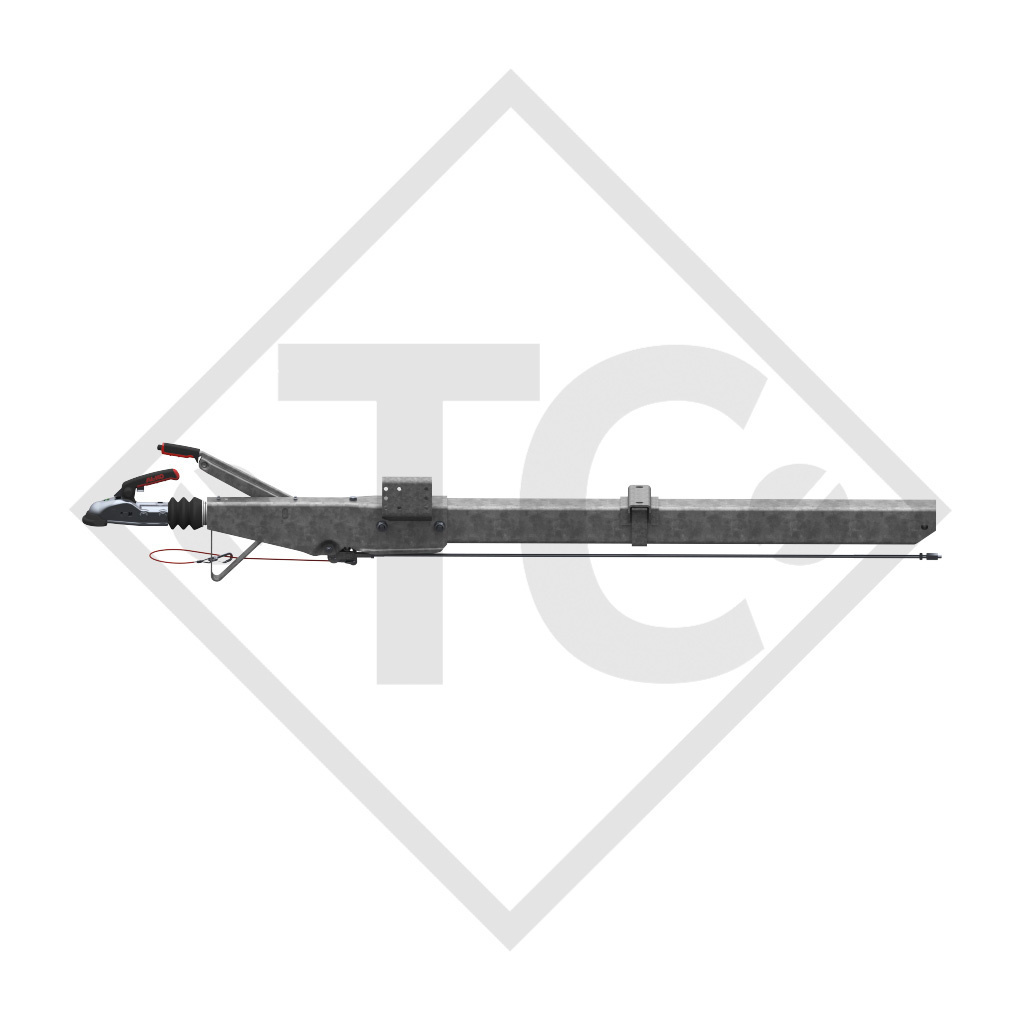

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES SQUARE / OVERRUN DEVICE SQUARE, WITH DRAWBAR SECTION / OVERRUN DEVICES SQUARE WITH DRAWBAR SECTION STRAIGHT 450 TO 3500KG / OVERRUN DEVICES SQUARE WITH DRAWBAR SECTION STRAIGHT TYPE 161S - R26 VERS. A TO 1600KG / Square overrun device type 161 S - R26 vers. A with drawbar section straight 950 to 1600kg
total length A 2170mm, drawbar length C 1460mm, drawbar section 100x100x4mm, perm. nose load 100kg, with coupling head AK 161, for wheel brake 1637 / 2051. Read more...
Part no. 20062204

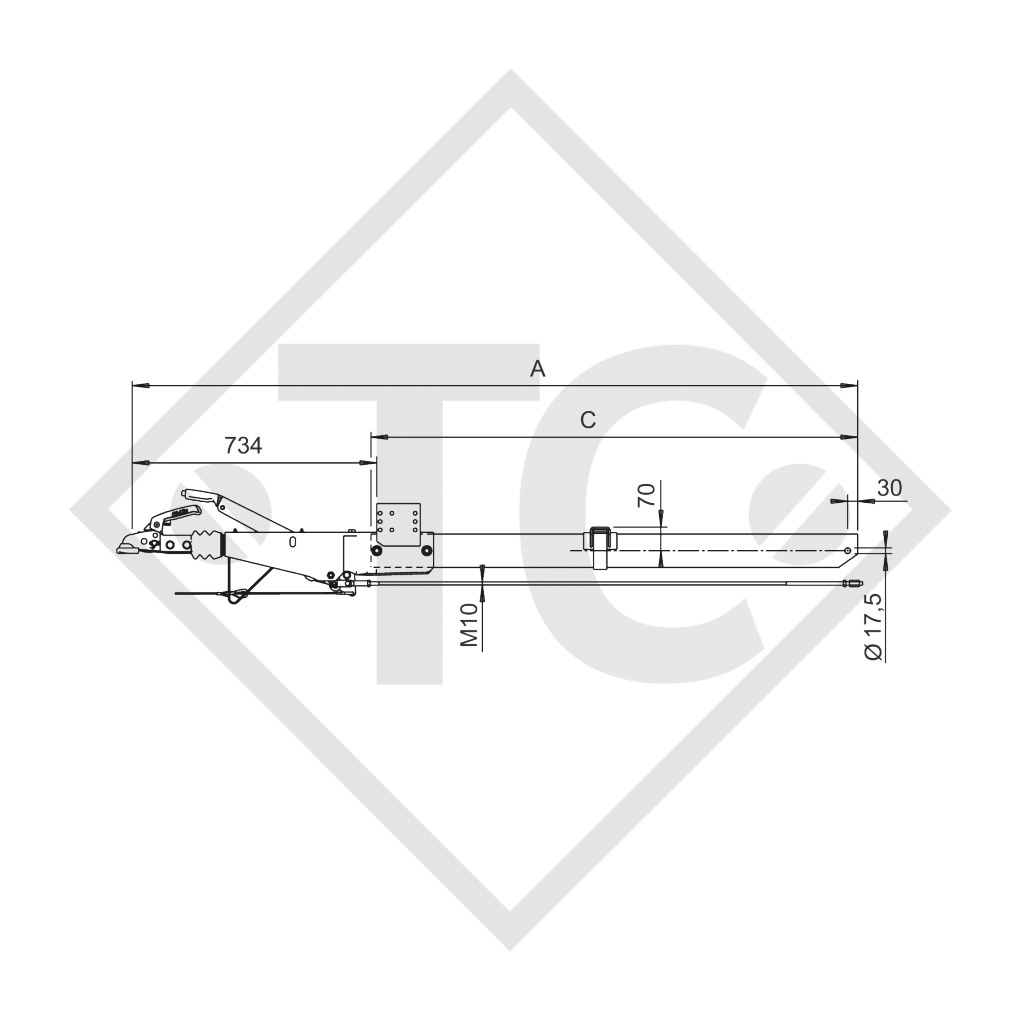

Total length A: 2170mm
Drawbar length C: 1460mm
Drawbar section: 100x100x4mm
Jockey wheel flange = see illustration B
INSTALLATION MANUAL
SPARE PART LIST 811187
TECHNOLOGY
Type 161 S - R26 vers. A

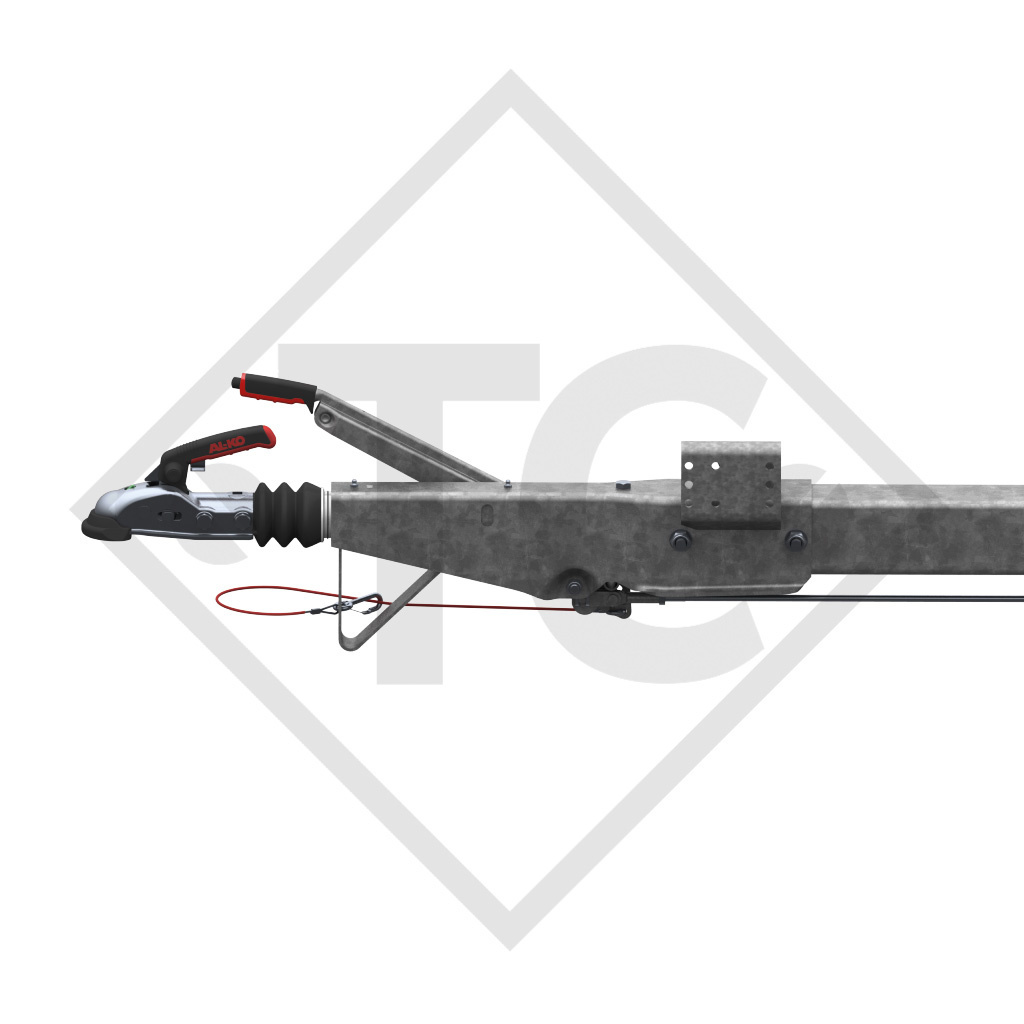

with coupling head AK 161 for wheel brake 1637 / 2051 (90/27)
GA 950 to 1600 kg
Perm. nose load 100 kg
Changeover relay lever: Yes
ECE test report no.:
Overrun device: 361-0047-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0267
Drawbar: E1 55R-01 0280

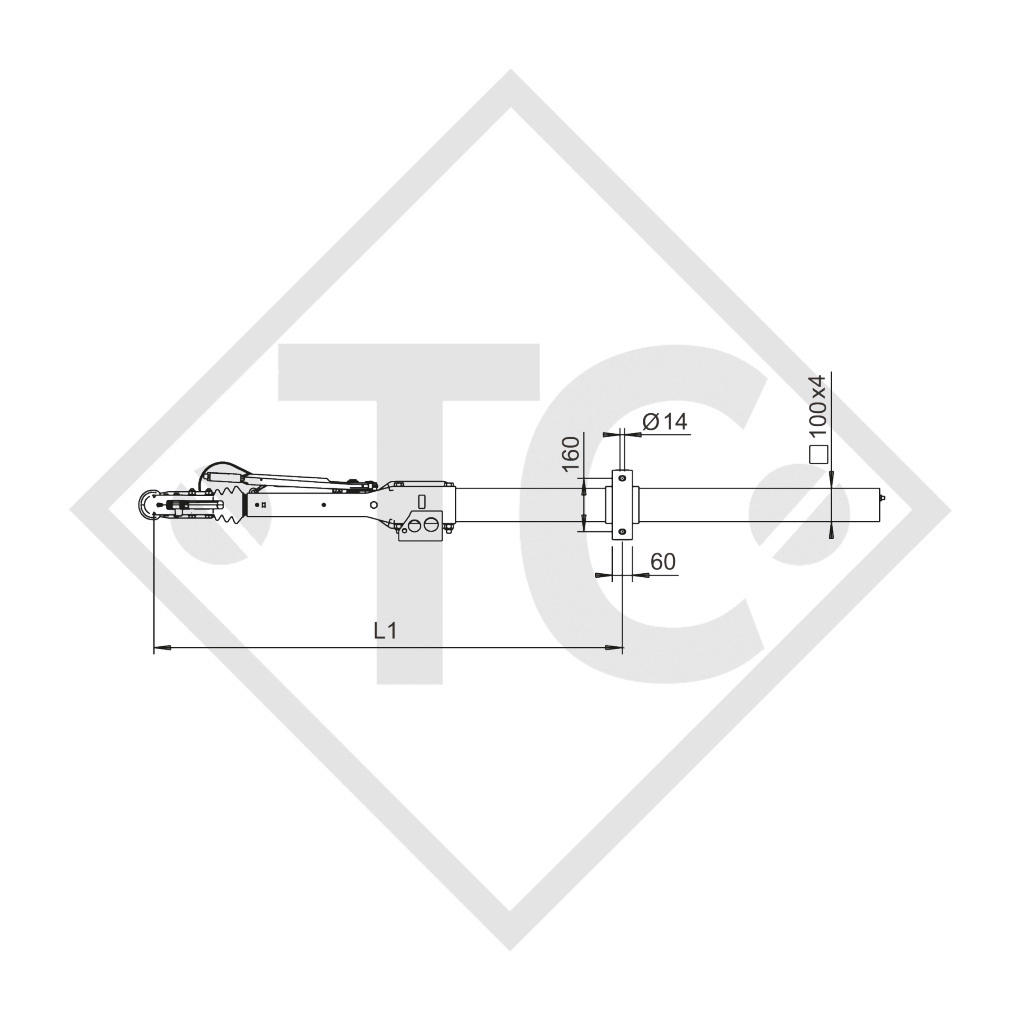

Max. free drawbar lenght at GA 1600 kg (L1): 2250 mm
SURFACE TREATMENT
Hot-dip galvanised
