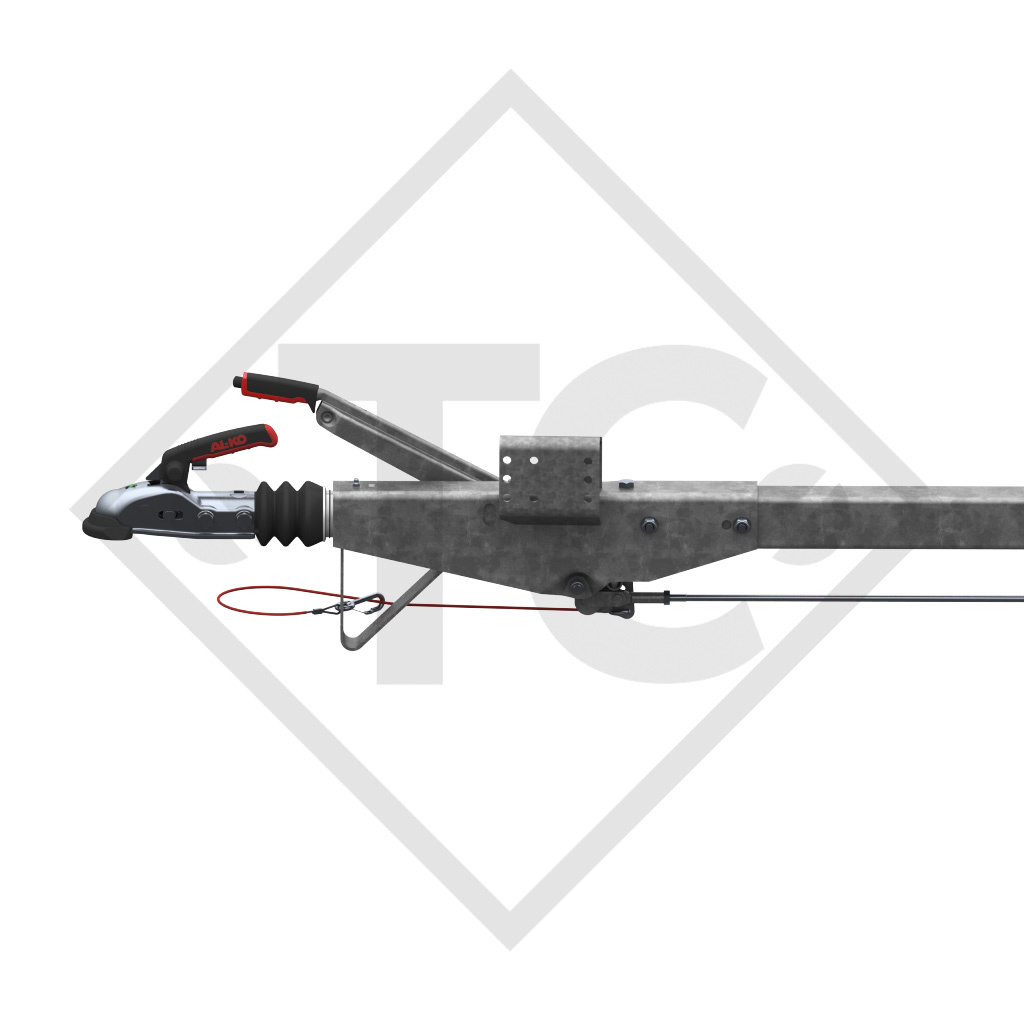

Home / Square overrun device type 161 S - R16 vers. A with drawbar section straight 950 to 1600kg

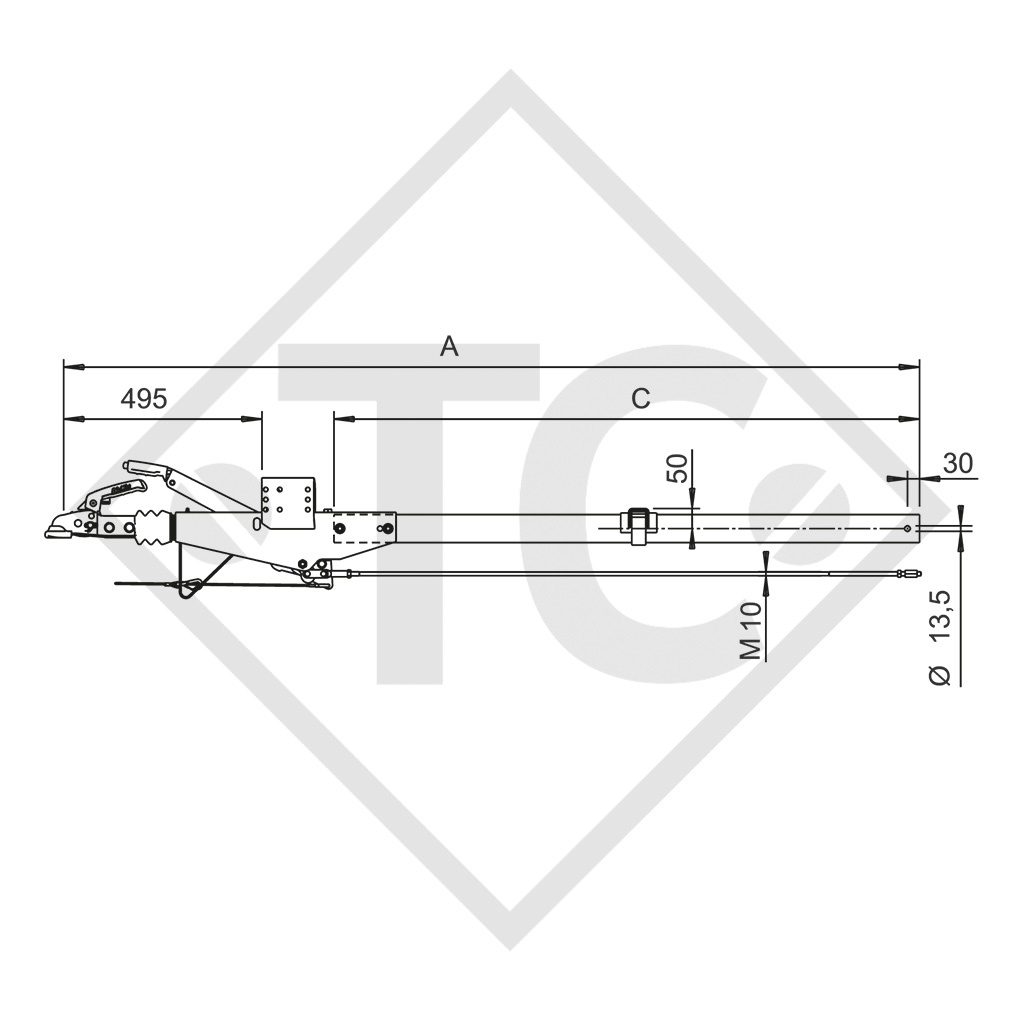

total length A 1397mm, drawbar length C 730mm, drawbar section 70x70x4mm, perm. nose load 100kg, with coupling head AK 161, for wheel brake 1637 / 2051. Read more...
INSTALLATION MANUAL
SPARE PART LIST 811033
TECHNOLOGY
Type 161 S - R16 vers. A
GA 950 to 1600 kg
Perm. nose load 100 kg
Change-over relay lever: No
ECE test report no.:
Overrun device: 361-0047-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0267
Drawbar: E1 55R-01 0274
Max. free drawbar lenght at GA 1500 kg (L1): 1100 mm
SURFACE TREATMENT
Hot-dip galvanised
