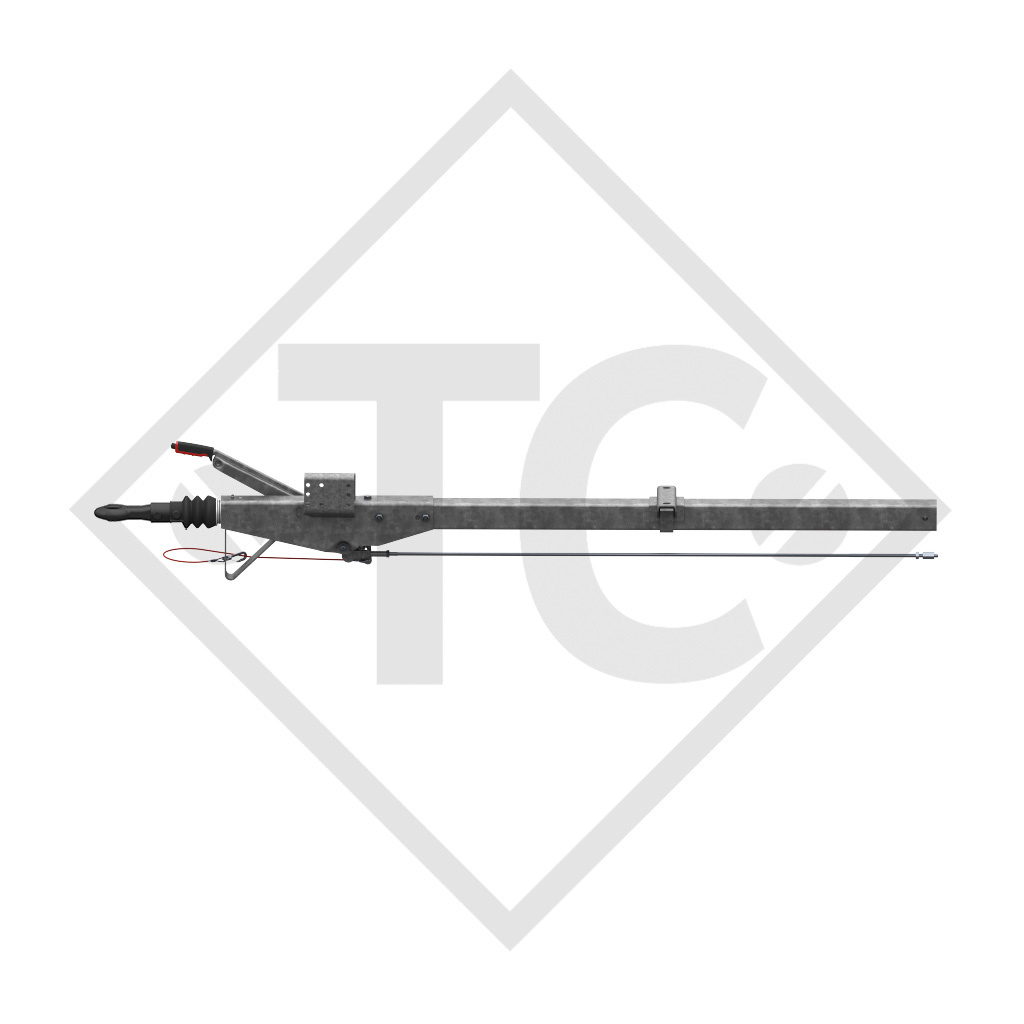

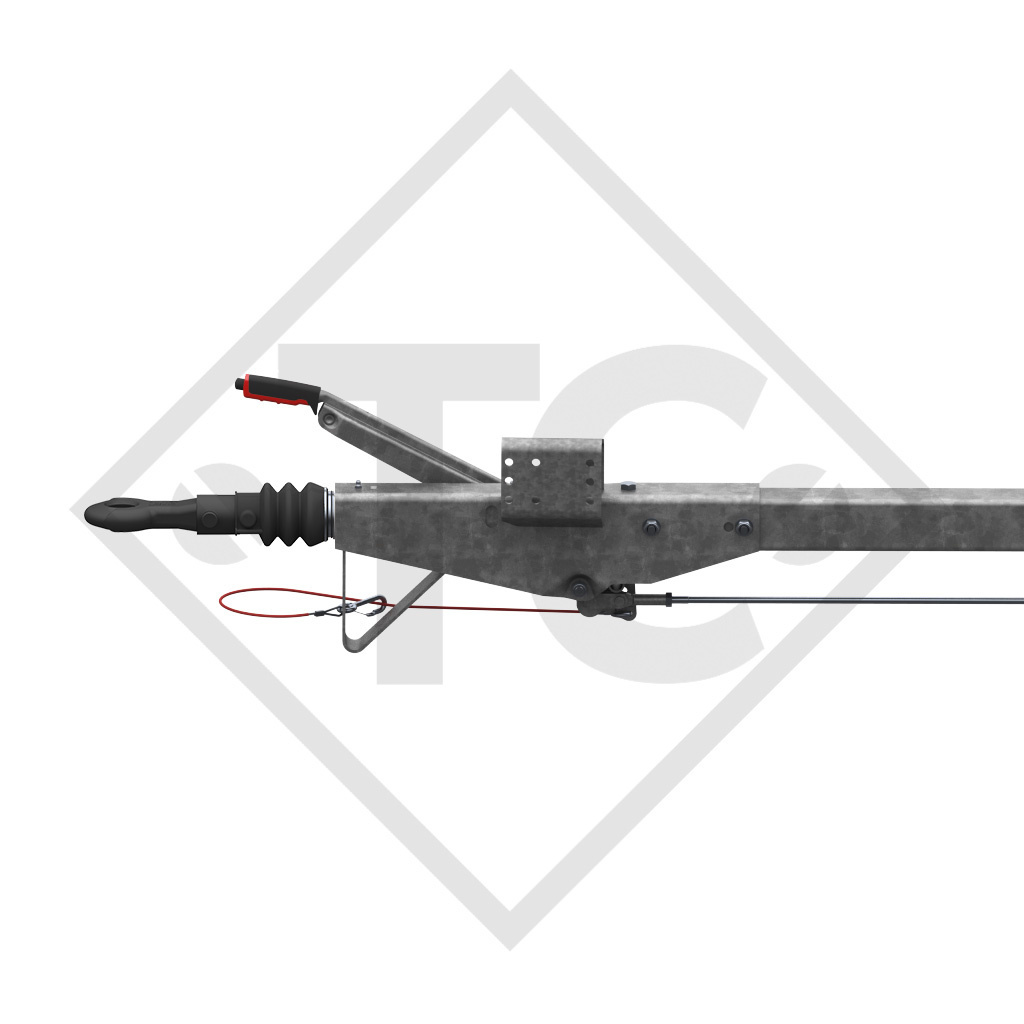

Home / Square overrun device type 161 S - R16 vers. A with drawbar section straight 950 to 1600kg
total length A 3087mm, drawbar length C 2420mm, drawbar section 70x70x4mm, perm. nose load 100kg, with DIN drawbar eye D40/F, for wheel brake 2361. Read more...
Part no. 20035749

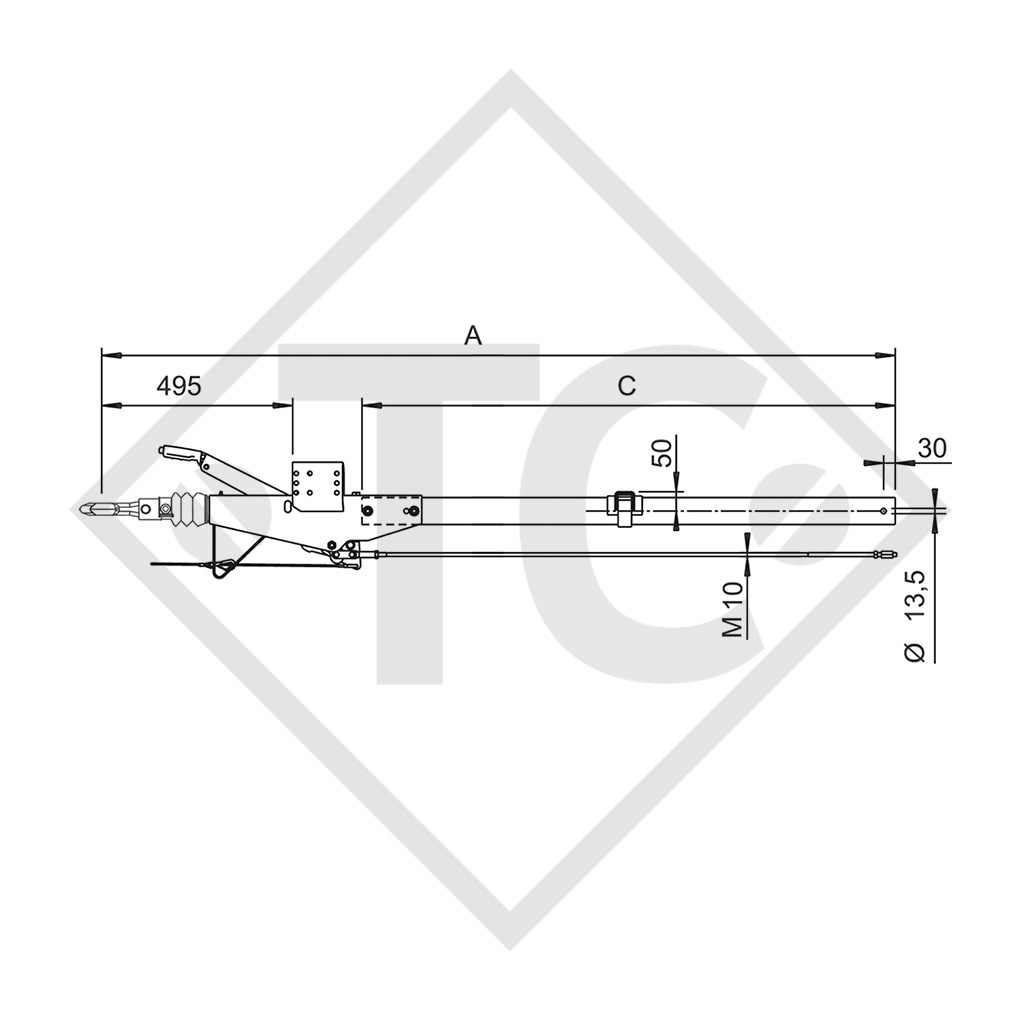

Total length A: 3087mm
Drawbar length C: 2420mm
Drawbar section: 70x70x4mm

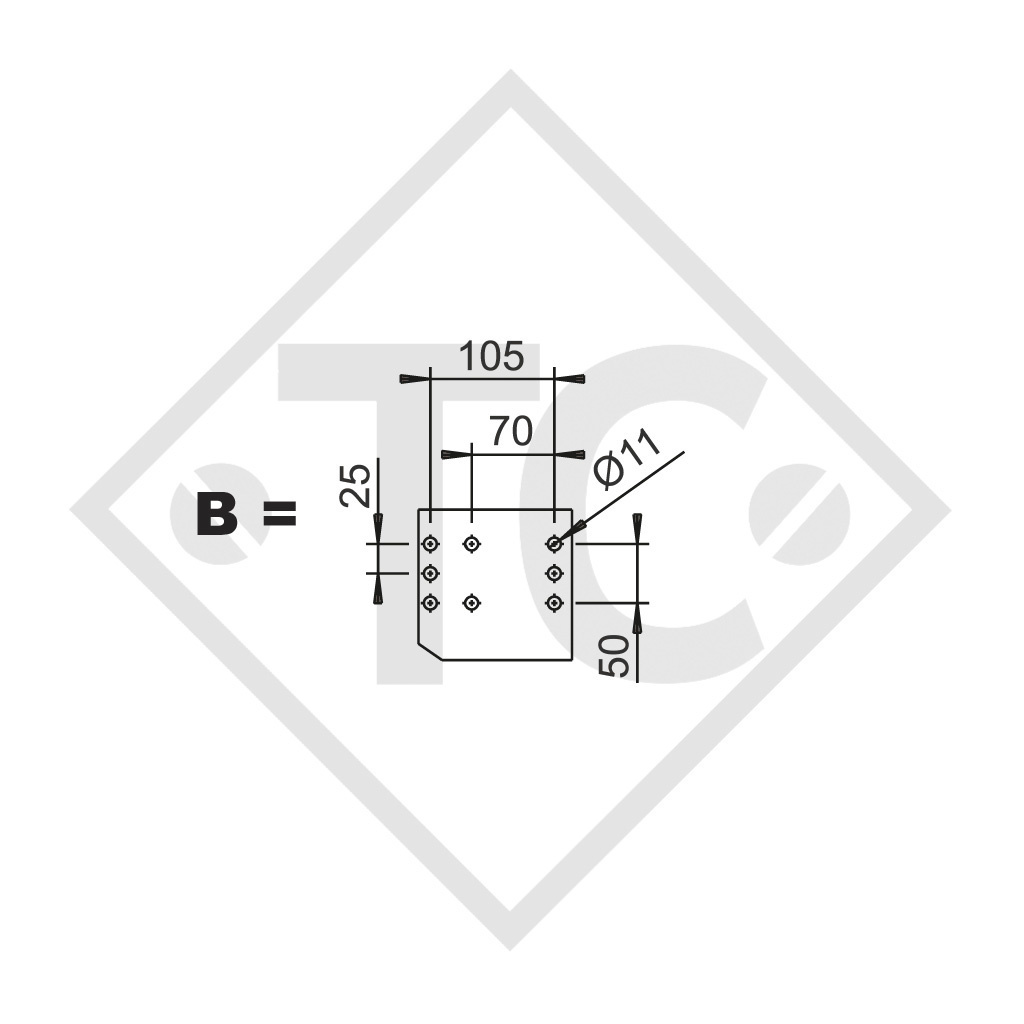

Jockey wheel flange = see illustration B
INSTALLATION MANUAL
SPARE PART LIST 811261
TECHNOLOGY
Type 161 S - R16 vers. A
with DIN drawbar eye ⌀40 for wheel brake 2361 (90/30)
GA 950 to 1600 kg
Perm. nose load 100 kg
Changeover relay lever: No
ECE test report no.:
Overrun device: 361-0047-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0267
Drawbar: E1 55R-01 0274

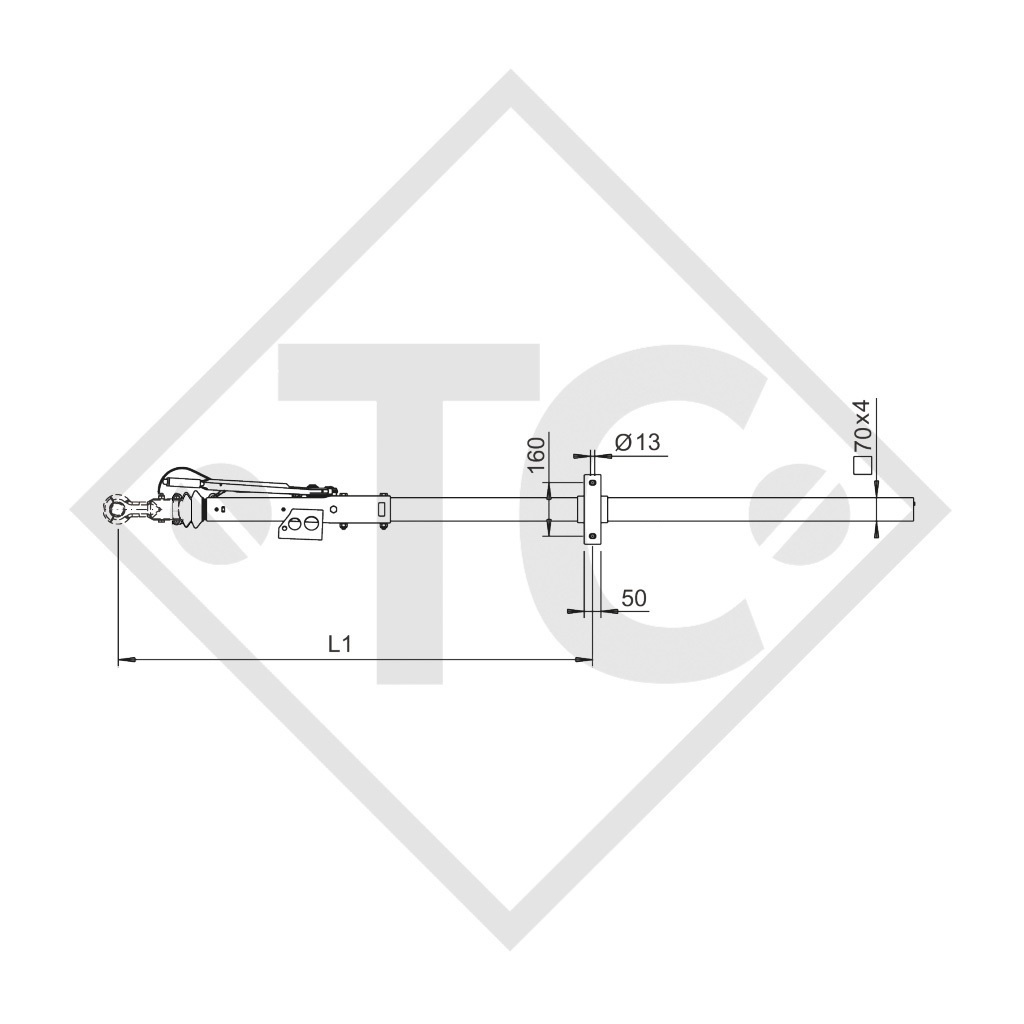

Max. free drawbar lenght at GA 1500 kg (L1): 1100 mm
SURFACE TREATMENT
Hot-dip galvanised
