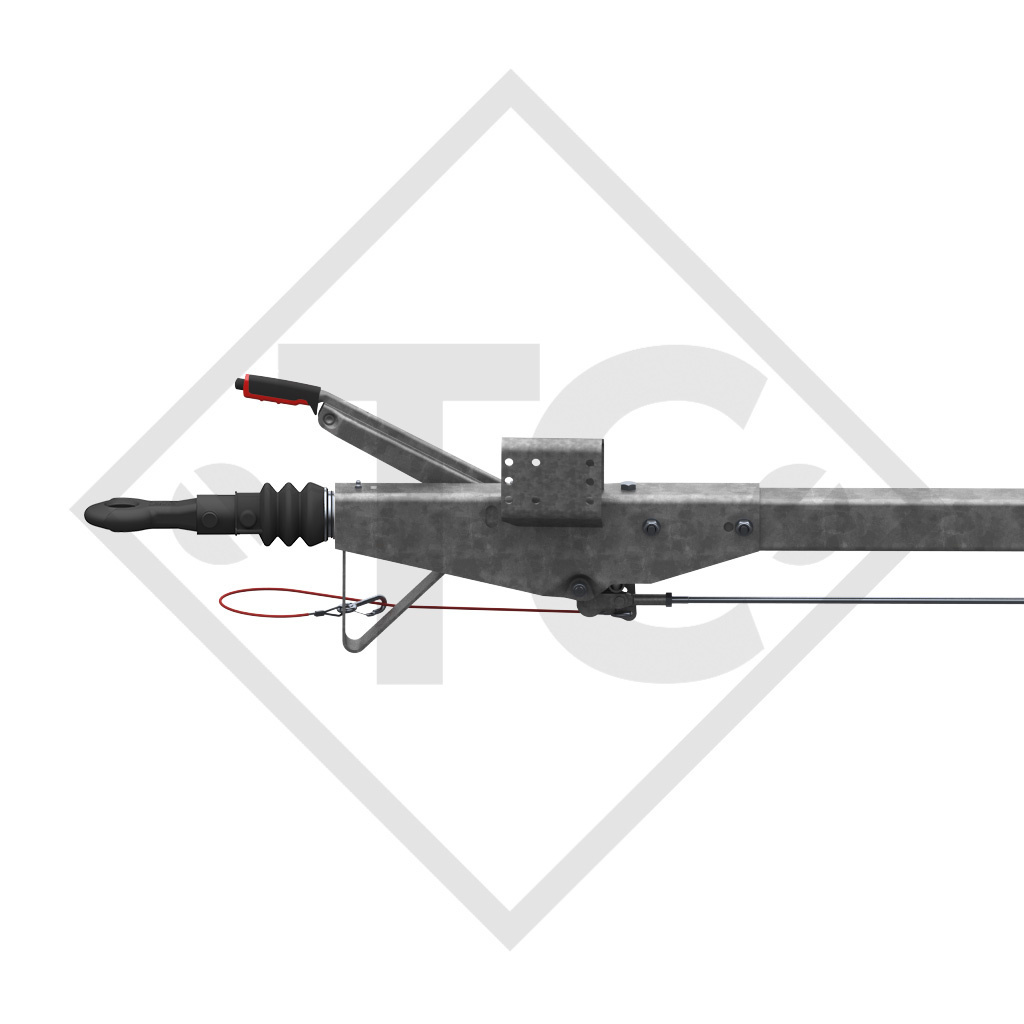

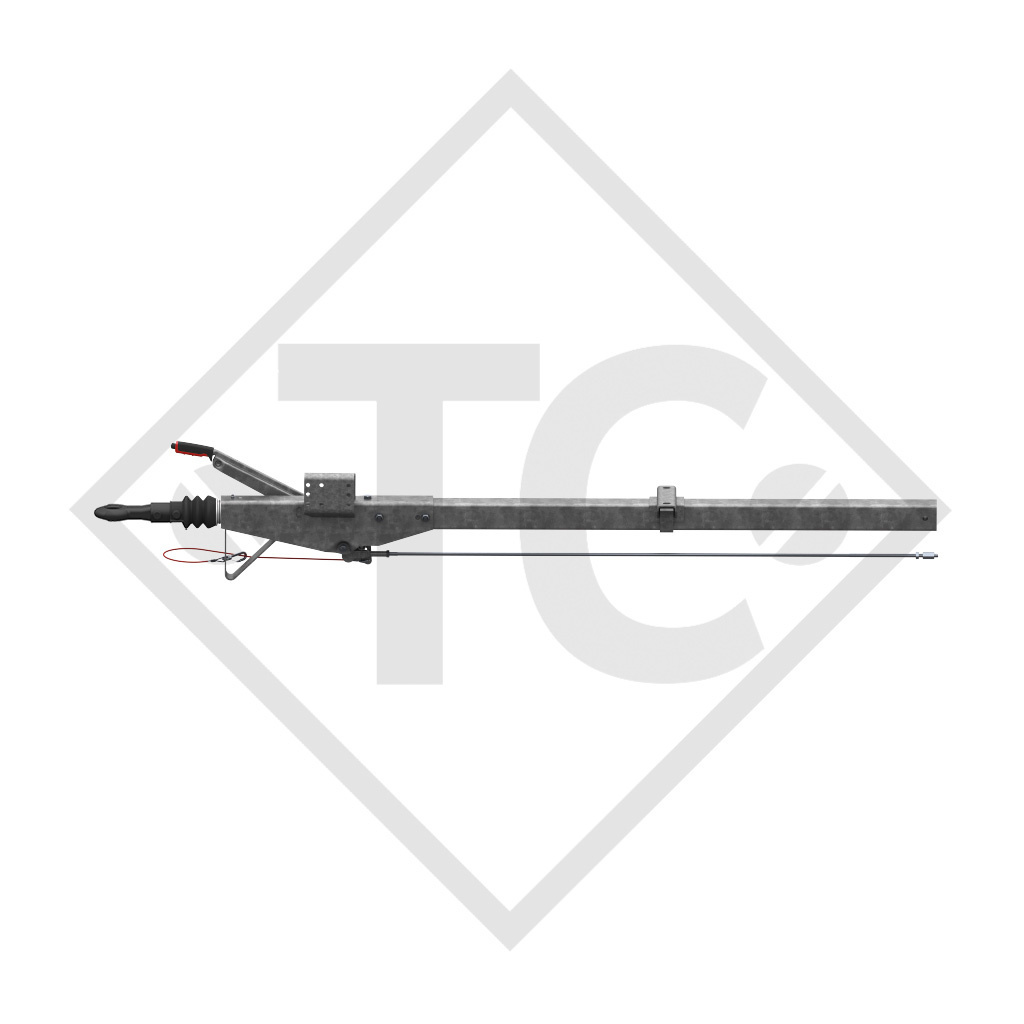

AL-KO Square overrun device type 161 S - R16 vers. A with drawbar section straight 950 to 1600kg

Part no. 20035745

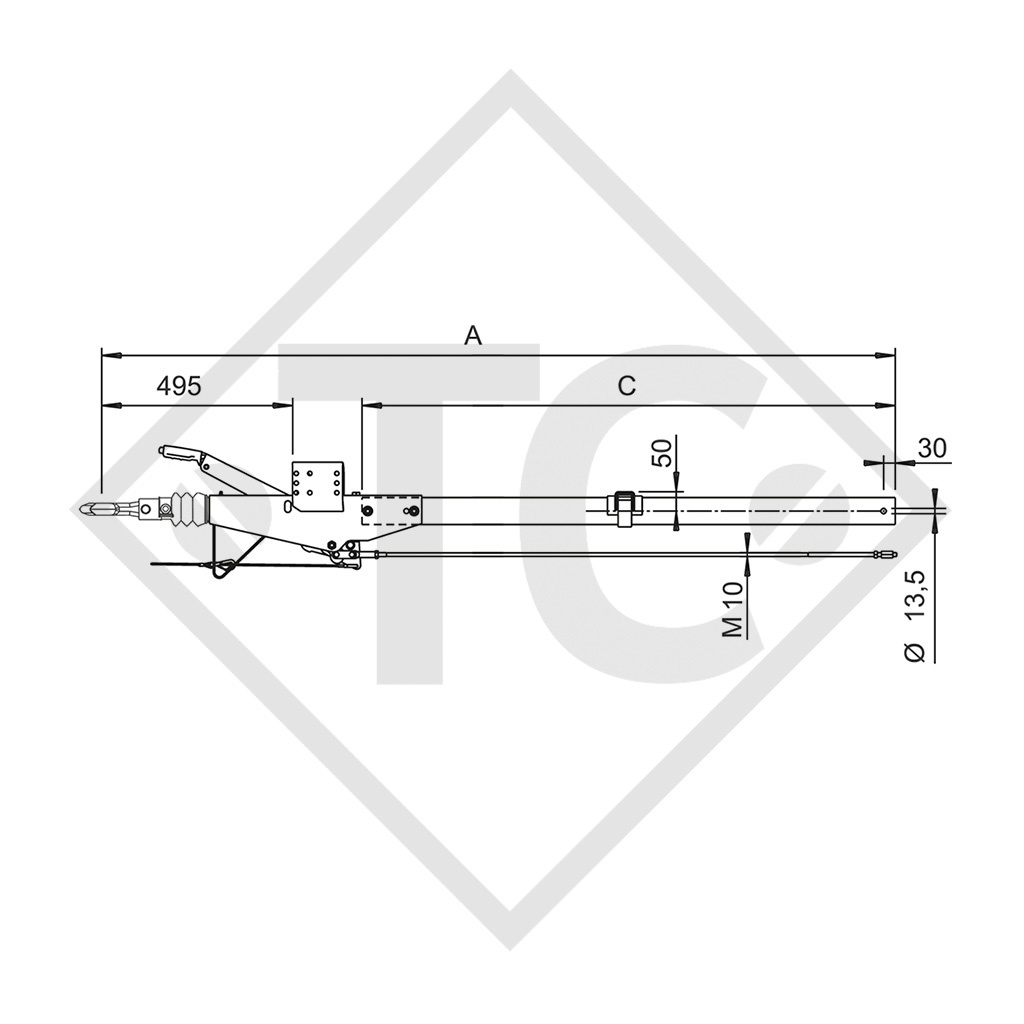

Total length A: 2448mm
Drawbar length C: 1780mm
Drawbar section: 70x70x4mm

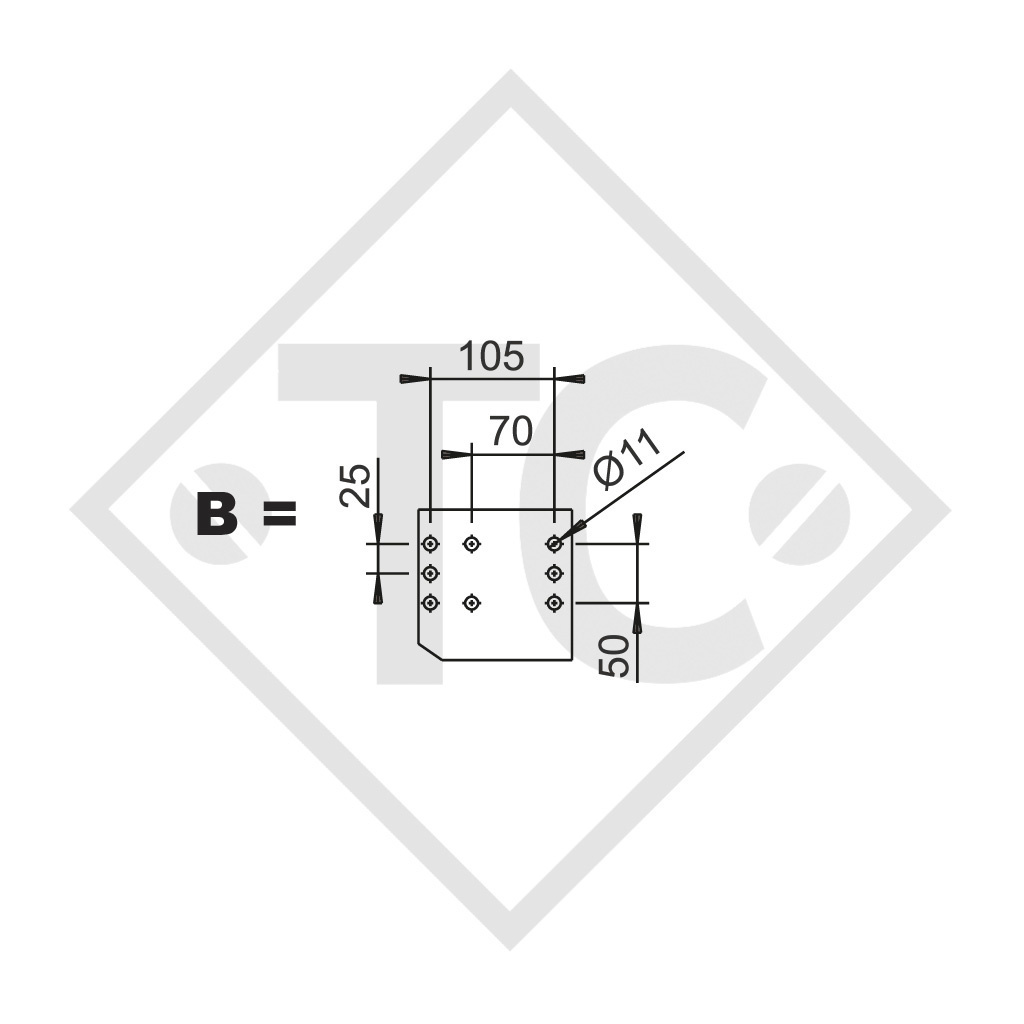

Jockey wheel flange = see illustration B

INSTALLATION MANUAL
SPARE PART LIST 811261

TECHNOLOGY
Type 161 S - R16 vers. A
with DIN drawbar eye ⌀40 for wheel brake 2361 (90/30)
GA 950 to 1600 kg
Perm. nose load 100 kg
Changeover relay lever: No

ECE test report no.:
Overrun device: 361-0047-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0267
Drawbar: E1 55R-01 0274

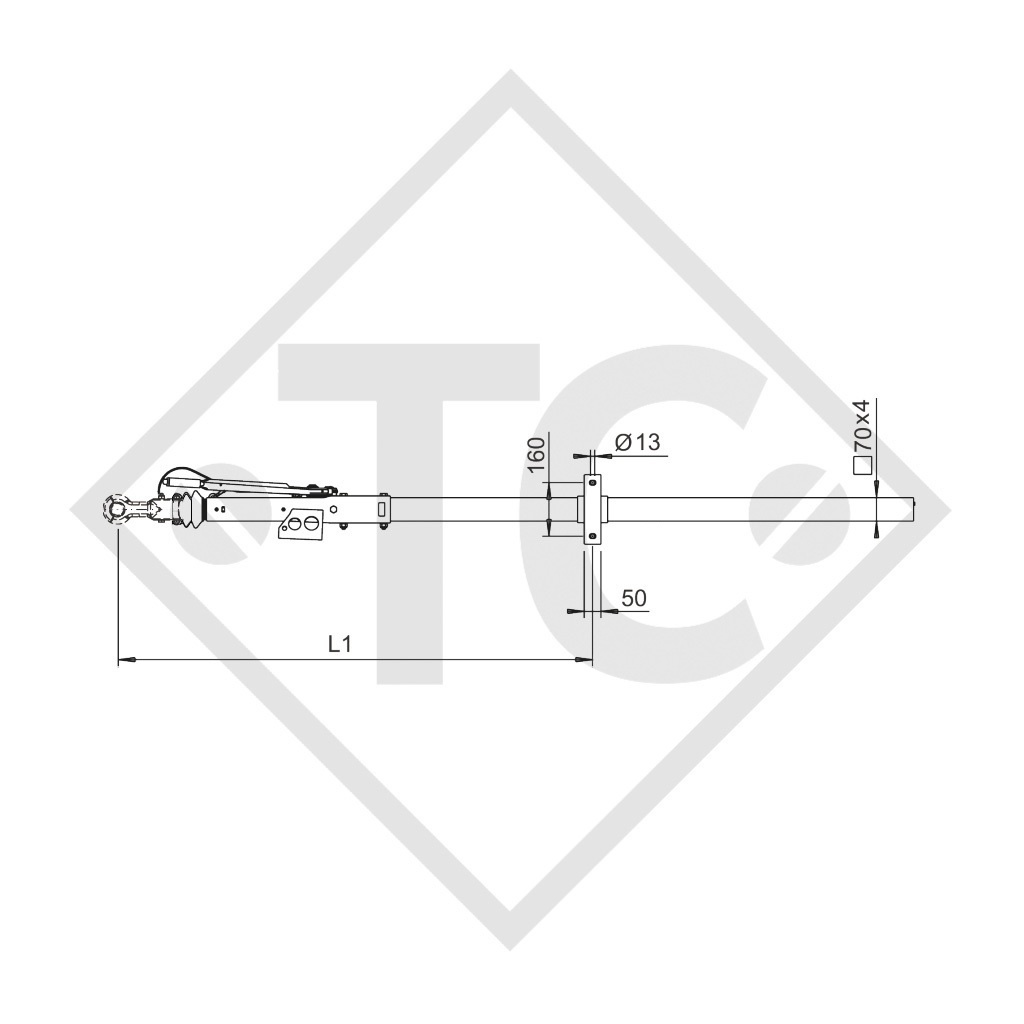

Max. free drawbar lenght at GA 1500 kg (L1): 1100 mm

SURFACE TREATMENT
Hot-dip galvanised
