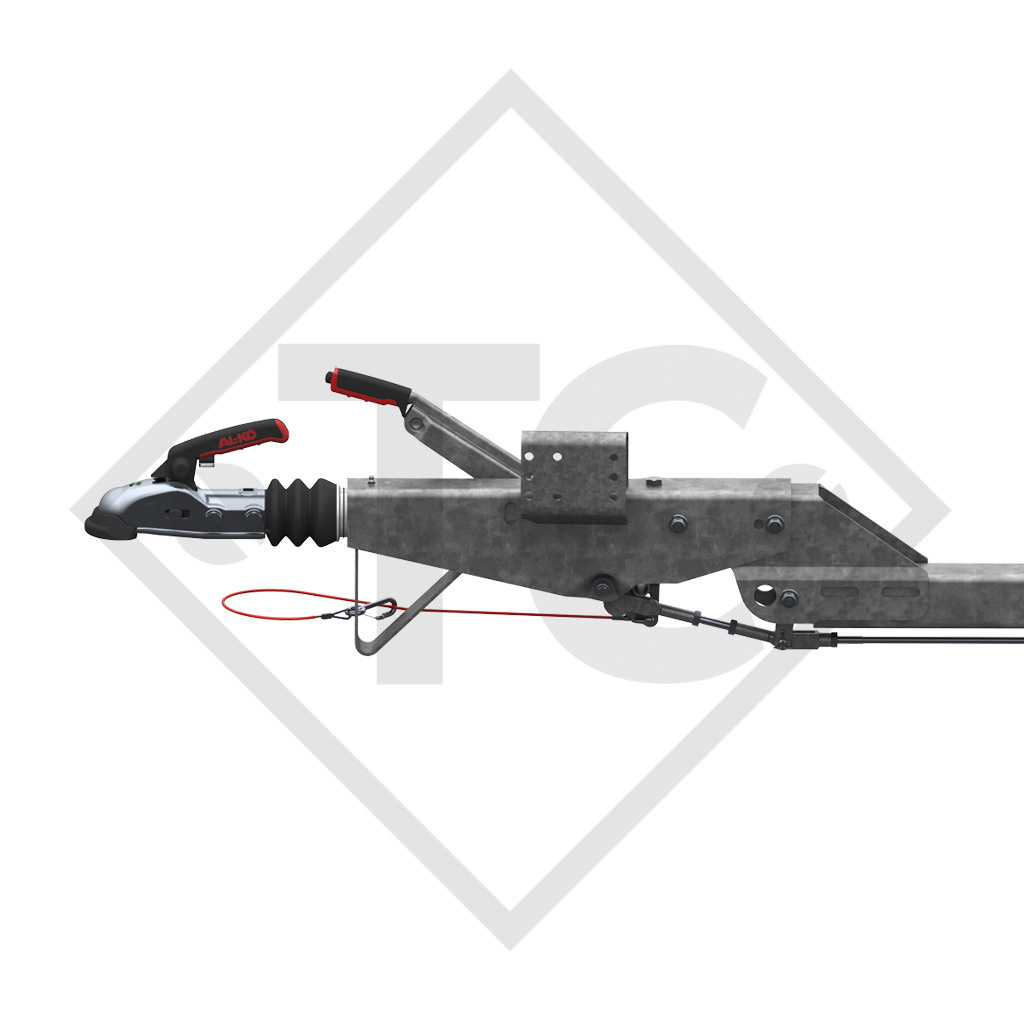

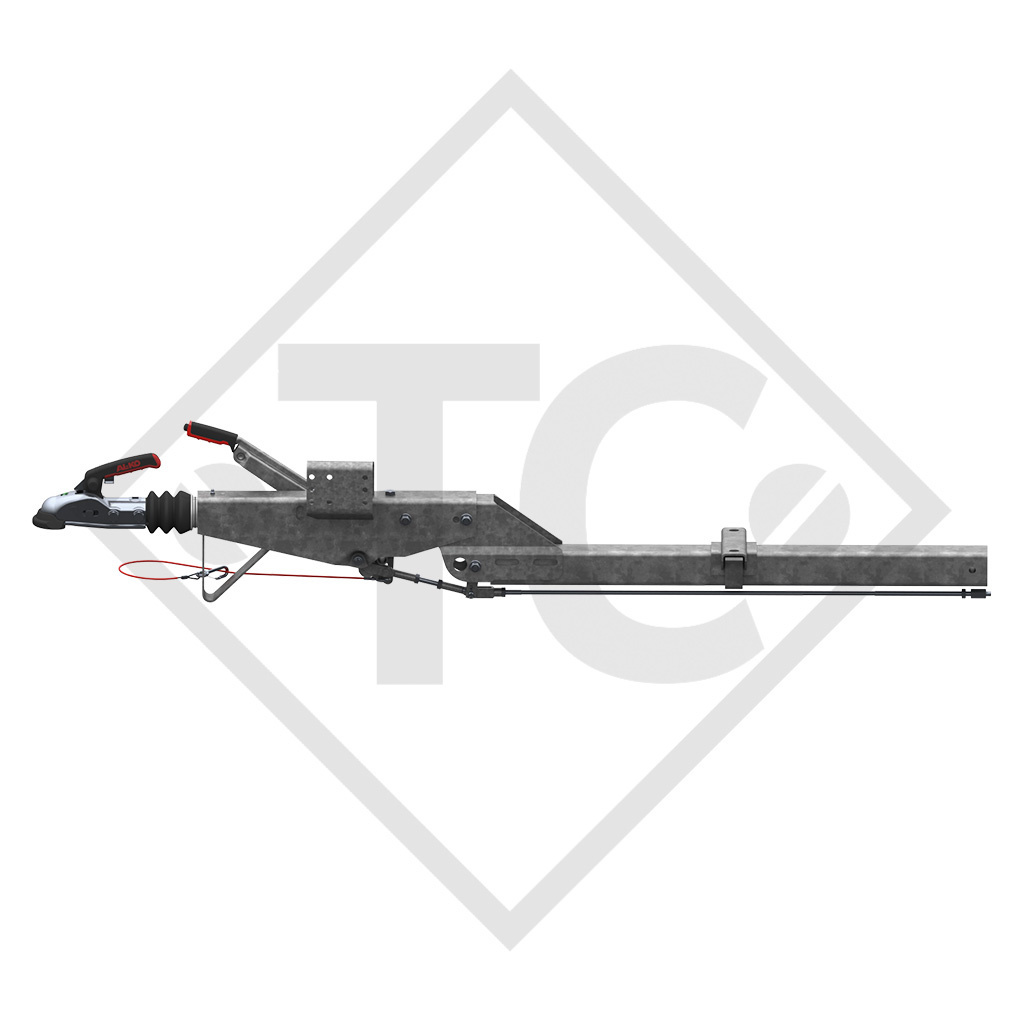

AL-KO Square overrun device type 161 S/B - K16 with drawbar section cranked 700 to 1350kg

Part no. 20061909

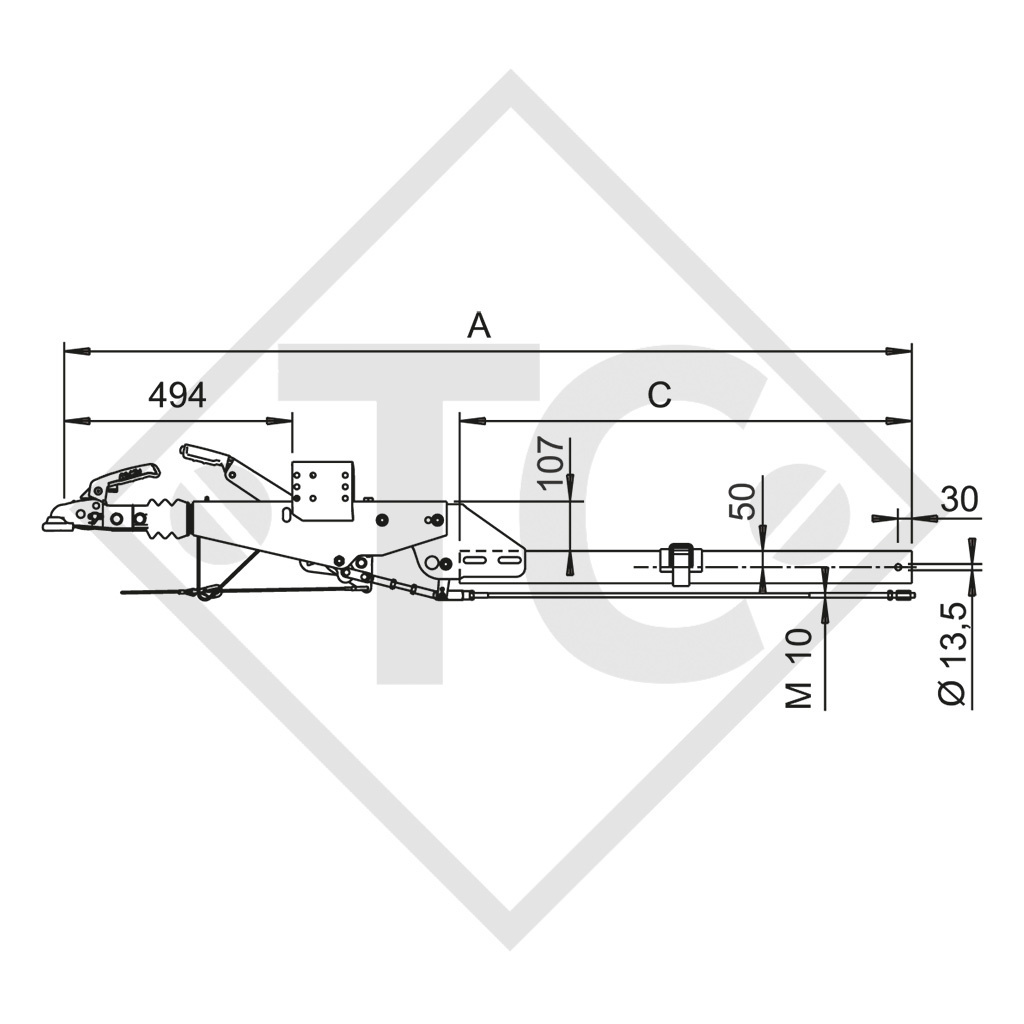

Total length A: 3110mm
Drawbar length C: 2260mm
Drawbar section: 70x70x5mm

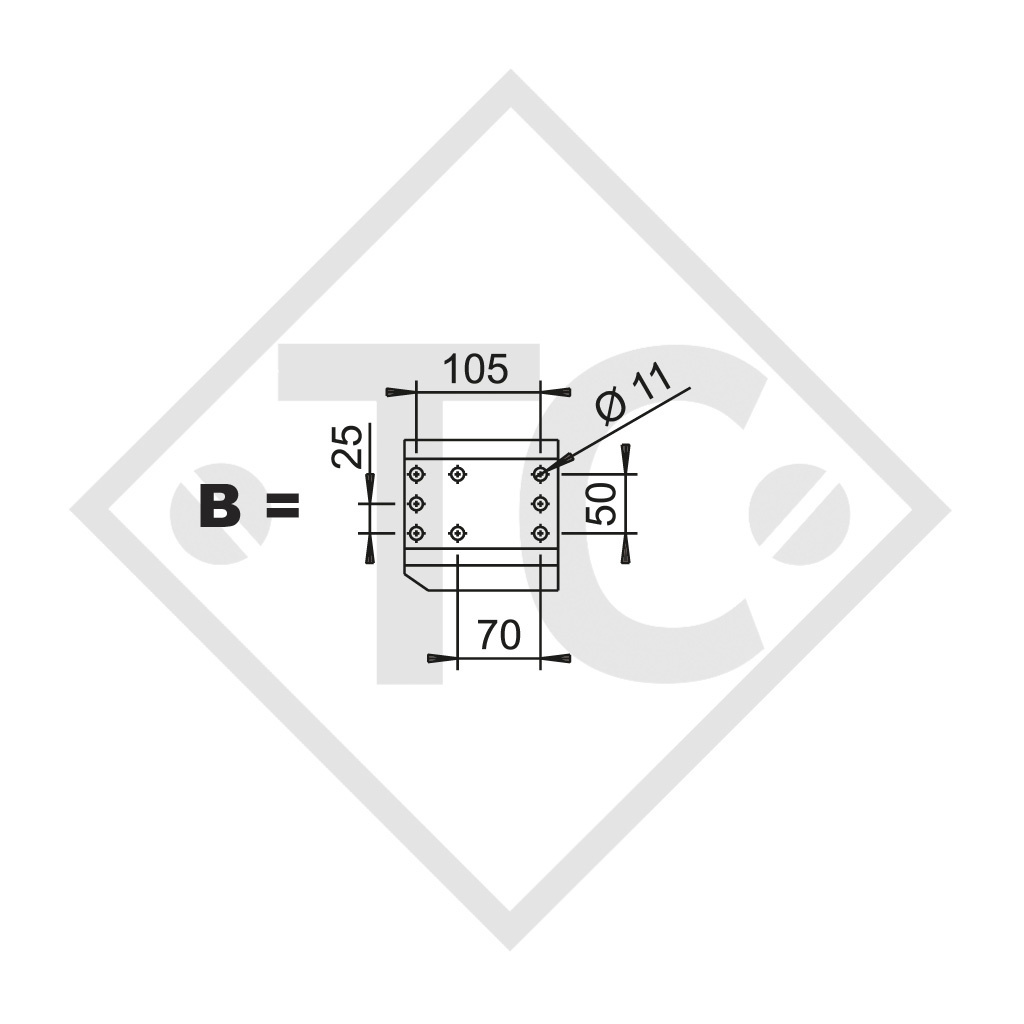

Jockey wheel flange = see illustration B

ORIGINAL OPERATING INSTRUCTIONS
SPARE PART LIST 811410

TECHNOLOGY
Type 161 S/B - K16
with coupling head AK 161 for wheel brake 1637 / 2051 (90/27)
GA 700 to 1350 kg
Perm. nose load 100 kg
Changeover relay lever: No

ECE test report no.:
Overrun device: 361-0047-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0267
Drawbar: E1 55R-01 1469

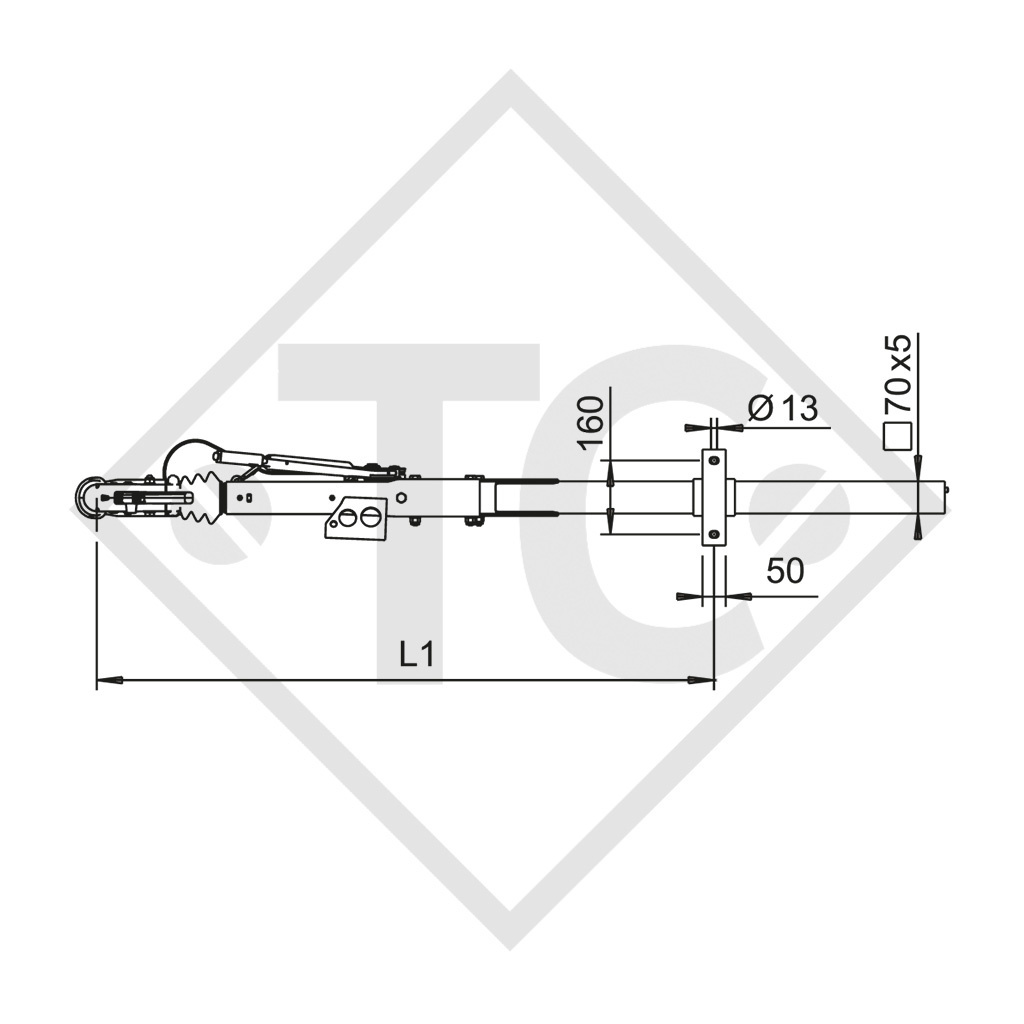

Max. free drawbar lenght at GA 1350 kg (L1): 1300 mm

SURFACE TREATMENT
Hot-dip galvanised
