straight, suitable for types B 850, B 1000, B 1200 and B 1600, dimension X 40-70mm, surface treatment: hot-dip galvanised. Read more...

Wishlist: Add to comparison:
Price 9,90 EUR Incl. tax Excl. Shipping costs

Part no. 244088

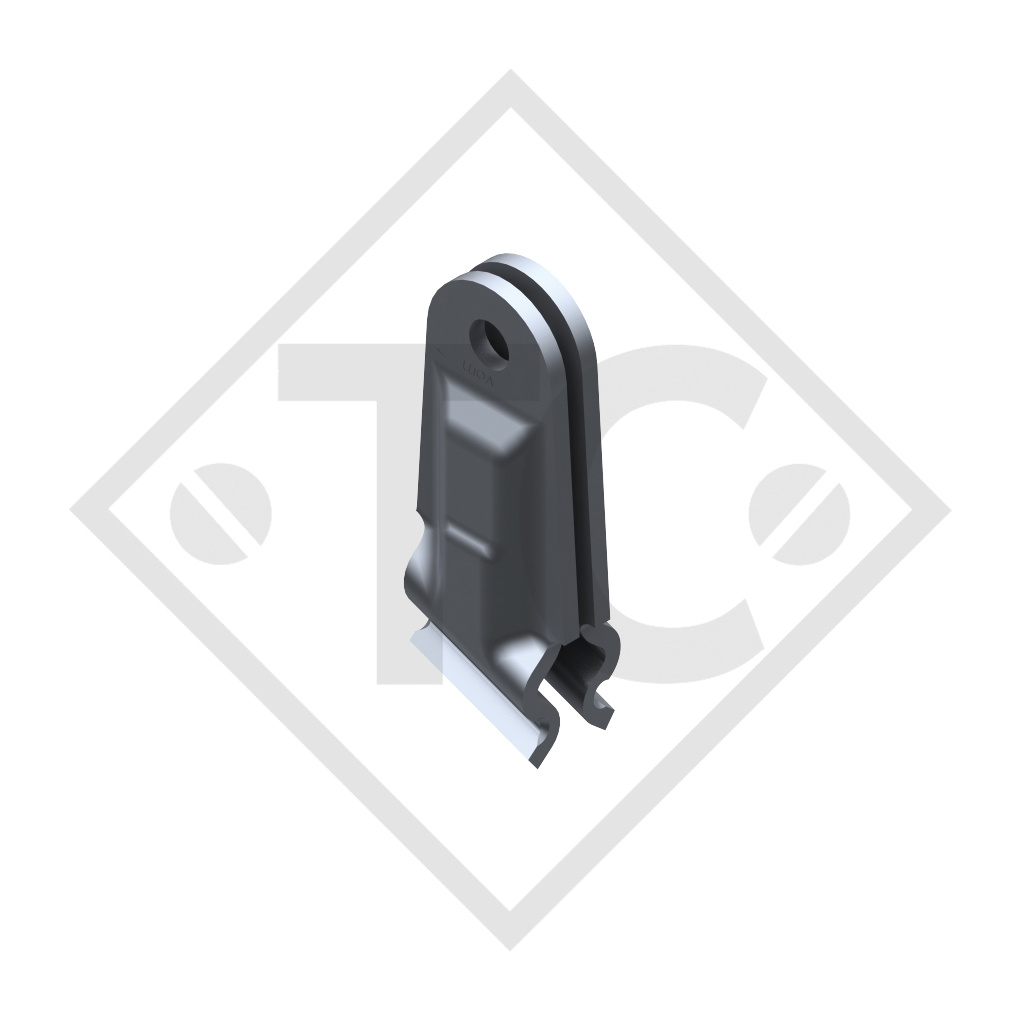

Shock absorber brackets for AL-KO axle links
Axle type B 850, B1000, B1200, B1600
possible swing arm versions Hollow swing arm
with mounting hole
Type of retrofit Plug-on shock absorber brackets
Outside mounting Dimension X 40-70mm
Outside mounting part no. shock absorber brackets for axle links per unit 244088 (straight)
Inside mounting dimension Y 0-50mm
Inside mounting part no. shock absorber brackets for axle links per set = 2 units 1211507 (with spacer bush)
Part no. holding bars for trailer frame per unit 1312110

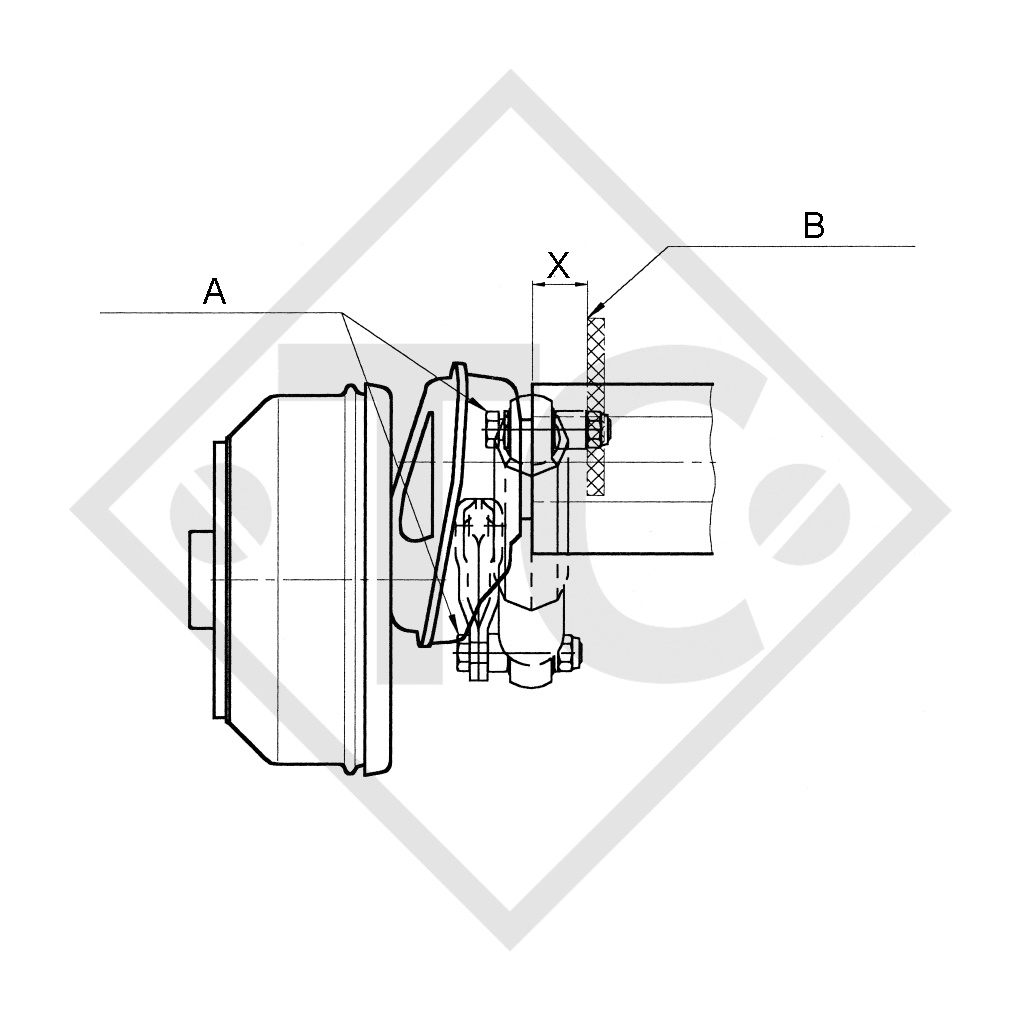

Dimension X, Shock absorber mounting from outside

A =

B =

from outside edge of axle tube to shock absorber system

Bolt head always in direction of tyre!

Shock absorber system (To be defined by vehicle manufacturer)

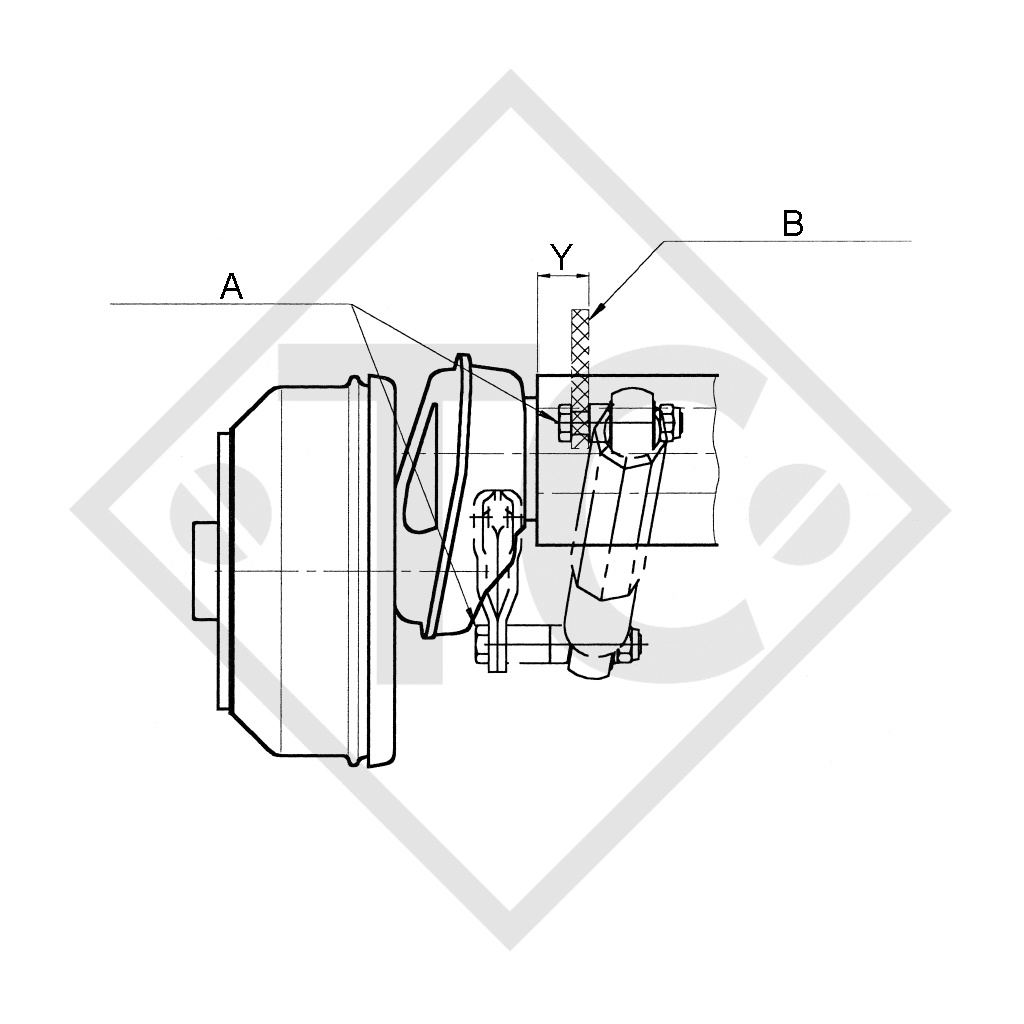

Dimension Y, Shock absorber mounting from inside

A =

B =

from outside edge of axle tube to shock absorber system (inner side)

Bolt head always in direction of tyre!

Shock absorber system (To be defined by vehicle manufacturer)



SCOPE OF DELIVERY
Shock absorber brackets for swing arms on AL-KO axles
Per axle, please order:
2 units of shock absorber brackets

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
