Home / Shock absorber brackets for axle links, for welding on, outside mounting
straight, suitable for types B 1000, B 1200, B 1600, B 1800 and B 2500, dimension X 50-80mm, (Achstyp B 2500 = dimension X 40-70mm), surface treatment: black-primed. Read more...
Part no. 2086310202
| Shock absorber brackets for AL-KO axle links |
| Axle type | B 1000, B 1200, B 1600, B 1800, B 2500 |
| possible swing arm versions | Forged swing arm |
| Type of retrofit | Shock absorber brackets for welding on |
|
Outside mounting Dimension X (B 1000, B 1200, B 1600, B 1800) Outside mounting Dimension X (B 2500) |
50-80mm
40-70mm |
| Outside mounting part no. shock absorber brackets for axle links | per unit 244088 (straight) |
|
Inside mounting Dimension Y (B 1000, B 1200, B 1600, B 1800) Inside mounting Dimension Y (B 2500) |
20-60mm
10-50mm |
| Inside mounting part no. shock absorber brackets for axle links | per unit 2284680202 (cranked) |
| Part no. holding bars for trailer frame | per unit 1312110 |
|

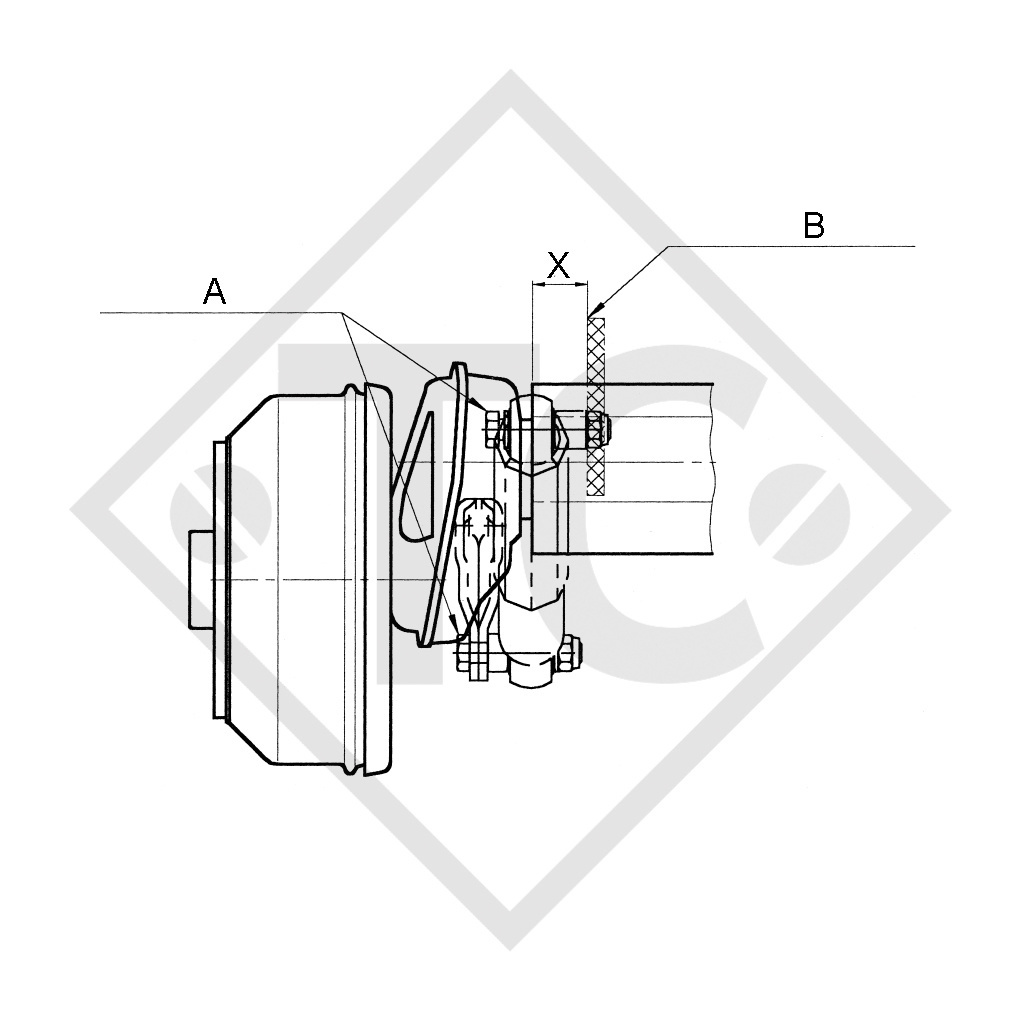

Dimension X, Shock absorber mounting from outside A = B = |
from outside edge of axle tube to shock absorber system Bolt head always in direction of tyre! Shock absorber system (To be defined by vehicle manufacturer) |
|

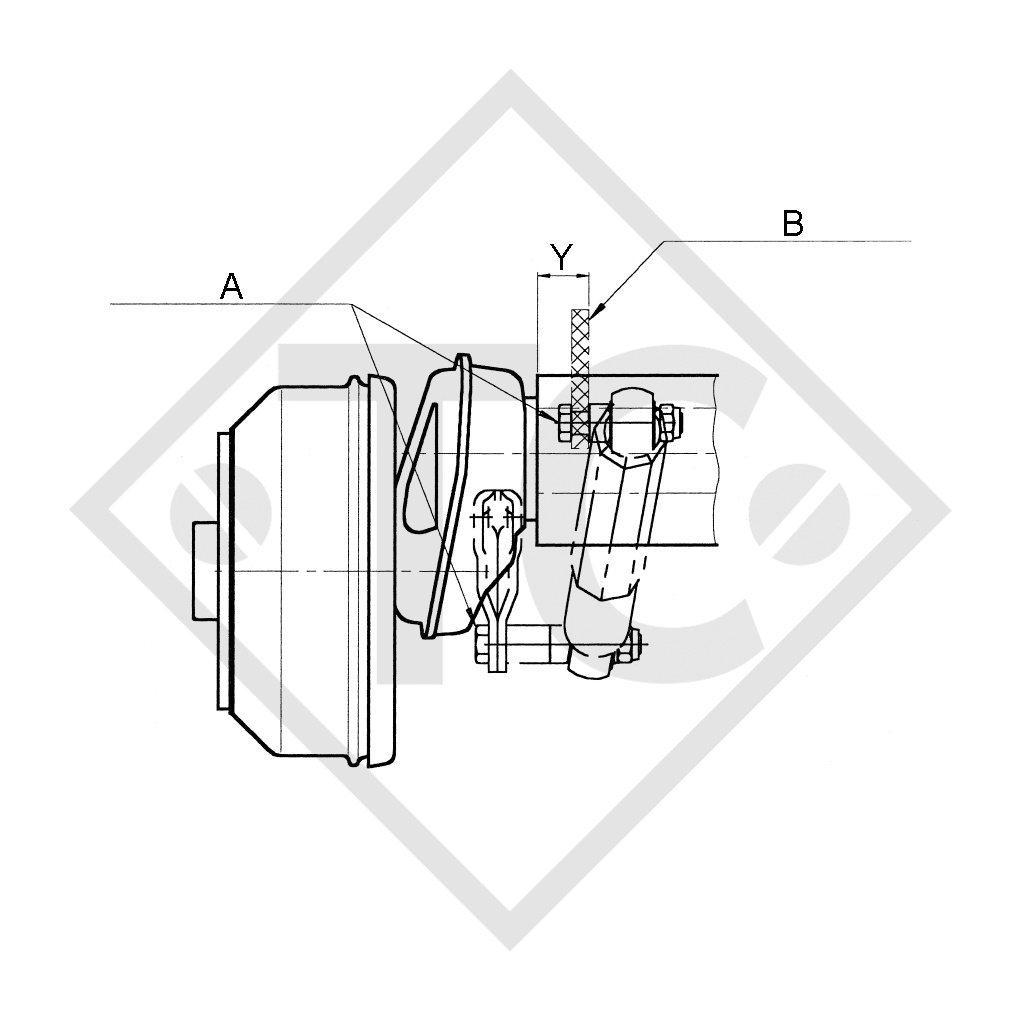

Dimension Y, Shock absorber mounting from inside A = B = |
from outside edge of axle tube to shock absorber system (inner side) Bolt head always in direction of tyre! Shock absorber system (To be defined by vehicle manufacturer) |
SCOPE OF DELIVERY
Shock absorber brackets for swing arms on AL-KO axles
Per axle, please order:
2 units of shock absorber brackets
