Home / Shock absorber brackets for axle links, bolt-on, outside mounting
straight, suitable for types B 700, dimension X 20-50mm, surface treatment: black-primed. Read more...
Part no. 1211502
Shock absorber brackets for AL-KO axle links |
Axle type | B 700 |
possible swing arm versions | Solid swing arm with mounting hole |
Type of retrofit | Bolt-on shock absorber brackets |
Outside mounting Dimension X | 20-50mm |
Outside mounting part no. shock absorber brackets for axle links | per set = 2 units 1211502 (straight) |
Inside mounting dimension Y | - - - |
Inside mounting part no. shock absorber brackets for axle links | - - - |
Part no. holding bars for trailer frame | per unit 1312110 |

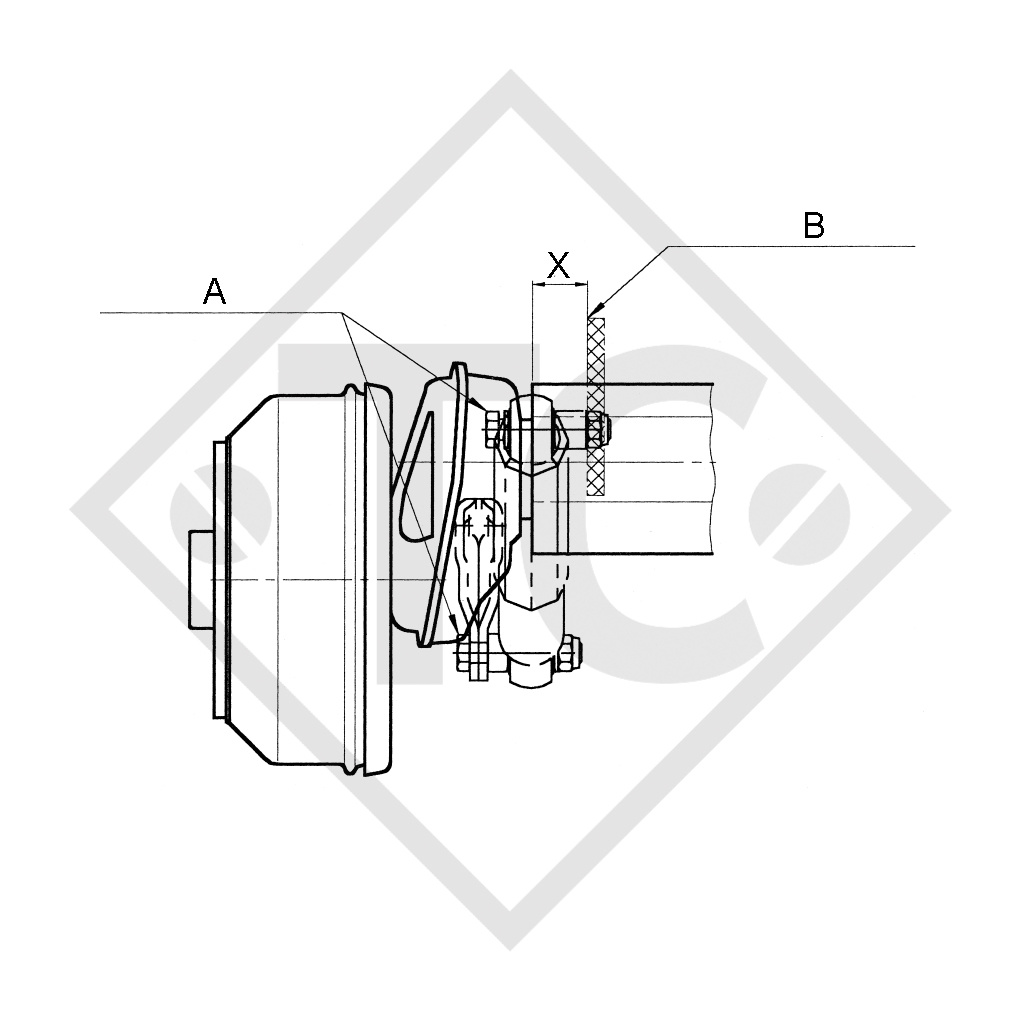

Dimension X, Shock absorber mounting from outside A = B = |
from outside edge of axle tube to shock absorber system Bolt head always in direction of tyre! Shock absorber system (To be defined by vehicle manufacturer) |
Dimension Y, Shock absorber mounting from inside A = B = |
from outside edge of axle tube to shock absorber system (inner side) Bolt head always in direction of tyre! Shock absorber system (To be defined by vehicle manufacturer) |
SCOPE OF DELIVERY

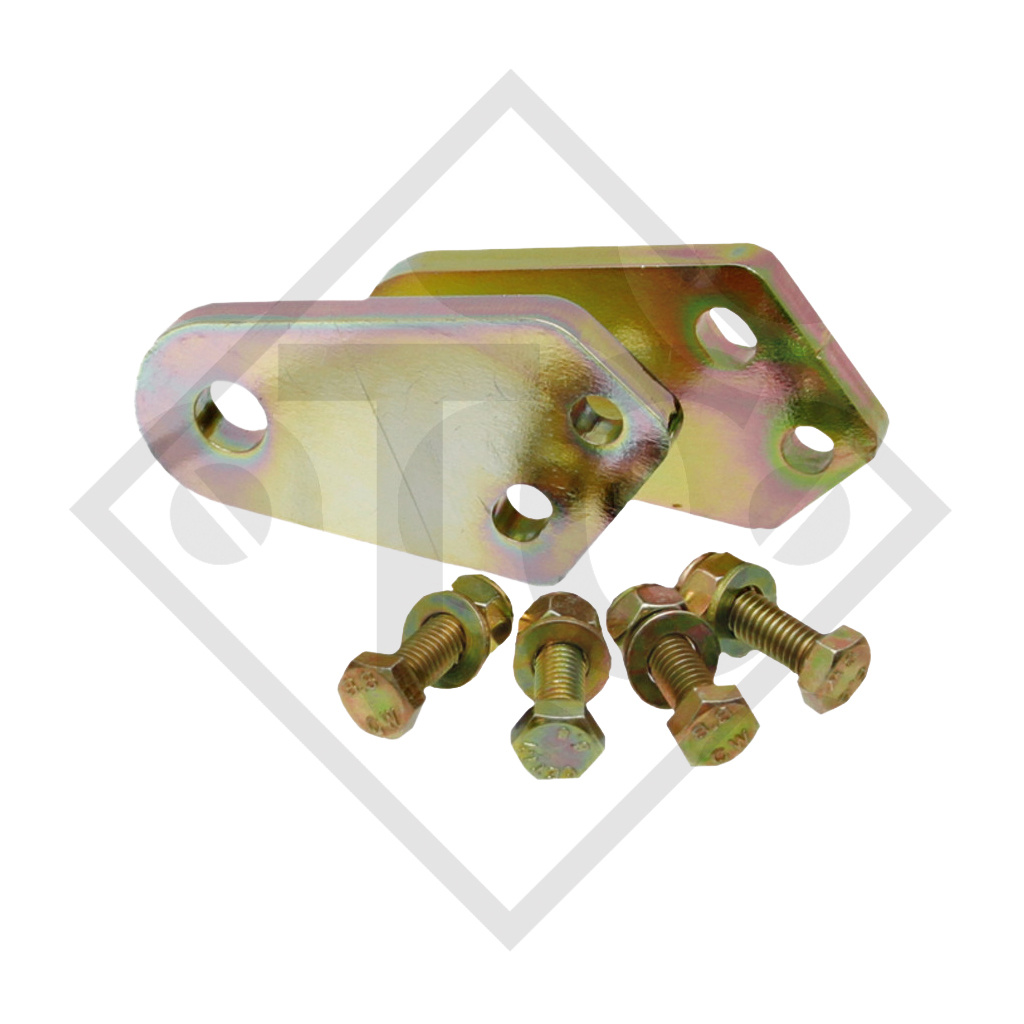

Shock absorber brackets for swing arms on AL-KO axles
Per axle, please order:
2 units of shock absorber brackets
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
