BC: dimension A 750mm, OHF: dimension C 1180mm, wheel connection 98x4, offset (ET) (ET) 27-33mm, axle profile 50x4mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 20057102

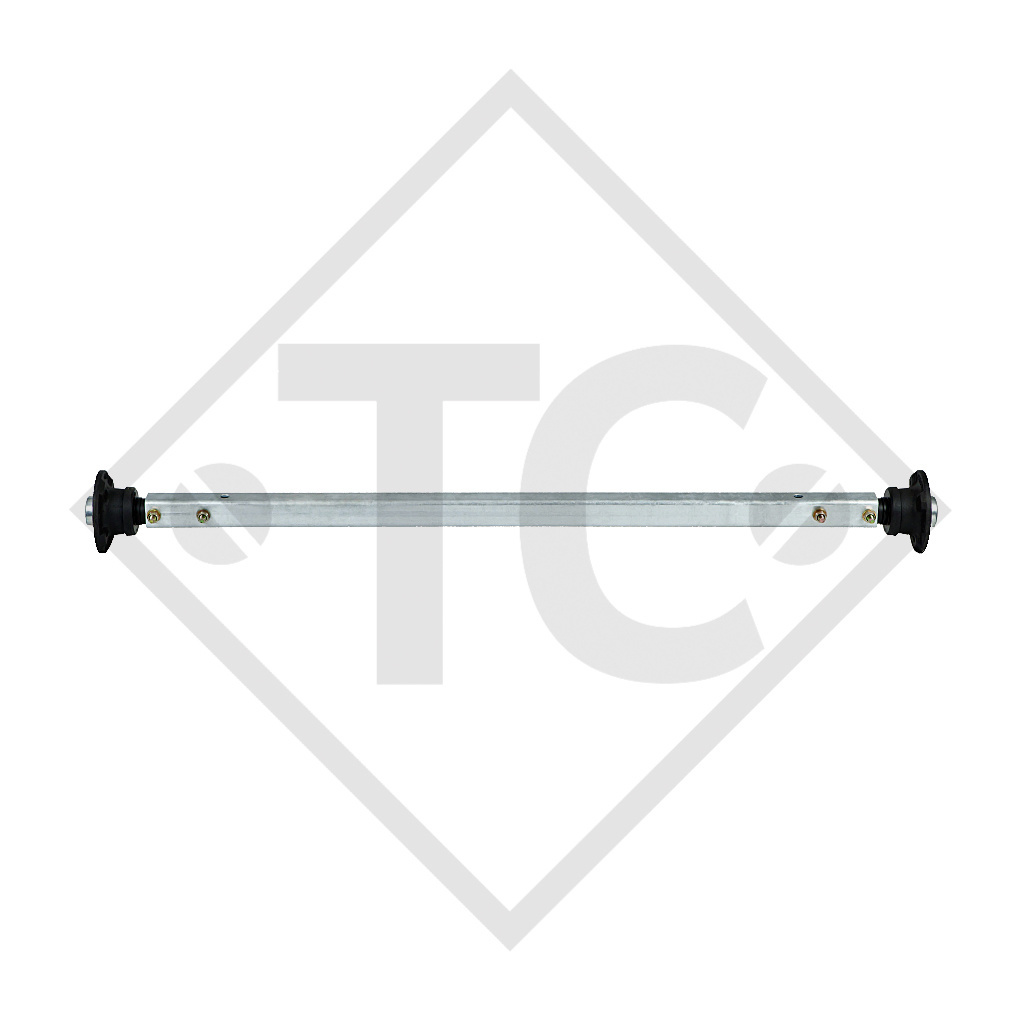

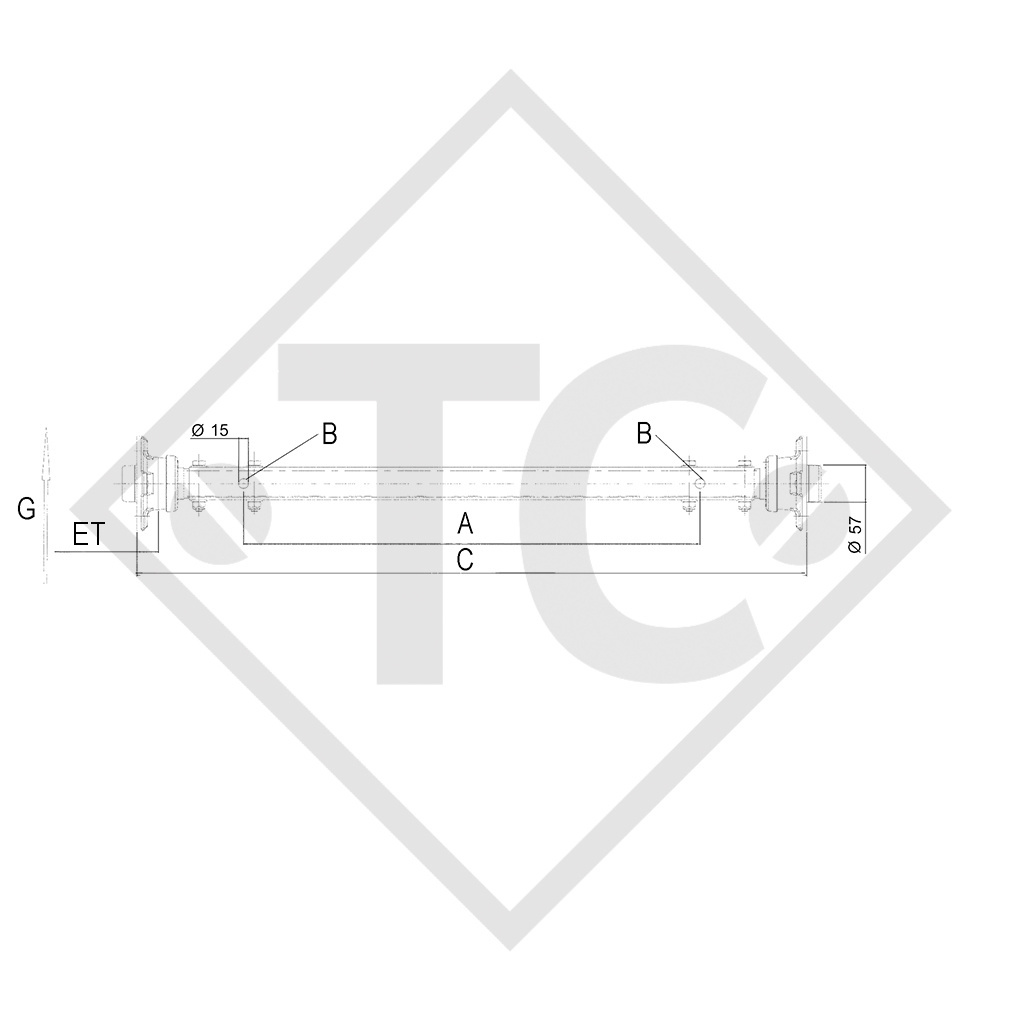

| BC: dimension A | 750mm |
| OHF: dimension C | 1180mm |
| Wheel connection | 98x4 |
Offset (ET) 27-33mm

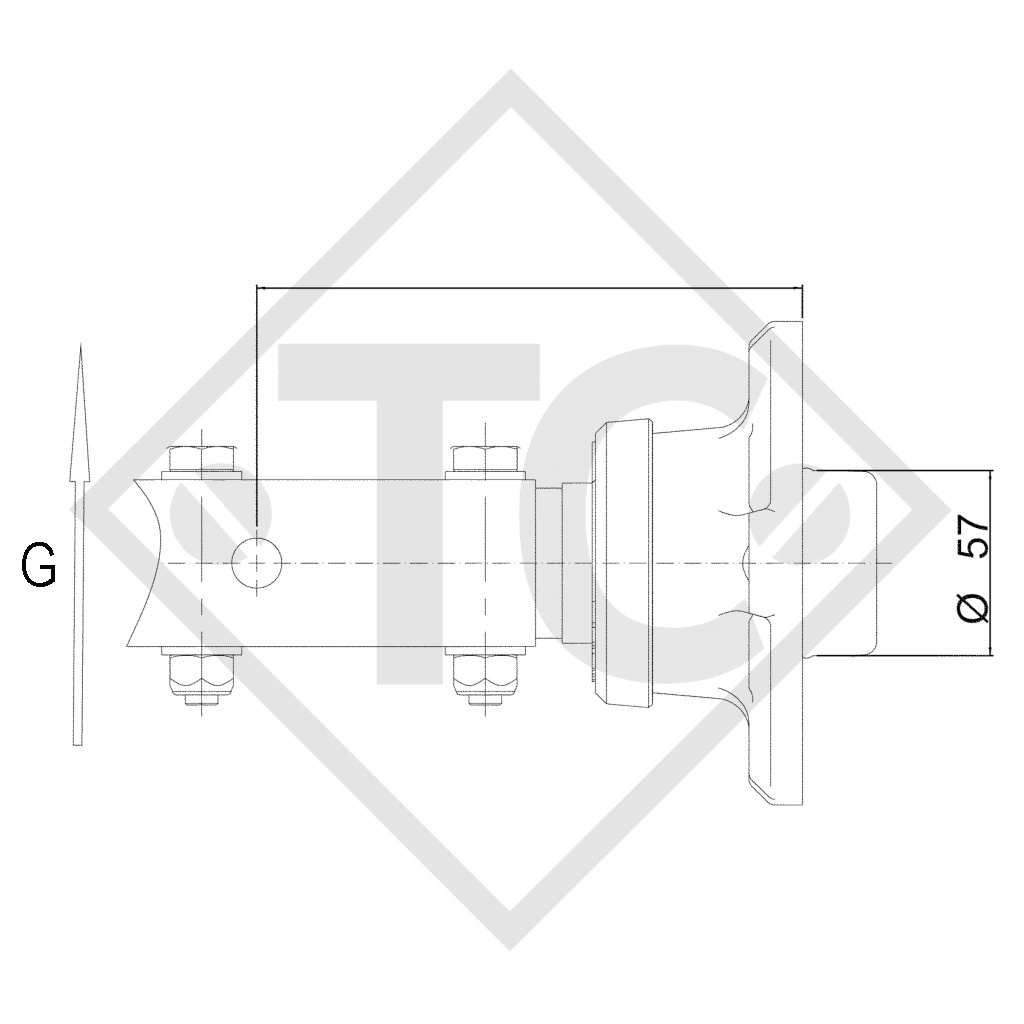

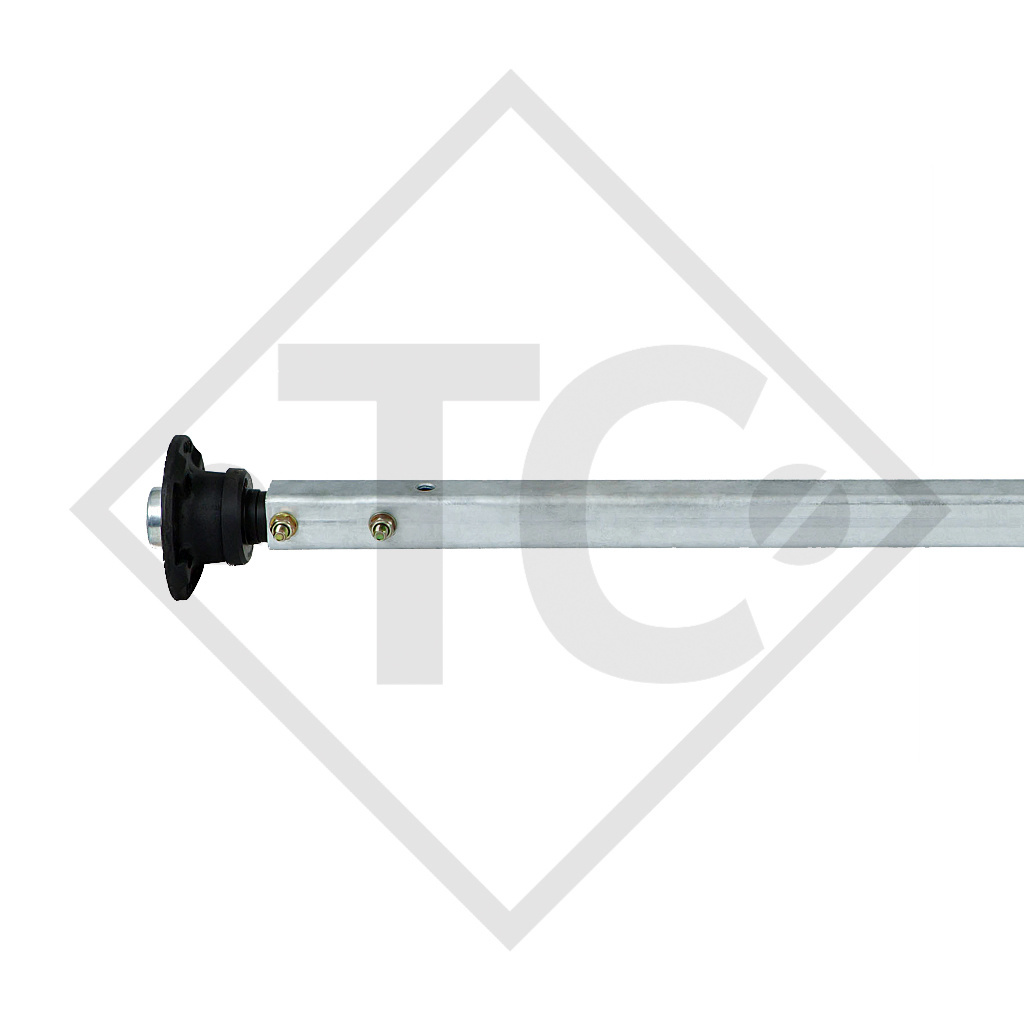

B: Hole for centre pin only permitted at the top!

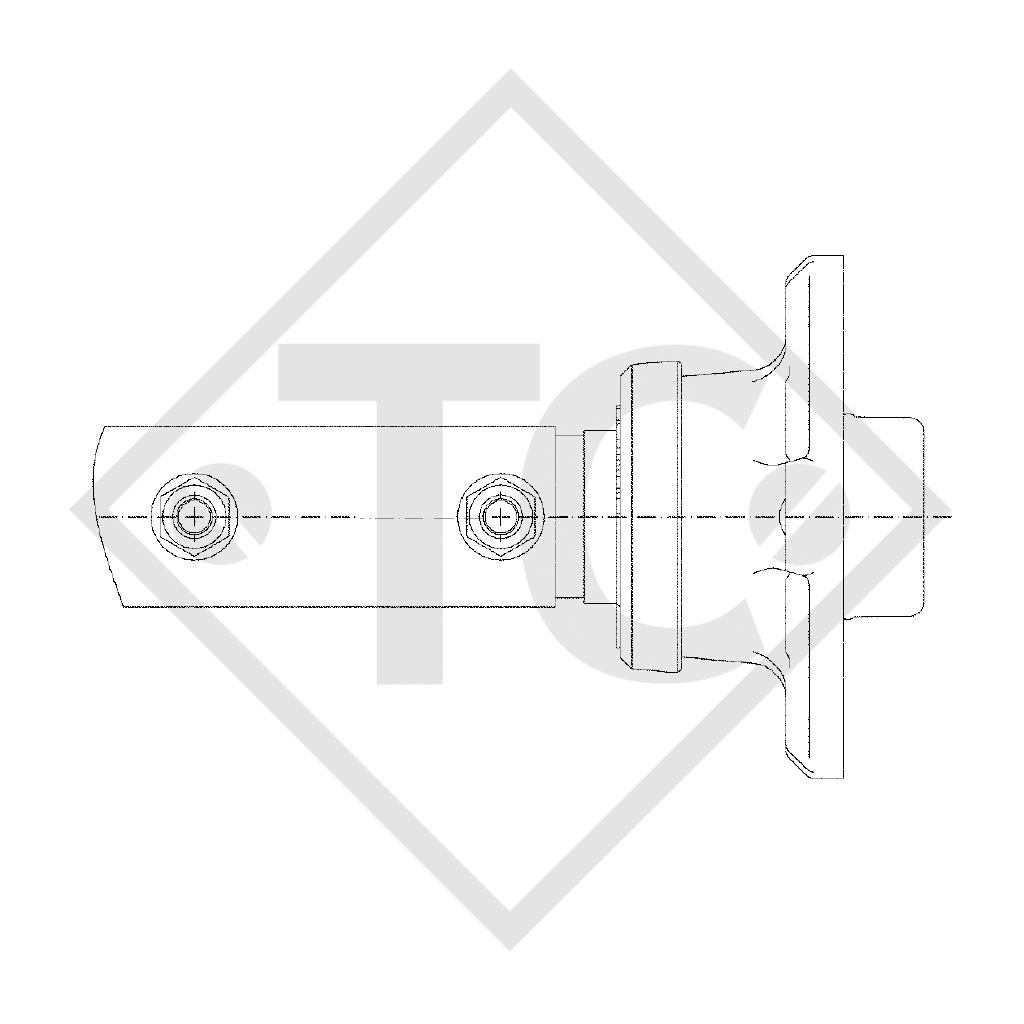

D: Axle profile 50x4mm

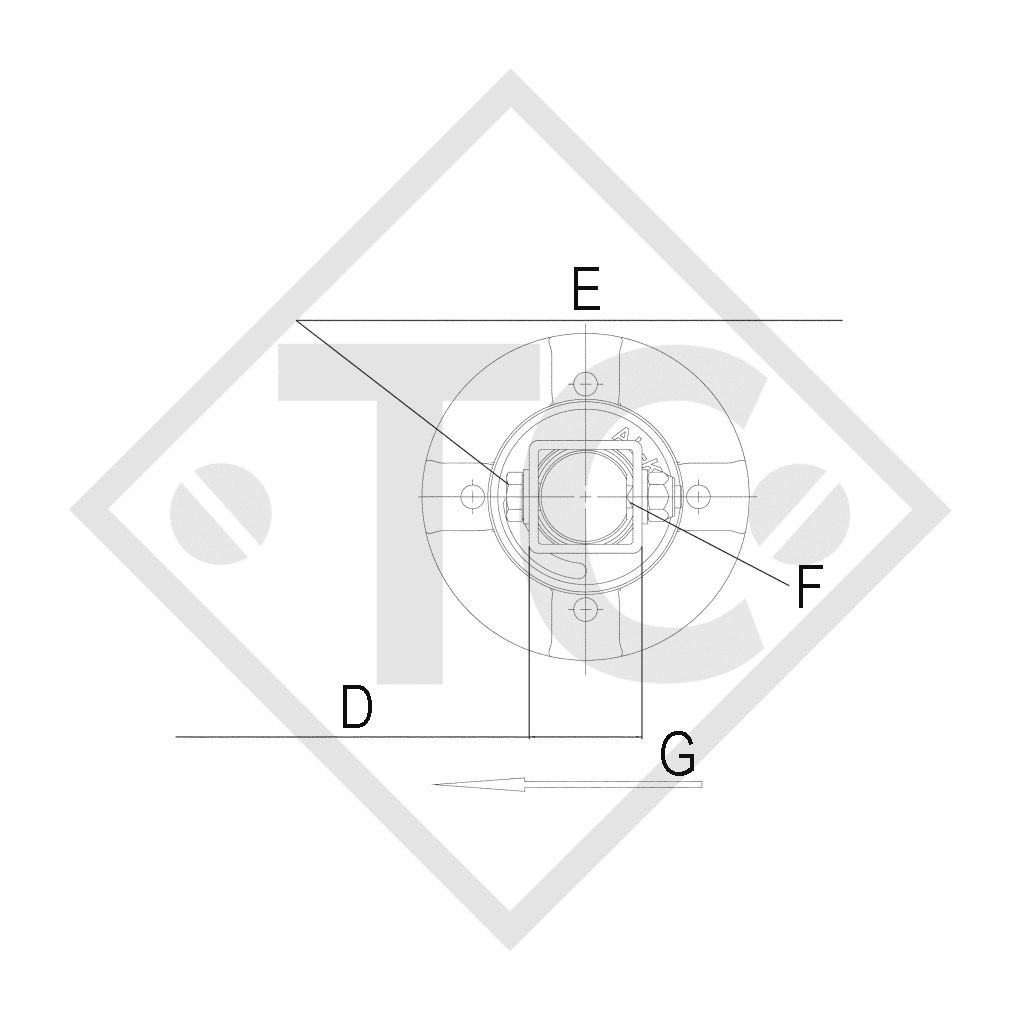

E: Tightening torque of the bolt M12x1.25x70-10.9 DIN 931: 150 +-5 Nm
F: Important: Position of weld on square tube at rear in driving direction! Mount axle stub with chamfer facing towards weld on square tube!
G: Driving direction
H: min. 145 to max. 250mm
Comply with installation guidelines!
Replacement part identification number (ETI) 811844
TECHNOLOGY
Model: PLUS
Axle type: LS 750
Axle load: 750kg
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
ACCESSORIES
See following pages
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
