BC: dimension A 1350mm, OHF: dimension C 1850mm, wheel connection 112x5, offset (ET) (ET) 27-33mm, axle profile 70x5mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 20058013

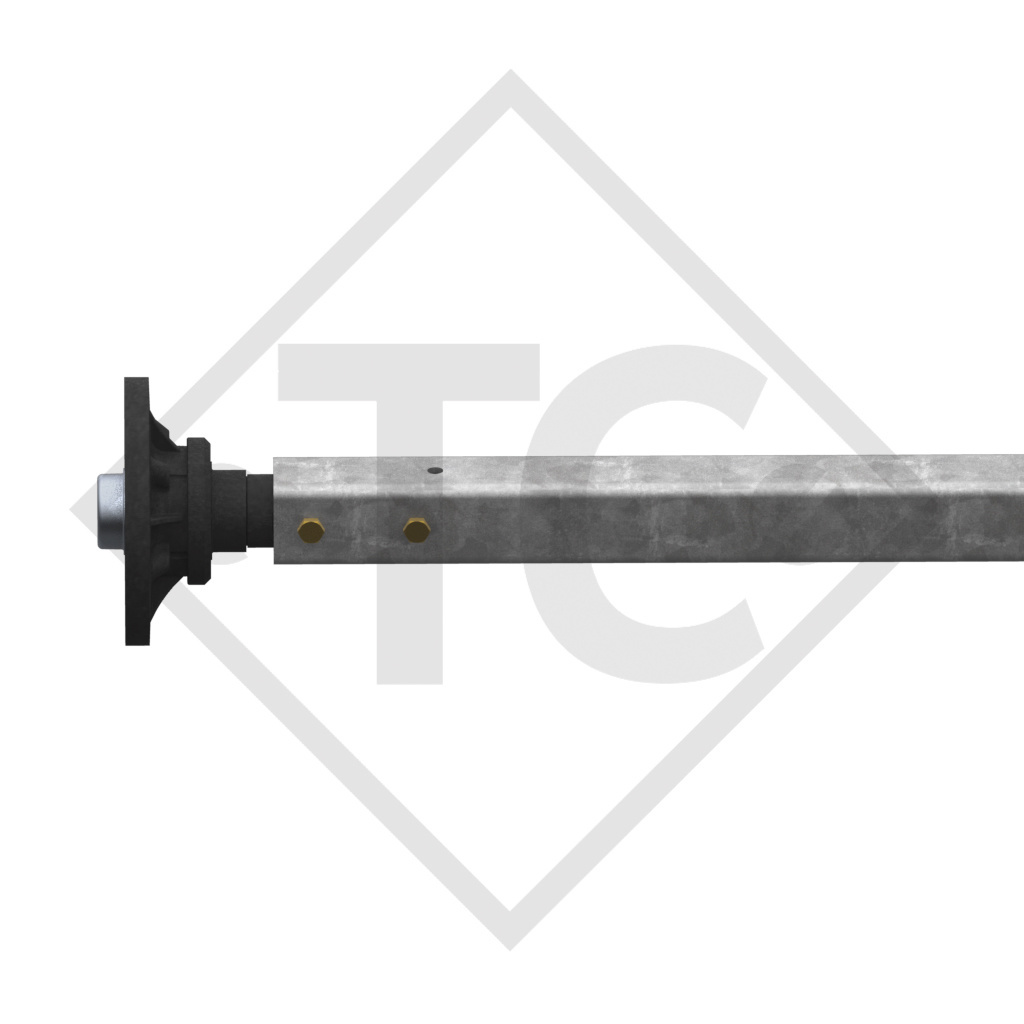

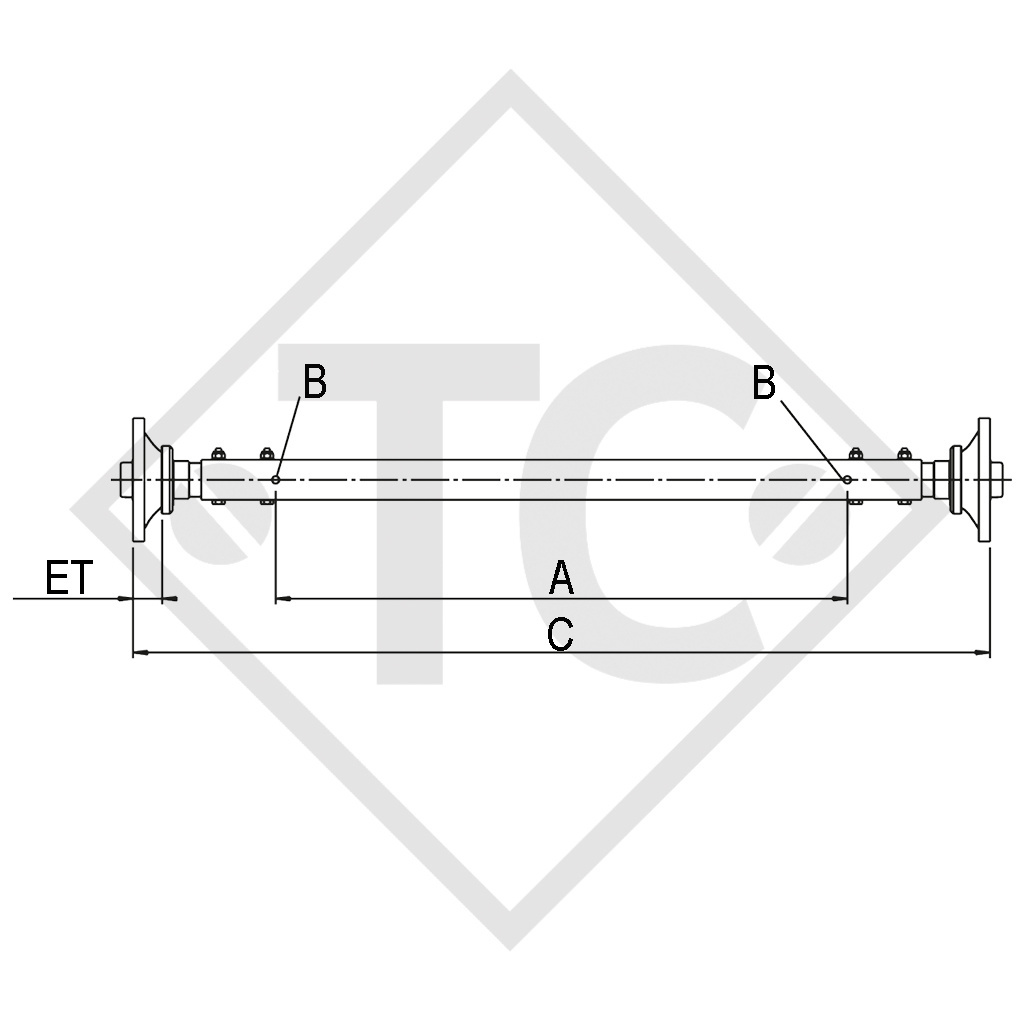

| BC: dimension A | 1350mm |
| OHF: dimension C | 1850mm |
| Wheel connection | 112x5 |
Offset (ET) 27-33mm
B: Hole for centre pin only permitted at the top for strenght reasons!

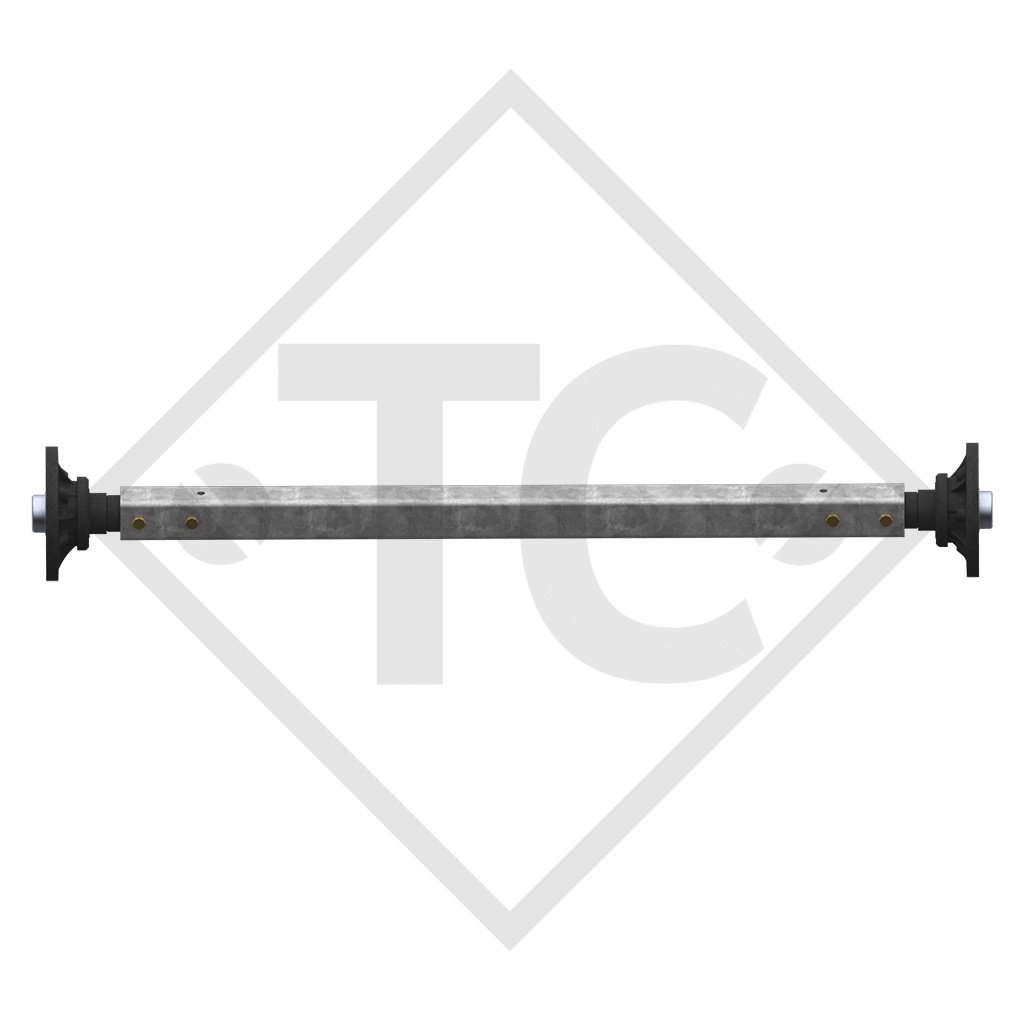

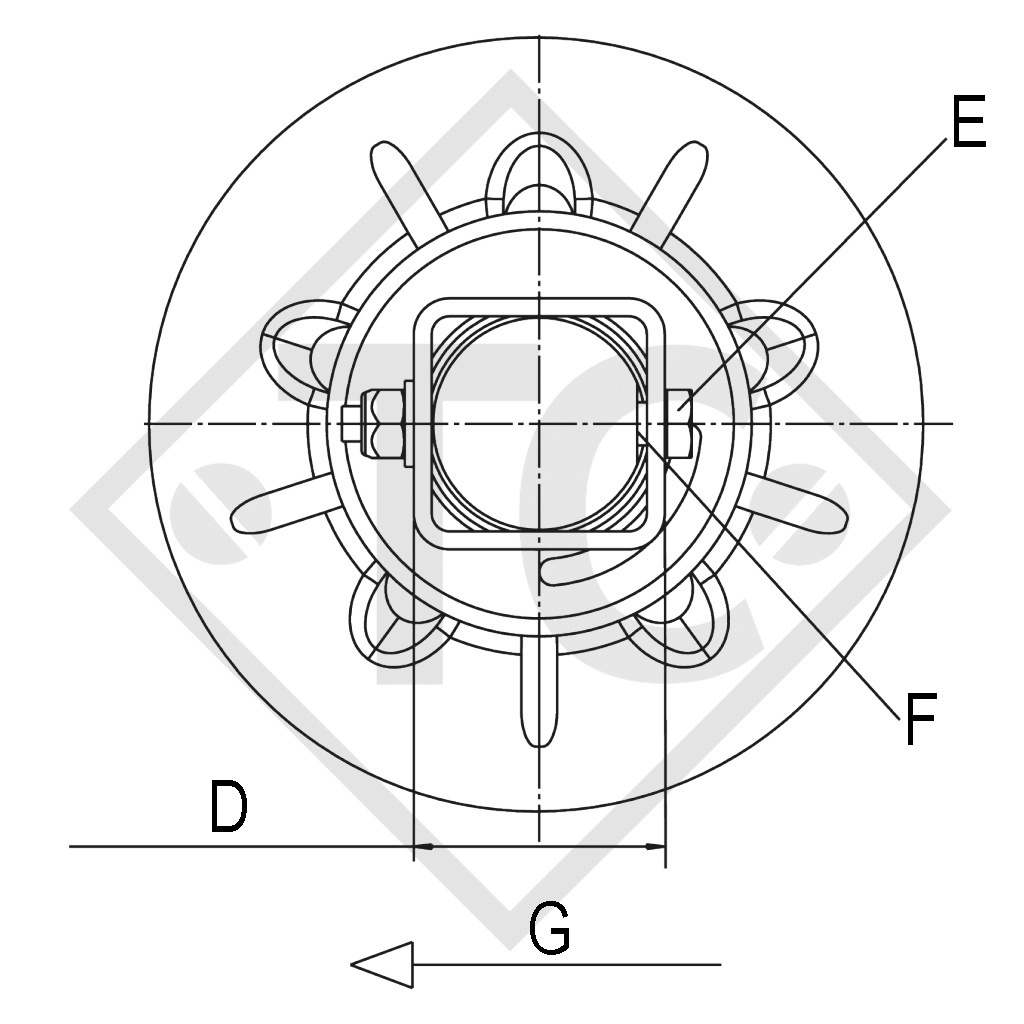

D: Axle profile 70x5mm
E: Tightening torque of the bolt M12x80-10.9 DIN 931: 140 +- 5 Nm
F: Important: Position of weld on square tube at rear in driving direction! Mount axle stub with chamfer facing towards weld on square tube!
G: Driving direction
Comply with installation guidelines!
Replacement part identification number (ETI) 811659
TECHNOLOGY
Model: PLUS
Axle type: LS 1800
Axle load: 1800kg
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
ACCESSORIES
See following pages
