AL-KO Rigid braked tandem rear axle 1500kg PLUS axle type BS 1500

Part no. 20058154

Offset (ET) 27-33mm

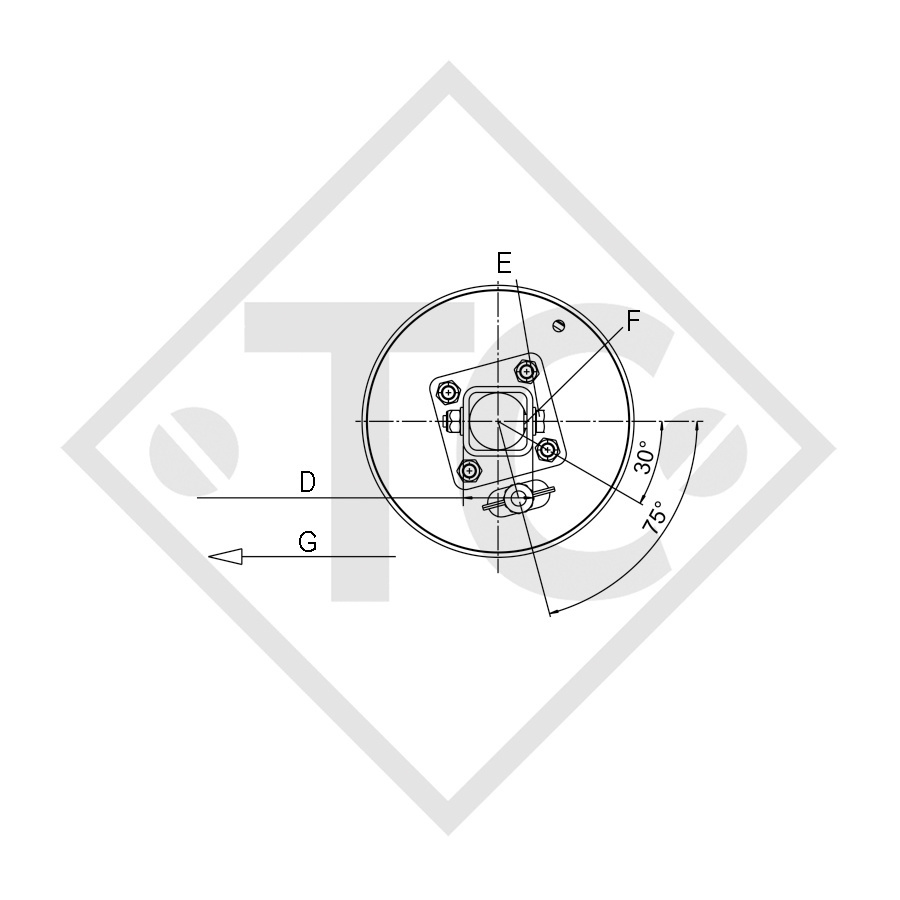

B: Hole for centre pin only permitted at the top for strenght reasons!
D: Axle profile 60x5mm
E: Tightening torque of the bolt M12x80-10.9 DIN 931: 140 +- 5 Nm
F: Important: Position of weld on square tube at rear in driving direction! Mount axle stub with chamfer facing towards weld on square tube!
G: Driving direction
H: Bowden cable
I: Adapter bracket must be welded onto the frame by the trailer manufacturer!

Comply with installation guidelines!
Replacement part identification number (ETI) 811550

TECHNOLOGY
Model: PLUS
Axle type: BS 1500
Axle load: 1500kg

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Adapter bracket loose
Axle bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

ACCESSORIES
See following pages
