BC: dimension A 1100mm, OHF: dimension C 1596mm, Wheel brake 2361, wheel connection 139.7x6, offset (ET) (ET) 27-33mm, axle profile 70x5mm, ball-head wheel bolts M12x1.5. Read more...

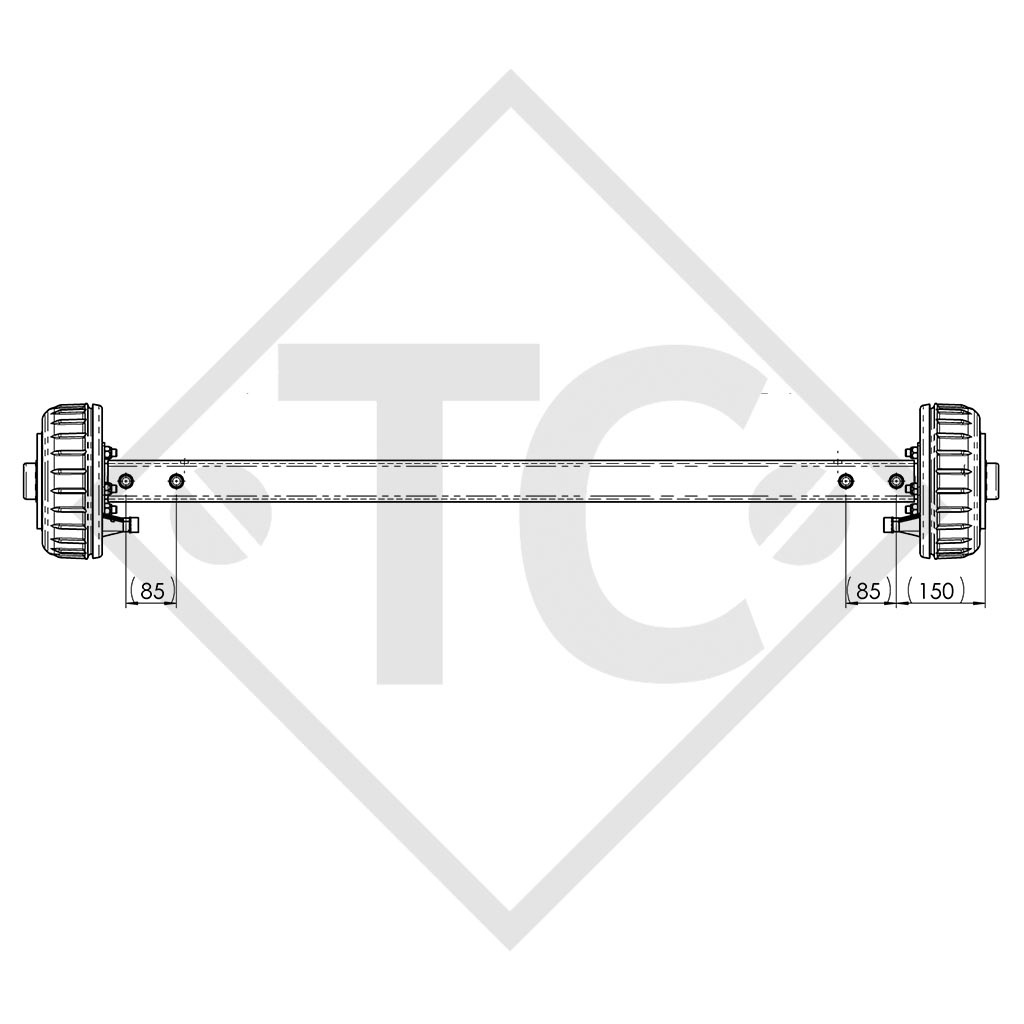

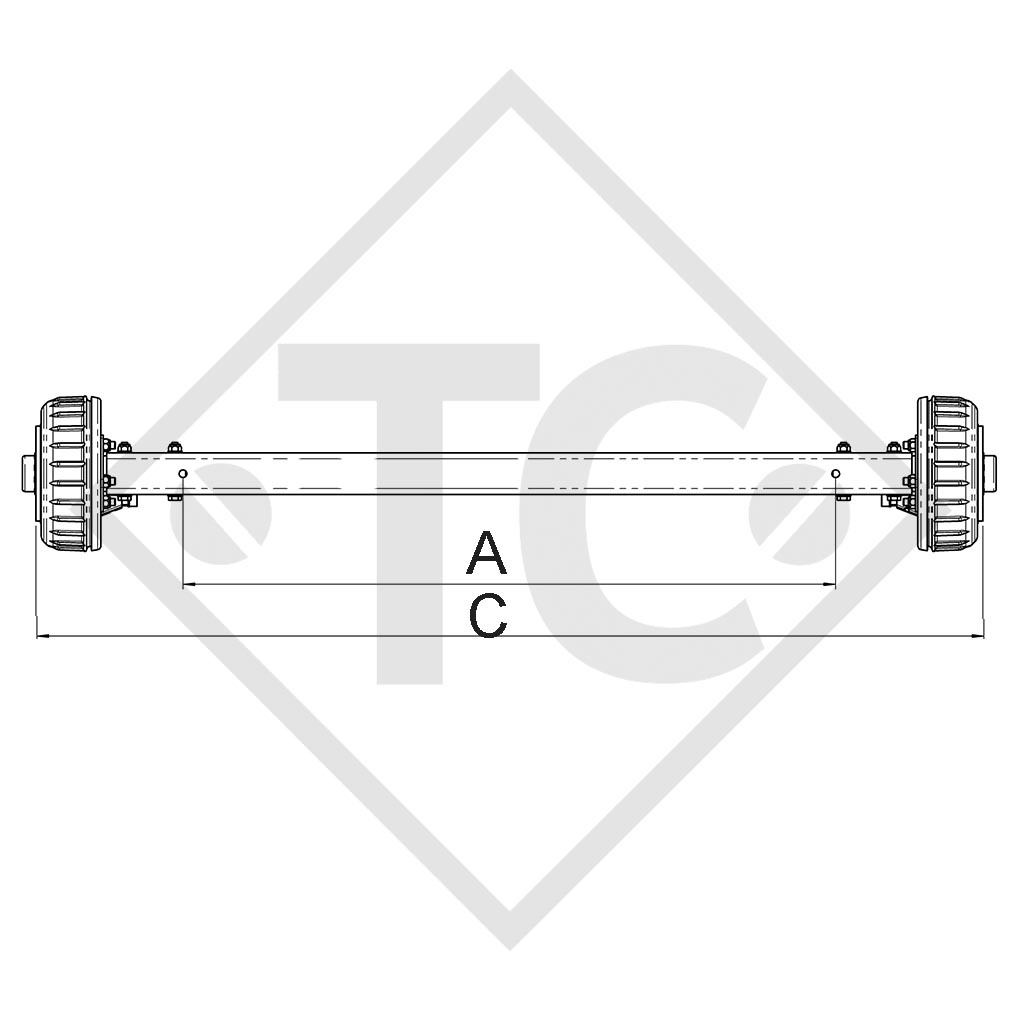

| BC: dimension A | 1100mm |
| OHF: dimension C | 1596mm |
| Wheel connection | 139.7x6 |
Offset (ET) 27-33mm
B: Hole for centre pin only permitted at the top for strenght reasons!
D: Axle profile 70x5mm
E: Tightening torque of the bolt M12x80-10.9 DIN 931: 140 +- 5 Nm

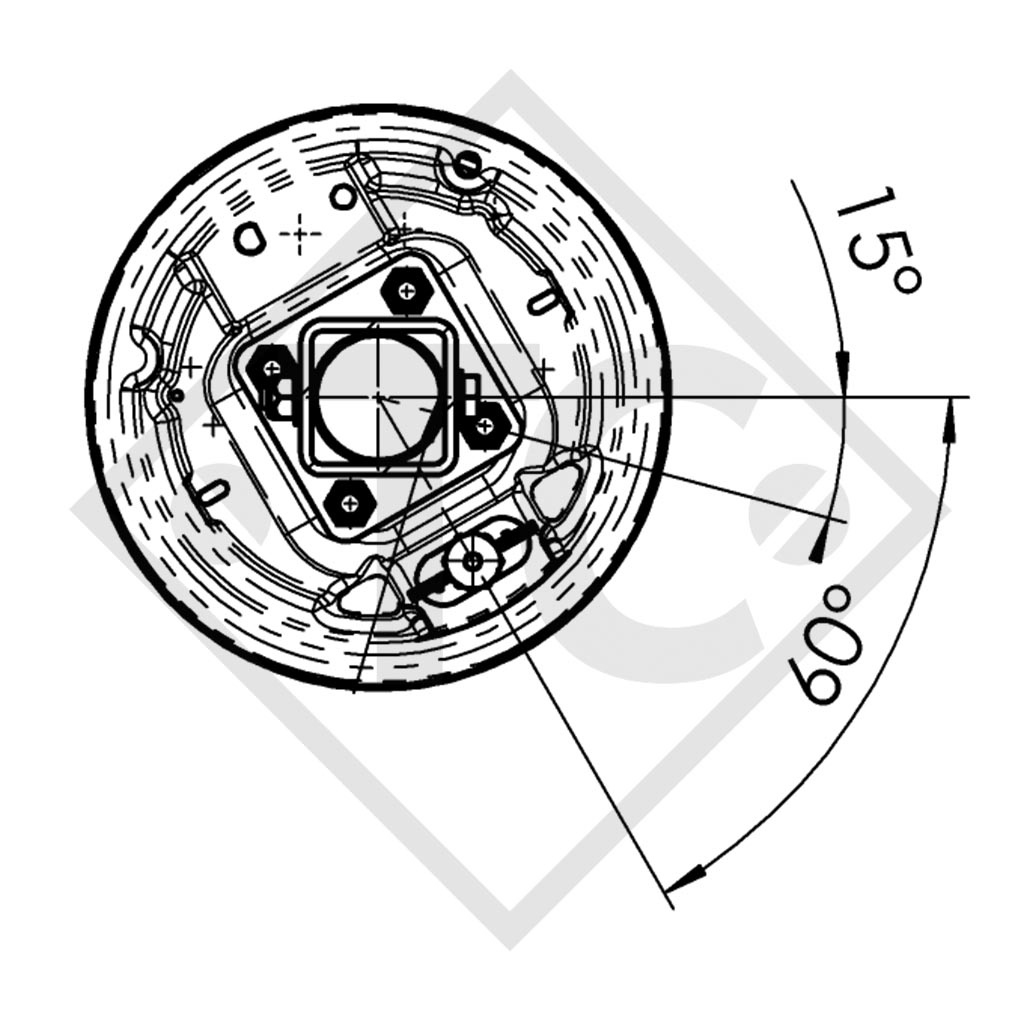

F: Important: Position of weld on square tube at rear in driving direction! Mount axle stub with chamfer facing towards weld on square tube!
G: Driving direction
H: Bowden cable
I: Adapter bracket must be welded onto the frame by the trailer manufacturer!
Comply with installation guidelines!
Replacement part identification number (ETI) 811661
TECHNOLOGY
Model: PLUS
Axle type: BS 1800
Axle load: 1800kg
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Adapter bracket loose
Axle bowden cables loose
Compensation profile loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
ACCESSORIES
See following pages
