Part no. per unit 1224721
Type / Version
|
90A25GH450 / A |
| Max. loading height LH |
450mm |

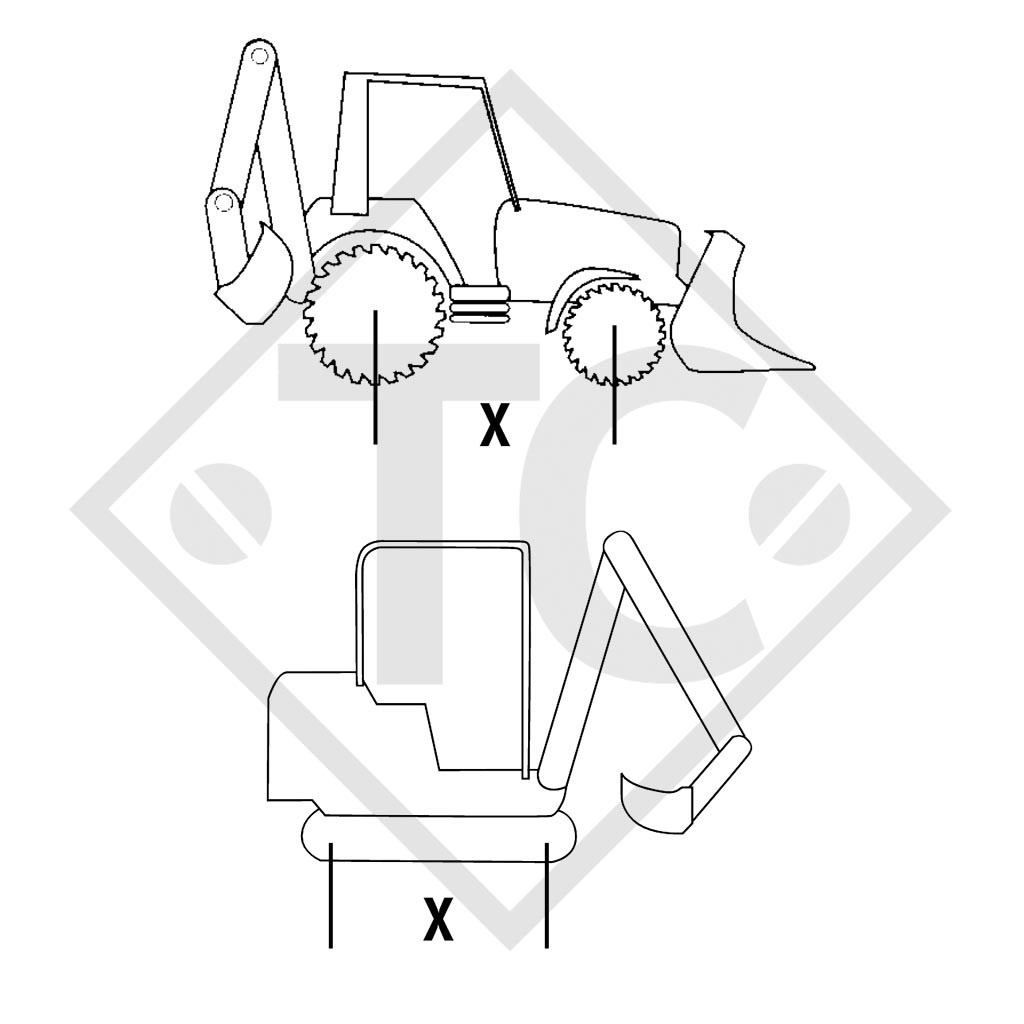

Load capacity with axle distance 1.00m unit
|
1450kg |
| Load capacity with axle distance 1.00m pair |
2900kg |
| Load capacity with axle distance 1.50m unit |
1580kg |
| Load capacity with axle distance 1.50m pair |
3160kg |
| Load capacity with axle distance 2.00m unit |
1580kg |
| Load capacity with axle distance 2.00m pair |
3160kg |

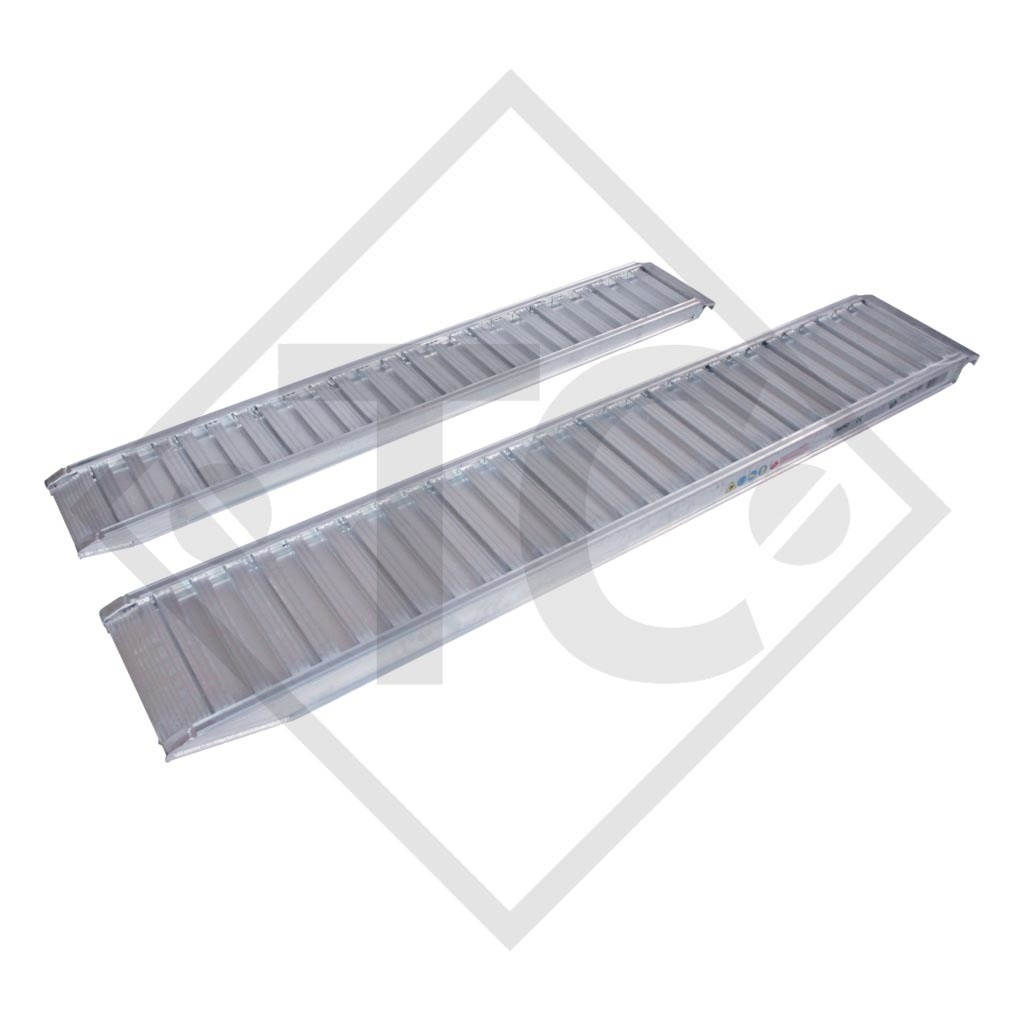

RAMPS
made from aluminium for heavy loads
YOUR ADVANTAGE
All ramps are CE and GS tested and certified. Many applications require only one ramp, not a pair of ramps (e.g. transporting motor cycles). This is why AL-KO provides individual units, offering you an optimum cost/benefit ratio.
NOT all grades of aluminium are the same!This is why AL-KO uses a combination of the alloys 6005 + 6082: 6005 offers good welding properties and optimum corrosion protection, while the outstanding strength of AL-KO ramps is achieved by using 6082 aluminium: This alloy guarantees the highest strength of all the 6000 alloys, and is normally used in bridge construction because of its very high strength.
100%-quality control. Each ramp is individually checked. You should not be satisfied with anything less, because you are entitled to expect from AL-KO: QUALITY FOR LIFE!
SAFETY
The maximum permitted ramp gradient is 30% = 16.5°.
The ramps must be anchored on the loading surface.
Only use ramps in pairs for multi-track vehicles.
Using ramps horizontally is not permitted.
Only drive on under supervision from a second person.
The ramps are exclusively to be used for loading and unloading powered vehicles with brakes.
