Part no. per pair 1732819

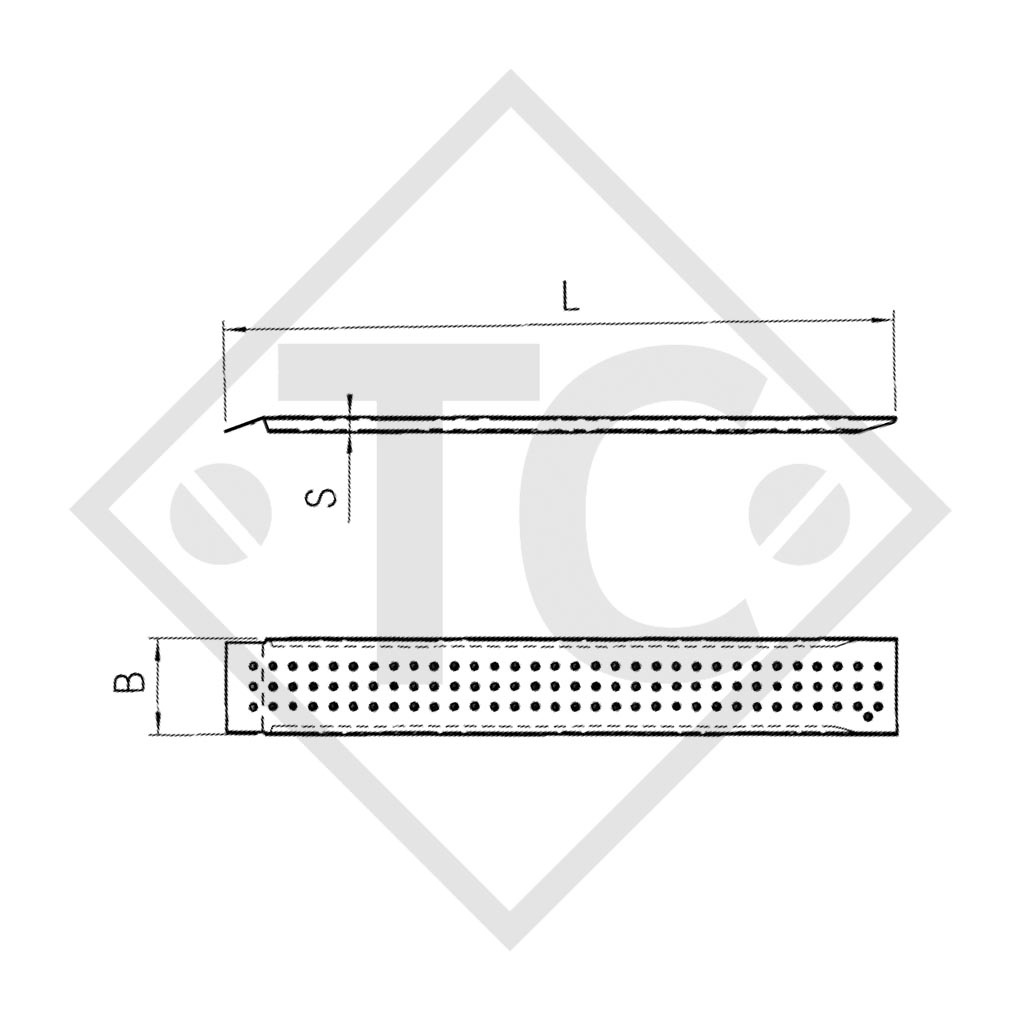

| Loading height min.-max H |
300-450mm |
| Load capacity per pair |
285kg |
| Load capacity per pair with axle distance 500-750mm |
432kg |
| Load capacity per pair with axle distance 751-1200mm |
553kg |
| Load capacity per pair with axle distance >1200mm |
946kg |

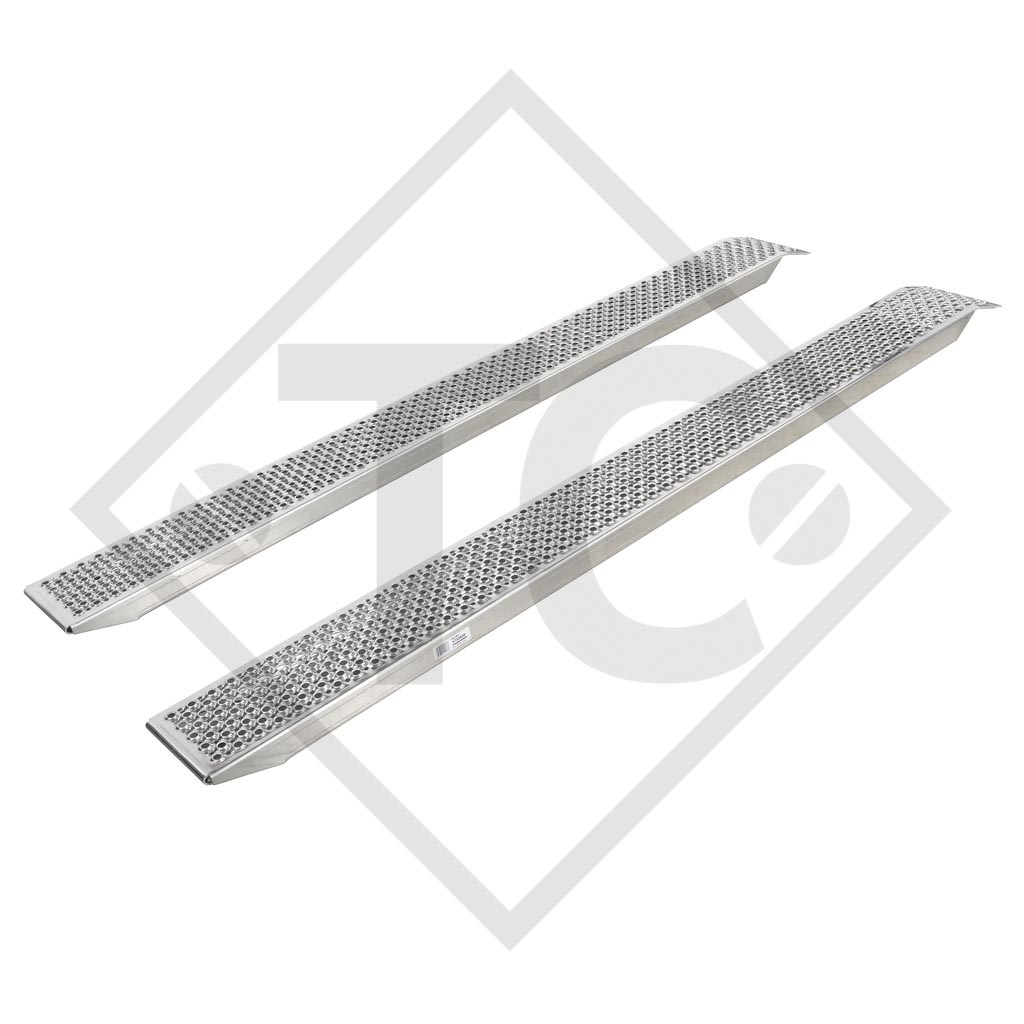

RAMPS
for small and medium loads
IHR PLUSYOUR ADVANTAGE
Smooth transition from loading edge to ramp
High-grip because of non-slip perforated edge profile
Light version for small and medium loads
SAFETY
The maximum permitted ramp gradient is 30% = 16.5°
The ramps must be anchored on the loading surface
Only use ramps in pairs
Using ramps horizontally is not permitted
Only drive on under supervision from a second person
The ramps are exclusively to be used for loading and unloading powered vehicles with brakes
Avoid driving on and braking rapidly, since this subjects the ramps to additio-nal loads
Refer to the operating instructions for additional safety notes
Mounting bracket
(not included in the scope of supply) Part No. 1732823
