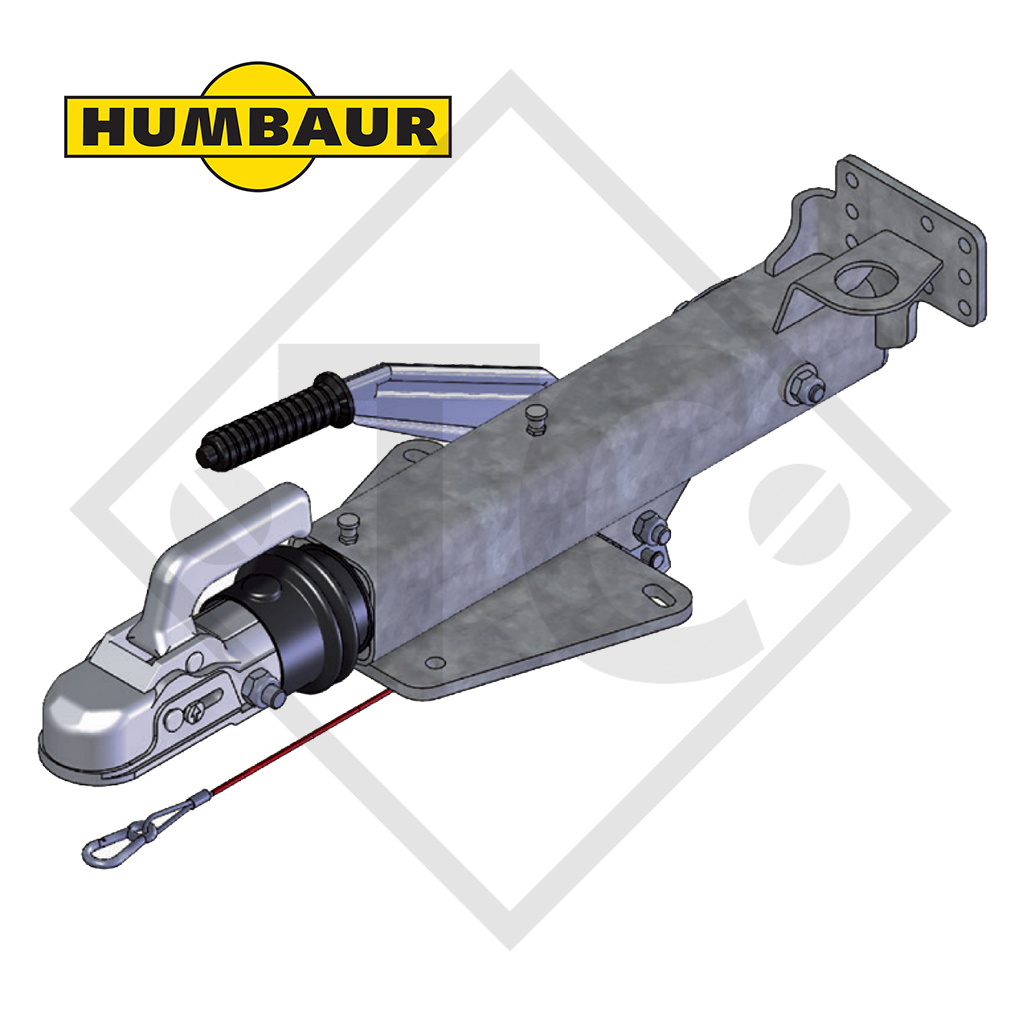

Home / Overrun device V type W 35 / 35.2, 1750 to 3000kg, HUMBAUR
connection 166-217mm, nose load 150kg, drawbar installation version top, combined with WAP wheel brake W 205 RS, with coupling head BC-3000. Read more...
| Permitted gross weight (kg) | 1750-3500 |
| Sales designation (type) | W 35 / 35.2 |
| Order No. | 2504295 |
| Reference No. | 2504295-2 / 2503482-2 / 2502490-2 |

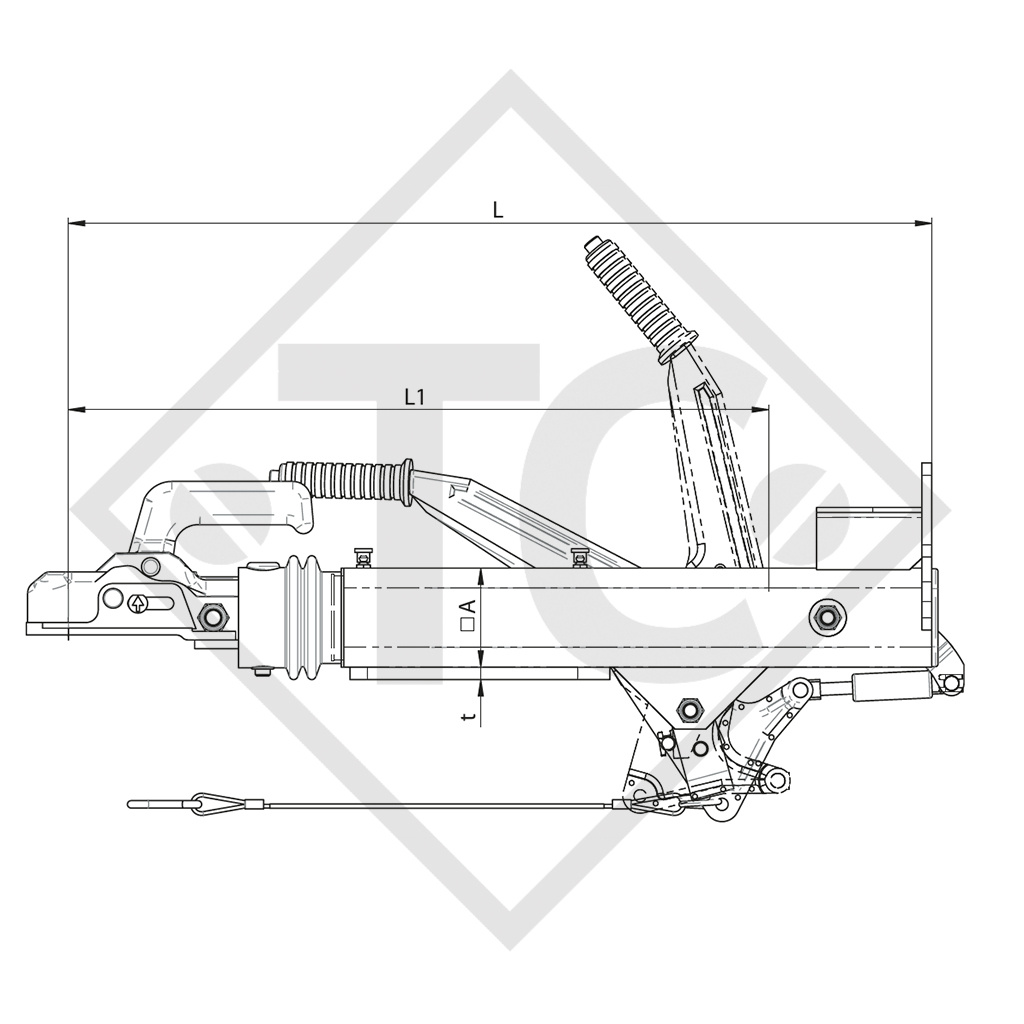

| A |
80mm |
| L | 690mm |
| L1 | 565mm |
| L2 | 250mm |
| t | 12mm |
| Perm. nose load (kg) |
150 |
| Drawbar installation version | top |
| Combined wheel brakes | W 205 RS |
| ECE test code |
E4-55R-010479 / e400-4206 Kl. E |
