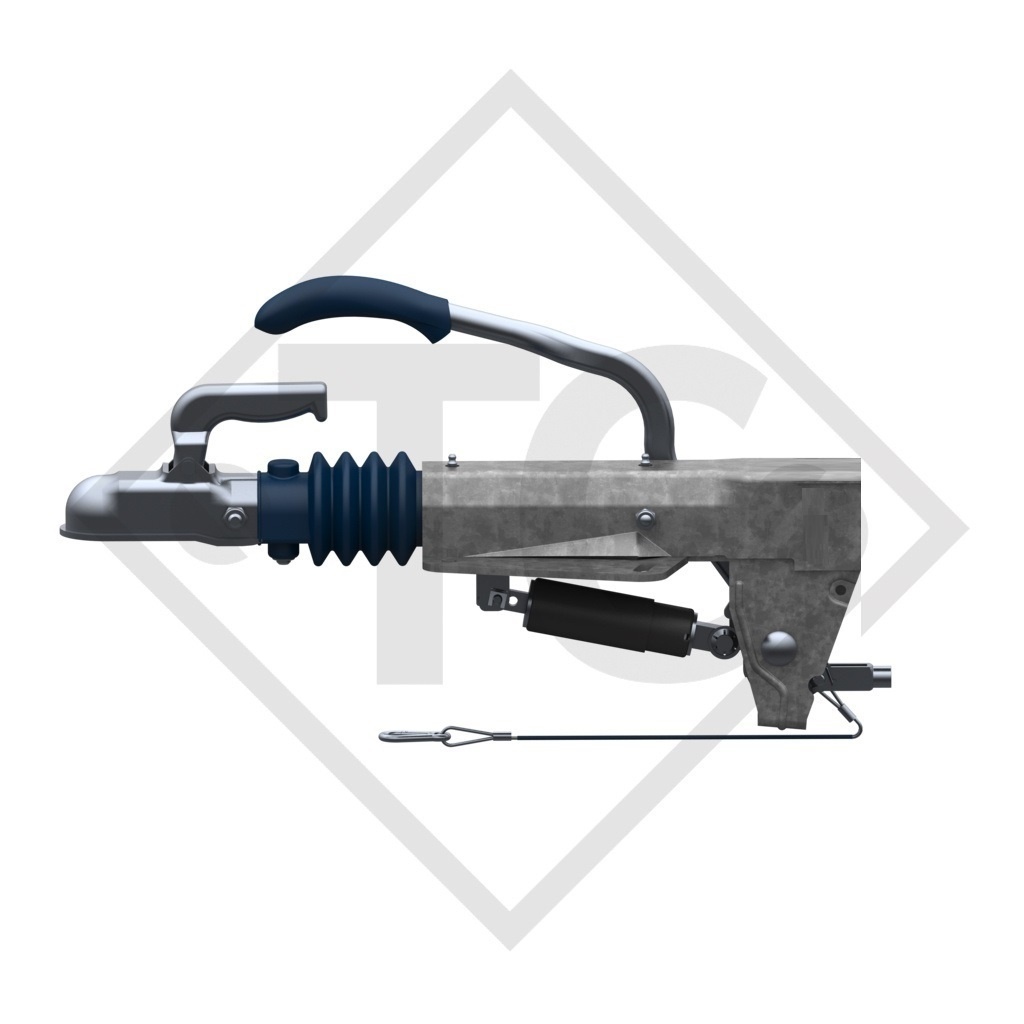

Home / Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.054
connection 167mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S2005-7, S2504-7 and RB 2051, with coupling head WW 30-K. Read more...
| Permitted gross weight (kg) | 1800-2800 |
| Sales designation (type) | ZAF 3.0-3 (2,8) |
| Order No. | 4014413 |
| Reference No. |
48.44.581.054 48.44.581.002 |

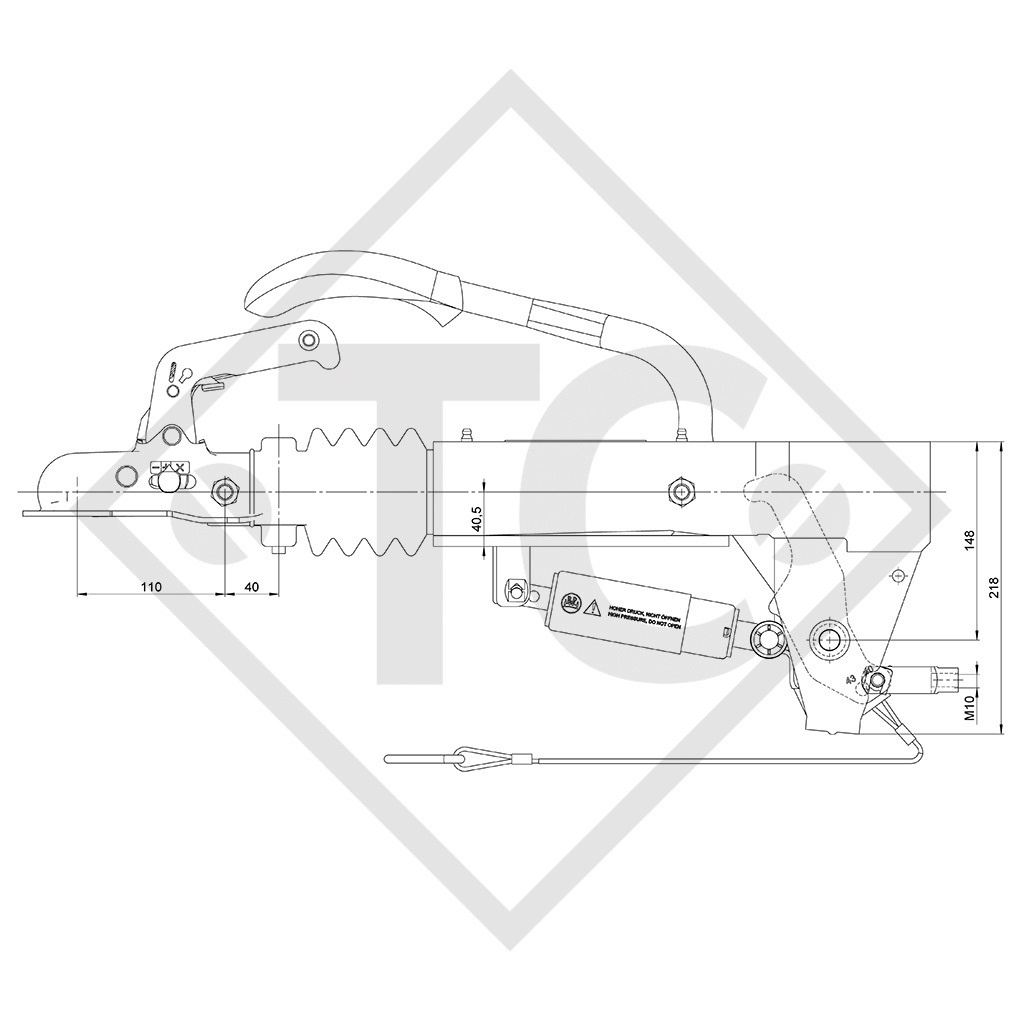

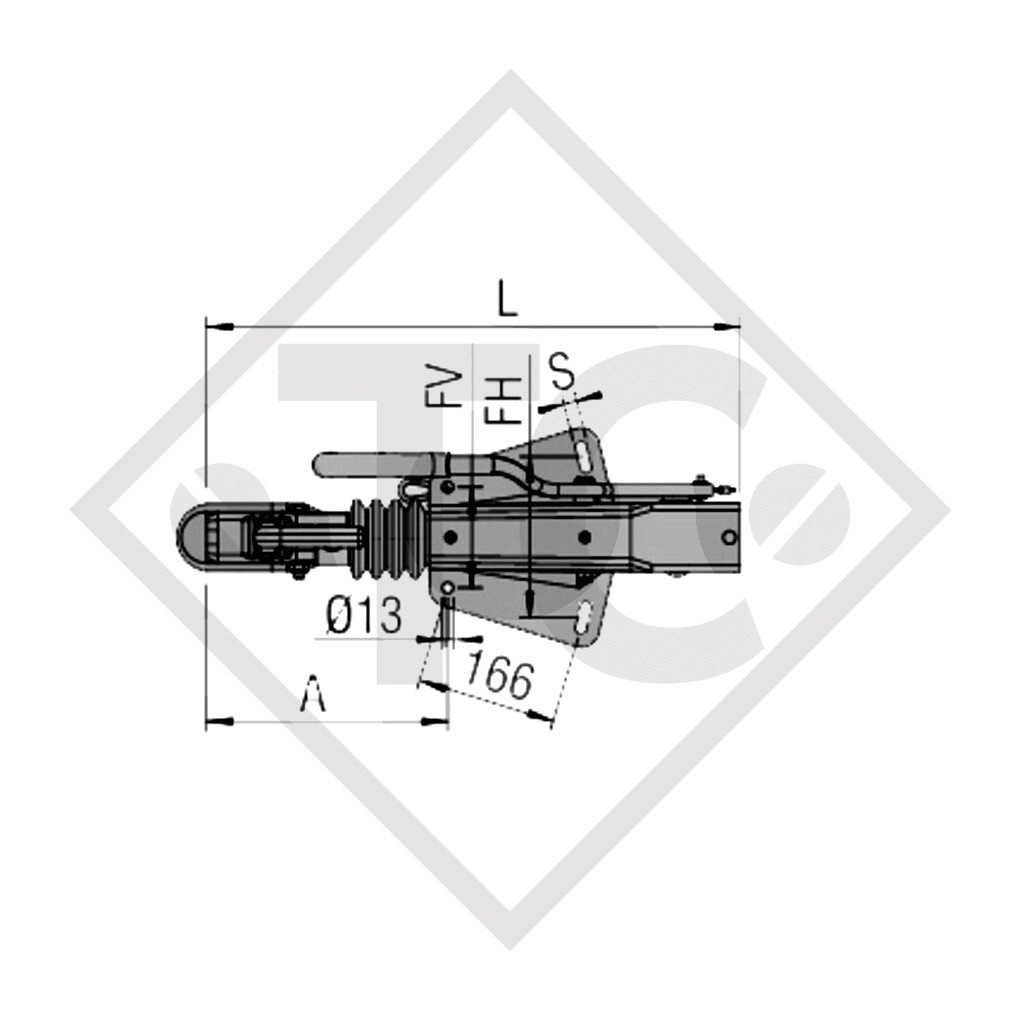

| A |
305mm |
| H | 40,5mm |
| L |
665mm |
| FH | 167-223mm |
| FH2 |
- |
| FV | 130mm |
| S |
13mm |
| Perm. nose load (kg) |
150 |
| Drawbar installation version | top + bottom |
| Combined wheel brakes (RASK) | S2005-7 and S2504-7 and RB 2051 |
| ECE test code |
E1 55R-010640 |
| Replacement part identification number (ETI) NEW | 827004 |
| Replacement part identification number (ETI) OLD | 48.20.58X.XXX |
