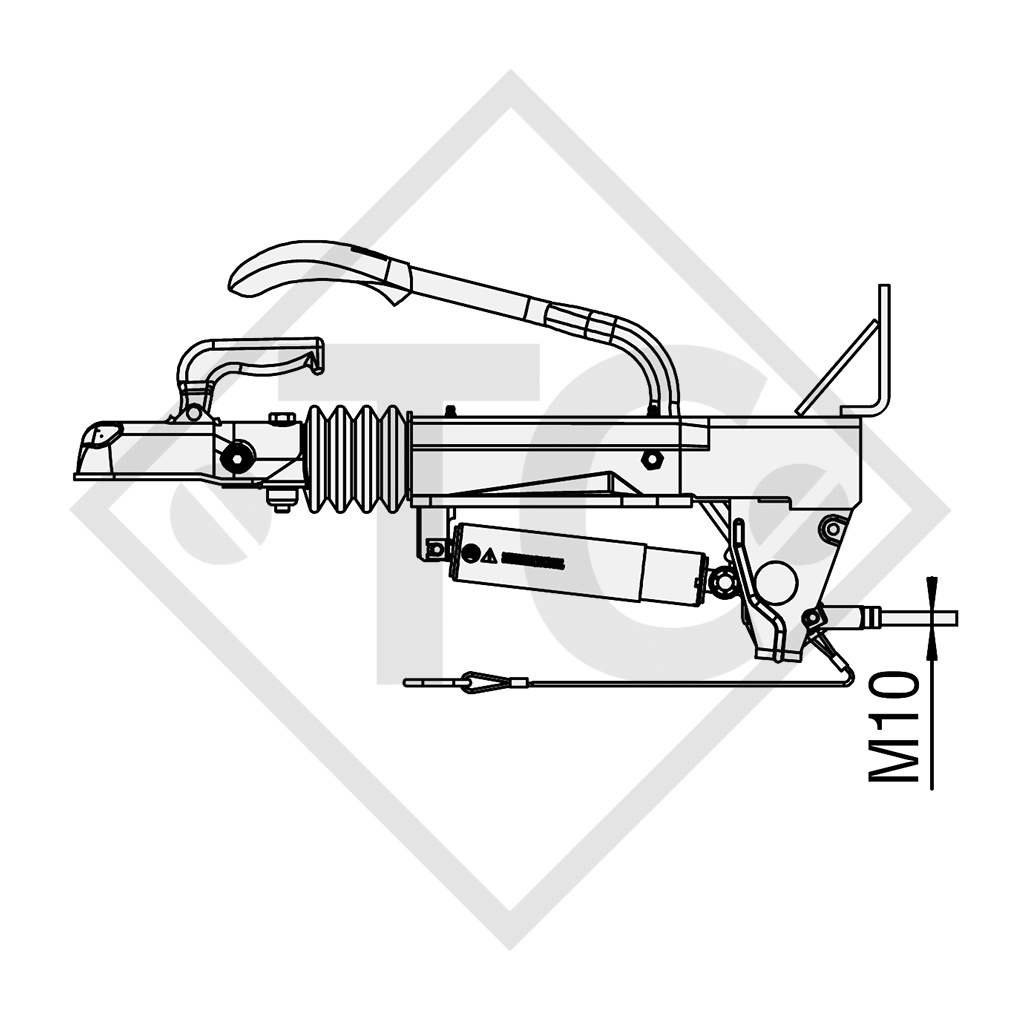

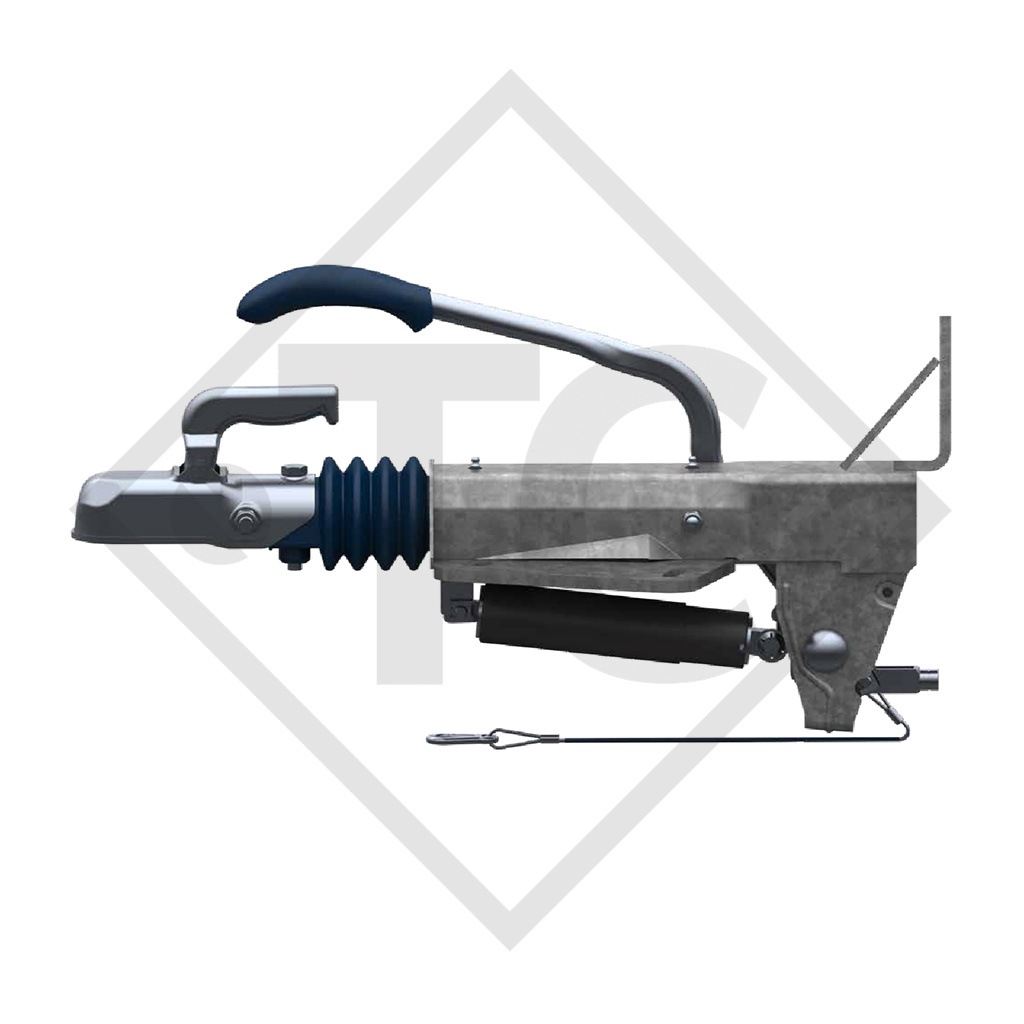

Home / Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.079
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S1704-7, S2005-7, S2504-7 und ALKO 2051, with coupling head EM 300 R-B. Read more...
| Permitted gross weight (kg) | 1800-2800 |
| Sales designation (type) | ZAF 3.0-3 (2,8) |
| Order No. | 4014425 |
| Reference No. | 48.44.581.079 |

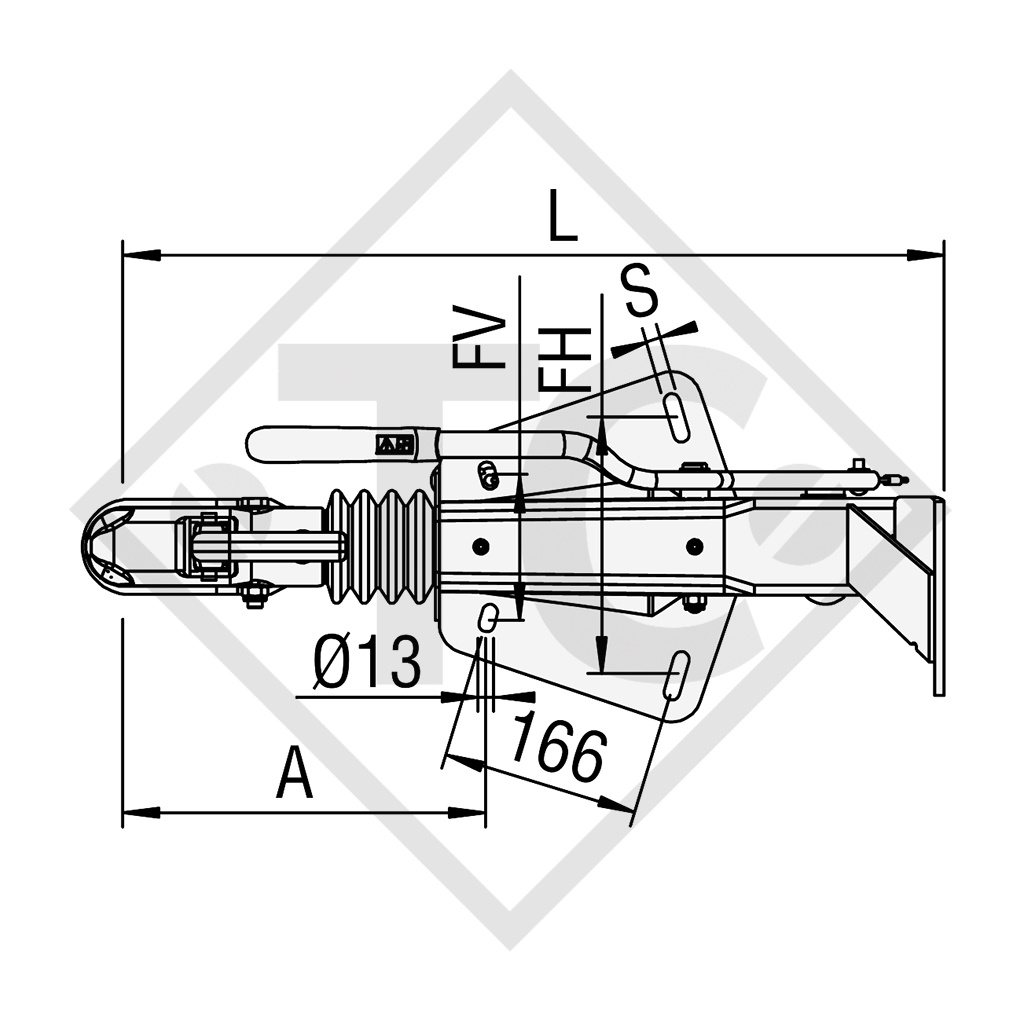

| A |
305mm |
| H | 43mm |
| L |
743mm |
| FH | 167-217mm |
| FH2 |
- |
| FV | 120mm |
| S |
13mm |
| Perm. nose load (kg) |
150 |
| Drawbar installation version | top + bottom |
| Combined wheel brakes (RASK) | S1704-7, S2005-7, S2504-7 and ALKO 2051 |
| ECE test code |
E1 55R-012028 |
| Replacement part identification number (ETI) NEW | 827004 |
| Replacement part identification number (ETI) OLD | 48.20.58X.XXX |
