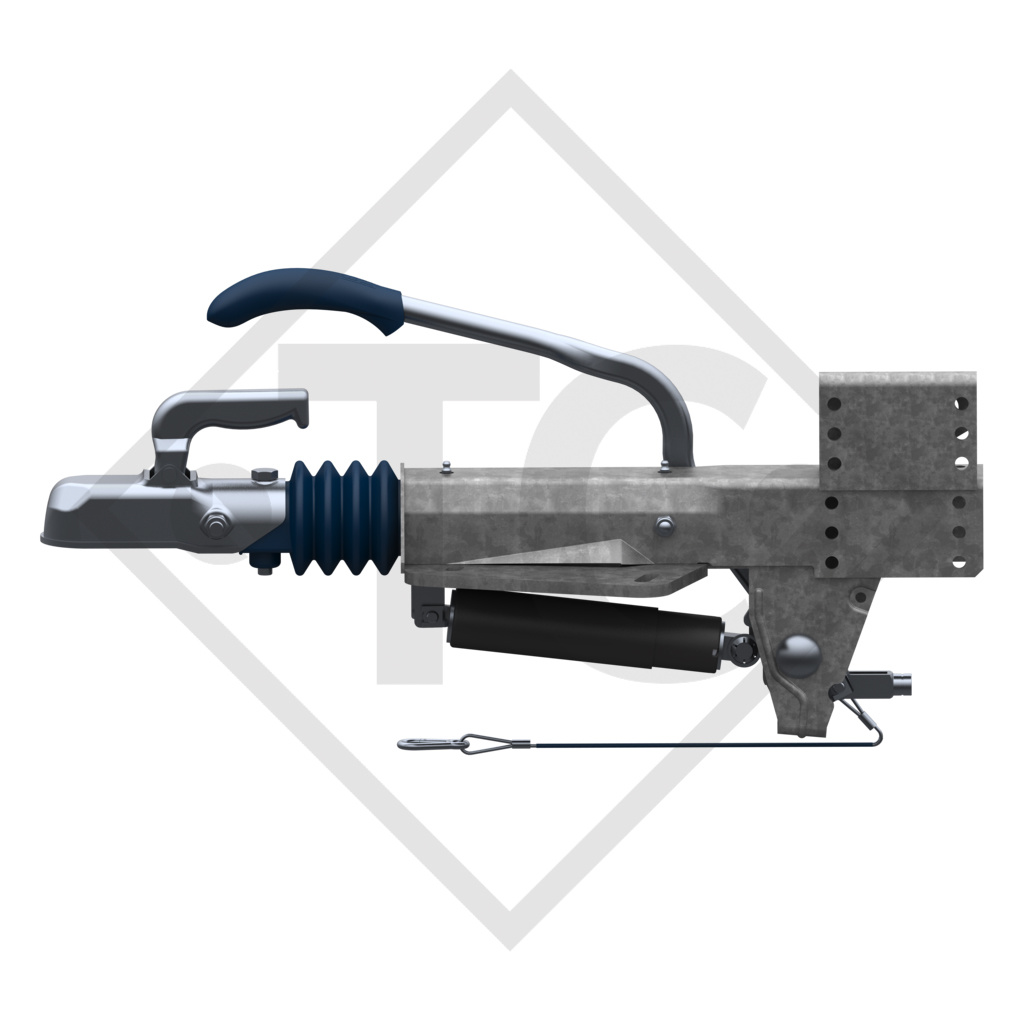

Home / Overrun device V type ZAF 3.0-3, 1800 to 2800kg, 48.44.581.200
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S2005-7, S2504-7 and S3006-7 RASK, with coupling head EM 300 R-B. Read more...
| Permitted gross weight (kg) | 1800-2800 |
| Sales designation (type) | ZAF 3.0-3 (2,8) |
| Order No. | 4014429 |
| Reference No. | 48.44.581.200 |

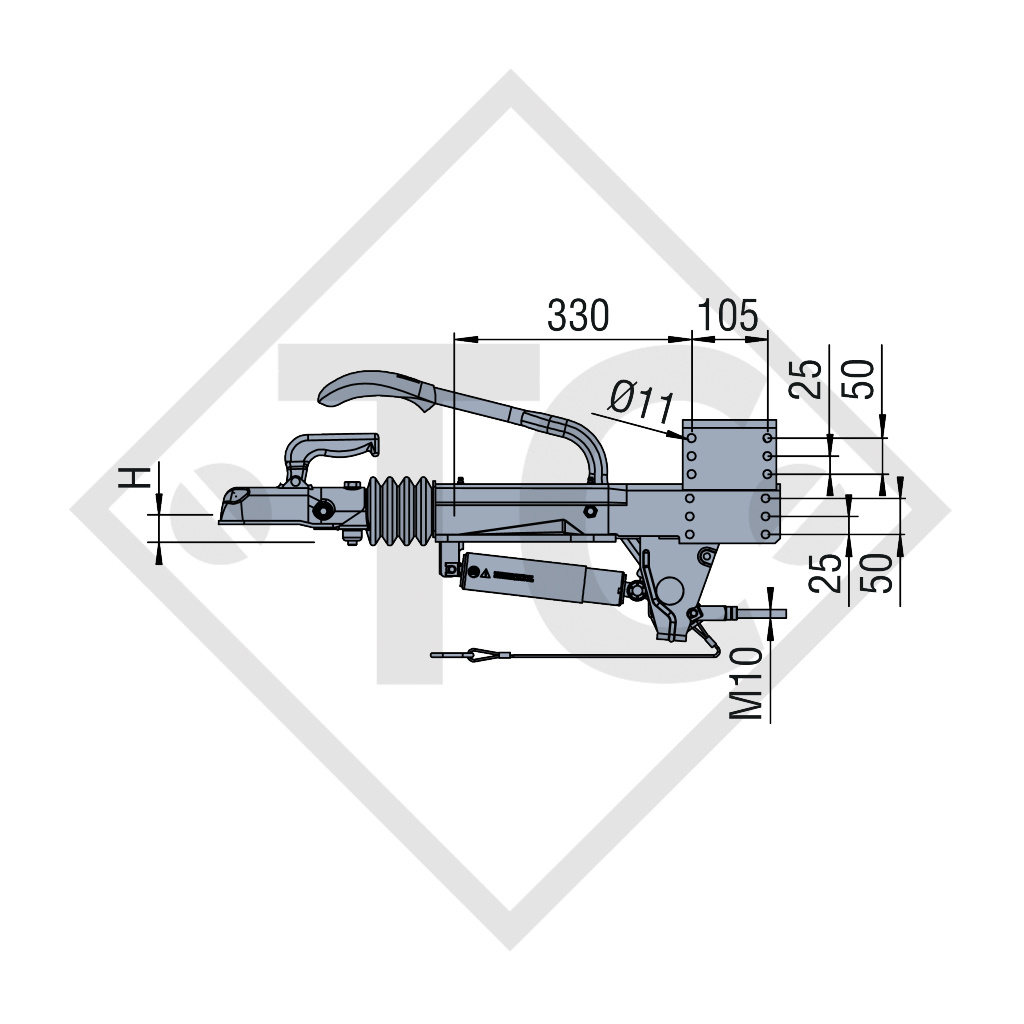

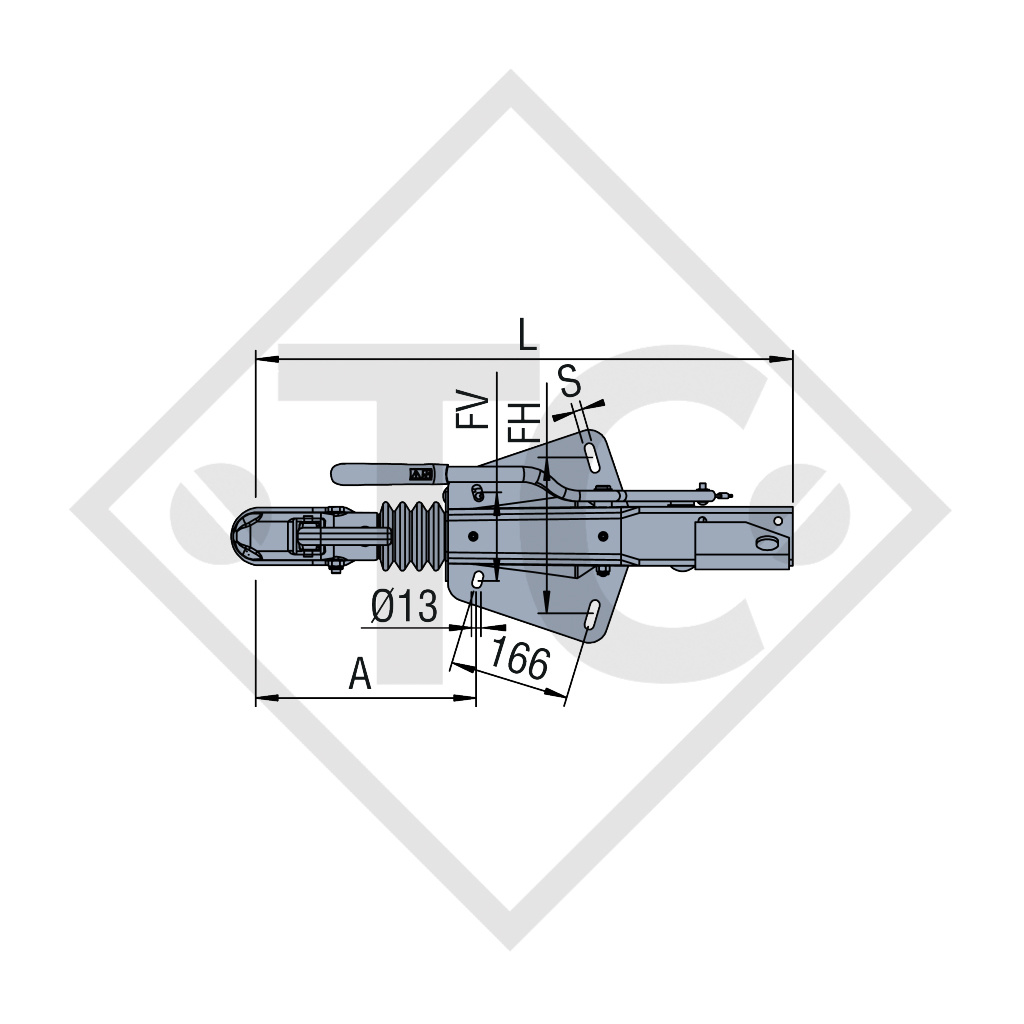

| A |
305mm |
| H | 43mm |
| L |
743mm |
| FH | 167-217mm |
| FH2 |
- |
| FV | 120mm |
| S |
13mm |
| Perm. nose load (kg) |
150 |
| Drawbar installation version | top + bottom |
| Combined wheel brakes (RASK) | S2005-7 and S2504-7 and S3006-7 |
| ECE test code |
E1 55R-012028 |
| Replacement part identification number (ETI) NEW | 827004 |
| Replacement part identification number (ETI) OLD | 48.20.58X.XXX |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
