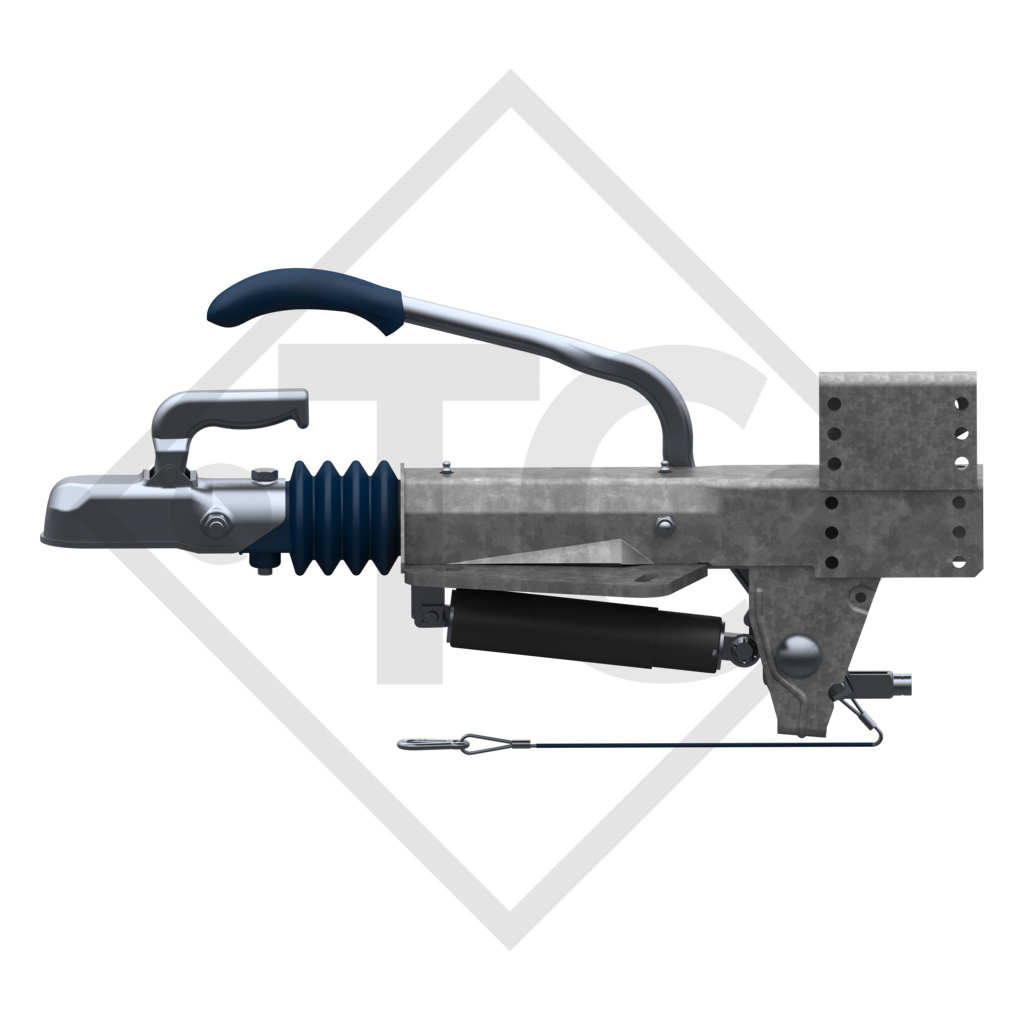

connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S2005-7, S2504-7 and S3006-7 RASK, with coupling head EM 300 R-B. Read more...

Wishlist: Add to comparison:
Price 465,00 EUR Incl. tax Excl. Shipping costs
Permitted gross weight (kg) 1800-2800
Sales designation (type) ZAF 3.0-3 (2,8)
Order No. 4014430 or 4019260
Reference No. 48.44.581.201

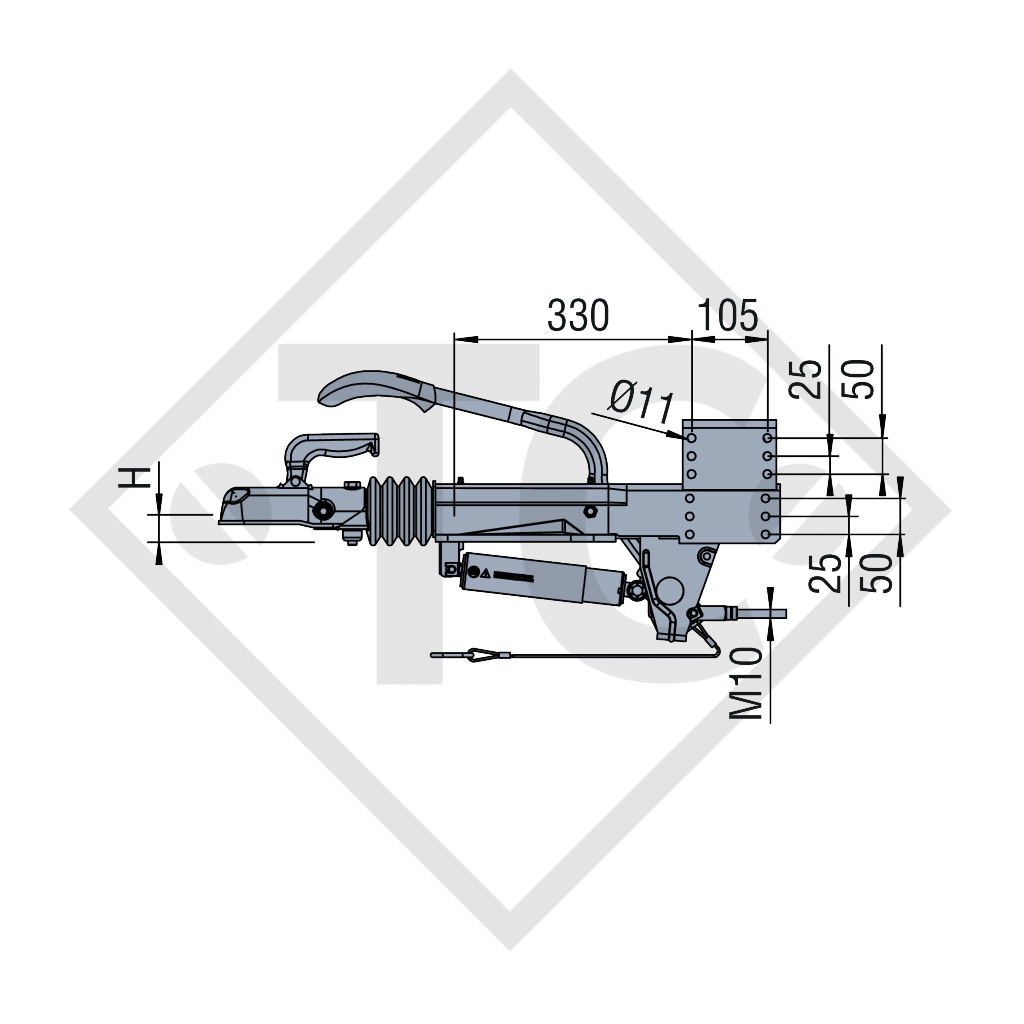

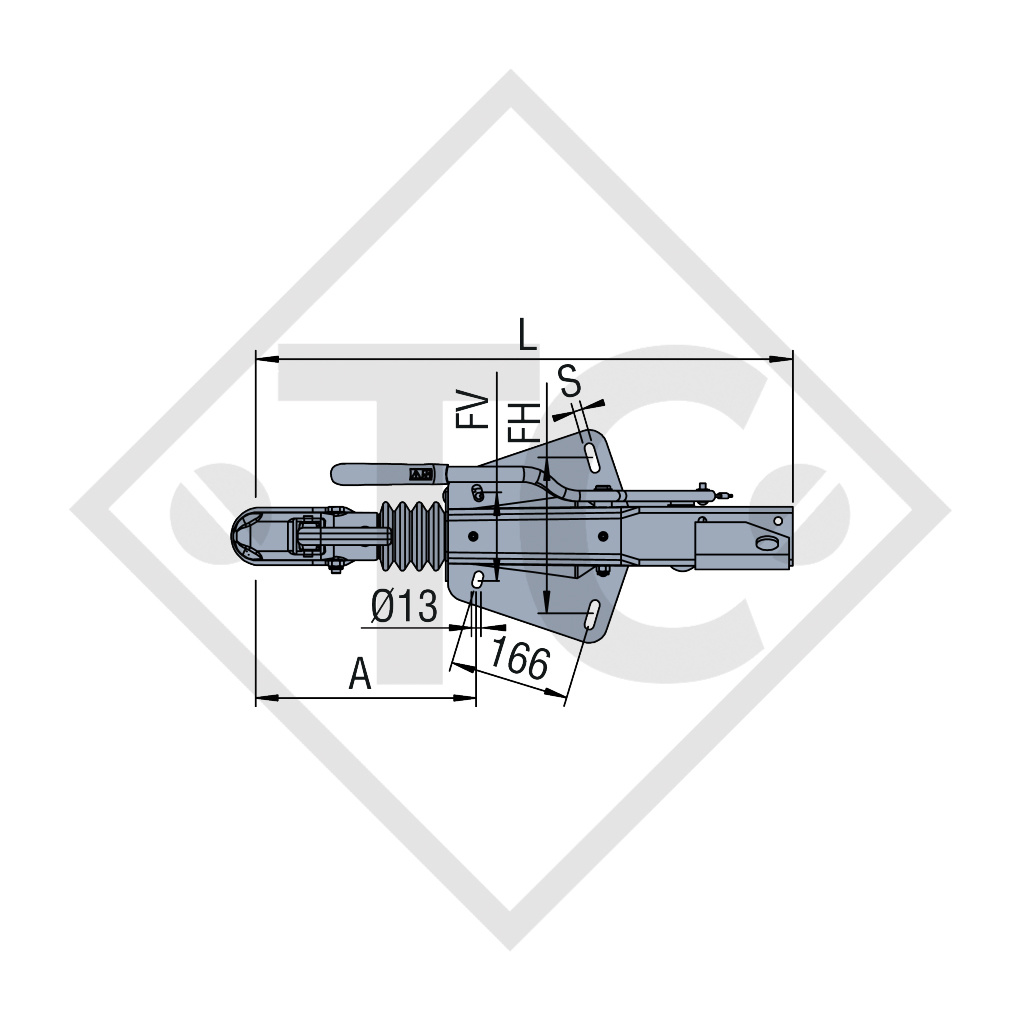

A
305mm
H 43mm
L
743mm
FH 189-245mm
FH2
-
FV 110-130mm
S
13mm
Perm. nose load (kg)
150
Drawbar installation version top + bottom
Combined wheel brakes (RASK)  S2005-7 and S2504-7 and S3006-7
ECE test code
E1 55R-012028
Replacement part identification number (ETI) NEW 827004
Replacement part identification number (ETI) OLD 48.20.58X.XXX



Original operating instructions

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
