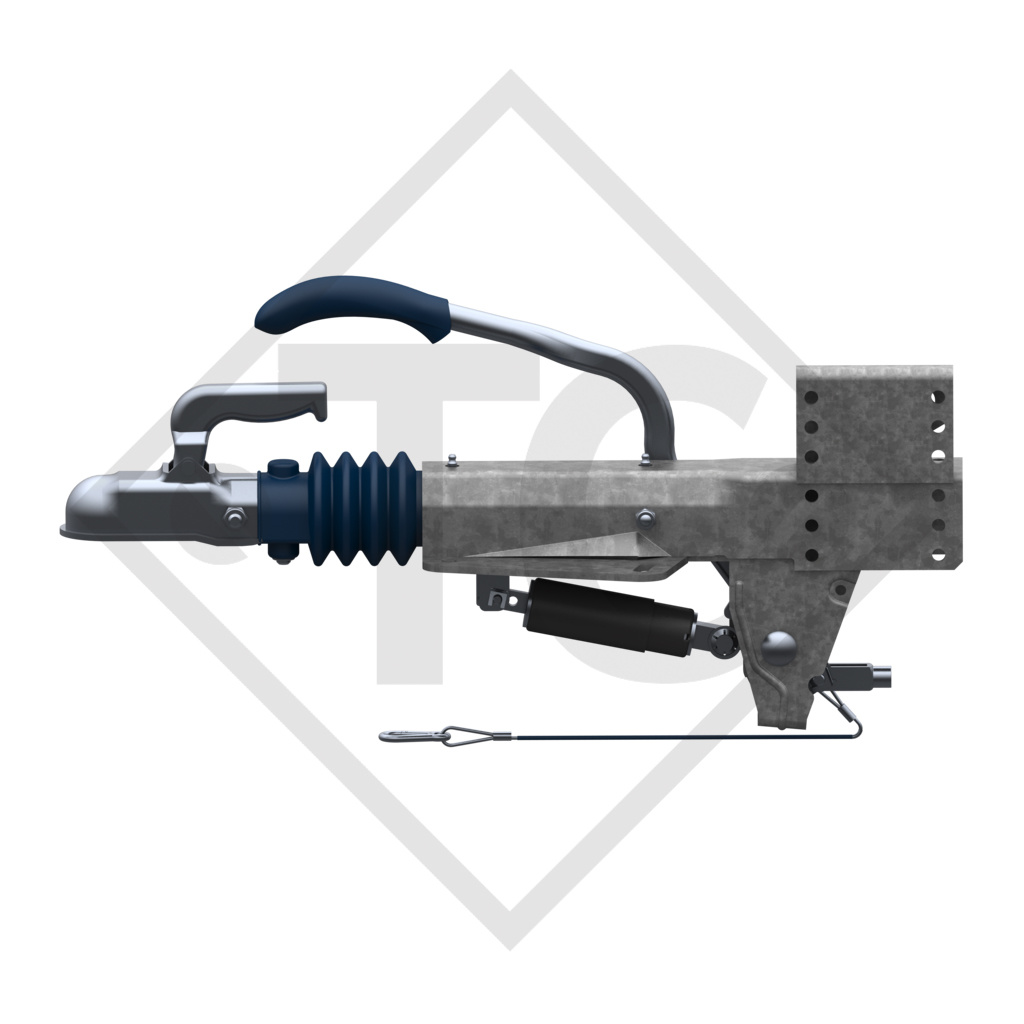

Home / Overrun device V type ZAF 2.0-3, 1250 to 2000kg, 48.36.581.203
connection 166mm, nose load 150kg, drawbar installation version top + bottom, combined with BPW wheel brake S1704-7, S2005-7, S2504-7 and RB 2051, with coupling head WW 220R-B. Read more...
| Permitted gross weight (kg) | 1250-2000 |
| Sales designation (type) | ZAF 2.0-3 |
| Order No. | 4014381 |
| Reference No. | 48.36.581.203 |

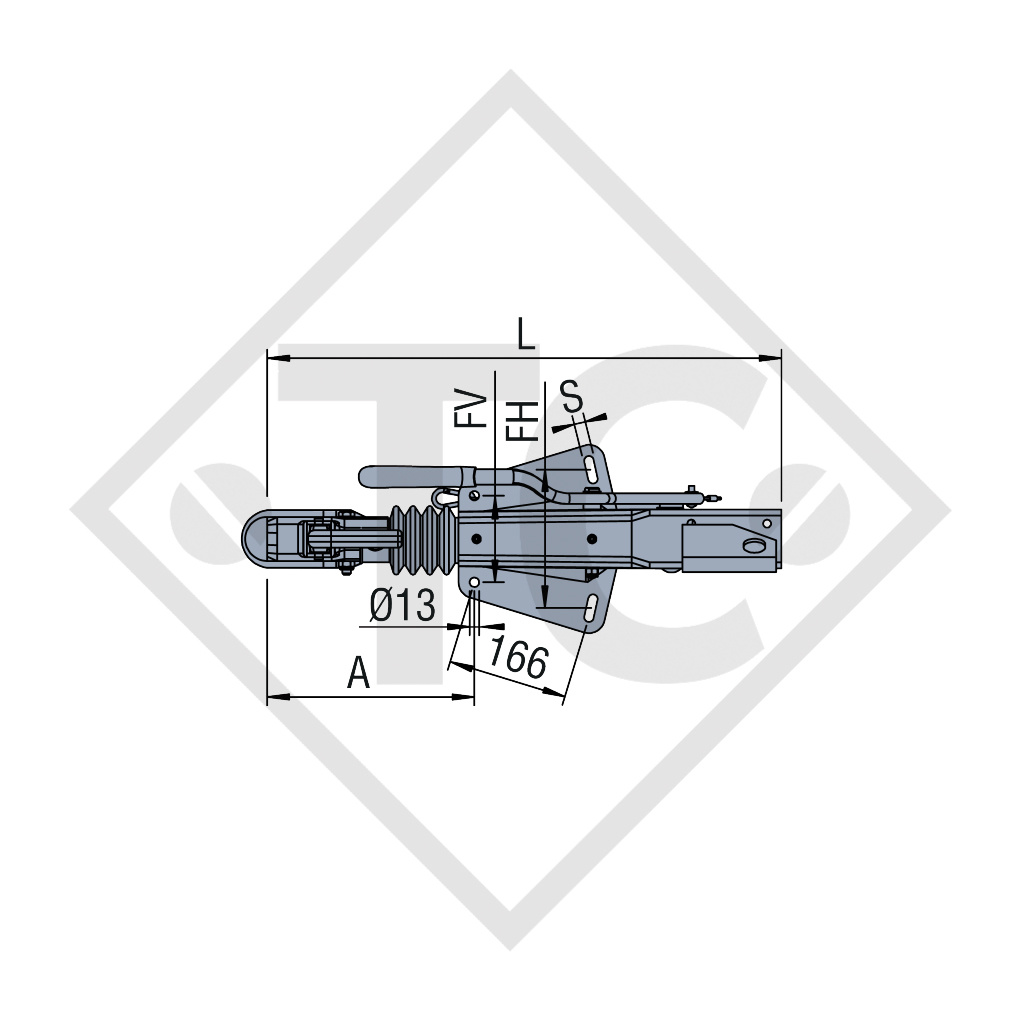

| A |
286mm |

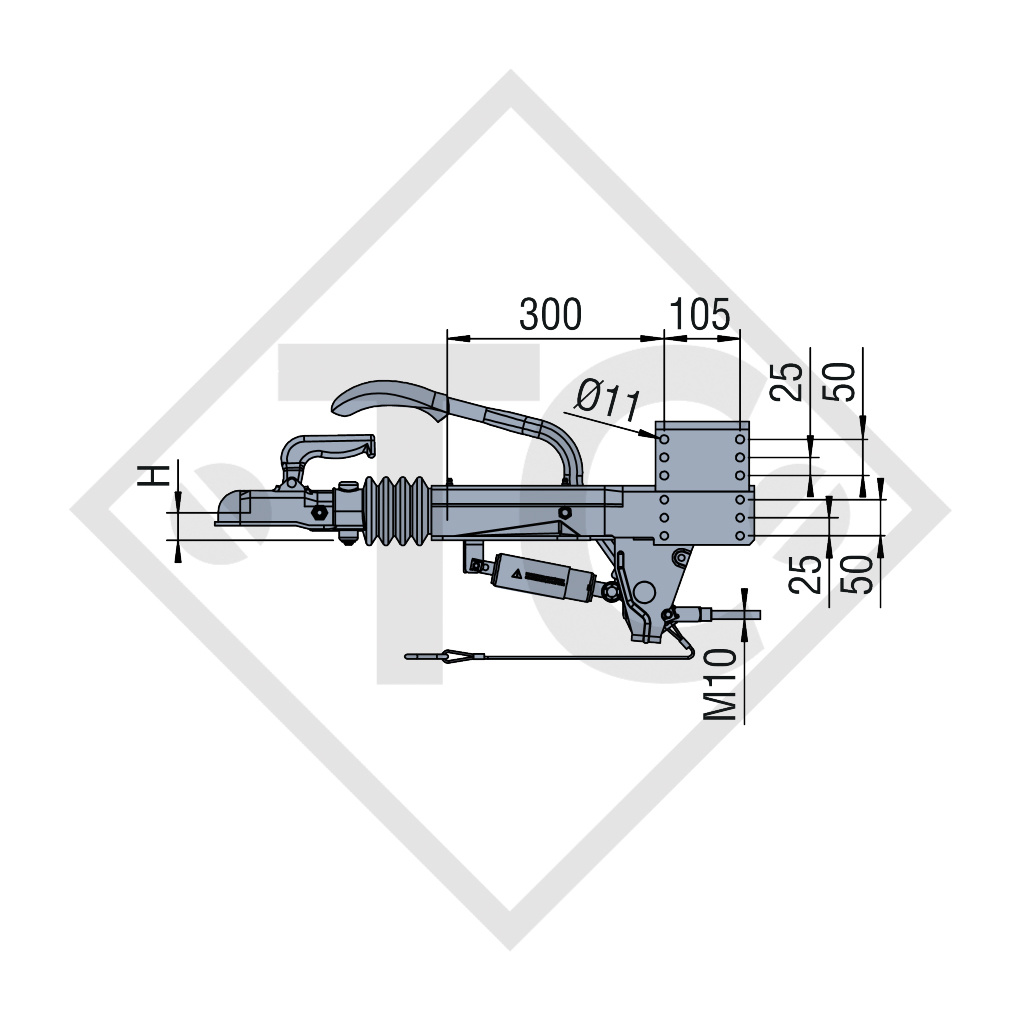

| H | 39mm |
| L |
635mm |
| FH | 167-217mm |
| FH2 |
- |
| FV | 110mm |
| S |
13mm |
| Perm. nose load (kg) |
150 |
| Drawbar installation version | top + bottom |
| Combined wheel brakes (RASK) | S1704-7 and S2005-7 and S2504-7 |
| ECE test code |
E1 55R-012078 |
| Replacement part identification number (ETI) NEW | 827002 |
| Replacement part identification number (ETI) OLD | 48.20.58X.XXX |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
