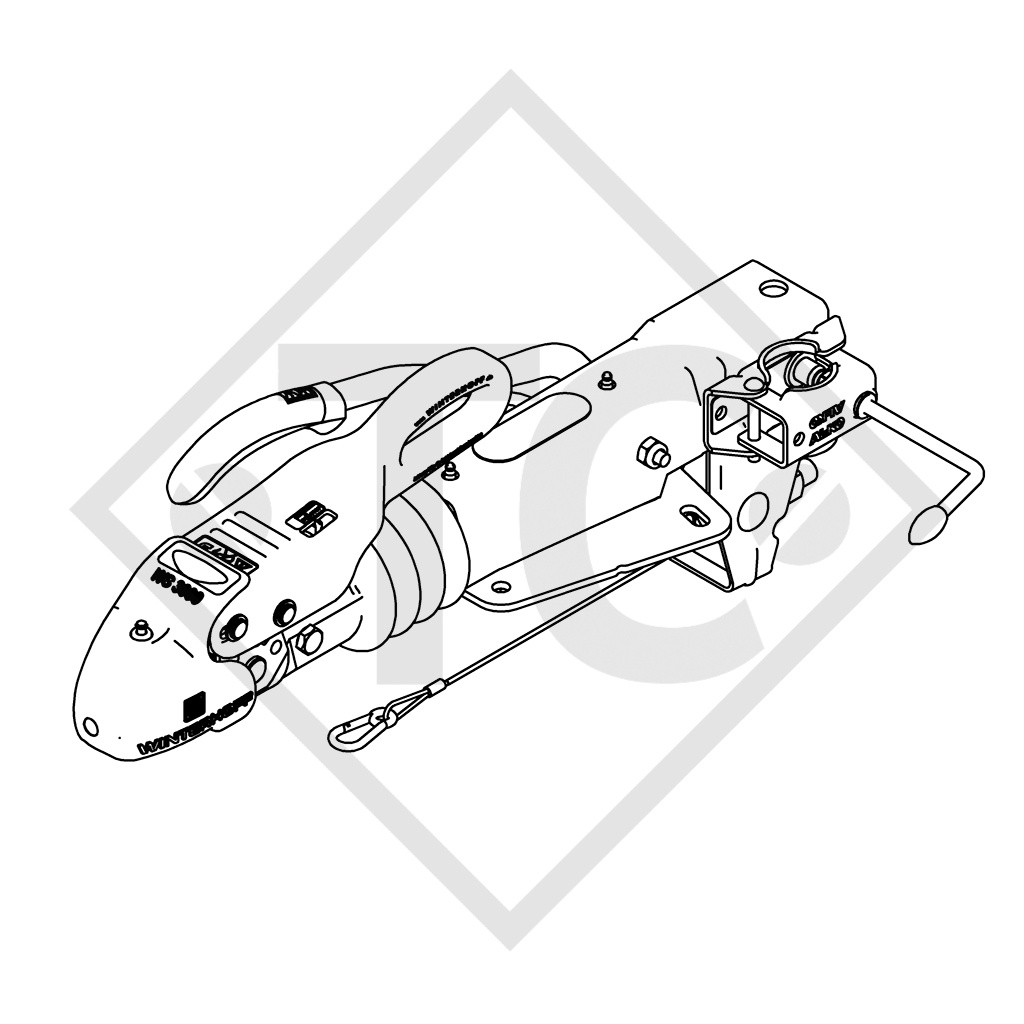

Home / Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.025
connection 166mm, nose load 150kg, drawbar installation version top, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head WS 3000-D. Read more...
Permitted gross weight (kg) | 750 - 1500 |
Sales designation (type) | ZAF 1.6-3 |
Order No. | 4014267 |
Reference No. | 48.27.581.025 |

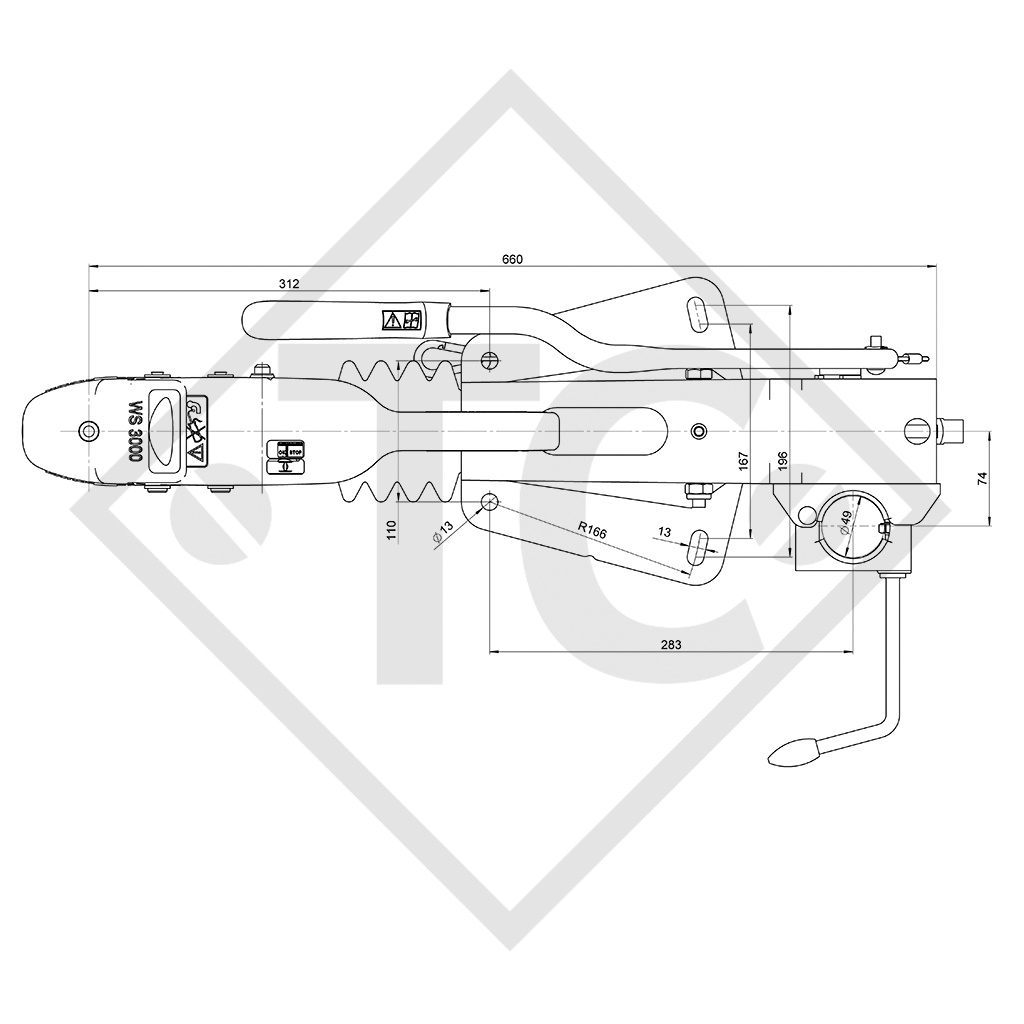

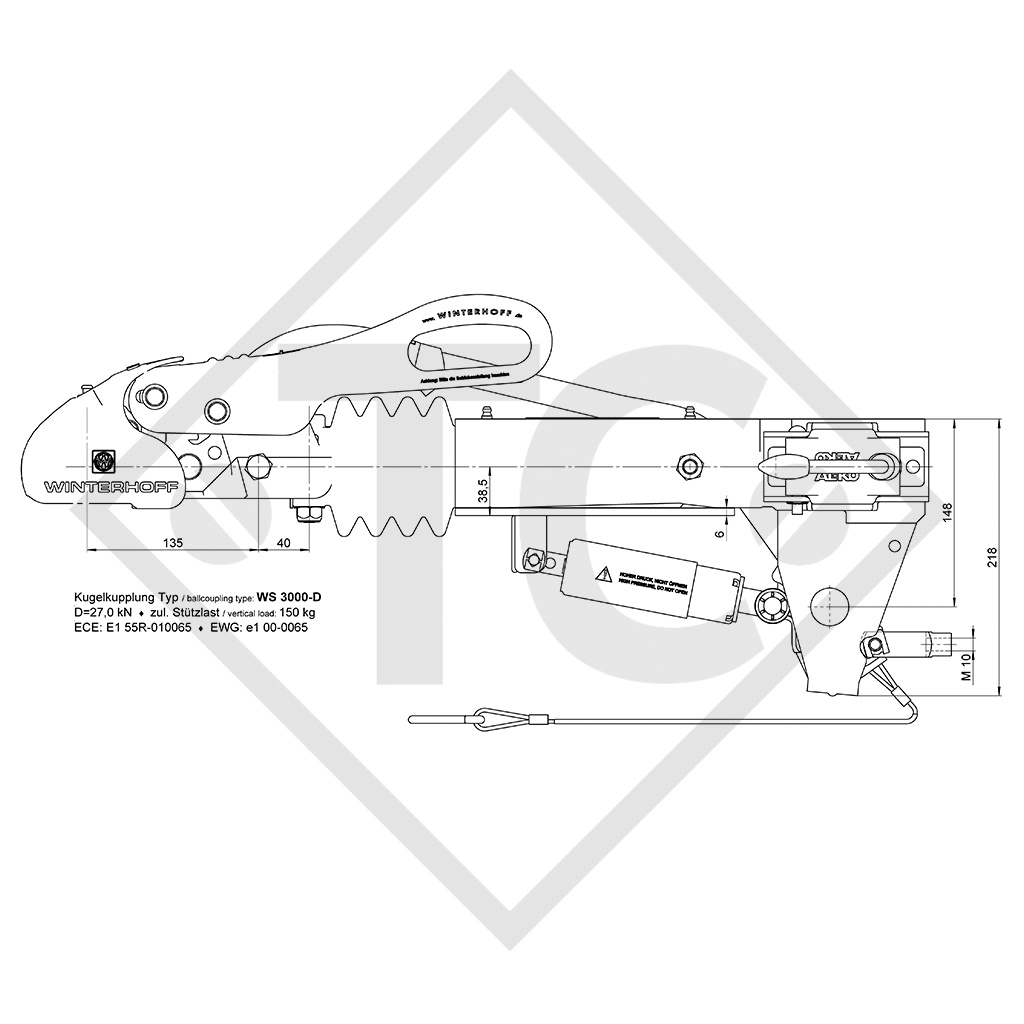

A |
283mm |
H | 33mm |
L |
660mm |
FH | 167-210mm |
FH2 |
- |
FV | 120mm |
S |
13mm |
Perm. nose load (kg) |
150 |
Drawbar installation version | top |
Combined wheel brakes (RASK) | S1704-7, S2005-7 and S2504-7 |
ECE test code |
E1 55R-010065 |
Replacement part identification number (ETI) NEW | 827003 |
Replacement part identification number (ETI) OLD | 48.27.58X.XXX |
