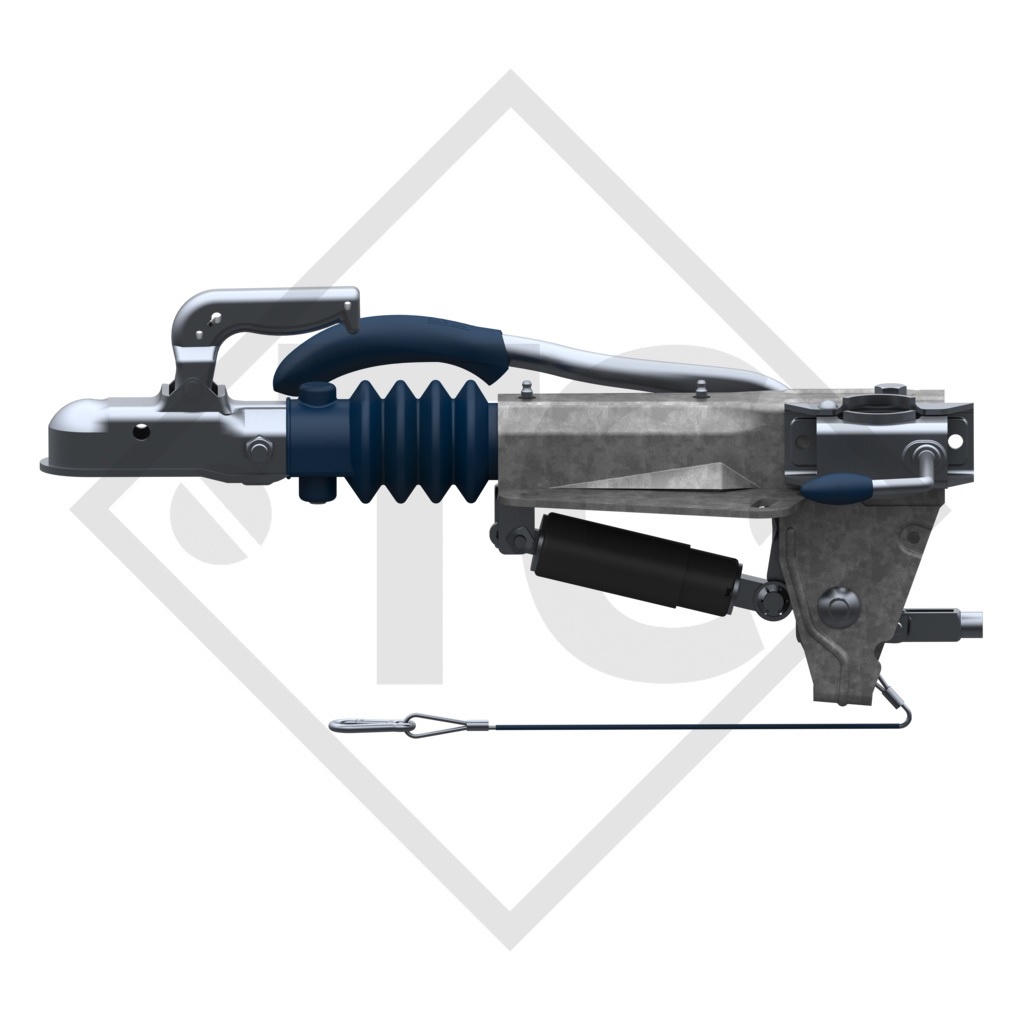

Home / Overrun device V type ZAF 1.6-3, 750 to 1500kg, 48.27.581.031, HUMBAUR
connection 166mm, nose load 100kg, drawbar installation version top, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head WW150R-B. Read more...
| Permitted gross weight (kg) | 750 - 1500 |
| Sales designation (type) | ZAF 1.6-3 |
| Order No. | 4014271 |
| Reference No. | 48.27.581.031 |

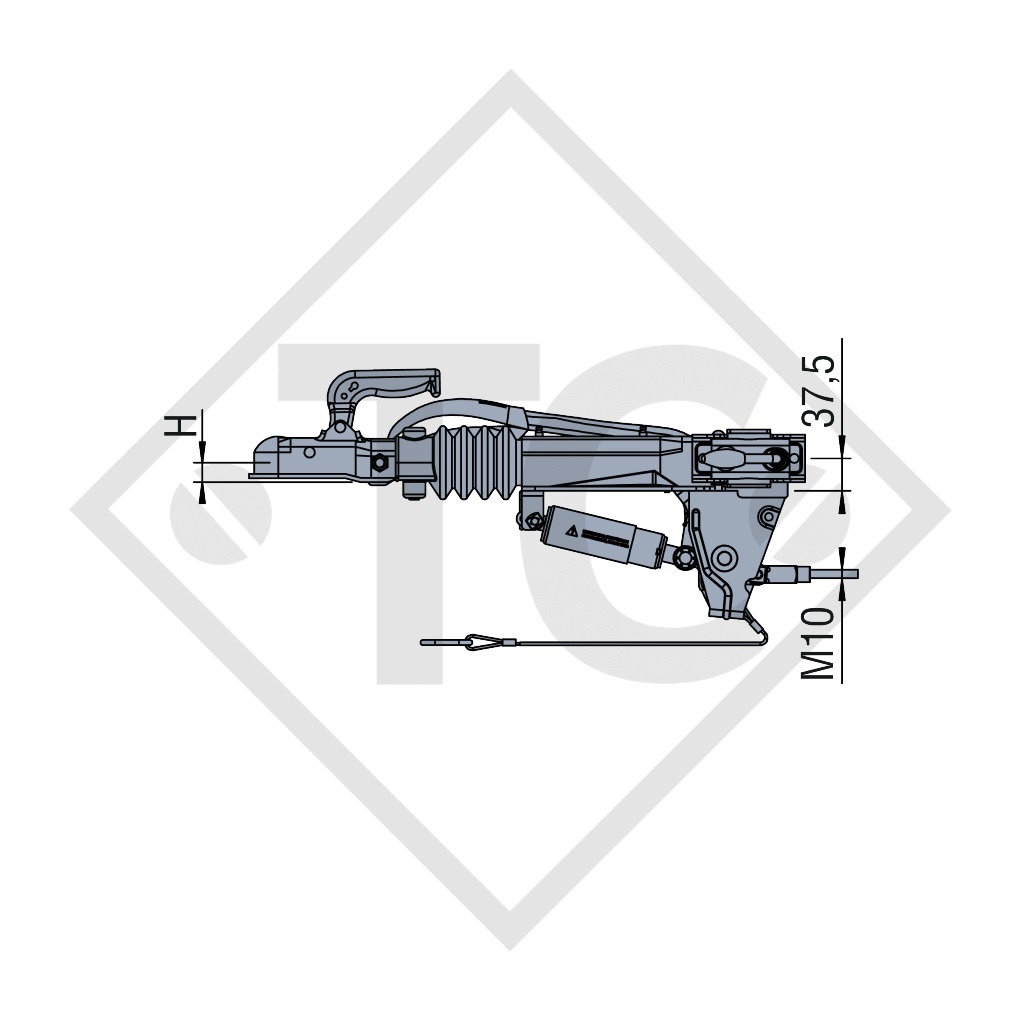

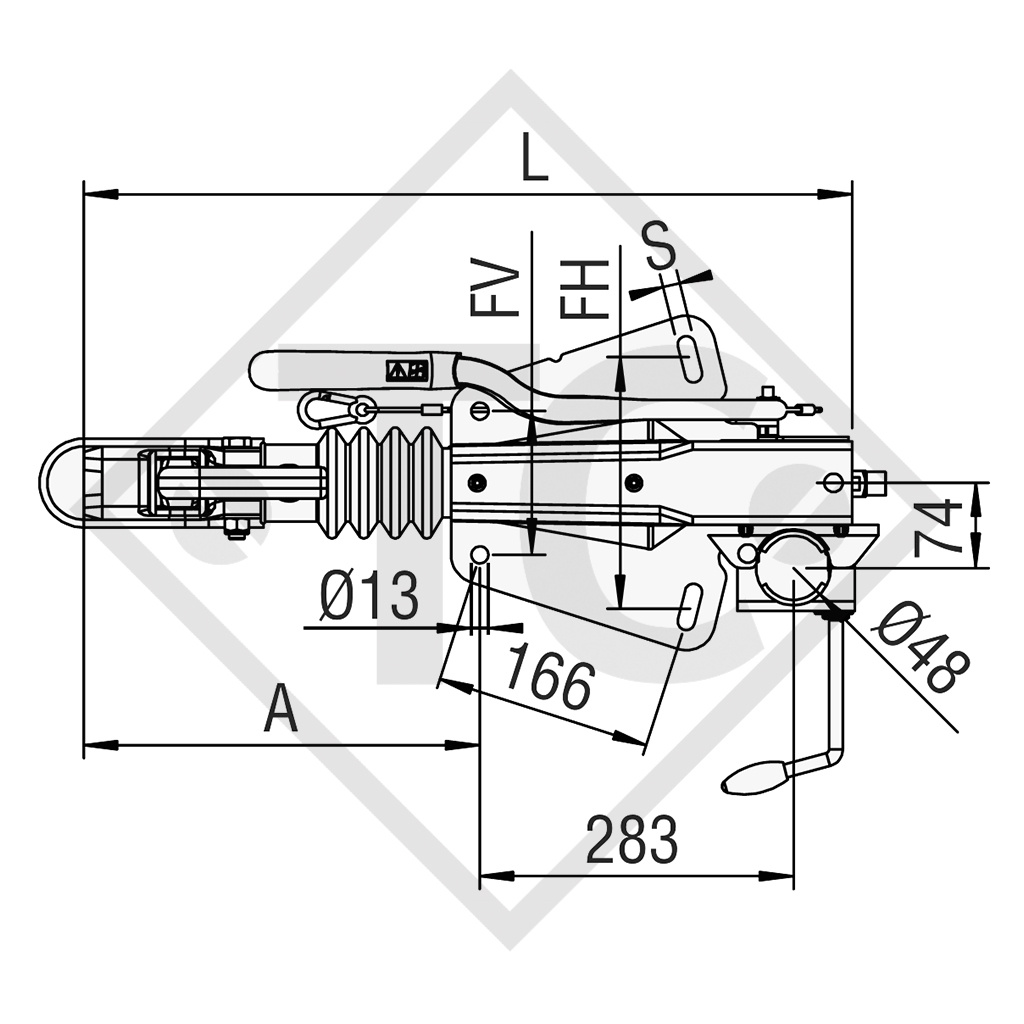

| A |
288mm |
| H | 33mm |
| L |
636mm |
| FH | 167-217mm |
| FH2 |
- |
| FV | 120mm |
| S |
13mm |
| Perm. nose load (kg) |
100 |
| Drawbar installation version | top |
| Combined wheel brakes (RASK) | S1704-7, S2005-7 and S2504-7 |
| ECE test code |
E1 55R-012051 |
| Replacement part identification number (ETI) NEW | 827003 |
| Replacement part identification number (ETI) OLD | 48.27.58X.XXX |
