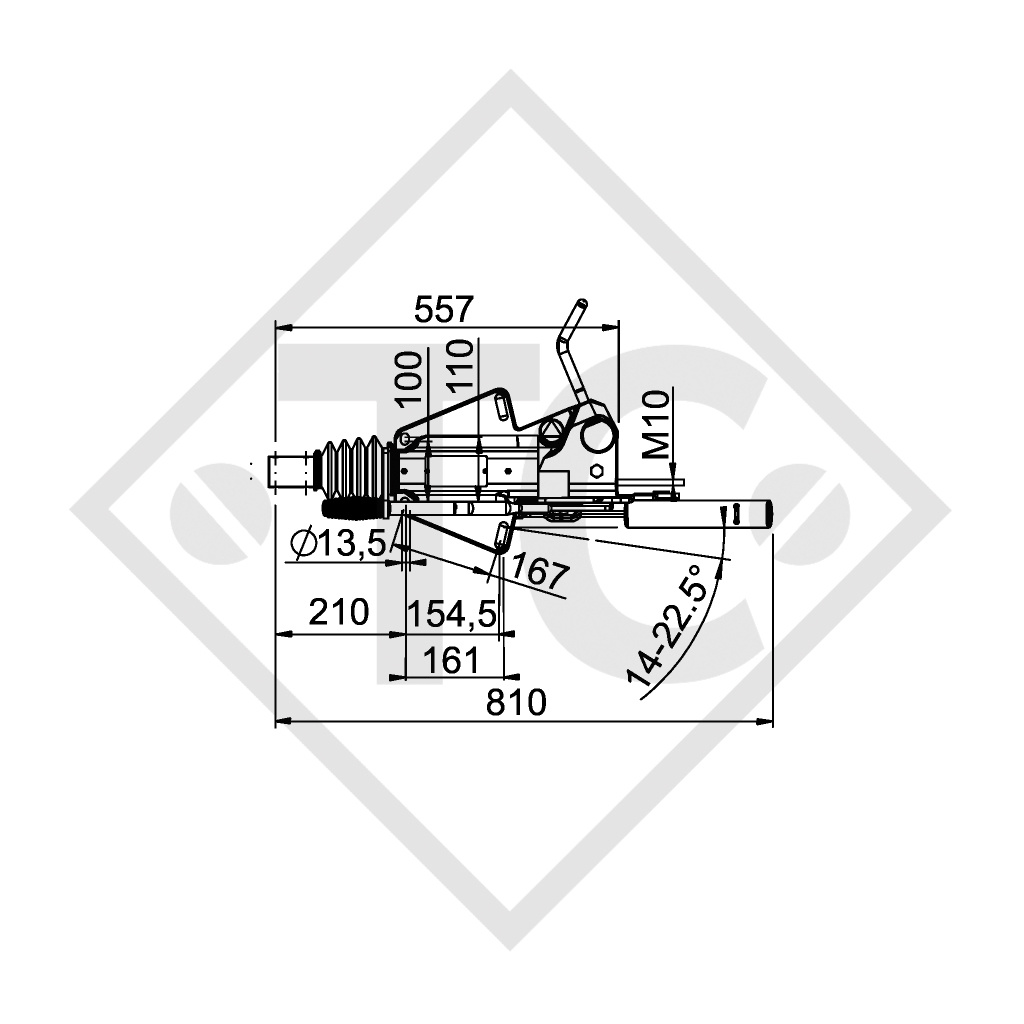

connection 167mm, nose load 225kg, drawbar installation version top + bottom, combined with AL-KO wheel brake 1637 / 2051, without hitch components. Read more...
| Order no. | 1732338 |
| Type | EH20 |
| Total weight in kg | 1075-2000 |
| Imposed load in kg | 225 |
| Drawbar installation version |
top / bottom |
| Change-over relay lever? | no |
| Can be combined with wheel brake |
1637 / 2051 |
| For jockey wheel |
48mm |
| Hitch mounted | no |
| ECE test report no. | Overrun device: R13: CD97/004 |
| ECE type approval no. | Drawbar installation: E1 55R-01 10349 |
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
