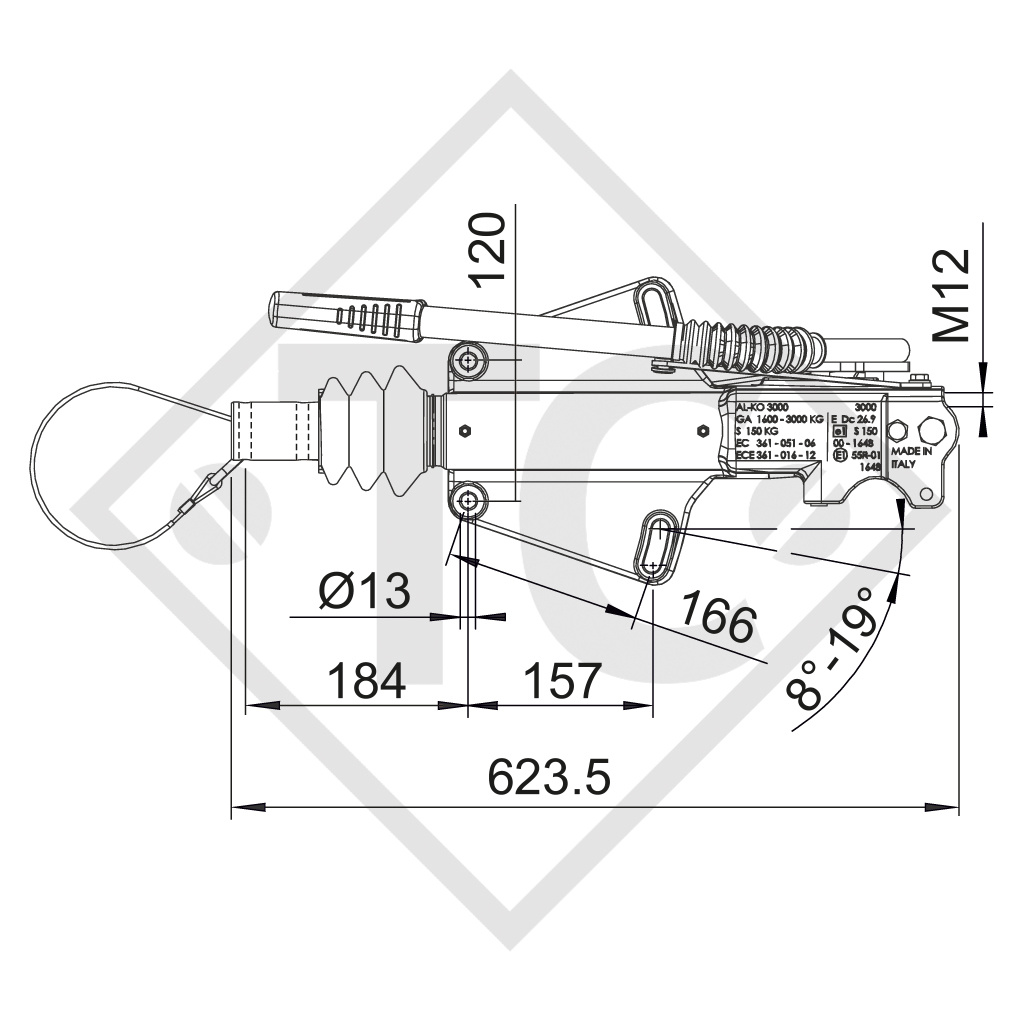

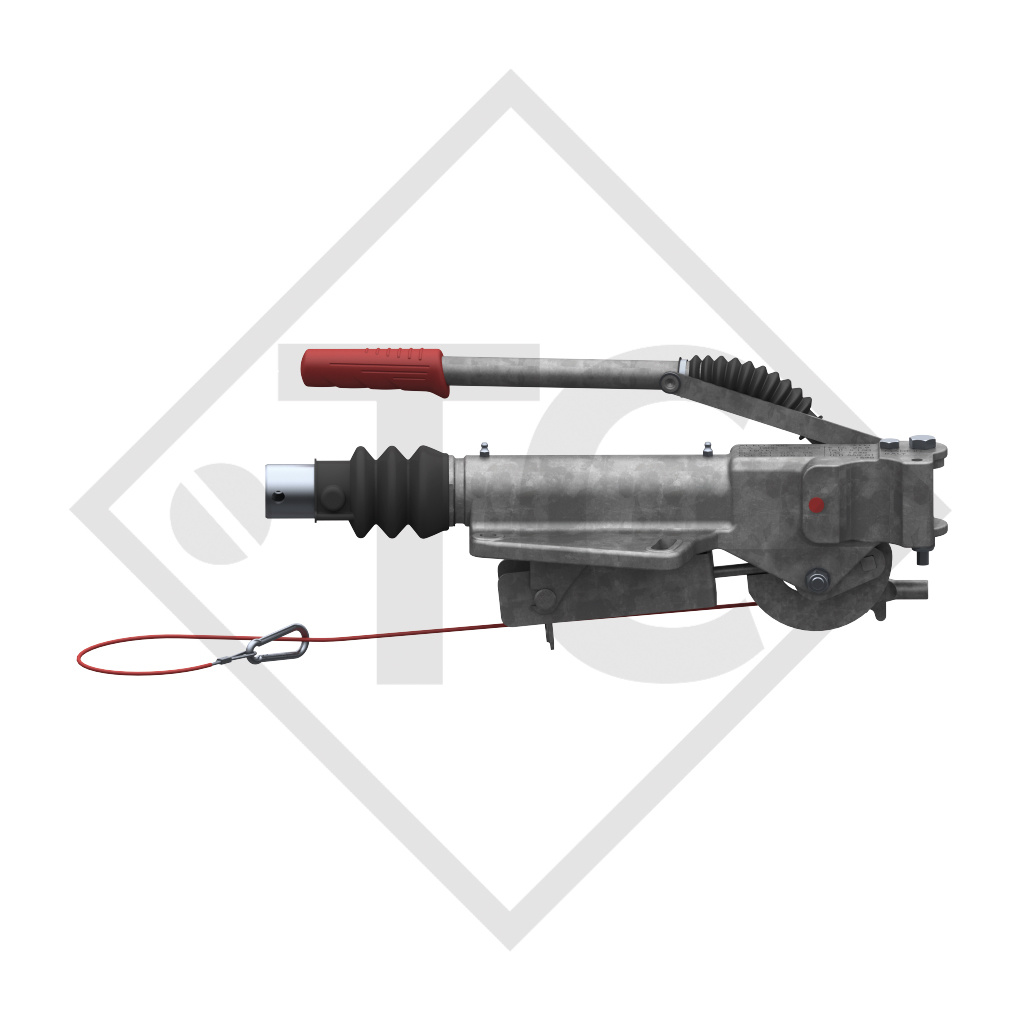

connection 166mm, nose load 150kg, installation top + bottom, can be combined with AL-KO wheel brake 1637 / 2051, without hitch components. Read more...
Part no. 1224124
| Type | AE 3000 |
| Gross weight in kg |
1600 - 3000 |
| Nose load in kg |
150 |
| Installation |
top and bottom |
| Change-over relay lever? |
No |
| Can be combined with AL-KO wheel brake |
1637 / 2051 |
| Hitch mounted |
without |
| ECE test report no. |
Overrun device: 361-016-12 |
| ECE type approval no. |
Drawbar installation: E1 55R-01 1648 |
| Replacement part identification number (ETI) | 811520 |
Here, you can find the catalogue page as a convenient PDF download.
