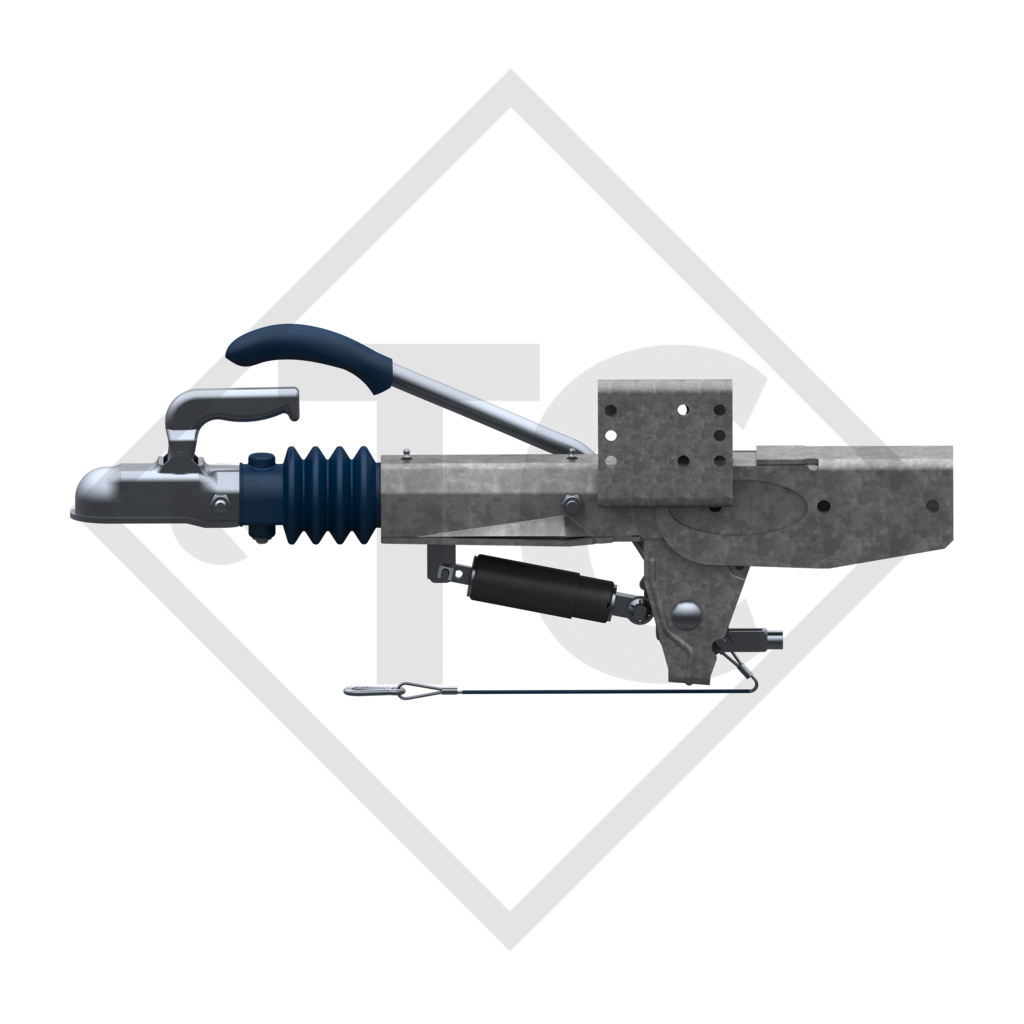

Home / Overrun device square type ZAAQ 1.6-3, 800 to 1600kg, 48.29.981.001
connection dimension B 70mm, nose load 100kg, combined with BPW wheel brake S1704-7, S2005-7 and S2504-7 RASK, with coupling head EM 220 R-B. Read more...
| Permitted gross weight (kg) | 800-1600 |
| Sales designation (type) | ZAAQ 1.6-3 |
| Order No. | 4014323 |
| Reference No. | 48.29.981.001 |
| Push-on fit on square tube dimension B |
70mm |
| Perm. nose load (kg) |
100 |
| Combined wheel brakes (RASK) | S1704-7 and S2005-7 |
| ECE test code | E1 55R-011997 |
| Replacement part identification number (ETI) NEW | 827005 |
| Replacement part identification number (ETI) OLD |
Original operating instructions
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
