connection dimension B 120mm, nose load 150kg, can be combined with AL-KO wheel brake 1637 / 2051, with coupling head AK 351. Read more...

Wishlist: Add to comparison:

Part no. 1251945

Type 2.8VB1/-C
Gross weight in kg
2500 - 3500
Nose load in kg
150
Dimension B mm

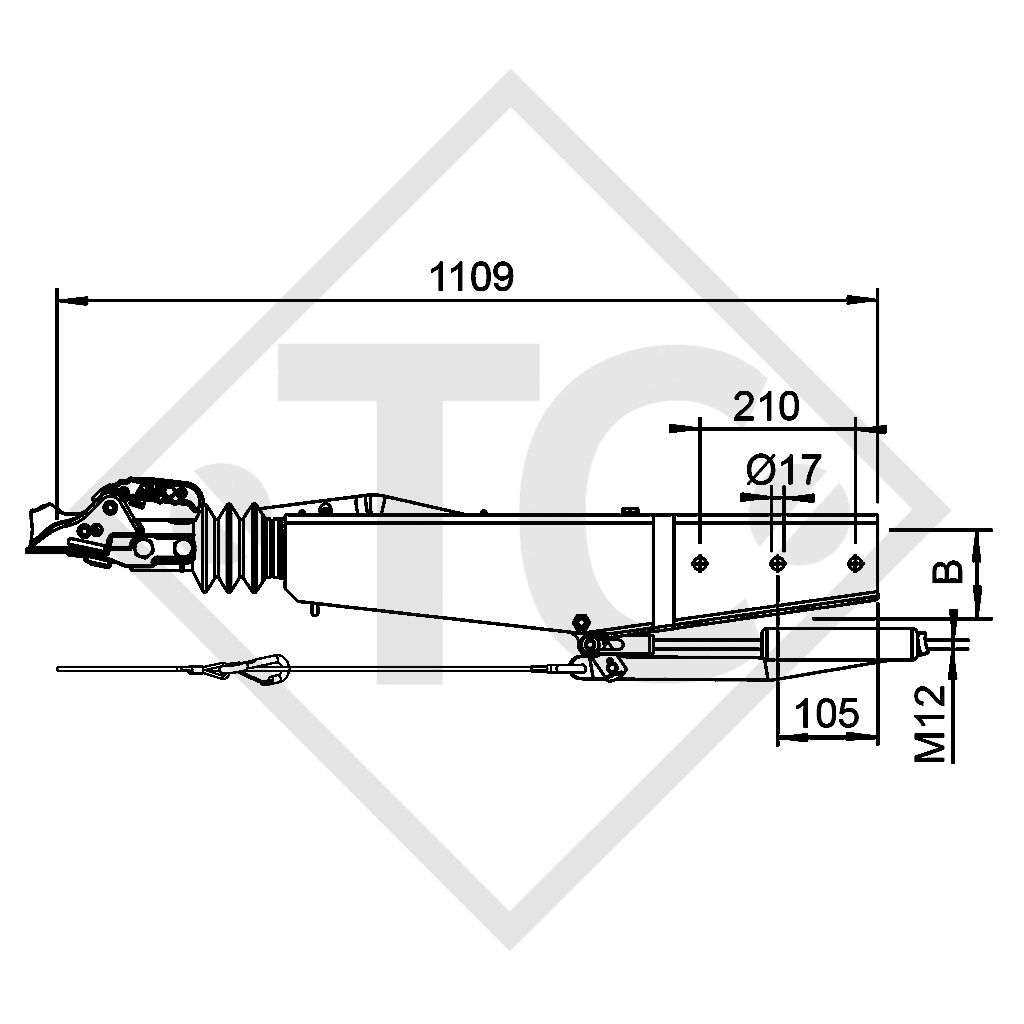

(check mounting dimension B, see technical drawing) 120
Change-over relay lever?
No
Can be combined with AL-KO wheel brake
1637 / 2051
Hitch mounted
AK 351
ECE test report no.
Overrun device: 361-0045-97
ECE type approval no.
Drawbar installation: E1 55R-01 0378
Replacement part identification number (ETI) 811666



Here, you can find the catalogue page as a convenient PDF download.
