connection dimension B 100mm, nose load 100kg, can be combined with AL-KO wheel brake 2361, with DIN drawbar eye. Read more...
Part no. 242960
| Type | 251S |
| Gross weight in kg |
1500 - 2600 |
| Nose load in kg |
100 |
| Dimension B mm |

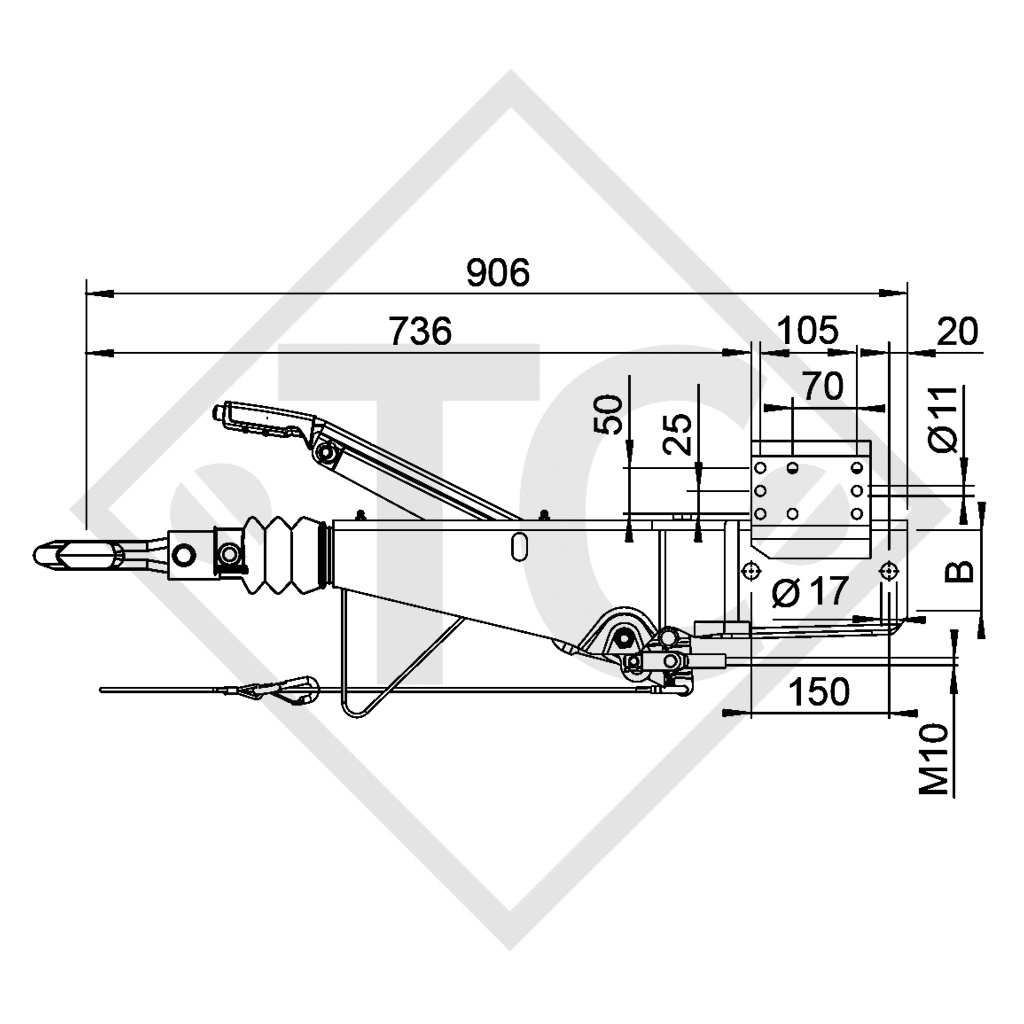

(check mounting dimension B, see technical drawing) 100 |
| Change-over relay lever? |
yes |
| Can be combined with AL-KO wheel brake |
2361 |
| Hitch mounted |
DIN drawbar eye |
| ECE test report no. |
Overrun device: 361-0044-97 |
| ECE type approval no. |
Drawbar installation: E1 55R-01 0268 |
| Replacement part identification number (ETI) | 811188 |
Here, you can find the catalogue page as a convenient PDF download.
