connection dimension B 100mm, nose load 100kg, can be combined with AL-KO wheel brake 1637 / 2051, with coupling head AK 161, Soft-Dock. Read more...

Wishlist: Add to comparison:
Price 487,00 EUR Incl. tax Excl. Shipping costs

Part no. 1251906

Type 161S
Gross weight in kg
950 - 1600
Nose load in kg
100
Dimension B mm

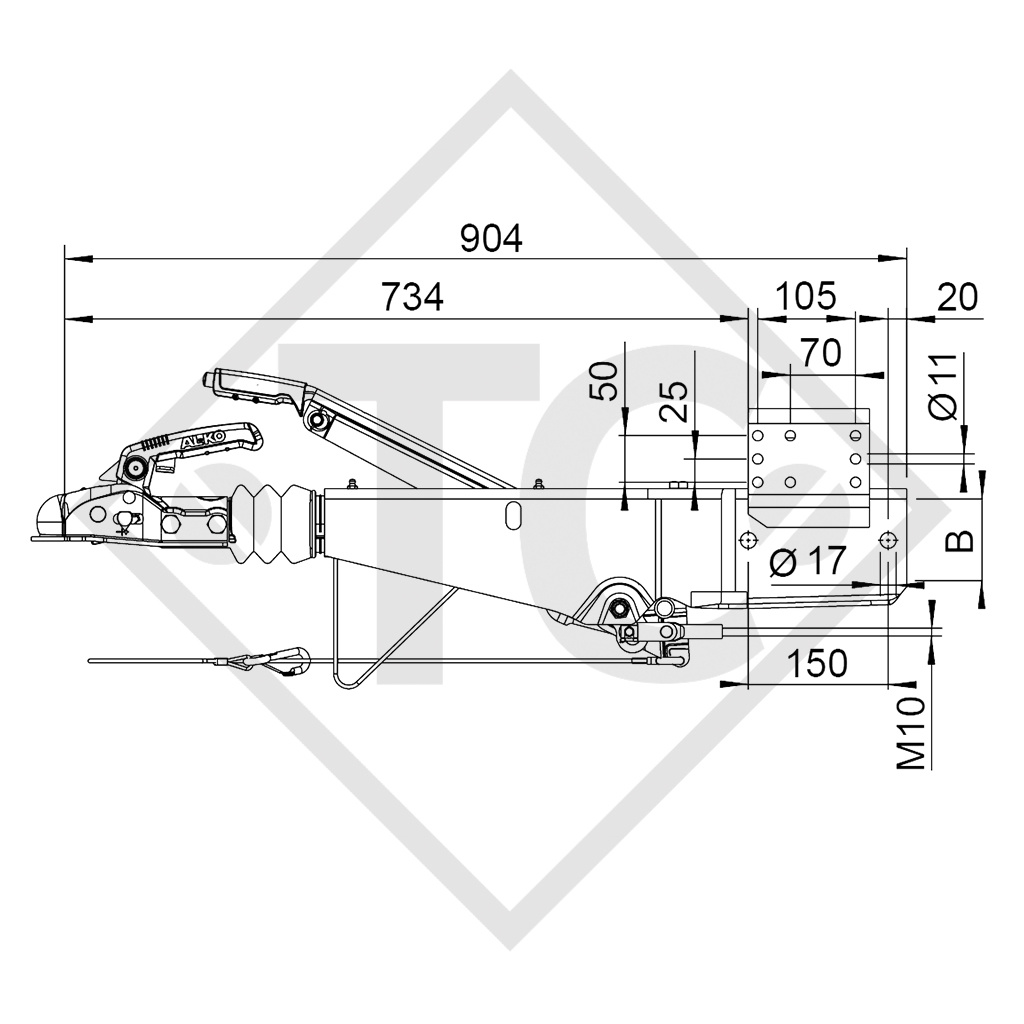

(check mounting dimension B, see technical drawing) 100
Change-over relay lever?
yes
Can be combined with AL-KO wheel brake
1637 / 2051
Hitch mounted
AK 161
ECE test report no.
Overrun device: 361-0047-97
ECE type approval no.
Drawbar installation: E1 55R-01 0267
Replacement part identification number (ETI) 811187



Here, you can find the catalogue page as a convenient PDF download.
