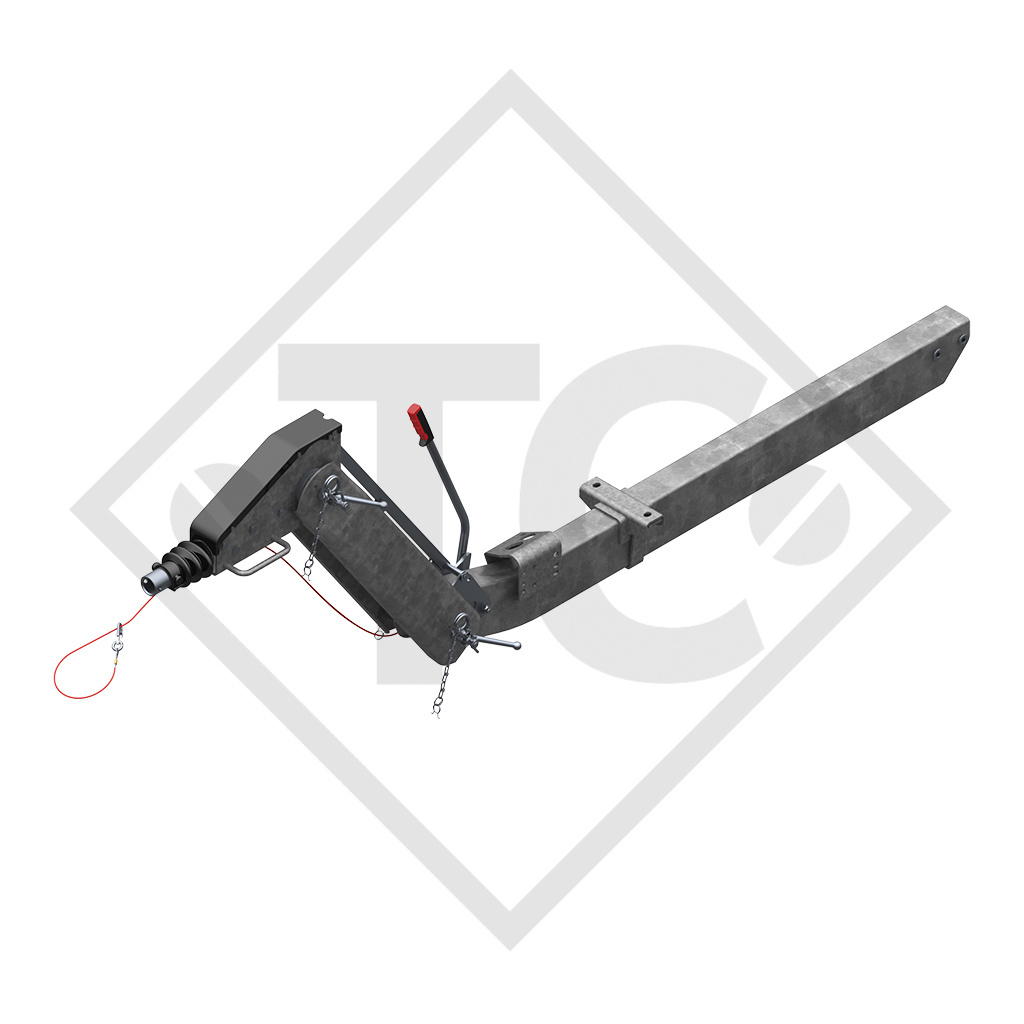

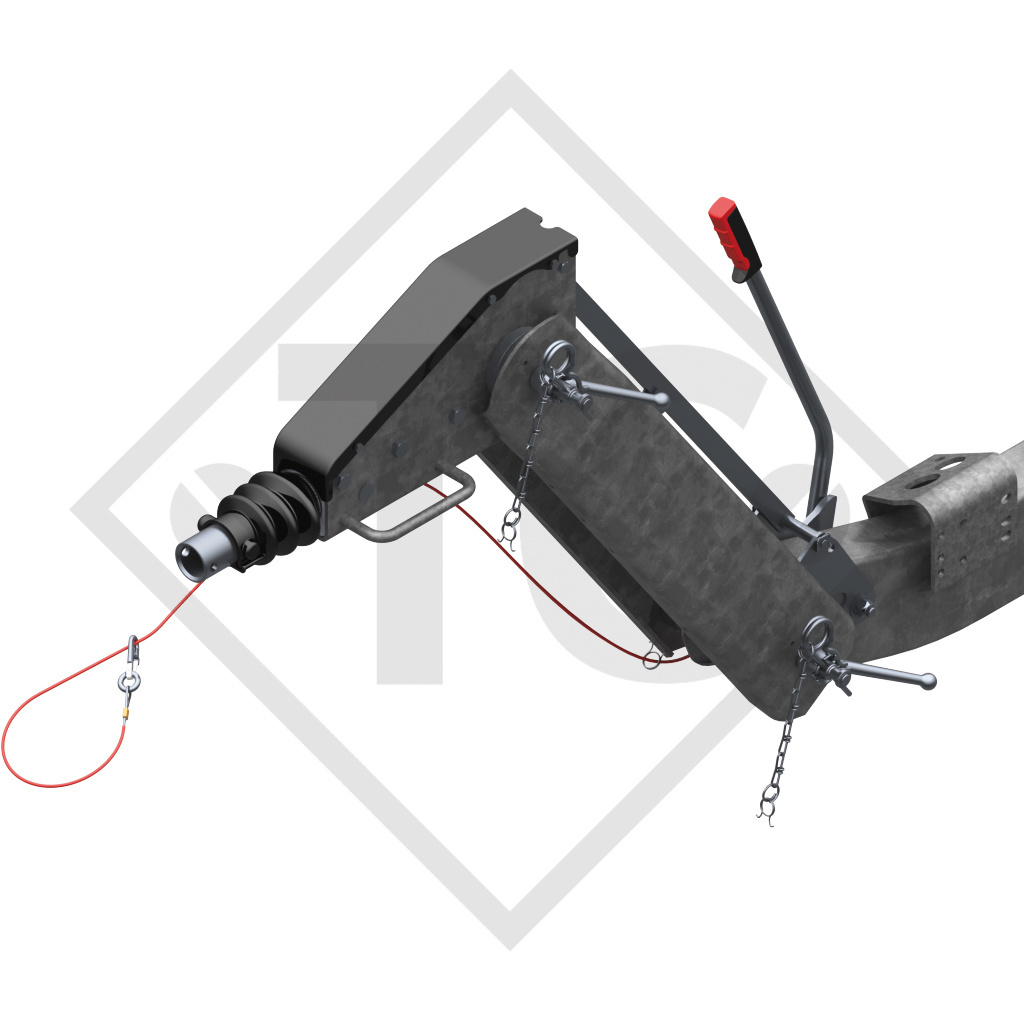

Home / Overrun device height-adjustable 161 VB-2 OPTIMA with drawbar section cranked 850 to 1600kg
total length K (at -5°) 3912mm, drawbar length E 2610mm, drawbar section 80x140x4mm, intermediate piece 700mm, perm. nose load 100kg, without hitch components, for wheel brake 2361. Read more...
Part no. 20059141
Overrun device cpl. with drawbar section mounted (without hitch components)

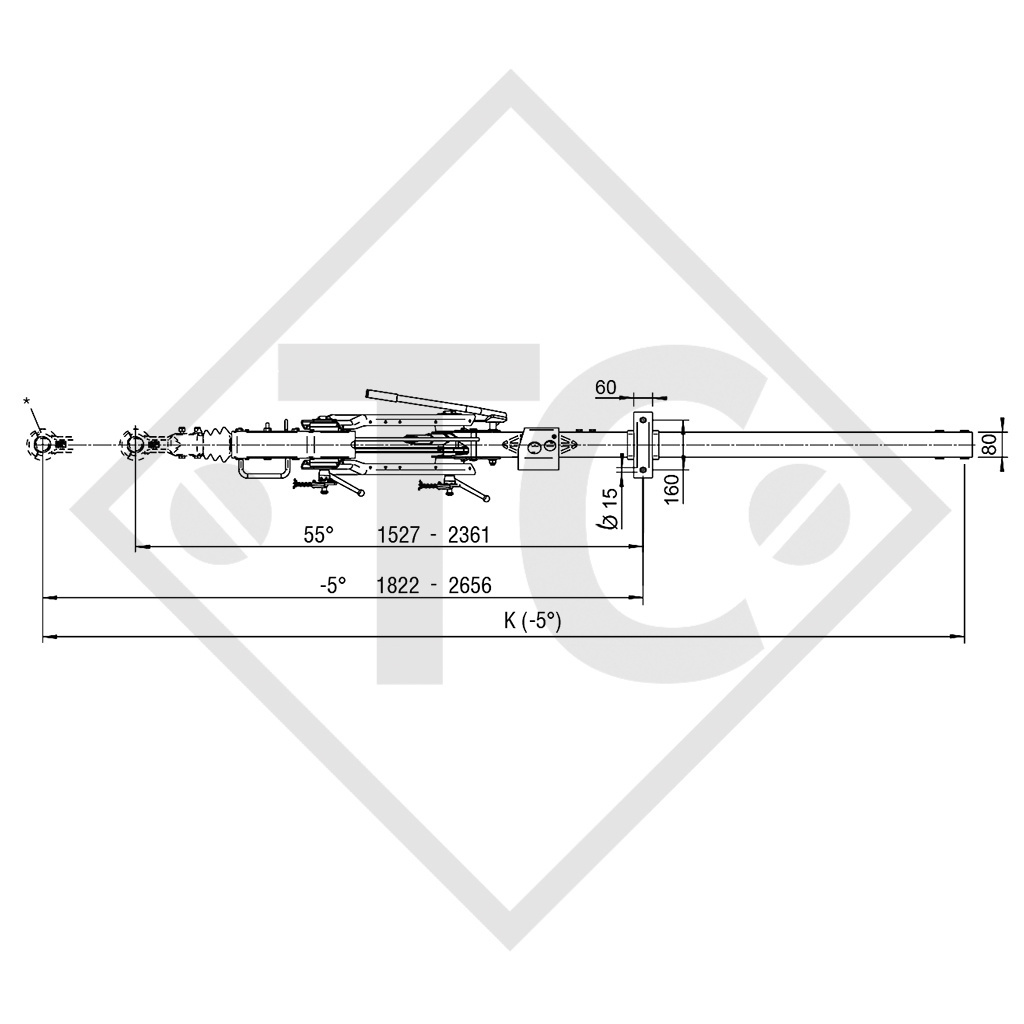

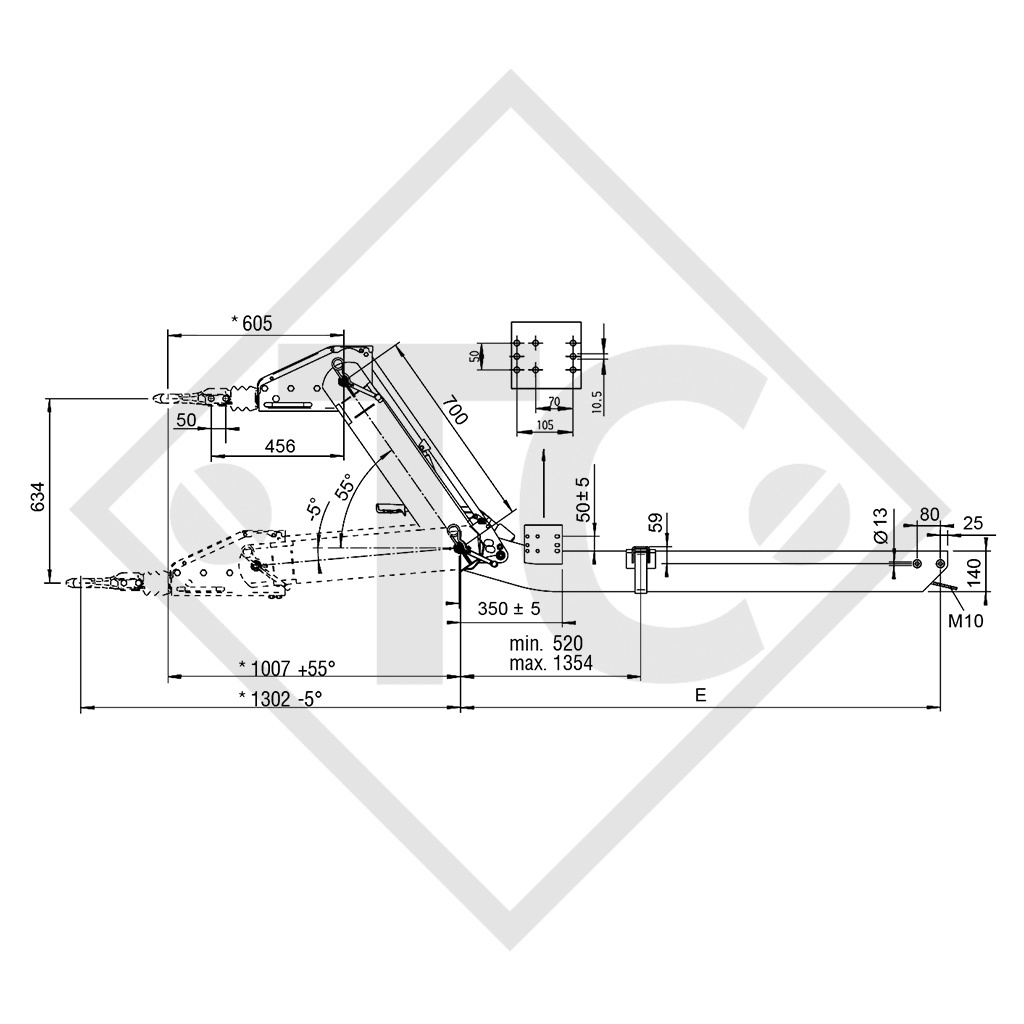

| Total length K at -5° | 3912mm |
| Drawbar length E | 2610mm |
| Intermediate piece | 700mm |
| For wheel brake | 2361 |
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)
Original operating instructions
Replacement part identification number 811641
TECHNOLOGY
Type overrun device 161 VB-2 OPTIMA
Intermediate piece with drawbar section 162 VB-2-OPTIMA
Permissible nose load with DIN eye 100kg
Permissible nose load with coupling head 100kg
ECE test report no.:
Overrun device: 361-117-12
ECE type approval no.:
Drawbar installation: E1 55R-01 1157
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
