Home / Overrun device height-adjustable 161 VB-2 OPTIMA with drawbar section cranked 850 to 1600kg
total length K (at -5°) 3832mm, drawbar length E 2530mm, drawbar section 80x140x4mm, intermediate piece 700mm, perm. nose load 100kg, without hitch components, for wheel brake 1637 / 2051. Read more...
Part no. 20059117

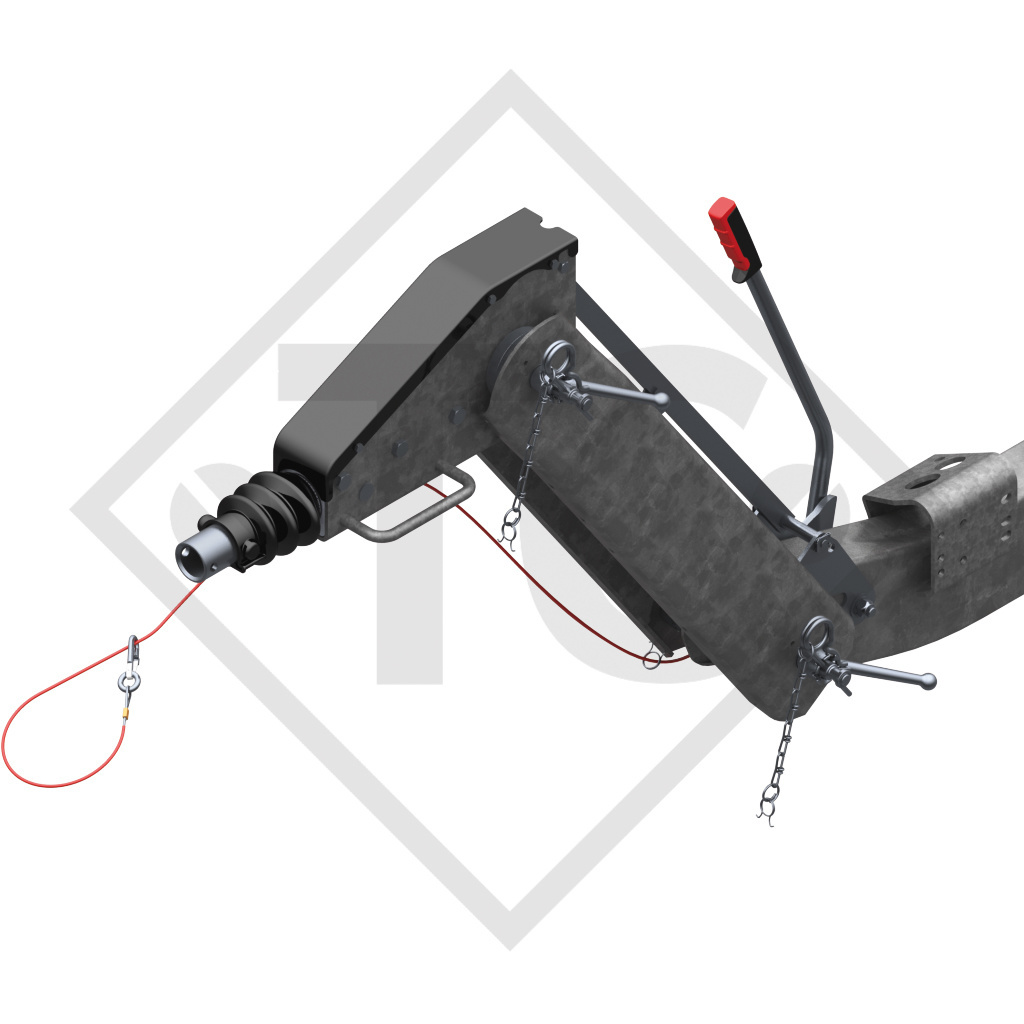

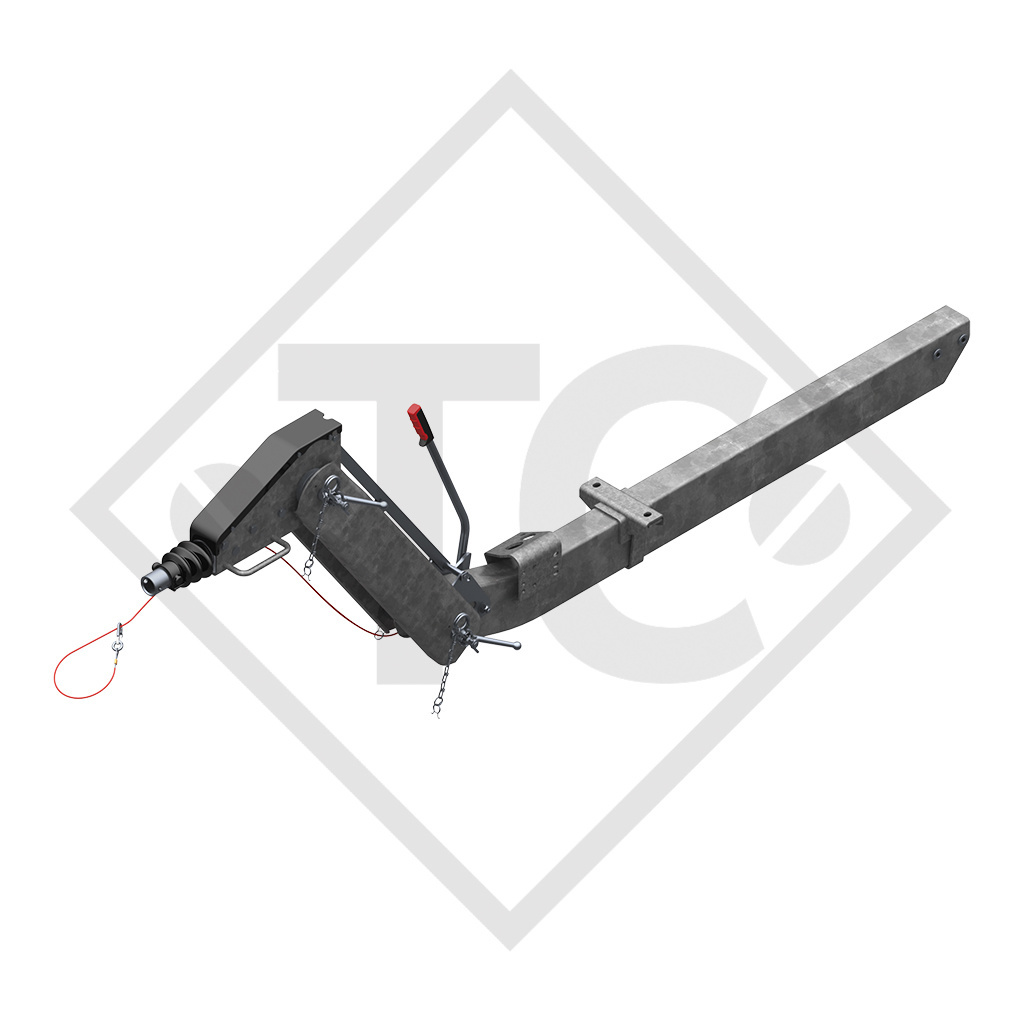

Overrun device cpl. with drawbar section mounted (without hitch components)

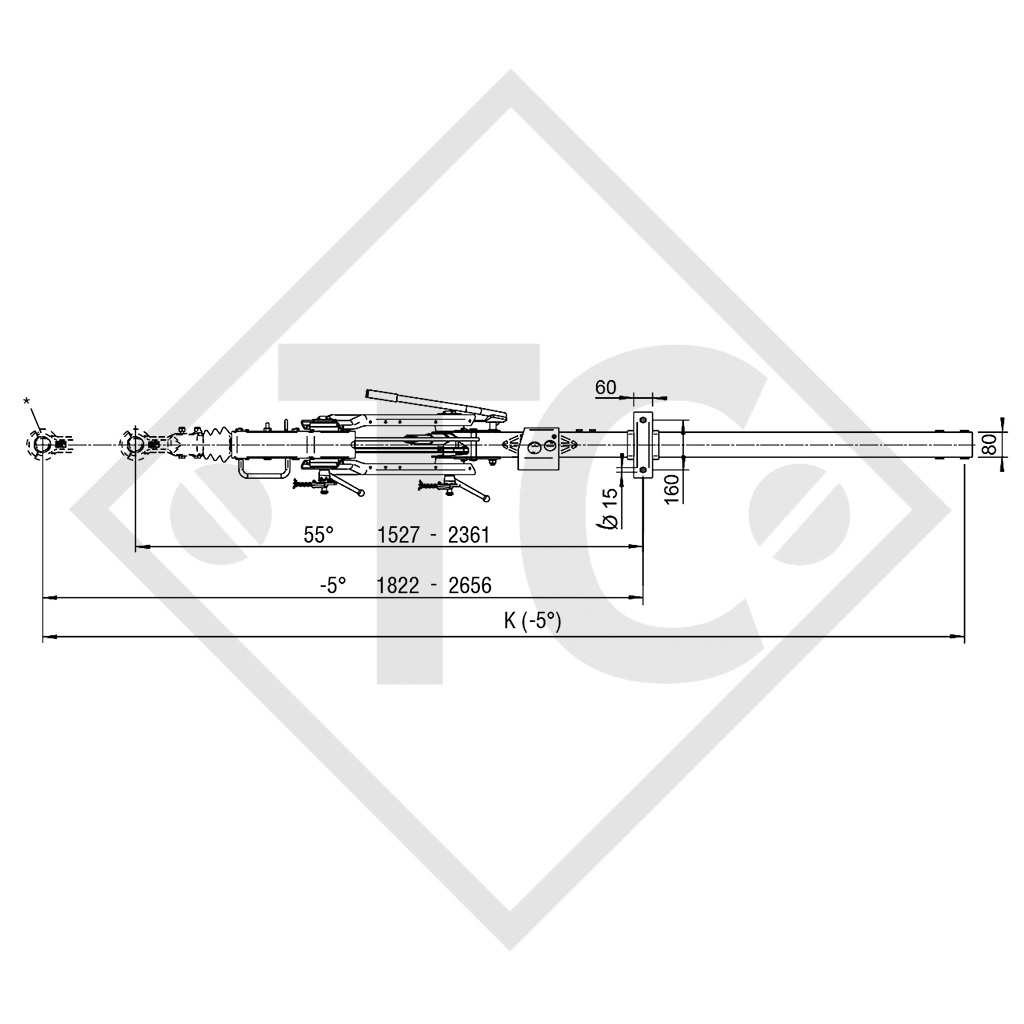

| Total length K at -5° | 3832mm |
| Drawbar length E | 2530mm |
| Intermediate piece | 700mm |
| For wheel brake | 1637 / 2051 |

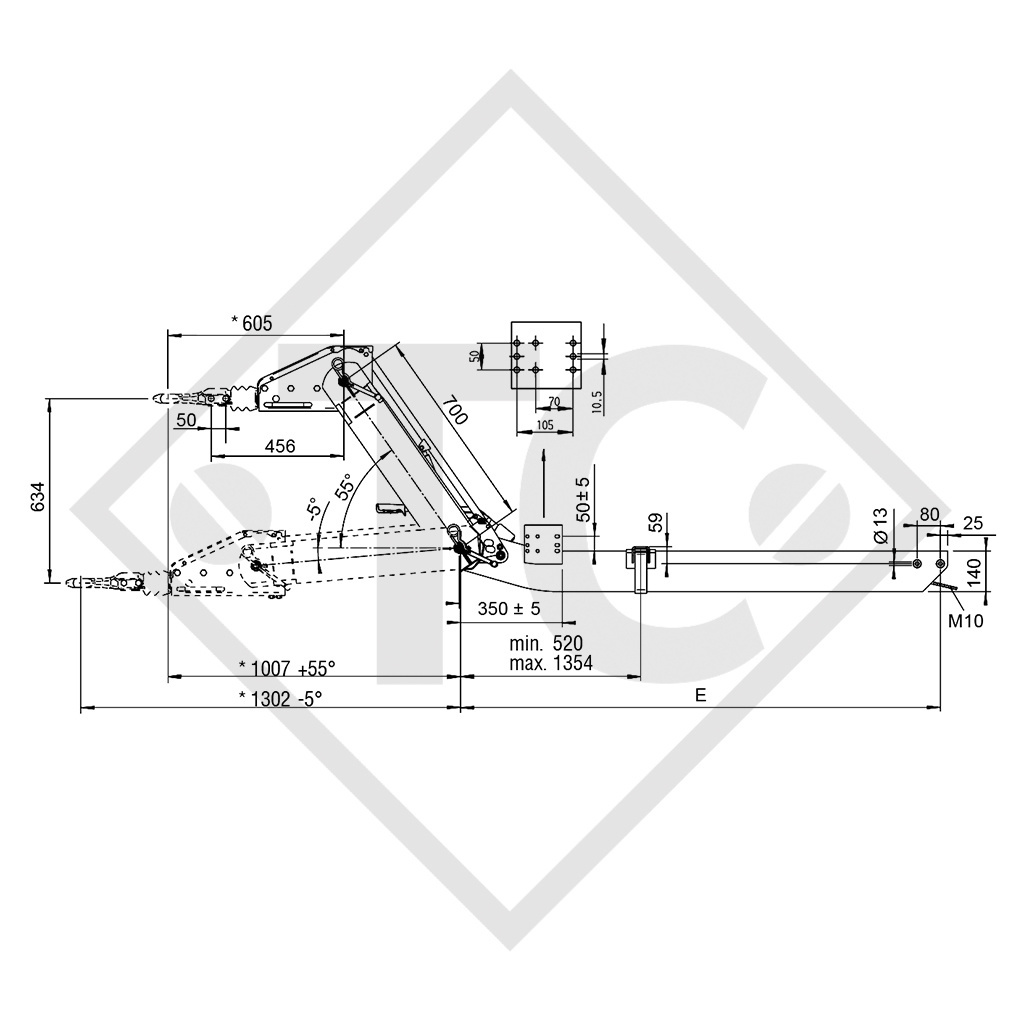

* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)
Original operating instructions
Replacement part identification number 811641
TECHNOLOGY
Type overrun device 161 VB-2 OPTIMA
Intermediate piece with drawbar section 162 VB-2-OPTIMA
Permissible nose load with DIN eye 100kg
Permissible nose load with coupling head 100kg
ECE test report no.:
Overrun device: 361-117-12
ECE type approval no.:
Drawbar installation: E1 55R-01 1157
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
