Home / Overrun device height-adjustable 101 VB COMPACT with drawbar section cranked 510 to 1000kg
total length K (at 0°) 3190mm, drawbar length E 2050mm, drawbar section 70x140x3mm, intermediate piece 750mm, perm. nose load 100kg, without hitch components, for wheel brake 1637 / 2051. Read more...
Part no. 20056614

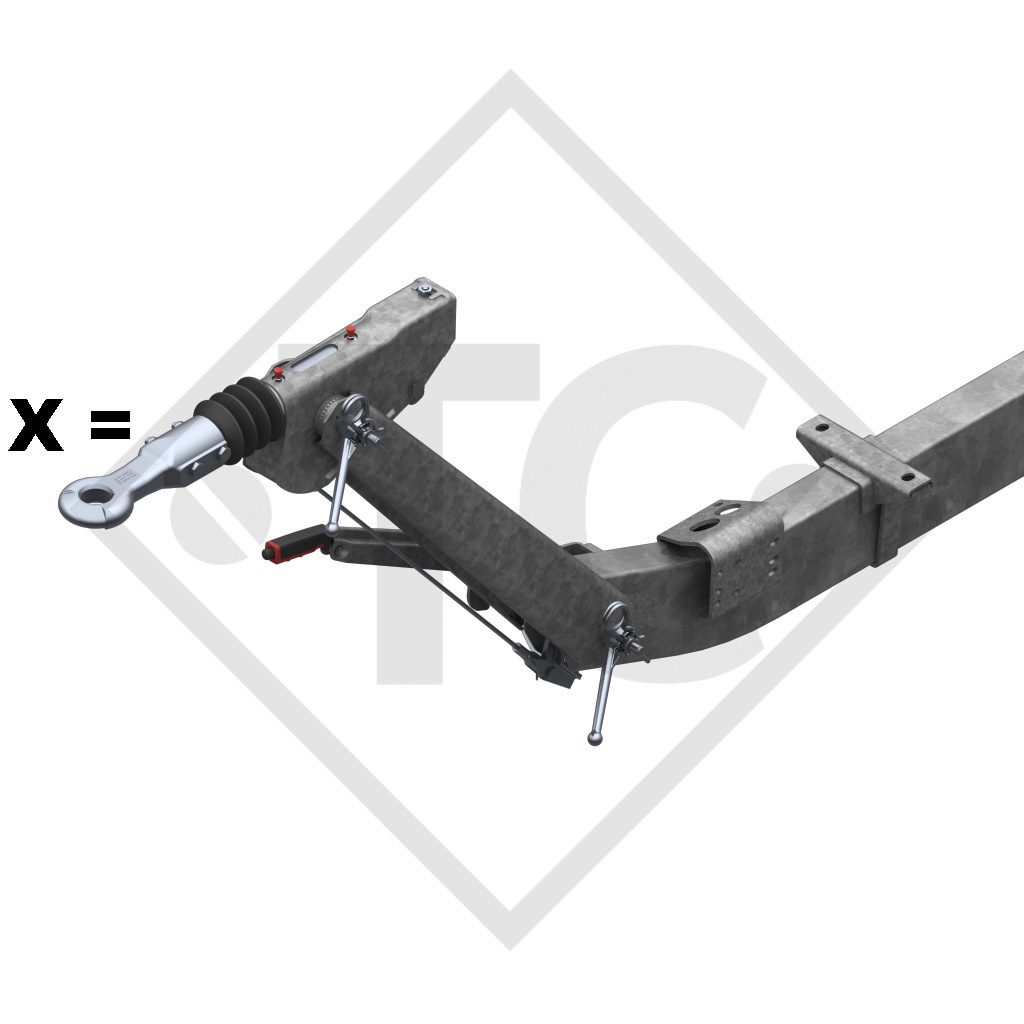

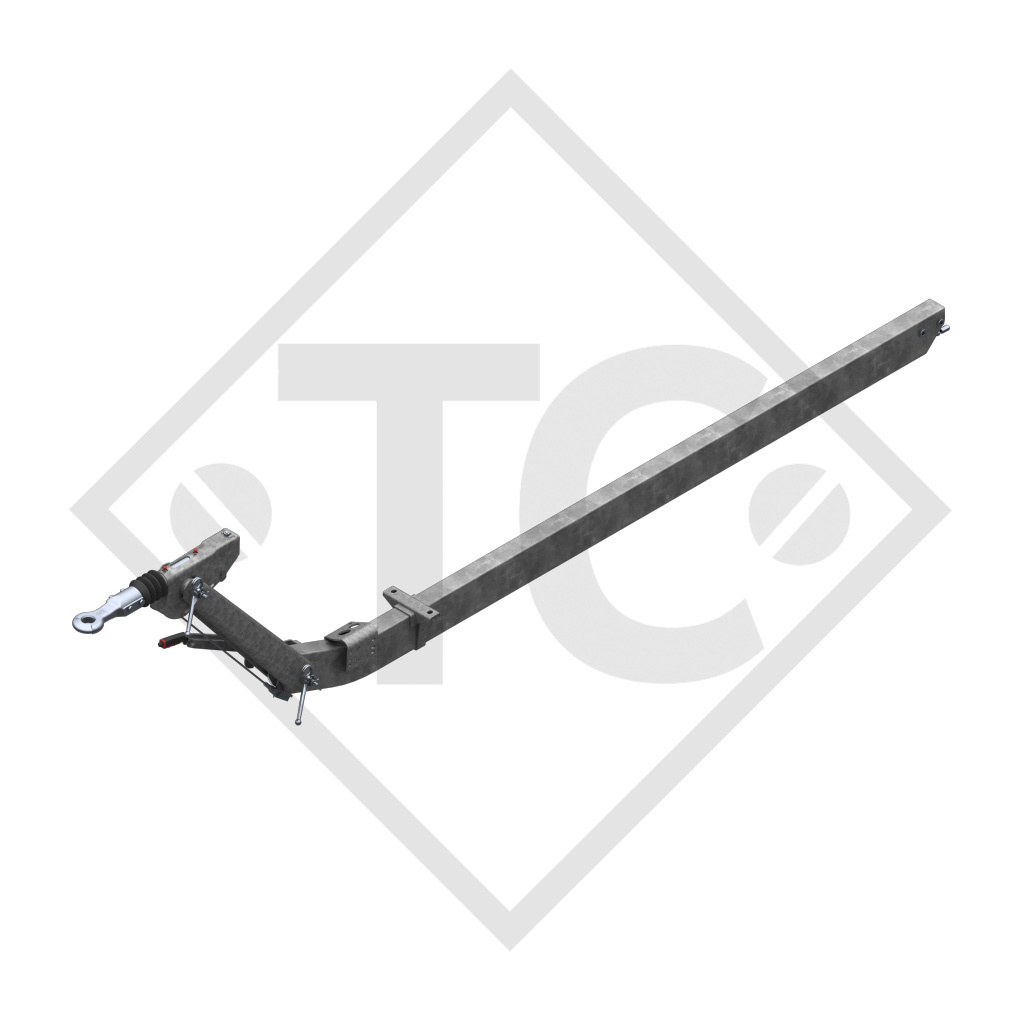

Overrun device cpl. with drawbar section mounted (without hitch components)

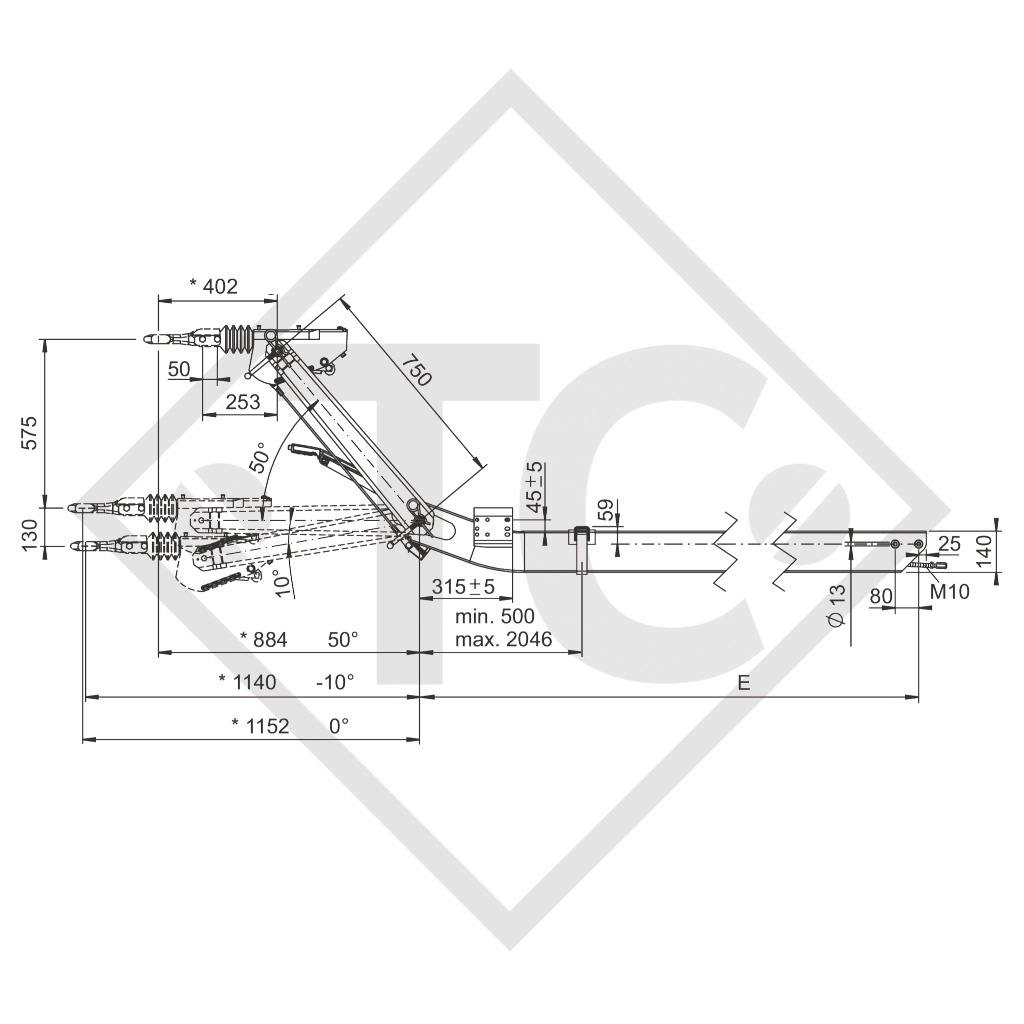

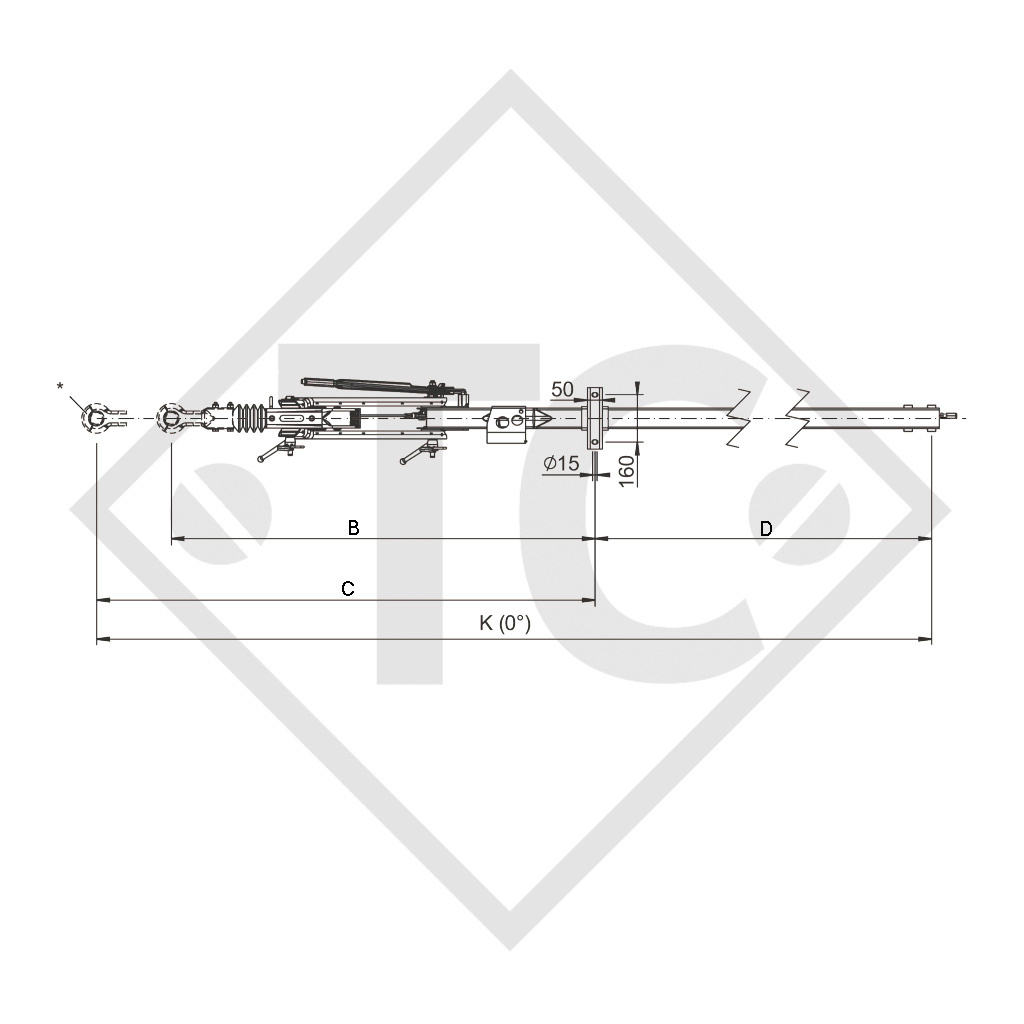

| Total length K at 0° | 3190mm |
| Drawbar length E | 2050mm |
| Intermediate piece | 750mm |
| For wheel brake | 1637 / 2051 |
* = DIN drawbar eye (the dimensions must be recalculated for other hitch components)
Original operating instructions
Replacement part identification number (ETI) 811930
TECHNOLOGY
Type overrun device 101 VB COMPACT
Intermediate piece with drawbar section 102 VB Compact
Permissible nose load 100kg
ECE test report no.:
Overrun device: 361-0127-97
ECE type approval no.:
Drawbar installation: E1 55R-01 0211
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
