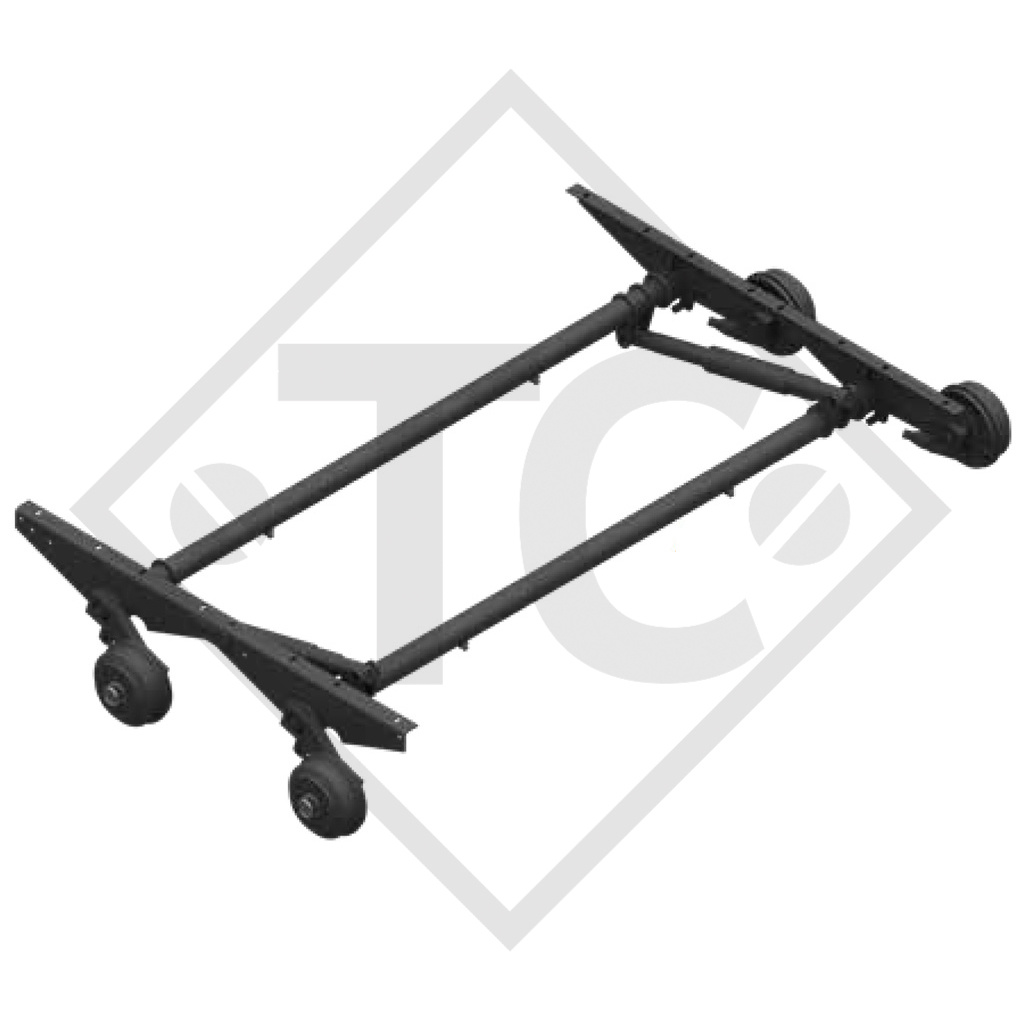

Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 4024833 Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 4024833
Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 4024833
Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 4024833

BPW Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 4024833

Home / Lowering axles down to 281mm, axle type RONDO DB 2/1805, tandem 3600kg, 4024833

BC: dimension AM 1900mm, OHF: dimension FL 2425mm, wheel connection 112x5, wheel brake type S 2504-7 RASK, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 4024833
Part no. NEW 4024834 or 4024838

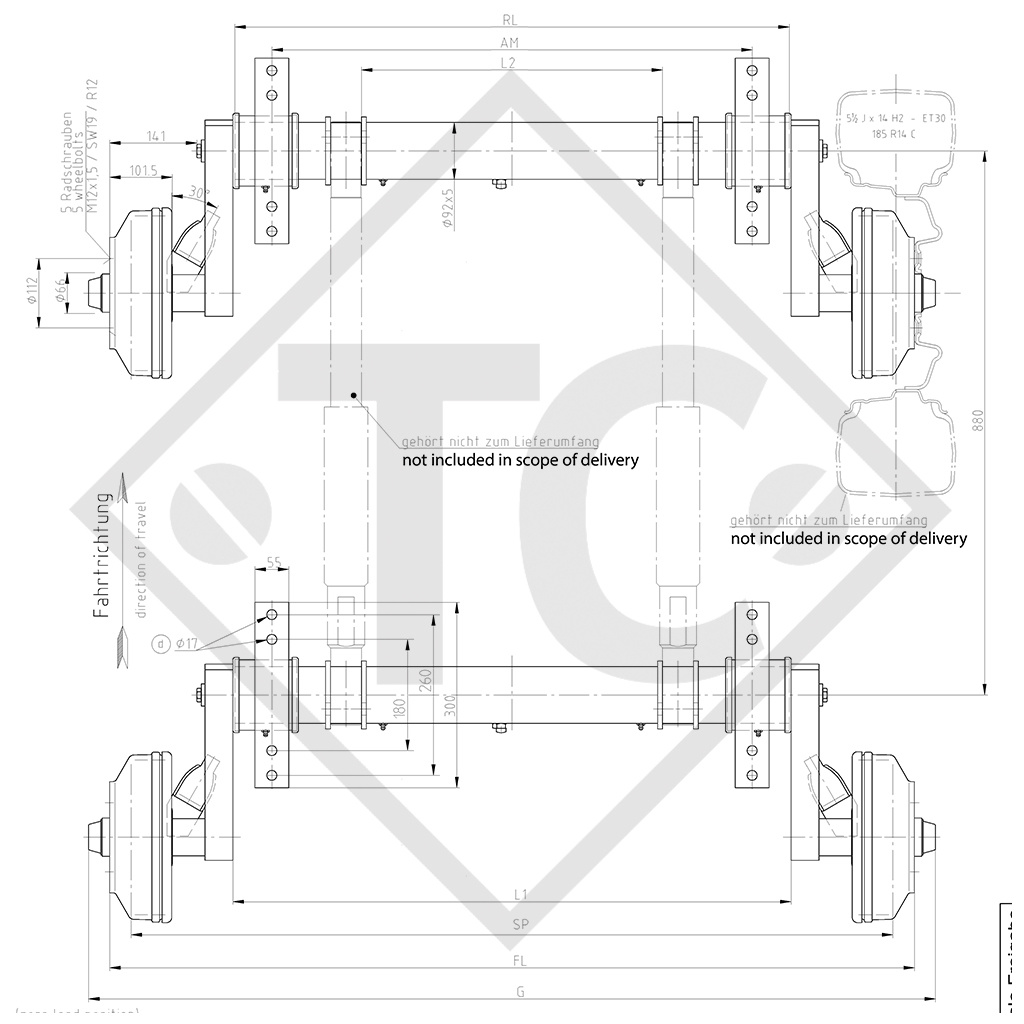

Dimension FL
 2425mm
Dimension SP
 2355mm
Dimension AM
 1900mm
Dimension L1 / L2
 2026mm / 1590mm
Dimension G 2505mm
Model RONDO
Axle type DB1805
Axle load single axle 1800kg
Axle load: Tandem axel 3600kg
Wheel brake S 2504-7 RASK
Suspension Square rubber suspension
RONDO arm 230mm
Wheel connection 112x5
Wheel bearing Tapered roller bearing
Centre hole rim min. 66mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.368.XXX
Replacement part identification number (ETI) NEW 827080

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Ball-head wheel bolts M12x1.5 loose

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Incl. shock absorber bracket
  • Tapered roller bearing
