Home / Landing gear □110mm square, three-stage, double speed, type KRA 750FL, with flange, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 420mm, maxi. static load 10000kg, dimension B 700mm, dimension C 420mm, dimension D 820mm, dimension E 250mm, dimension G 250mm, dimension H 300mm, dimension I 275mm. Read more...
| Outer tube |
□110mm square |
| Screw stroke (extended length) | 420mm |
| Maxi. static load | 10000kg |

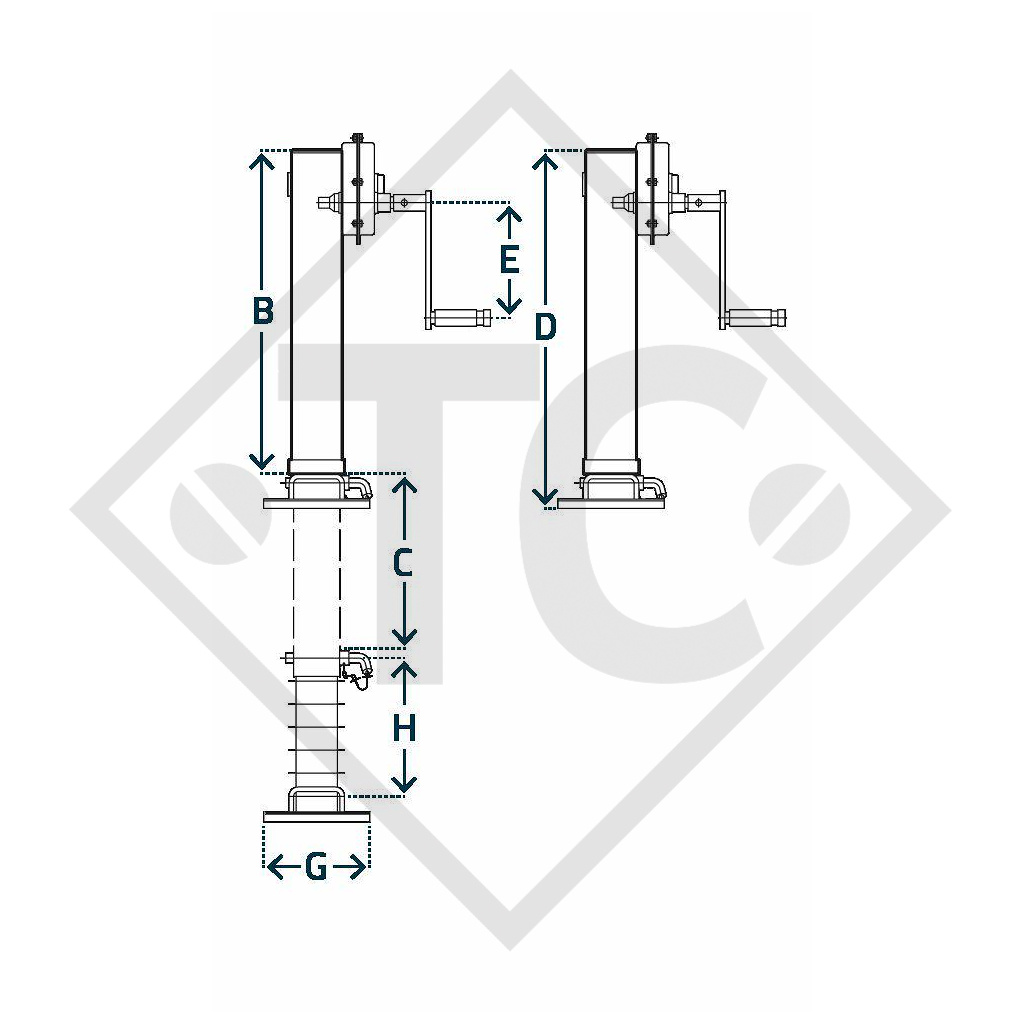

| Dimension B |
700mm |
| Dimension C | 420mm |
| Dimension D |
820mm |
| Dimension E |
250mm |
| Dimension G |
250mm |
| Dimension H | 300mm |
| Dimension I | 275mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
