Home / Landing gear □110mm square, three-stage, double speed, type KRA 750FL/N, with flange, cataphoretically coated, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow

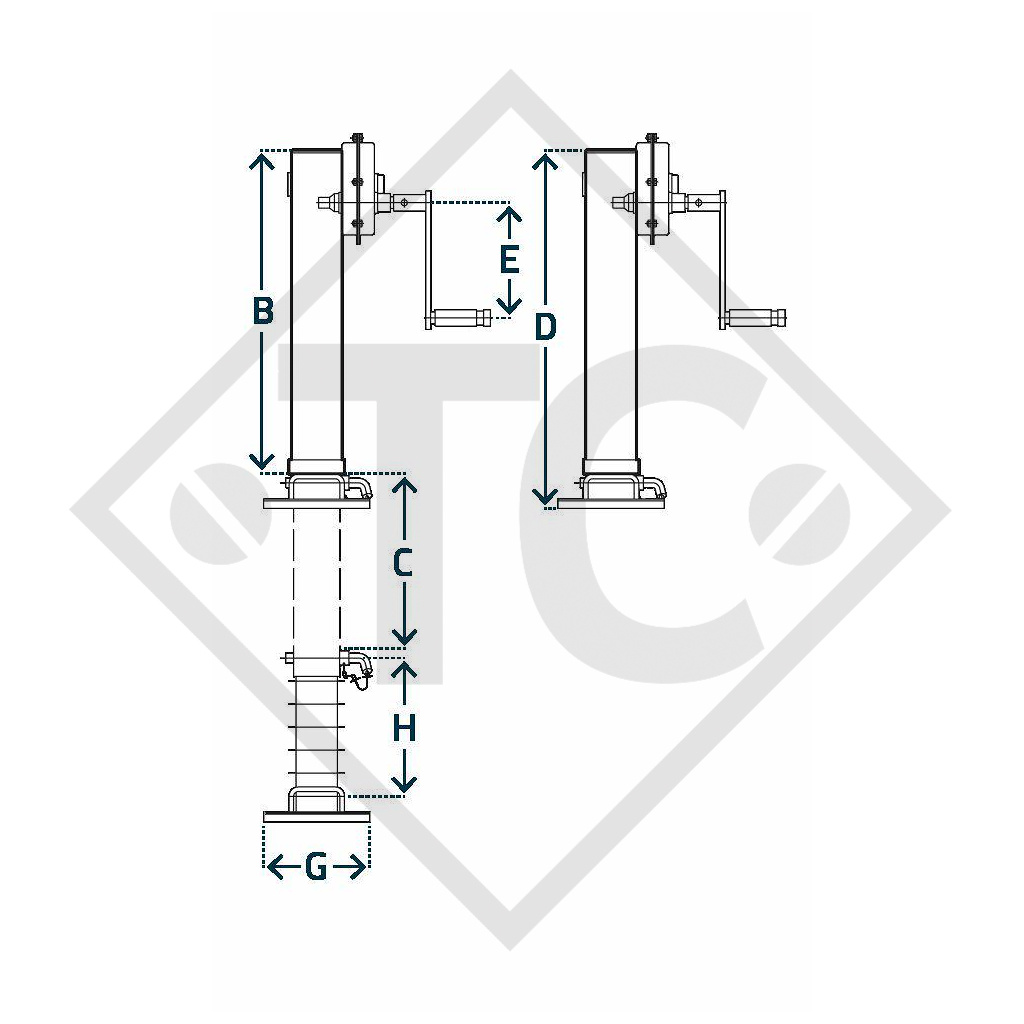

screw stroke (extended length) 420mm, maxi. static load 10000kg, dimension B 700mm, dimension C 420mm, dimension D 820mm, dimension E 250mm, dimension G 250mm, dimension H 300mm, dimension I 275mm. Read more...
| Outer tube |
□110mm square |
| Screw stroke (extended length) | 420mm |
| Maxi. static load | 10000kg |
| Dimension B |
700mm |
| Dimension C | 420mm |
| Dimension D |
820mm |
| Dimension E |
250mm |
| Dimension G |
250mm |
| Dimension H | 300mm |
| Dimension I | 275mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
