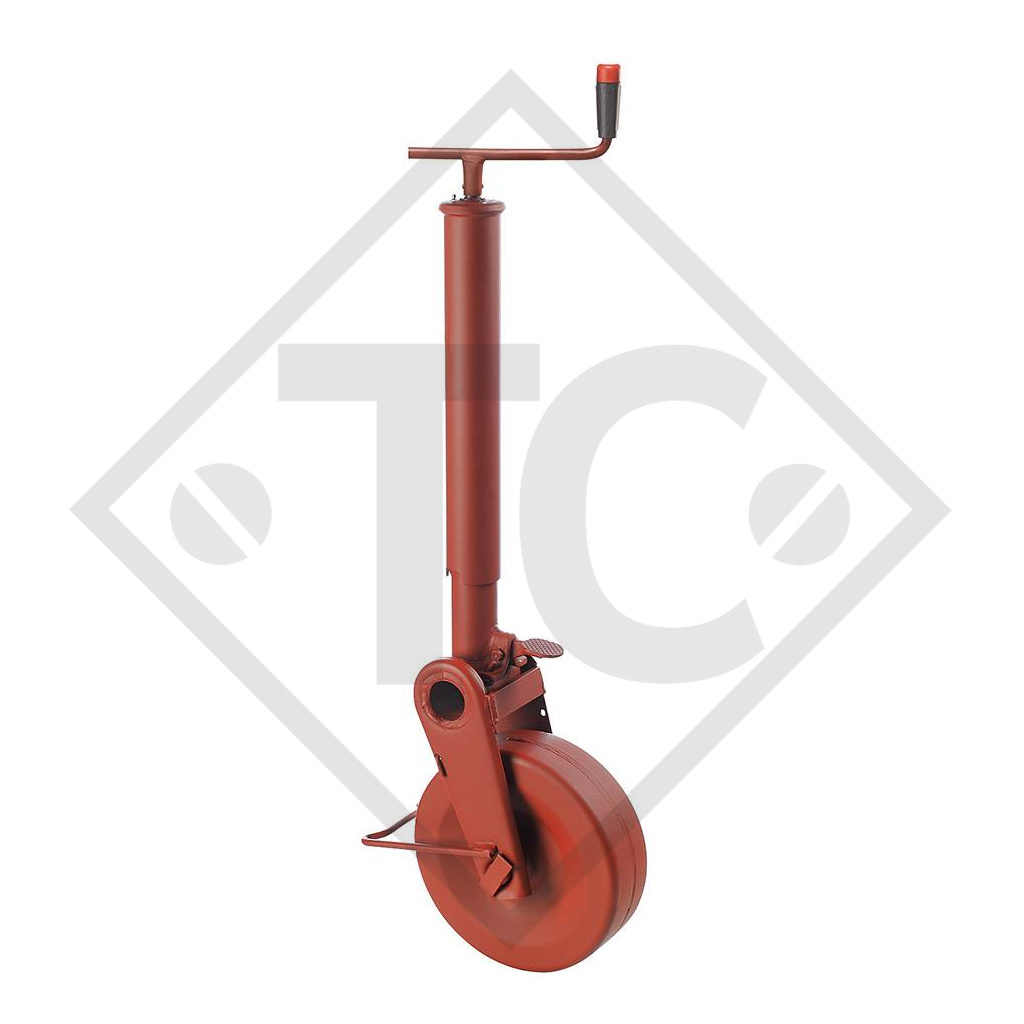

Home / Jockey wheel ø70mm round with semi-automatic support shoe, top crank, type M 310, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 240mm, rim steel, wheel 280x65mm solid rubber, maxi. static load 1200kg, dimension A 420mm, dimension B 465mm, dimension D 1050mm, dimension E 185mm. Read more...
| Outer tube |
ø70mm |
| Screw stroke (extended length) | 240mm |
| Rubber wheel | 280x65mm |
| Maxi. static load | 1200kg |

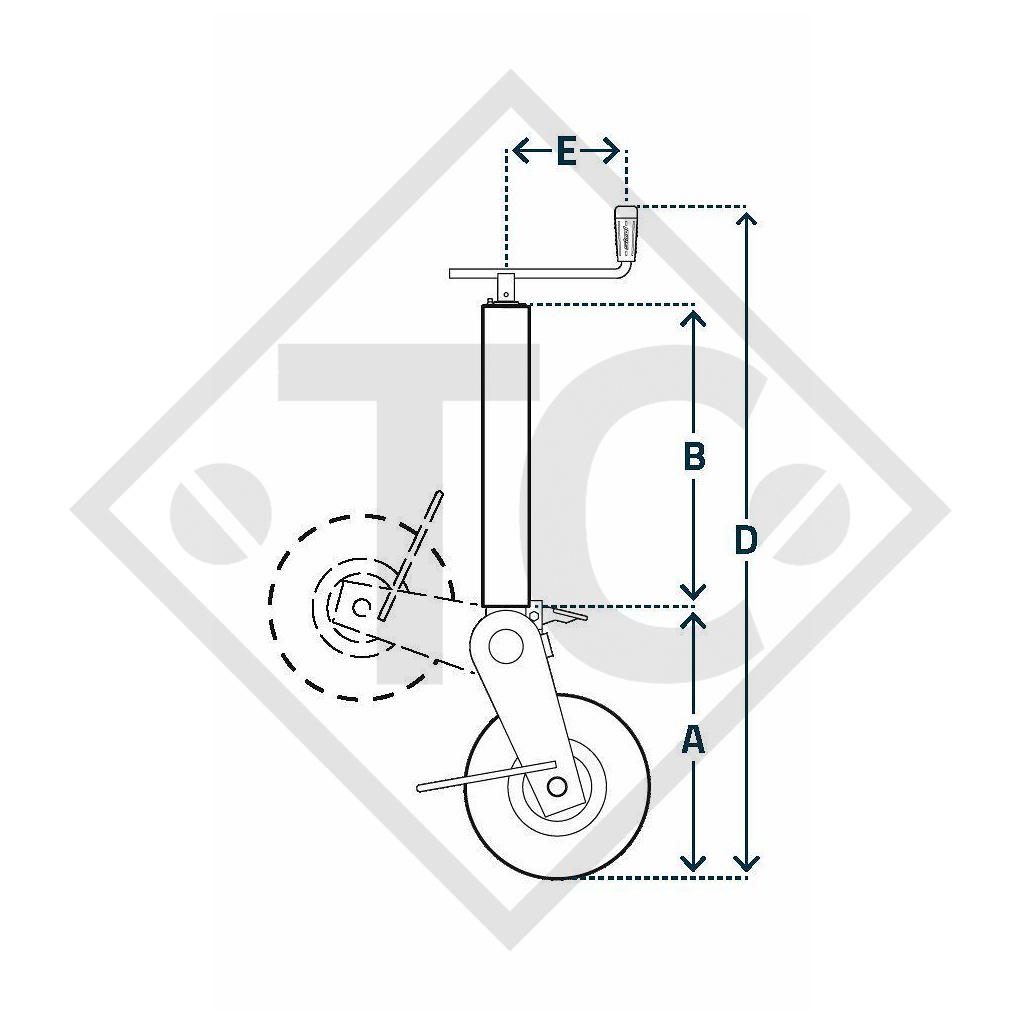

| Dimension A |
420mm |
| Dimension B |
465mm |
| Dimension D |
1050mm |
| Dimension E |
185mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
