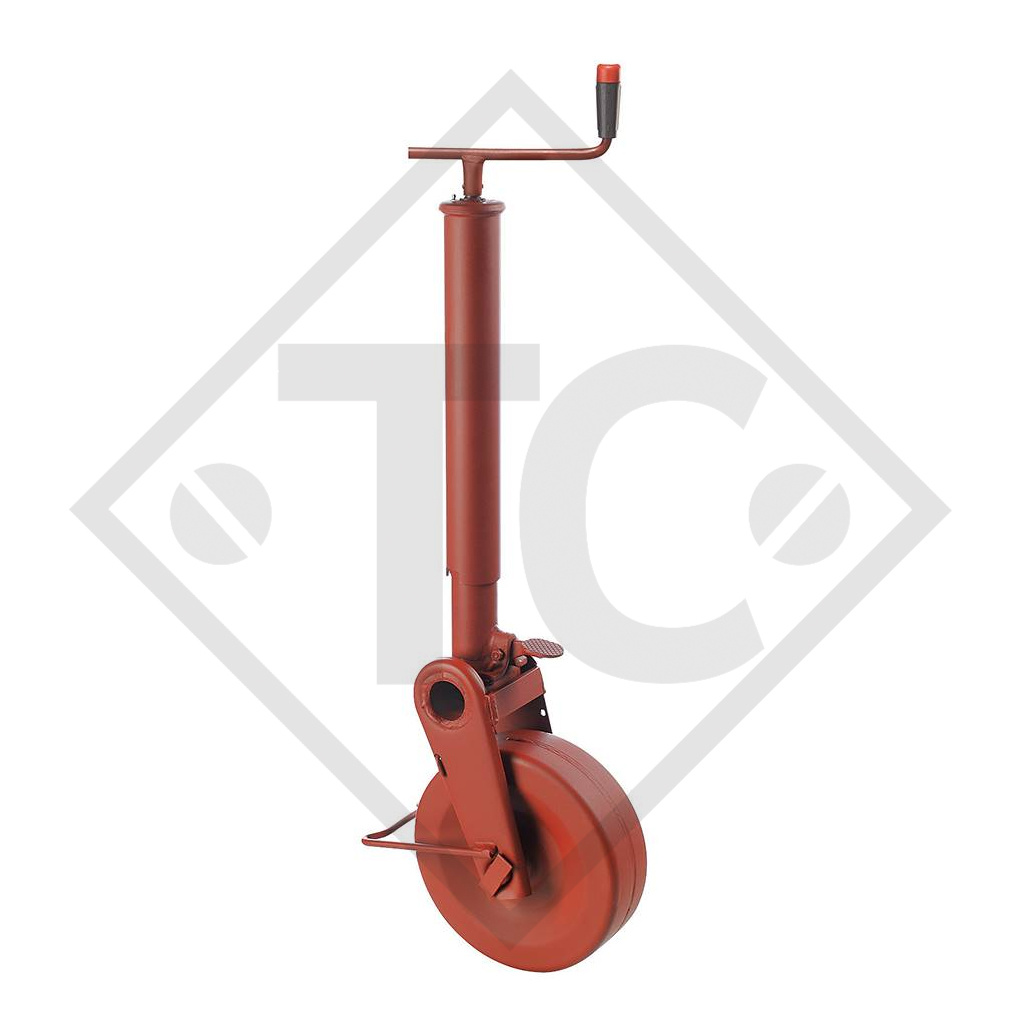

Home / Jockey wheel ø70mm round with semi-automatic support shoe, top crank, type M 300, for agricultural machines and trailers, machines for building industry, implements for road maintenance and snow
screw stroke (extended length) 240mm, rim steel, wheel 280x80mm steel plate, maxi. static load 1500kg, dimension A 420mm, dimension B 465mm, dimension D 1050mm, dimension E 185mm. Read more...
| Outer tube |
ø70mm |
| Screw stroke (extended length) | 240mm |
| Steel wheel | 280x80mm |
| Maxi. static load | 1500kg |

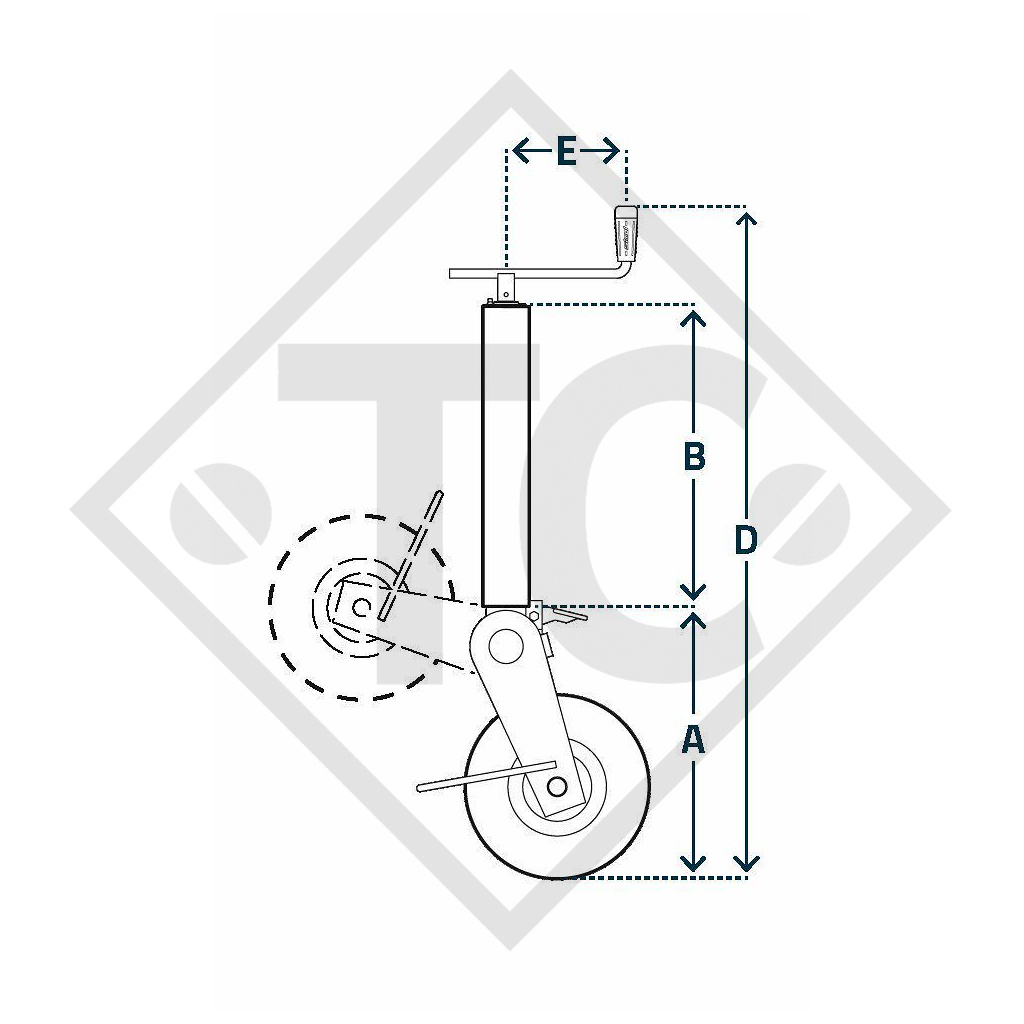

| Dimension A |
420mm |
| Dimension B |
465mm |
| Dimension D |
1050mm |
| Dimension E |
185mm |
Here, you can find the catalogue page(s) as a convenient PDF download.
