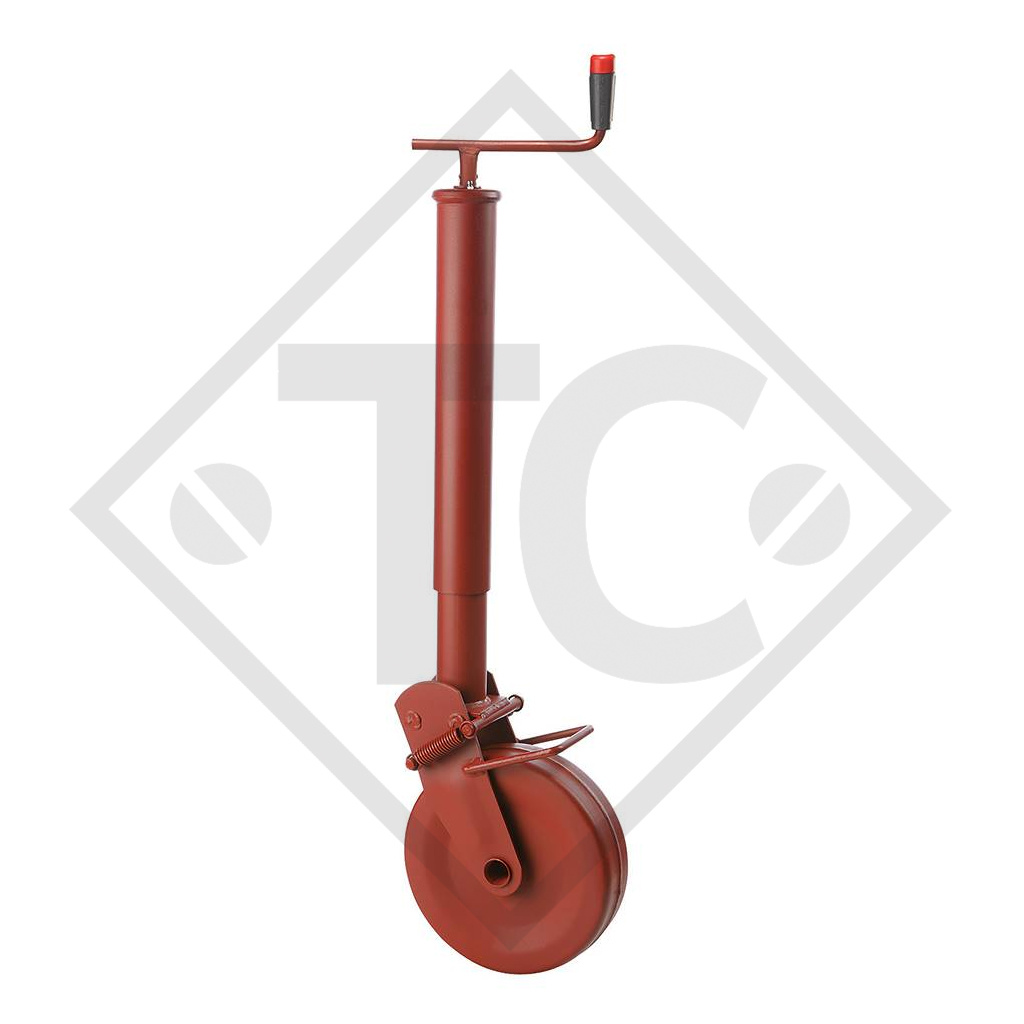

screw stroke (extended length) 300mm, rim steel, wheel 310x90mm steel plate, maxi. static load 1100kg, dimension A 375mm, dimension B 460mm, dimension D 995mm, dimension E 185mm. Read more...

Wishlist: Add to comparison:
Price 179,90 EUR Incl. tax Excl. Shipping costs
Outer tube
ø70mm
Screw stroke (extended length) 300mm
Steel wheel 310x90mm
Maxi. static load 1100kg

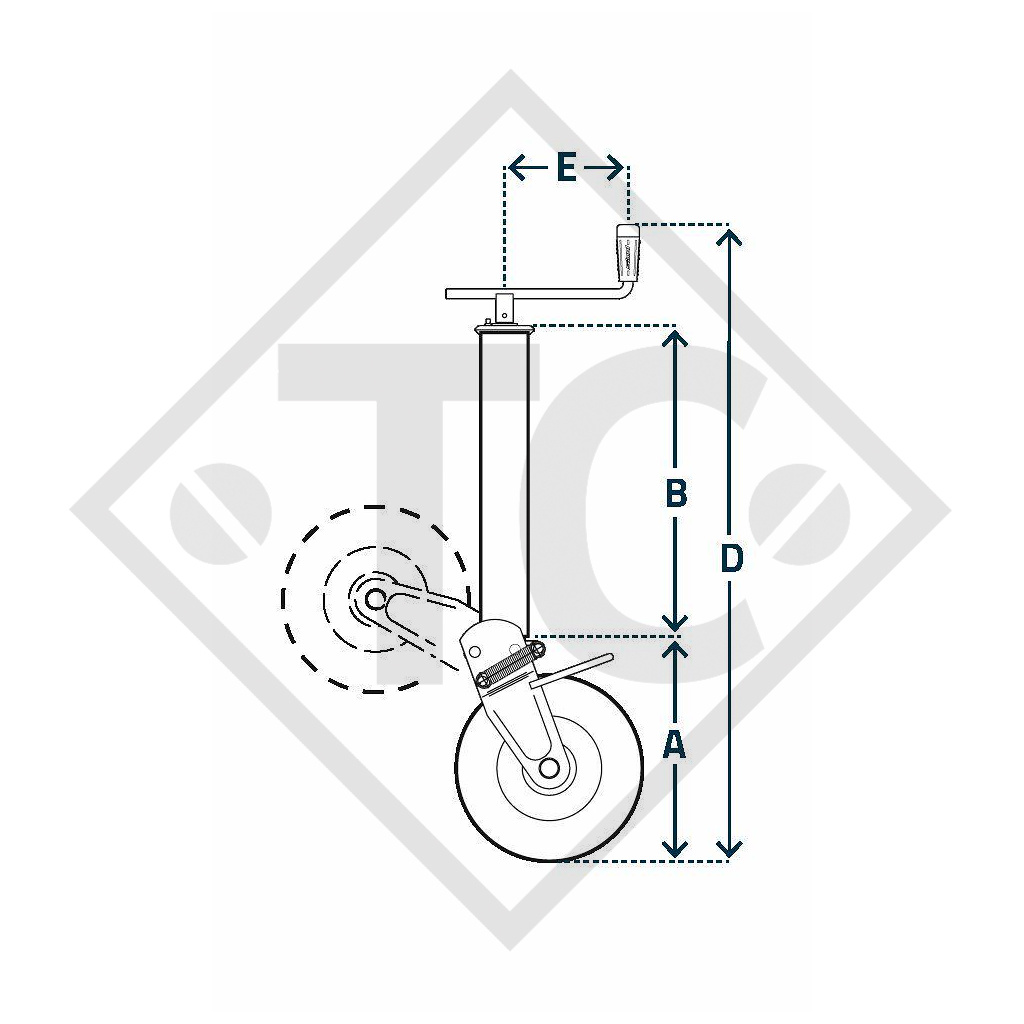

Dimension A
375mm
Dimension B
460mm
Dimension D
995mm
Dimension E
185mm



Here, you can find the catalogue page(s) as a convenient PDF download.
